Page 1
52678-▲-PK
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)

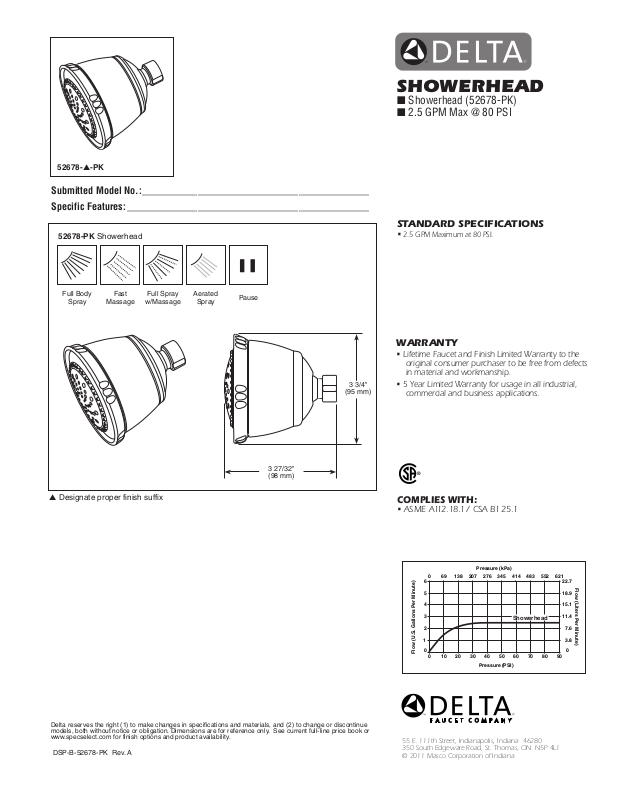

Showerhead
®
Submitted Model No.: _____________________________________________
Specific Features: ________________________________________________
52678-PK Showerhead
showerhead
■ Showerhead (52678-PK)
■ 2.5 GPM Max @ 80 PSI
Standard SpecificationS
•
2.5 GPM Maximum at 80 PSI.
Full Body
Spray
Fast
Massage
Full Spray
w/Massage
▲ Designate proper finish suffix
Aerated
Spray
Pause
3 27/32"
(98 mm)
3 3/4"
(95 mm)
Warranty
• Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from defects
in material and workmanship.
• 5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
coMpLieS WitH:
•
ASME A112.18.1 / CSA B125.1
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-B-52678-PK Rev. A
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2011 Masco Corporation of Indiana
