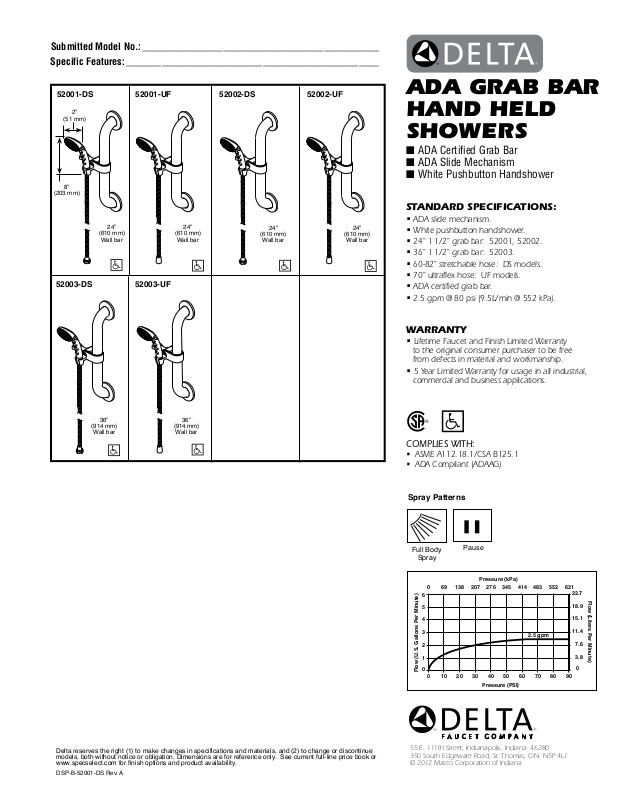

Page 1
Submitted Model No.: _______________________________________________
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
2.5 gpm
®
Specific Features: __________________________________________________
52001-DS
2”
(51 mm)
8”
(203 mm)
52003-DS
24”
(610 mm)
Wall bar
52001-UF
52003-UF
24”
(610 mm)
Wall bar
52002-DS 52002-UF
24”
(610 mm)
Wall bar
24”
(610 mm)
Wall bar
ADA grAb bAr
hAnD helD
showers
n ADA Certified Grab Bar
n ADA Slide Mechanism
n White Pushbutton Handshower
STANDARD SPECIFICATIONS:
•
ADA slide mechanism.
•
White pushbutton handshower.
•
24" 1 1/2" grab bar: 52001, 52002.
•
36" 1 1/2" grab bar: 52003.
•
60-82" stretchable hose: DS models.
•
70" ultraflex hose: UF models.
•
ADA certified grab bar.
•
2.5 gpm @ 80 psi (9.5L/min @ 552 kPa).
WARRANTy
•
Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
36”
(914 mm)
Wall bar
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-B-52001-DS Rev. A
36”
(914 mm)
Wall bar
COMPLIES WITH:
• ASME A112.18.1/CSA B125.1
• ADA Compliant (ADAAG)
Spray Patterns
Full Body
Spray
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2012 Masco Corporation of Indiana
Pause
