Submitted Model No.: _______________________________________________
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
2.5 gpm
®
Specific Features: __________________________________________________
51501-WH
2”
(51 mm)
51502-WH
51521-WH

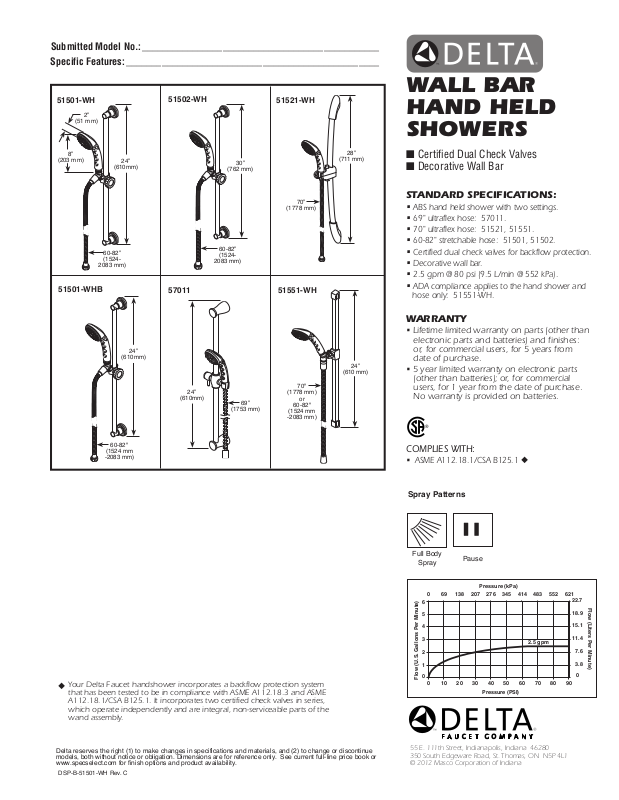

WALL BAR
HAND HELD
SHOWERS
8”
(203 mm)
51501-WHB
(610mm)
60-82”
(1524-
2083 mm)
60-82"
(1524 mm
-2083 mm)
24”
24”
(610mm)
57011
(610mm)
24”
(762 mm)
60-82”
(1524-
2083 mm)
(1753 mm)
30”
69”
70”
(1778 mm)
51551-WH
70"
(1778 mm)
or
60-82"
(1524 mm
-2083 mm)
28”
(711 mm)
24”
(610 mm)
n Certified Dual Check Valves
n Decorative Wall Bar
STANDARD SPECIFICATIONS:
•
ABS hand held shower with two settings.
•
69" ultraflex hose: 57011.
•
70" ultraflex hose: 51521, 51551.
•
60-82" stretchable hose: 51501, 51502.
•
Certified dual check valves for backflow protection.
•
Decorative wall bar.
•
2.5 gpm @ 80 psi (9.5 L/min @ 552 kPa).
•
ADA compliance applies to the hand shower and
hose only: 51551-WH.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
• ASME A112.18.1/CSA B125.1
u
Your Delta Faucet handshower incorporates a backflow protection system
u
that has been tested to be in compliance with ASME A112.18.3 and ASME
A112.18.1/CSA B125.1. It incorporates two certified check valves in series,
which operate independently and are integral, non-serviceable parts of the
wand assembly.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-B-51501-WH Rev. C
Spray Patterns
Full Body
Spray
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2012 Masco Corporation of Indiana
