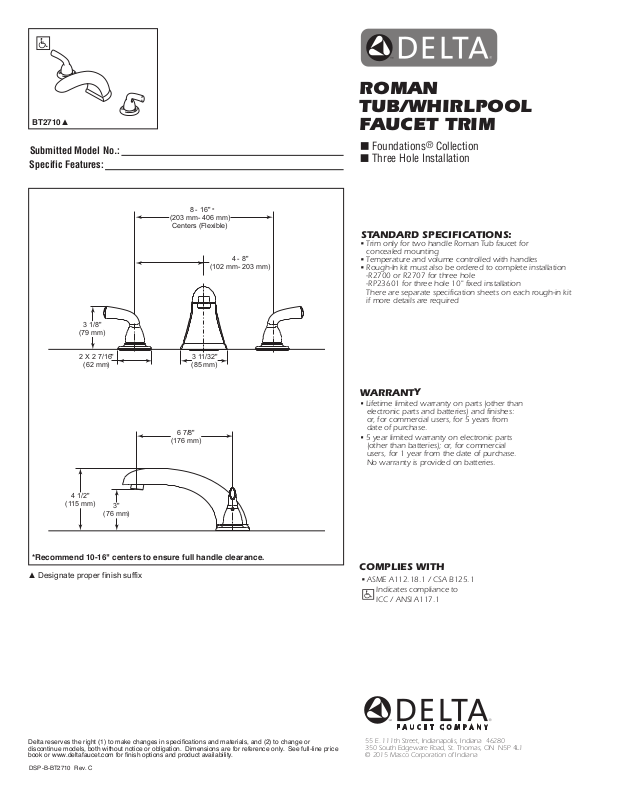

BT2710▲
ROMAN
TUB/WHIRLPOOL
FAUCET TRIM
Submitted Model No.:
Specific Features:
3 1/8"
(79 mm)
2 X 2 7/16"
(62 mm)
8 - 16"
(203 mm- 406 mm)
Centers (Flexible)
6 7/8"
(176 mm)
*
(102 mm- 203 mm)
3 11/32"
(85 mm)
4 - 8"
Foundations® Collection
Three Hole Installation
STANDARD SPECIFICATIONS:
• Trim only for two handle Roman Tub faucet for
concealed mounting
• Temperature and volume controlled with handles
• Rough-In kit must also be ordered to complete installation
-R2700 or R2707 for three hole
-RP23601 for three hole 10" fixed installation
There are separate specification sheets on each rough-in kit
if more details are required
WARRANT
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
Y
4 1/2"
(115 mm)
*Recommend 10-16" centers to ensure full handle clearance.
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or
discontinue models, both without notice or obligation. Dimensions are for reference only. See full-line price
book or www.deltafaucet.com for finish options and product availability.
DSP-B-BT2710 Rev. C
3"
(76 mm)
COMPLIES WITH
• ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC / ANSI A117.1
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
