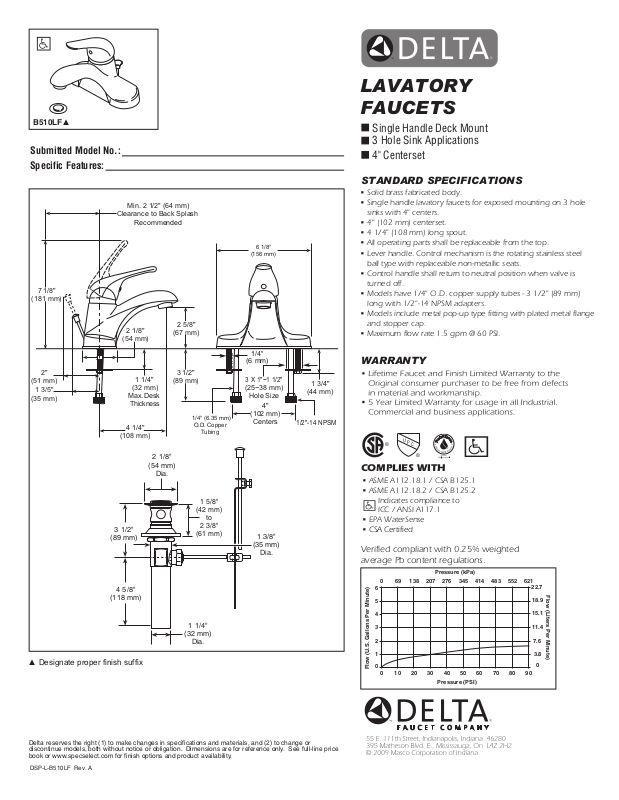

B510LF▲
Submitted Model No.:
Specific Features:
Min. 2 1/2" (64 mm)
Clearance to Back Splash
7 1/8"
(181 mm)
2 1/8"
(54 mm)
2"
(51 mm)
1 3/5"
(35 mm)
▲ Designate proper finish suffix
(32 mm)
Max. Desk
Thickness
4 1/4"
(108 mm)
3 1/2"
(89 mm)
4 5/8"
(118 mm)
Recommended
(67 mm)
1 1/4"
(89 mm)
2 1/8"
(54 mm)
Dia.
2 5/8"
3 1/2"
1 1/4"
(32 mm)
1/4" (6.35 mm)
O.D. Copper
Tubing
1 5/8"
(42 mm)
to
2 3/8"
(61 mm)
Dia.
6 1/8"
(156 mm)
1/4"
(6 mm)
3 X 1"~1 1/2"
(25~38 mm)
Hole Size
4"
(102 mm)
Centers
1 3/8"
(35 mm)
Dia.
1 3/4"
(44 mm)
1/2"-14 NPSM
LAVATORY
FAUCETS
Single Handle Deck Mount
3 Hole Sink Applications
4" Centerset
STANDARD SPECIFICATIONS
• Solid brass fabricated body.
• Single handle lavatory faucets for exposed mounting on 3 hole
sinks with 4" centers.
• 4" (102 mm) centerset.
• 4 1/4" (108 mm) long spout.
• All operating parts shall be replaceable from the top.
• Lever handle. Control mechanism is the rotating stainless steel
ball type with replaceable non-metallic seats.
• Control handle shall return to neutral position when valve is
turned off.
• Models have 1/4" O.D. copper supply tubes - 3 1/2" (89 mm)
long with 1/2"-14 NPSM adapters.
• Models include metal pop-up type fitting with plated metal flange
and stopper cap.
• Maximum flow rate 1.5 gpm @ 60 PSI.
WARRANTY
U
P
C
®
®
COMPLIES WITH
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC / ANSI A117.1
• EPA WaterSense
• CSA Certified
Verified compliant with 0.25% weighted
average Pb content regulations.
0 69 138 207 276 345 414 483 552 621
6
e)
nut
5
Mi
er
4
P
3
ons
all
G
2
(U.S.
1
w
0
Flo
0 10 20 30 40 50 60 70 80 90
Pressure (kPa)
Pressure (PSI)
22.7
18.9
15.1
11.4
7.6
3.8
F
l
o
w
(
L
i
t
er
s
P
e
r
M
i
n
u
t
e
)
0
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or
discontinue models, both without notice or obligation. Dimensions are for reference only. See full-line price
book or www.specselect.com for finish options and product availability.
DSP-L-B510LF Rev. A
