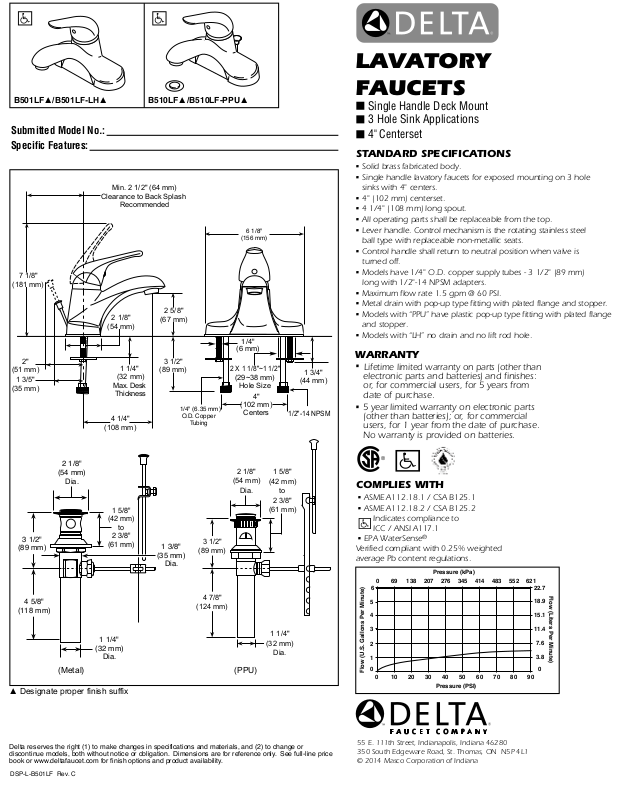

LAVATORY
Submitted Model No.:
Specific Features:
7 1/8"
(181 mm)
2"
(51 mm)
1 3/5"
(35 mm)
B510LF▲/B510LF-PPU▲B501LF▲/B501LF-LH▲
Min. 2 1/2" (64 mm)
Clearance to Back Splash
Recommended
2 1/8"
(54 mm)
1 1/4"
(32 mm)
Max. Desk
Thickness
4 1/4"
(108 mm)
2 5/8"
(67 mm)
3 1/2"
(89 mm)
1/4" (6.35 mm)
O.D. Copper
Tubing
6 1/8"
(156 mm)
1/4"
(6 mm)
2 X 1 1/8"~1 1/2"
(29~38 mm)
Hole Size
4"
(102 mm)
Centers
1 3/4"
(44 mm)
1/2"-14 NPSM
FAUCETS
Single Handle Deck Mount
3 Hole Sink Applications
4" Centerset
STANDARD SPECIFICATIONS
• Solid brass fabricated body.
• Single handle lavatory faucets for exposed mounting on 3 hole
sinks with 4" centers.
• 4" (102 mm) centerset.
• 4 1/4" (108 mm) long spout.
• All operating parts shall be replaceable from the top.
• Lever handle. Control mechanism is the rotating stainless steel
ball type with replaceable non-metallic seats.
• Control handle shall return to neutral position when valve is
turned off.
• Models have 1/4" O.D. copper supply tubes - 3 1/2" (89 mm)
long with 1/2"-14 NPSM adapters.
• Maximum flow rate 1.5 gpm @ 60 PSI.
• Metal drain with pop-up type fitting with plated flange and stopper.
• Models with “PPU” have plastic pop-up type fitting with plated flange
and stopper.
• Models with “LH” no drain and no lift rod hole.
WARRANTY
•
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
naht rehto( strap no ytnarraw detimil emitefiL
3 1/2"
(89 mm)
4 5/8"
(118 mm)
2 1/8"
(54 mm)
Dia.
(Metal)
1 5/8"
(42 mm)
2 3/8"
(61 mm)
1 1/4"
(32 mm)
Dia.
to
1 3/8"
(35 mm)
Dia.
3 1/2"
(89 mm)
4 7/8"
(124 mm)
2 1/8"
(54 mm)
Dia.
(PPU)
1 5/8"
(42 mm)
to
2 3/8"
(61 mm)
1 1/4"
(32 mm)
Dia.
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or
discontinue models, both without notice or obligation. Dimensions are for reference only. See full-line price
book or www.deltafaucet.com for finish options and product availability.
DSP-L-B501LF Rev. C
®
COMPLIES WITH
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC / ANSI A117.1
• EPA WaterSense
Verified compliant with 0.25% weighted
average Pb content regulations.
0 69 138 207 276 345 414 483 552 621
6
5
4
3
2
1
0
Flow (U.S. Gallons Per Minute)
0 10 20 30 40 50 60 70 80 90
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2014 Masco Corporation of Indiana
®
Pressure (kPa)
Pressure (PSI)
22.7
18.9
15.1
11.4
7.6
3.8
Flow (
L
iters
Per
M
inute)
0
