Page 1
bar/prep
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
®
®
U
P
C
FaUCeTS

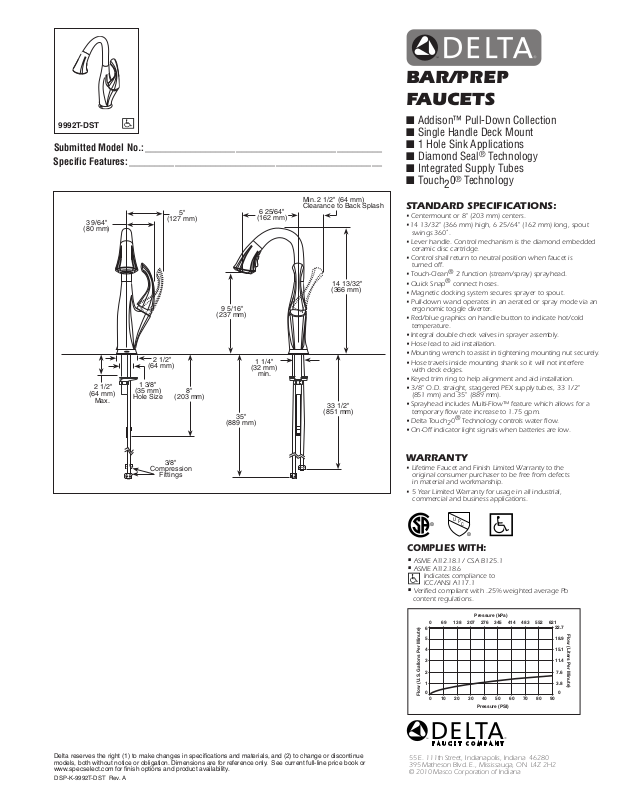

9992T-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________

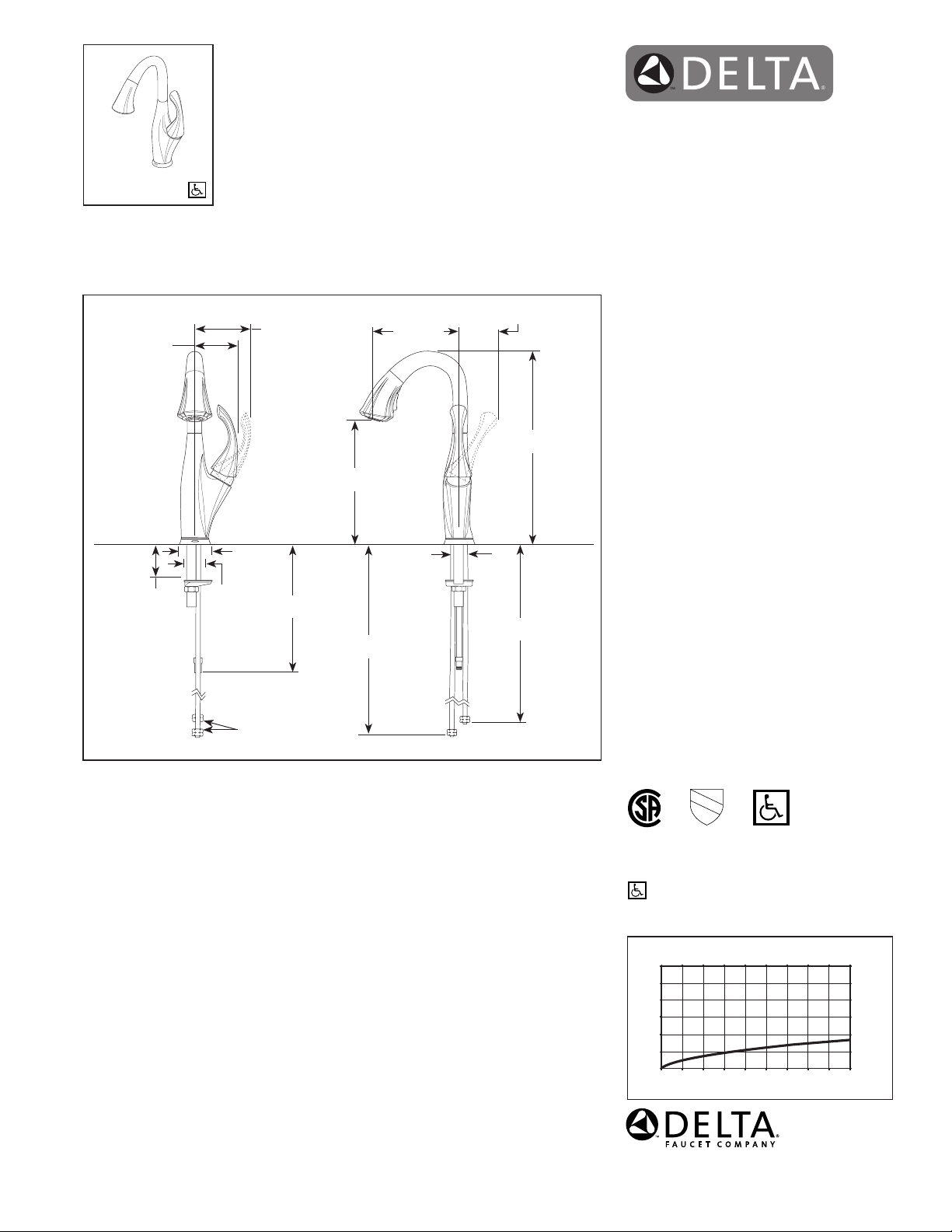

Min. 2 1/2" (64 mm)
Clearance to Back Splash
14 13/32"
(366 mm)
33 1/2"
(851 mm)
3 9/64"
(80 mm)
2 1/2"
(64 mm)
Max.
2 1/2"
(64 mm)
1 3/8"
(35 mm)
Hole Size
5"
(127 mm)
8"
(203 mm)
9 5/16"
(237 mm)
35"
(889 mm)
6 25/64"
(162 mm)
1 1/4"
(32 mm)
min.
■ Addison™ Pull-Down Collection
■ Single Handle Deck Mount
■ 1 Hole Sink Applications
■ Diamond Seal® Technology
■ Integrated Supply Tubes
■ Touch20® Technology
STANDARD SPECIFICATIONS:
•
Centermount or 8" (203 mm) centers.
•
14 13/32" (366 mm) high, 6 25/64" (162 mm) long, spout
swings 360˚.
•
Lever handle. Control mechanism is the diamond embedded
ceramic disc cartridge.
•
Control shall return to neutral position when faucet is
turned off.
•
Touch-Clean® 2 function (stream/spray) sprayhead.
•
Quick Snap
•
Magnetic docking system secures sprayer to spout.
•
Pull-down wand operates in an aerated or spray mode via an
ergonomic toggle diverter.
•
Red/blue graphics on handle button to indicate hot/cold
temperature.
• Integral double check valves in sprayer assembly.
• Hose lead to aid installation.
• Mounting wrench to assist in tightening mounting nut securely.
• Hose travels inside mounting shank so it will not interfere
with deck edges.
• Keyed trim ring to help alignment and aid installation.
• 3/8" O.D. straight, staggered PEX supply tubes, 33 1/2"
(851 mm) and 35" (889 mm).
• Sprayhead includes Multi-Flow™ feature which allows for a
temporary flow rate increase to 1.75 gpm.
• Delta Touch20® Technology controls water flow.
• On-Off indicator light signals when batteries are low.
®
connect hoses.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-K-9992T-DST Rev. A
3/8"
Compression
Fittings
WARRANTy
•
Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from defects
in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
•
Verified compliant with .25% weighted average Pb
content regulations.
55 E. 111th Street, Indianapolis, Indiana 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2010 Masco Corporation of Indiana
