72173▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
2 3/4"
(70 mm)
1 5/8 "
(41 mm)
3"
(76 mm)
3 39/64"
(92 mm)
Dia.
2 13/32"
(61 mm)
Dia.
1 5/16"
(32 mm)
Dia.
1 7/8"
(48 mm)
Max.
1"
(25 mm)
Min.

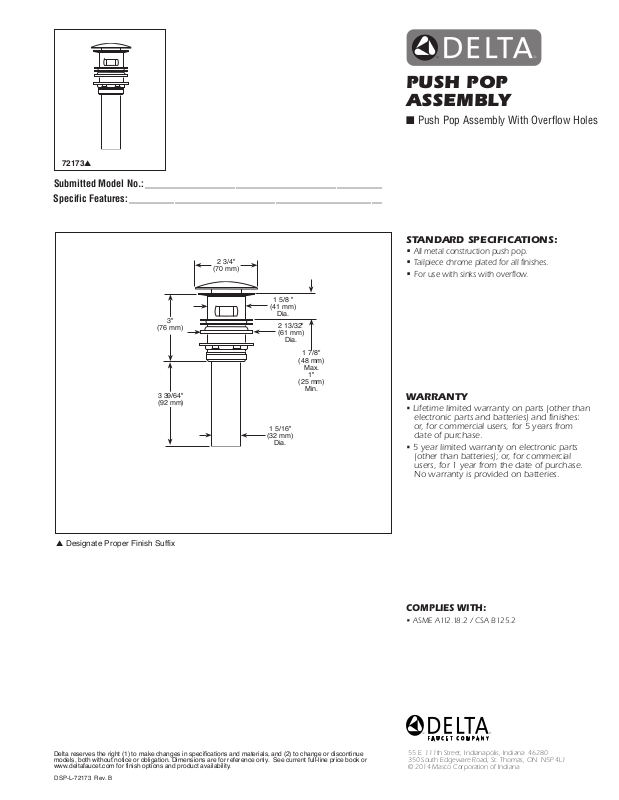

PUSH POP
ASSEMBLY
■ Push Pop Assembly With Overflow Holes
STANDARD SPECIFICATIONS:
•
All metal construction push pop.
•
Tailpiece chrome plated for all finishes.
•
For use with sinks with overflow.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-72173 Rev. B
COMPLIES WITH:
• ASME A112.18.2 / CSA B125.2
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2014 Masco Corporation of Indiana
