Submitted Model No.:
Specific Features:
57014▲ 2.5 GPM
24"
(610mm)
57085▲ 1.75 GPM
Full Body
Spray
Massage
Spray
Soft Drench
Spray
60"-82"
(1524 mm-
2083 mm)
Accepts
1/2" - 14
NPSM
Male
Full Body
Spray
57021▲ 1.75 GPM
24"
(610mm)
Accepts
1/2" - 14
NPSM
Male
55013▲ 1.75 GPM
Full Body
Spray
Massage
Spray
Soft Drench
Spray
60"-82"
(1524 mm-
2083 mm)
Full Body
Spray
2 1/4"
(57 mm)
57051▲ 1.75 GPM
Full Body
Spray
(654 mm)
60"-82"
(1524 mm-
2083 mm)
Accepts
1/2" - 14
NPSM
Male
55020▲ 1.75 GPM
25 3/4"
Full Body
2 1/4"
(57 mm)
Spray

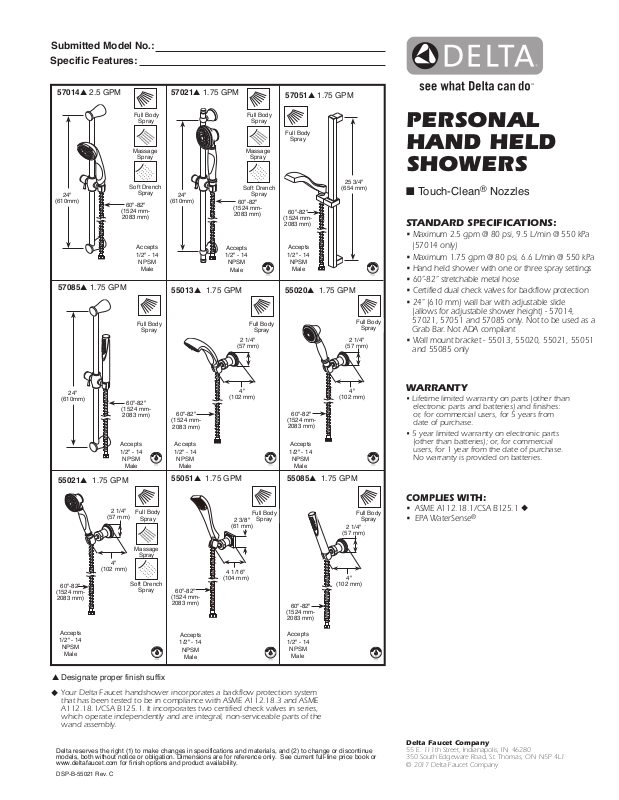

PERSONAL
HAND HELD
SHOWERS
n Touch-Clean® Nozzles
STANDARD SPECIFICATIONS:
• Maximum 2.5 gpm @ 80 psi, 9.5 L/min @ 550 kPa
(57014 only)
• Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Hand held shower with one or three spray settings
• 60”-82” stretchable metal hose
• Certified dual check valves for backflow protection
• 24” (610 mm) wall bar with adjustable slide
(allows for adjustable shower height) - 57014,
57021, 57051 and 57085 only. Not to be used as a
Grab Bar. Not ADA compliant
• Wall mount bracket - 55013, 55020, 55021, 55051
and 55085 only
24"
(610mm)
55021▲ 1.75 GPM
2 1/4"
(57 mm)
4"
(102 mm)
60"-82"
(1524 mm-
2083 mm)
Accepts
1/2" - 14
NPSM
Male
60"-82"
(1524 mm-
2083 mm)
Accepts
1/2" - 14
NPSM
Male
Full Body
Spray
Massage
Spray
Soft Drench
Spray
60"-82"
(1524 mm-
2083 mm)
Accepts
1/2" - 14
NPSM
Male
55051▲ 1.75 GPM
60"-82"
(1524 mm-
2083 mm)
Accepts
1/2" - 14
NPSM
Male
4"
(102 mm)
2 3/8"
(61 mm)
4 1/16"
(104 mm)
Full Body
Spray
60"-82"
(1524 mm-
2083 mm)
Accepts
1/2" - 14
NPSM
Male
55085▲ 1.75 GPM
60"-82"
(1524 mm-
2083 mm)
Accepts
1/2" - 14
NPSM
Male
▲ Designate proper finish suffix
Your Delta Faucet handshower incorporates a backflow protection system
u
that has been tested to be in compliance with ASME A112.18.3 and ASME
A112.18.1/CSA B125.1. It incorporates two certified check valves in series,
which operate independently and are integral, non-serviceable parts of the
wand assembly.
4"
(102 mm)
2 1/4"
(57 mm)
4"
(102 mm)
Full Body
Spray
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
• ASME A112.18.1/CSA B125.1
• EPA WaterSense
®
u
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-55021 Rev. C
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2017 Delta Faucet Company
