Page 1
®
®
U
P
C
1303
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
Showerhead
Tub Filler
1323
1343
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
C/L Supply
Lines
B
upply
3 1/2"
89 mm)
(
7"
(178 mm)
8" (203 mm)
A
Dimensions
I.P.S. or C.W.T. 2 3/8" 5/8"
I.P.S. or C.W.T. with stops 5 5/16" 3/8"
18" (457 mm)
A
min.
max.
Maximum
Allowable Deviation
Face of plasterguard
should be flush with
finish wall line
B
1/2"
(13 mm)
2"
(51 mm)
S

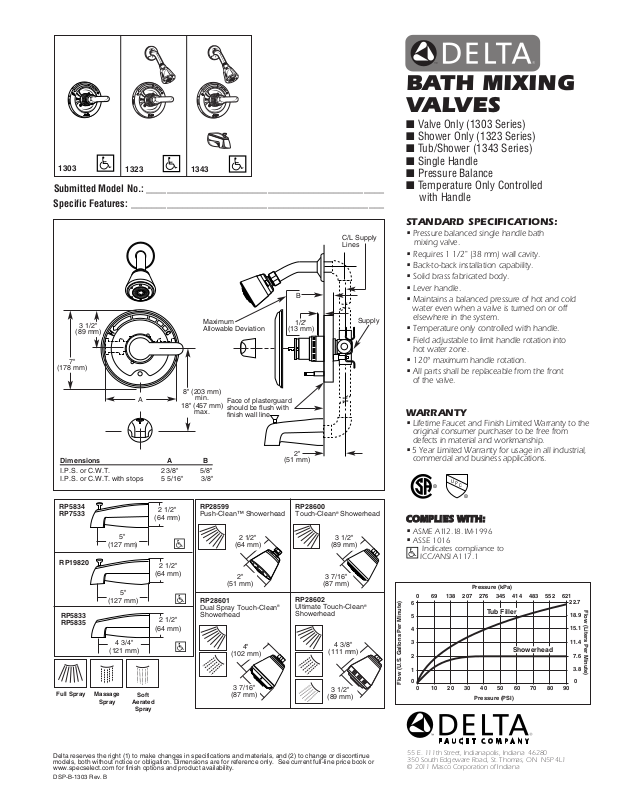

BATH MIXING
VALVES
■ Valve Only (1303 Series)
■ Shower Only (1323 Series)
■ Tub/Shower (1343 Series)
■ Single Handle
■ Pressure Balance
■ Temperature Only Controlled
with Handle
STANDARD SPECIFICATIONS:
• Pressure balanced single handle bath
mixing valve.
• Requires 1 1/2" (38 mm) wall cavity.
• Back-to-back installation capability.
• Solid brass fabricated body.
• Lever handle.
• Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
• Temperature only controlled with handle.
• Field adjustable to limit handle rotation into
hot water zone.
• 120° maximum handle rotation.
• All parts shall be replaceable from the front
of the valve.
WARRANTY
• Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from
defects in material and workmanship.
• 5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
RP5834
RP7533
5"
(127 mm)
RP19820
5"
(127 mm)
RP5833
RP5835
4 3/4"
(121 mm)
Full Spray
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-B-1303 Rev. B
Massage
Spray
Soft
Aerated
Spray
2 1/2"
(64 mm)
2 1/2"
(64 mm)
2 1/2"
(64 mm)
RP28599
Push-Clean™ Showerhead
RP28601
Dual Spray Touch-Clean
Showerhead
2 1/2"
(64 mm)
2"
(51 mm)
4"
(102 mm)
3 7/16"
(87 mm)
RP28600
Touch-Clean®Showerhead
3 1/2"
(89 mm)
3 7/16"
(87 mm)
RP28602
®
Ultimate Touch-Clean
Showerhead
4 3/8"
(111 mm)
3 1/2"
(89 mm)
CCOOMMPPLLIIEESS WWIITTHH:
•
ASME A112 .18 .1M-1996
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
®
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2011 Masco Corporation of Indiana
:
