0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
1.0 gpm
1.5 gpm
0.5 gpm
®
®
U
P
C
RP19754▲
RP53347▲
RP51345
RP54977
RP52216
RP60729
RP60983
RP63886
RP61340▲
RP53339
RP62734
RP53343▲
RP64019▲
RP53344▲
RP53346▲

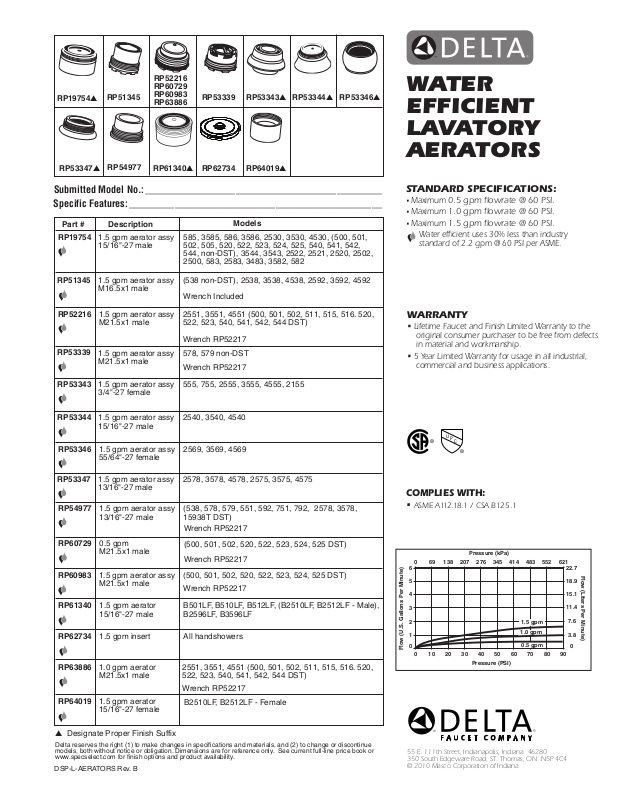

waTER
EFFICIENT
lavaToRy
aERaToRs
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Part # Description
RP19754
RP51345
RP52216
RP53339
RP53343
RP53344
RP53346
RP53347
RP54977
RP60729
RP60983
RP61340
1.5 gpm aerator assy
15/16"-27 male
1.5 gpm aerator assy
M16.5x1 male
1.5 gpm aerator assy
M21.5x1 male
1.5 gpm aerator assy
M21.5x1 male
1.5 gpm aerator assy
3/4"-27 female
1.5 gpm aerator assy
15/16"-27 male
1.5 gpm aerator assy
55/64"-27 female
1.5 gpm aerator assy
13/16"-27 male
1.5 gpm aerator assy
13/16"-27 male
0.5 gpm
M21.5x1 male
1.5 gpm aerator assy
M21.5x1 male
1.5 gpm aerator
15/16"-27 male
585, 3585, 586, 3586, 2530, 3530, 4530, (500, 501,
502, 505, 520, 522, 523, 524, 525, 540, 541, 542,
544, non-DST), 3544, 3543, 2522, 2521, 2520, 2502,
2500, 583, 2583, 3483, 3582, 582
(538 non-DST), 2538, 3538, 4538, 2592, 3592, 4592
Wrench Included
2551, 3551, 4551 (500, 501, 502, 511, 515, 516. 520,
522, 523, 540, 541, 542, 544 DST)
Wrench RP52217
578, 579 non-DST
Wrench RP52217
555, 755, 2555, 3555, 4555, 2155
2540, 3540, 4540
2569, 3569, 4569
2578, 3578, 4578, 2575, 3575, 4575
(538, 578, 579, 551, 592, 751, 792, 2578, 3578,
15938T DST)
Wrench RP52217
(500, 501, 502, 520, 522, 523, 524, 525 DST)
Wrench RP52217
(500, 501, 502, 520, 522, 523, 524, 525 DST)
Wrench RP52217
B501LF, B510LF, B512LF, (B2510LF, B2512LF - Male),
B2596LF, B3596LF
Models
STANDARD SPECIFICATIONS:
•
Maximum
•
Maximum
•
Maximum
0.5 gpm flowrate @ 60 PSI.
1.0 gpm flowrate @ 60 PSI.
1.5 gpm flowrate @ 60 PSI.
Water efficient uses 30% less than industry
standard of 2.2 gpm @ 60 PSI per ASME.
WARRANTy
• Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from defects
in material and workmanship.
• 5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
RP62734
RP63886
RP64019
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-L-AERATORS Rev. B
1.5 gpm insert All handshowers
1.0 gpm aerator
M21.5x1 male
1.5 gpm aerator
15/16"-27 female
2551, 3551, 4551 (500, 501, 502, 511, 515, 516. 520,
522, 523, 540, 541, 542, 544 DST)
Wrench RP52217
B2510LF, B2512LF - Female
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, ST. Thomas, ON N5P 4C4
© 2010 Masco Corporation of Indiana
