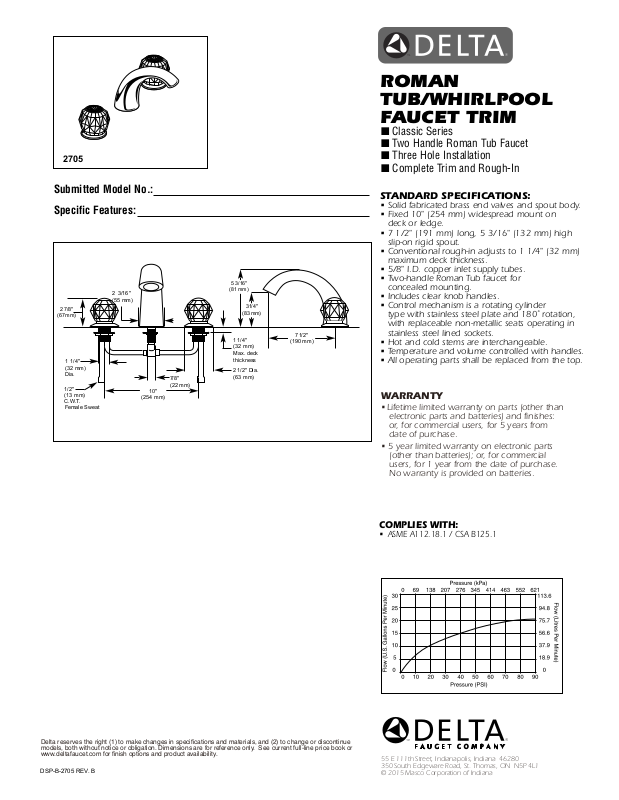

2705
ROMAN
TUB/WHIRLPOOL
FAUCET TRIM
■ Classic Series
■ Two Handle Roman Tub Faucet
■ Three Hole Installation
■ Complete Trim and Rough-In
Submitted Model No.:
Specific Features:
2 3/16"
2 7/8"
(67 mm)
1 1/4"
(32 mm)
Dia.
1/2"
(13 mm)
C.W.T.
Female Sweat
(55 mm)
(254 mm)
STANDARD SPECIFICATIONS:
• Solid fabricated brass end valves and spout body.
• Fixed 10" (254 mm) widespread mount on
deck or ledge.
• 7 1/2" (191 mm) long, 5 3/16" (132 mm) high
slip-on rigid spout.
• Conventional rough-in adjusts to 1 1/4" (32 mm)
maximum deck thickness.
• 5/8" I.D. copper inlet supply tubes.
5 3/16"
(81 mm)
31/4"
(83 mm)
1 1/4"
(32 mm)
Max. deck
thickness
2 1/2" Dia.
7/8"
(22 mm)
10"
(63 mm)
7 1/ 2"
(190 mm)
• Two-handle Roman Tub faucet for
concealed mounting.
• Includes clear knob handles.
• Control mechanism is a rotating cylinder
type with stainless steel plate and 180˚ rotation,
with replaceable non-metallic seats operating in
stainless steel lined sockets.
• Hot and cold stems are interchangeable.
• Temperature and volume controlled with handles.
• All operating parts shall be replaced from the top.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-2705 REV. B
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
