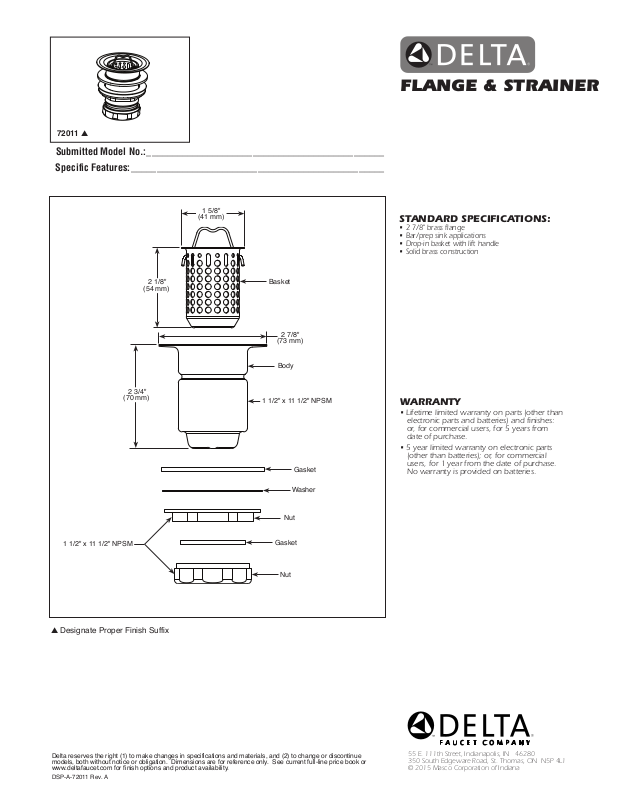

Delta DLT4816 Specifications
72011 ▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
1 5/8"
(41 mm)
FLANGE & STRAINER
STANDARD SPECIFICATIONS:
• 2 7/8" brass flange
• Bar/prep sink applications
• Drop-in basket with lift handle
• Solid brass construction
(70 mm)
1 1/2" x 11 1/2" NPSM
2 3/4"
2 1/8"
(54 mm)
Basket
2 7/8"
(73 mm)
Body
1 1/2" x 11 1/2" NPSM
Gasket
Washer
Nut
Gasket
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
Nut
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-A-72011 Rev. A
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
