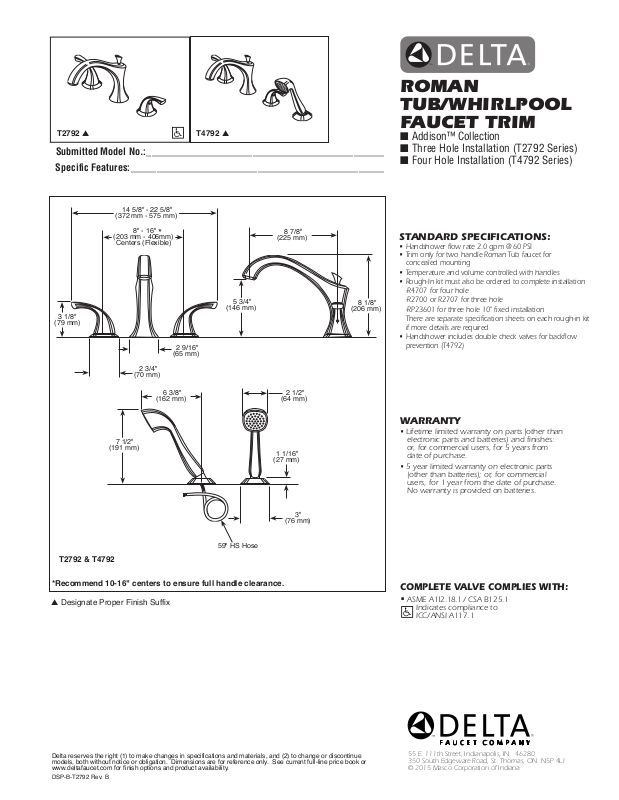

Delta DLT4753 Technical Specifications
ROMAN
TUB/WHIRLPOOL
T2792 ▲
T4792 ▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
14 5/8" - 22 5/8"
(372 mm - 575 mm)
3 1/8"
(79 mm)
8" - 16"
2 3/4"
(70 mm)
*
6 3/8"
(162 mm)
(203 mm - 406mm)
Centers (Flexible)
2 9/16"
(65 mm)
5 3/4"
(146 mm)
8 7/8"
(225 mm)
2 1/2"
(64 mm)
8 1/8"
(206 mm)
FAUCET TRIM
■ Addison™ Collection
■ Three Hole Installation (T2792 Series)
■ Four Hole Installation (T4792 Series)
STANDARD SPECIFICATIONS:
• Handshower flow rate 2.0 gpm @ 60 PSI
• Trim only for two handle Roman Tub faucet for
concealed mounting
• Temperature and volume controlled with handles
• Rough-In kit must also be ordered to complete installation
-R4707 for four hole
-R2700 or R2707 for three hole
-RP23601 for three hole 10" fixed installation
There are separate specification sheets on each rough-in kit
if more details are required
• Handshower includes double check valves for backflow
prevention (T4792)
7 1/2"
(191 mm)
59" HS Hose
T2792 & T4792
*Recommend 10-16" centers to ensure full handle clearance.
▲ Designate Proper Finish Suffix
1 1/16"
(27 mm)
3"
(76 mm)
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLETE VALVE COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T2792 Rev. B
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
