T17155▲ T17255▲
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure
(
PSI)
Flow (U.S.
G
allons Per Minute)
6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow
(
Liters Per Minute
)
Showerhead
7
26.5
Tub Filler
H2O Showerhead
®
®
U
P
C
T17255-▲H2O
T17455▲ T17455-▲H2O

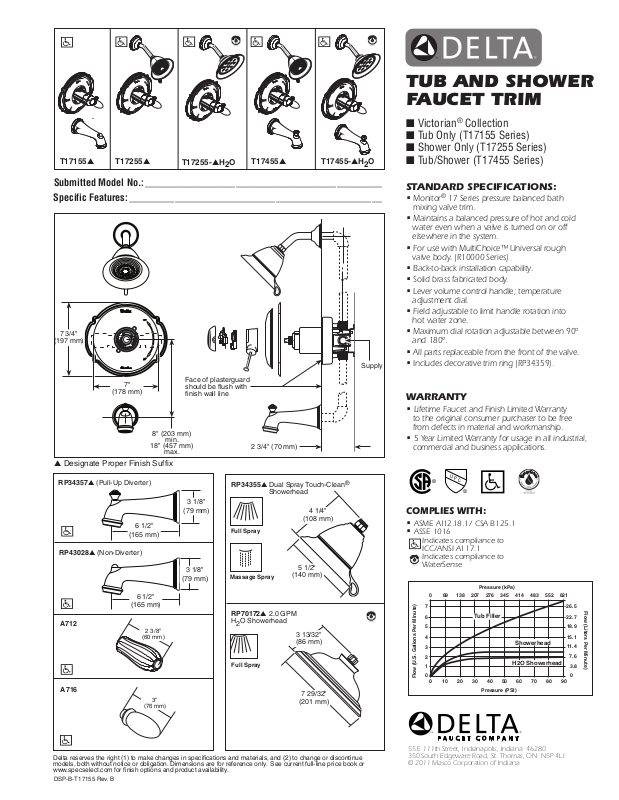

Tub AND SHOWER
FAuCET TRIM
■ Victorian® Collection
■ Tub Only (T17155 Series)
■ Shower Only (T17255 Series)
■ Tub/Shower (T17455 Series)
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
7 3/4"
(197 mm)
Supply
7"
(178 mm)
8" (203 mm)
18" (457 mm)
▲ Designate Proper Finish Suffix
Face of plasterguard
should be flush with
finish wall line
min.
max.
2 3/4" (70 mm)
STANDARD SPECIFICATIONS:
•
Monitor® 17 Series pressure balanced bath
mixing valve trim.
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
For use with MultiChoice™ Universal rough
valve body. (R10000 Series)
•
Back-to-back installation capability.
•
Solid brass fabricated body.
•
Lever volume control handle; temperature
adjustment dial.
•
Field adjustable to limit handle rotation into
hot water zone.
•
Maximum dial rotation adjustable between 90º
and 180º.
•
All parts replaceable from the front of the valve.
•
Includes decorative trim ring (RP34359).
WARRANTy
•
Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
RP34357▲ (Pull-Up Diverter)
RP43028▲ (Non-Diverter)
A712
A716
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-B-T17155 Rev. B
6 1/2"
(165 mm)
6 1/2"
(165 mm)
2 3/8"
(60 mm)
(76 mm)
RP34355▲ Dual Spray Touch-Clean®
Showerhead
3 1/8"
(79 mm)
Full Spray
4 1/4"
(108 mm)
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
Indicates compliance to
3 1/8"
(79 mm)
3"
Massage Spray
RP70172▲ 2.0 GPM
H2O Showerhead
Full Spray
5 1/2"
(140 mm)
3 13/32"
(86 mm)
7 29/32"
(201 mm)
WaterSense
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2011 Masco Corporation of Indiana
