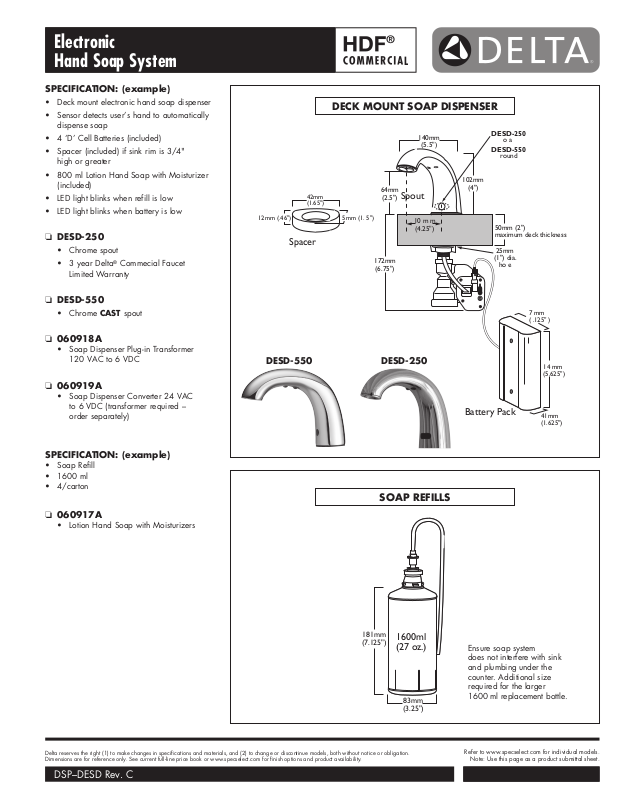

Delta DLT4702 Specifications

Electronic

(

)

Commercial
Faucet

Hand Soap System

SPECIFICATION: (example)

• Deck mount electronic hand soap dispenser

• Sensor detects user’s hand to automatically
dispense soap

• 4 ‘D’ Cell Batteries (included)

• Spacer (included) if sink rim is 3/4"
high or greater

• 800 ml Lotion Hand Soap with Moisturizer
(included)

• LED light blinks when refill is low

• LED light blinks when battery is low

o DESD-250

• Chrome spout

• 3 year Delta® Commecial Faucet

Limited Warranty

o DESD-550

• Chrome CAST spout

o 060918A

• Soap Dispenser Plug-in Transformer

120 VAC to 6 VDC

o 060919A

• Soap Dispenser Converter 24 VAC

to 6 VDC (transformer required –
order separately)

L

DECK MOUNT SOAP DISPENSER

140mm

42mm
(1.65")

5mm (1.5")12mm (.46")

Spacer

DESD-550 DESD-250

64mm

(2.5")

172mm

(6.75")

Spout

10m m

(4.25")

(5.5")

DESD-250

DESD-550

round

102mm

(4")

50mm (2")
maximum deck thickness

25mm

(1") dia.

hoe

Battery Pack

oa

7mm
(.125" )

41mm

14mm
(5.625")

1.625"

SPECIFICATION: (example)

• Soap Refill

• 1600 ml

• 4/carton

o 060917A

• Lotion Hand Soap with Moisturizers

SOAP REFILLS

181mm
(7.125")

1600ml
(27 oz.)

83mm
(3.25")

Ensure soap system
does not interfere with sink
and plumbing under the
counter. Additional size
required for the larger
1600 ml replacement bottle.

Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.
Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.

DSP–DESD Rev. C

Refer to www.specselect.com for individual models.

Note: Use this page as a product submittal sheet.

Page 4.C.91
