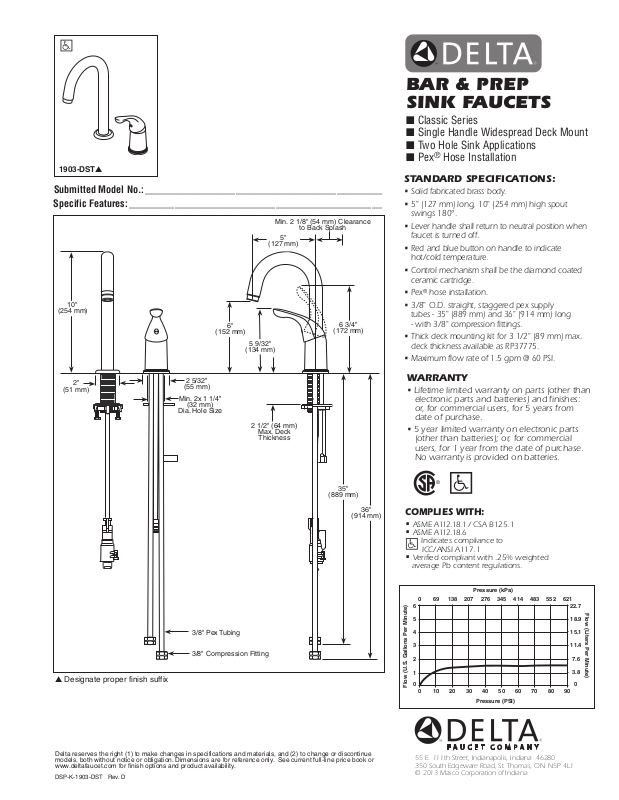

Delta DLT4580 Specifications

0

1

2

3

4

5

0102030405060708090

Pressure (PSI)

Flow (U.S. Gallons Per Minute)

6

069 138 207 276 345 414 483 552 621

0

3.8

7.6

11.4

15.1

18.9

22.7

Pressure (kPa)

Flow (Liters Per Minute)

1903-DST▲

®

Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________

Min. 2 1/8" (54 mm) Clearance

to Back Splash

5"

(127 mm)

10"

(254 mm)

6"

(152 mm)

5 9/32"

(134 mm)

6 3/4"

(172 mm)

BAR & PREP
SINK FAUCETS

■ Classic Series

■ Single Handle Widespread Deck Mount

■ Two Hole Sink Applications

®

■ Pex

STANDARD SPECIFICATIONS:

• Solid fabricated brass body.

• 5" (127 mm) long, 10" (254 mm) high spout
swings 180°.

• Lever handle shall return to neutral position when
faucet is turned off.

• Red and blue button on handle to indicate
hot/cold temperature.

• Control mechanism shall be the diamond coated
ceramic cartridge.

• Pex

• 3/8" O.D. straight, staggered pex supply
tubes - 35" (889 mm) and 36" (914 mm) long

- with 3/8" compression fittings.

• Thick deck mounting kit for 3 1/2" (89 mm) max.
deck thickness available as RP37775.

• Maximum flow rate of 1.5 gpm @ 60 PSI.

Hose Installation

®

hose installation.

2"

(51 mm)

2 5/32"

(55 mm)

Min. 2x 1 1/4"

(32 mm)

Dia. Hole Size

3/8" Pex Tubing

3/8" Compression Fitting

2 1/2" (64 mm)

Max. Deck
Thickness

35"

(889 mm)

36"

(914 mm)

WARRANTy

•

Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.

•

5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.

COMPLIES WITH:

•

ASME A112.18.1 / CSA B125.1

•

ASME A112.18.6

Indicates compliance to

ICC/ANSI A117.1

•

Verified compliant with .25% weighted

average Pb content regulations.

▲ Designate proper finish suffix

Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.

DSP-K-1903-DST Rev. D
