KITCHEN
0
.75
1.50
2.25
3.00
3.75
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
4.50
069 138 207 276 345 414 483 552 621
0
2.8
5.7
8.5
11.4
14.2
17.0
Pressure (kPa)
Flow (Liters Per Minute)
WE Models
®
140-▲DST
140-▲WE-DST
340-▲DST
340-▲WE-DST
440-▲DST
440-▲WE-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________

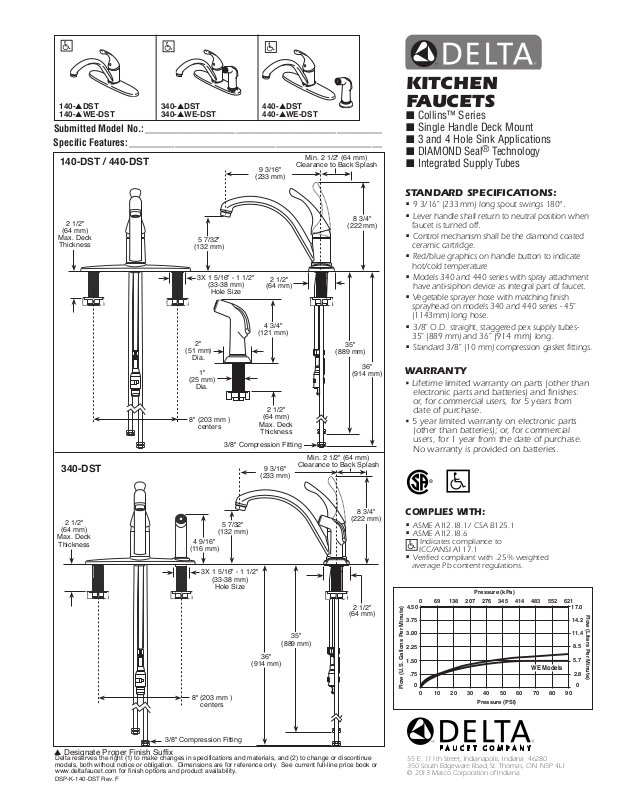

140-DST / 440-DST
2 1/2"
(64 mm)
Max. Deck
Thickness
340-DST
5 7/32"
(132 mm)
3X 1 5/16" - 1 1/2"
(33-38 mm)
Hole Size
2"
(51 mm)
Dia.
1"
(25 mm)
Dia.
8" (203 mm )
centers
9 3/16"
(233 mm)
2 1/2"
(64 mm)
4 3/4"
(121 mm)
2 1/2"
(64 mm)
Max. Deck
Thickness
3/8" Compression Fitting
9 3/16"
(233 mm)
Min. 2 1/2" (64 mm)
Clearance to Back Splash
8 3/4"
(222 mm)
35"
(889 mm)
36"
(914 mm)
Min. 2 1/2" (64 mm)
Clearance to Back Splash
FAUCETS
■ Collins™ Series
■ Single Handle Deck Mount
■ 3 and 4 Hole Sink Applications
■ DIAMOND Seal® Technology
■ Integrated Supply Tubes
STANDARD SPECIFICATIONS:
•
9 3/16" (233 mm) long spout swings 180°
•
Lever handle shall return to neutral position when
faucet is turned off
•
Control mechanism shall be the diamond coated
.
ceramic cartridge.
•
Red/blue graphics on handle button to indicate
hot/cold temperature
•
Models 340 and 440 series with spray attachment
have anti-siphon device as integral part of faucet
•
Vegetable sprayer hose with matching finish
sprayhead on models 340 and 440 series - 45"
(1143mm) long hose.
•
3/8" O.D. straight, staggered pex supply tubes-
35" (889 mm) and 36"
•
Standard 3/8" (10 mm) compression gasket fittings.
(914 mm)
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
.
.
long.
2 1/2"
(64 mm)
Max. Deck
Thickness
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-140-DST Rev. F
5 7/32"
(132 mm)
4 9/16"
(116 mm)
3X 1 5/16" - 1 1/2"
(33-38 mm)
Hole Size
8" (203 mm )
centers
3/8" Compression Fitting
36"
(914 mm)
35"
(889 mm)
8 3/4"
(222 mm)
2 1/2"
(64 mm)
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
•
Verified compliant with .25% weighted
average Pb content regulations.
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
