0
.75
1.50
2.25
3.00
3.75
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
4.50
069 138 207 276 345 414 483 552 621
0
2.8
5.7
8.5
11.4
14.2
17.0
Pressure (kPa)
Flow (Liters Per Minute)
9955-DST
®
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 2 1/2" (64 mm)
Clearance to Back Splash
6 11/16"
(169 mm)
14"
(356 mm)
6 1/2"
(165 mm)
37 3/4"
(959 mm)
5"
(127 mm)
2 1/2"
(64 mm)
Max. Deck
Thickness
1 3/8"
(35 mm)
Hole
Size
16 1/2"
(419 mm)
2 1/2 "
(64 mm)
2 1/2"
(64 mm)
4"
(102 mm)
7 7/16"
(189 mm)
36 3/4"
(933 mm)

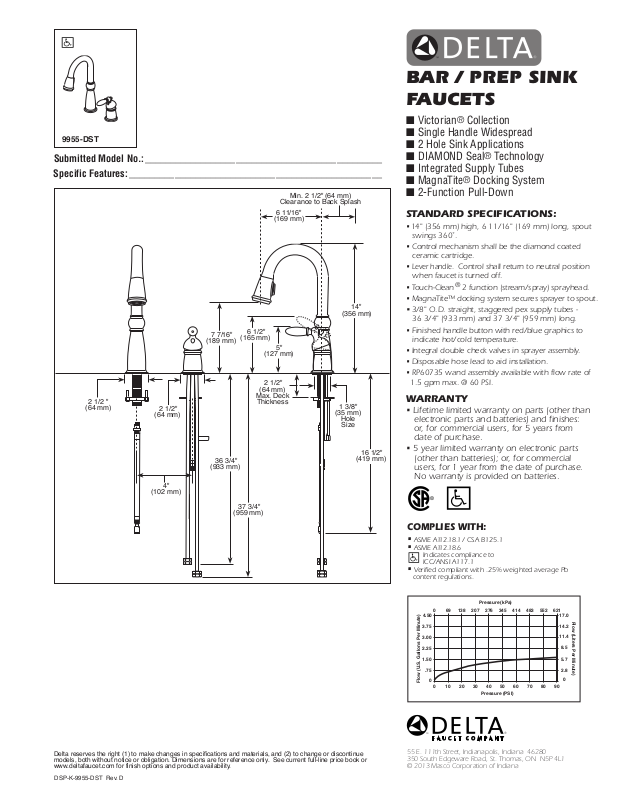

BAR / PREP SINK
FAUCETS
■ Victorian® Collection
■ Single Handle Widespread
■ 2 Hole Sink Applications
■ DIAMOND Seal® Technology
■ Integrated Supply Tubes
■ MagnaTite® Docking System
■ 2-Function Pull-Down
STANDARD SPECIFICATIONS:
•
14" (356 mm) high, 6 11/16" (169 mm) long, spout
swings 360˚.
•
Control mechanism shall be the diamond coated
ceramic cartridge.
• Lever handle.
when faucet is turned off.
•
Touch-Clean® 2 function (stream/spray) sprayhead.
•
MagnaTite™ docking system secures sprayer to spout.
• 3/8" O.D. straight, staggered pex supply tubes -
36 3/4" (933 mm) and 37 3/4" (959 mm) long.
•
Finished handle button with red/blue graphics to
indicate hot/cold temperature.
•
Integral double check valves in sprayer assembly.
•
Disposable hose lead to aid installation.
•
RP60735 wand assembly available with flow rate of
1.5 gpm max. @ 60 PSI.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
•
Verified compliant with .25% weighted average Pb
content regulations.
Control shall return to neutral position
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-9955-DST Rev. D
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
