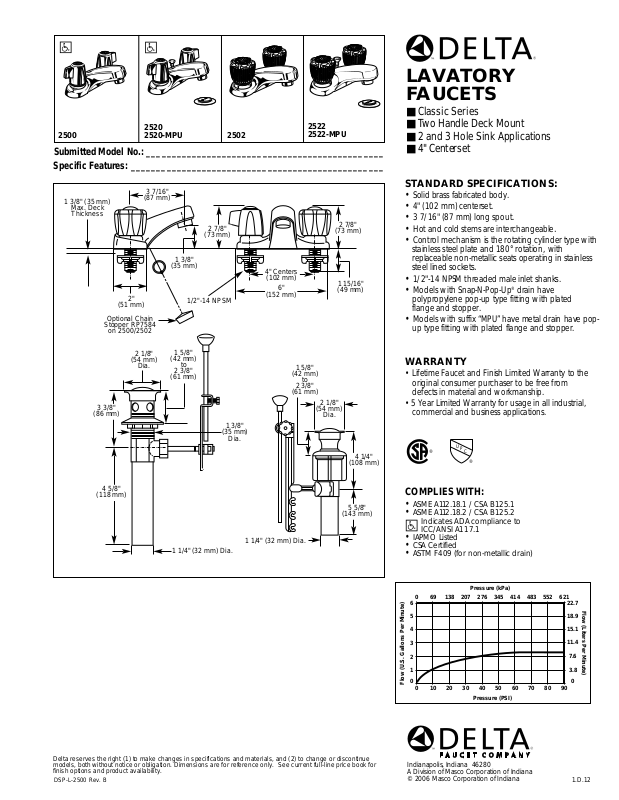

Delta DLT3782 Technical Specifications
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.2 / CSA B125.2
Indicates ADA compliance to
ICC/ANSI A117.1
•
IAPMO Listed
•
CSA Certified
•
ASTM F409 (for non-metallic drain)
LAVATORY
FAUCETS
■ Classic Series
■ Two Handle Deck Mount
■ 2 and 3 Hole Sink Applications
■ 4" Centerset
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
STANDARD SPECIFICATIONS:
•
Solid brass fabricated body.
• 4" (102 mm) centerset.
• 3 7/16" (87 mm) long spout.
•
Hot and cold stems are interchangeable.
•
Control mechanism is the rotating cylinder type with
stainless steel plate and 180° rotation, with
replaceable non-metallic seats operating in stainless
steel lined sockets.
• 1/2"-14 NPSM threaded male inlet shanks.
• Models with Snap-N-Pop-Up
®
drain have
polypropylene pop-up type fitting with plated
flange and stopper.
• Models with suffix “MPU” have metal drain have pop-
up type fitting with plated flange and stopper.
2500
2520
2520-MPU
2502
2522
2522-MPU
DSP-L-2500 Rev. B
4" Centers
(102 mm)
1/2"-14 NPSM
6"
(152 mm)
3 7/16"
(87 mm)
1 3/8"
(35 mm)
2"
(51 mm)
1 15/16"
(49 mm)
2 7/8"
(73 mm)
2 7/8"
(73 mm)
1 3/8" (35 mm)
Max. Deck
Thickness
Optional Chain
Stopper RP7584
on 2500/2502
1 5/8"
(42 mm)
to
2 3/8"
(61 mm)
2 1/8"
(54 mm)
Dia.
4 1/4"
(108 mm)
5 5/8"
(143 mm)
1 1/4" (32 mm) Dia.
1 5/8"
(42 mm)
to
2 3/8"
(61 mm)
2 1/8"
(54 mm)
Dia.
3 3/8"
(86 mm)
1 3/8"
(35 mm)
Dia.
4 5/8"
(118 mm)
1 1/4" (32 mm) Dia.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book for
finish options and product availability.
Indianapolis, Indiana 46280
A Division of Masco Corporation of Indiana
© 2006 Masco Corporation of Indiana
1.D.12
WARRANTY
• Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from
defects in material and workmanship.
•5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
U
P
®
C
®
0 69 138 207 276 345 414 483 552 621
6
5
4
3
2
1
0
Flow (U.S. Gallons Per Minute)
0 102030405060708090
Pressure (kPa)
Pressure (PSI)
22.7
Flow (Liters Per Minute)
18.9
15.1
11.4
7.6
3.8
0
