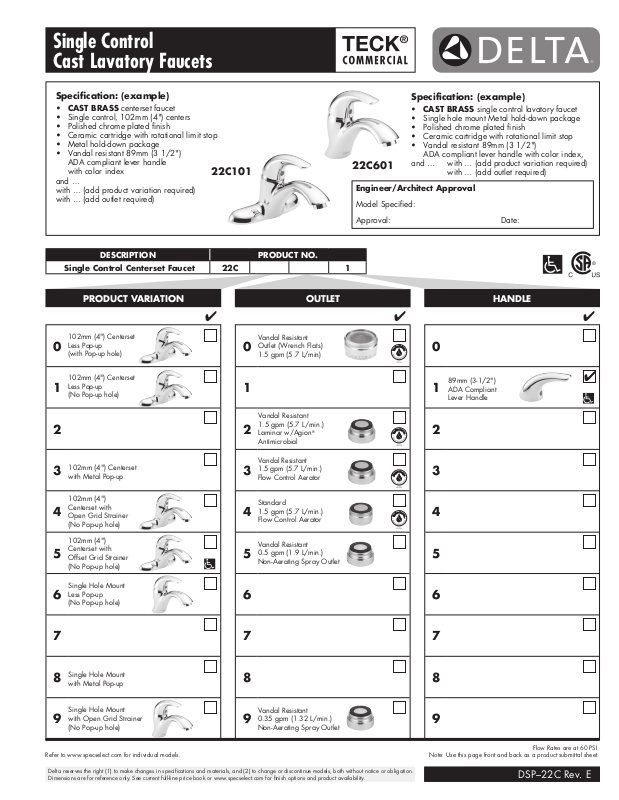

Single Control
Cast Lavatory Faucets
Specification: (example)
• CAST BRASS centerset faucet
• Single control, 102mm (4") centers
• Polished chrome plated finish
• Ceramic cartridge with rotational limit stop
• Metal hold-down package
• Vandal resistant 89mm (3 1/2")
ADA compliant lever handle
with color index
and …
with … ( add product variation required)
with … (add outlet required)
DESCRIPTION PRODUCT NO.
Single Control Centerset Faucet 22C 1
PRODUCT VARIATION HANDLE
22C101
OUTLET
4 4 4
102mm (4") Centerset
Less Pop-up
0
(with Pop-up hole)
102mm (4") Centerset
Less Pop-up
1
(No Pop-up hole)
Vandal Resistant
Outlet (Wrench Flats)
0
1.5 gpm (5.7 L/min)
1
Specification: (example)
• CAST BRASS single control lavatory faucet
• Single hole mount Metal hold-down package
• Polished chrome plated finish
• Ceramic cartridge with rotational limit stop
• Vandal resistant 89mm (3 1/2")
ADA compliant lever handle with color index,
22C601
Engineer/Architect Approval
Model Specified:
Approval: Date:
and … with … (add product variation required)
with … (add outlet required)
0
89mm (3-1/2")
ADA Compliant
1
Lever Handle
®
4
2
102mm (4") Centerset
3
with Metal Pop-up
102mm (4")
Centerset with
4
Open Grid Strainer
(No Pop-up hole)
102mm (4")
Centerset with
5
Offset Grid Strainer
(No Pop-up hole)
Single Hole Mount
Less Pop-up
6
(No Pop-up hole)
7
Single Hole Mount
8
with Metal Pop-up
Vandal Resistant
1.5 gpm (5.7 L/min.)
2
Laminar
w/Agion
Antimicrobial
Vandal Resistant
1.5 gpm (5.7 L/min.)
3
Flow Control Aerator
Standard
1.5 gpm (5.7 L/min.)
4
Flow Control Aerator
Vandal Resistant
0.5 gpm (1.9 L/min.)
5
Non-Aerating Spray Outlet
6
7
8
®
2
3
4
5
6
7
8
Single Hole Mount
with Open Grid Strainer
9
(No Pop-up hole)
Flow Rates are at 60 PSI.
Refer to www.specselect.com for individual models. Note: Use this page front and back as a product submittal sheet.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.
Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.
Vandal Resistant
0.35 gpm (1.32 L/min.)
9
Non-Aerating Spray Outlet
9
DSP–22C Rev. E Page 1.C.5
DSP–22C Rev. E
Single Control
RP27575 Pop-Up
111mm
(4.375")
104.7mm
(4.125")
42mm (1.625")
to
79.3mm (3.125")
54mm
(2.125")
Dia.
32mm
(1.25")
Dia.
RP5651 Pop-Up
35mm
(1.375")
Dia.
22T
Cast Lavatory Faucets
Approvals:
• CSA certified
• Complies to ASME A112.18.1/CSA B125.1
• Complies to ASME A112.18.6 for Flex
Connector Models
•
Indicates compliance to
ICC/ANSI A117.1
• Verified compliant with 0.25% weighted
average Pb content regulations
( Contact Delta Representative for State and/or
Local Approvals.)
FLOW RATE vs PRESSURE
FLOW FLOW
(L/min.) (GPM)
9
8
7
6
5
4
3
2
1
0
OUTLET “D”
NO. mm in.
0 7 0.28
2 11 0.45
3 11 0.45
4 11 0.45
5 11 0.45
9 11 0.45
Outlet Flow Rates
10 20 30 40 50 60 70 80
No. 0 & 2 Outlet
No. 3 & 4 Aerator No. 9 Outlet
Line Pressure (psig)
Spout Outlets
No. 5 Outlet
2.5
2
1.5
1
.5
00
D
70mm
(2.75")
25mm
(1") DIA.
INLETS FOR
3/8 or 1/2"
Flexible Riser or
1/2 - 14 NPSM
Coupling Nuts
(Not supplied)
89mm
(3.5")
56mm (2.13")
maximum deck
thickness
Flexible Hose
3/8" Compression
Connectors
135mm (5.32")
135mm
(5.3")
165mm
(6.5")
30mm (1.2")
minimum dia.
45mm (1.77")
maximum dia.
390mm
(15.35")
170mm (6.7")
D
71mm
(2.8")
49mm
(1.93")
102mm (4")
centres
30mm (1.18")
max. deck
thickness
METAL POP-UP
(supplied with Product Variation 3 and 8)
42mm (1.625")
to
61mm (2.375")
54mm
(2.125")
Dia.
86mm
(3.375")
35mm
(1.375")
Dia.
Optional
8" Coverplate
(Order separately)
❑ 060552A
8" Deck Plate
89mm
(3.5")
135mm
(5.3")
149mm (5.9")
44mm
(1.73")
165mm
(6.5")
118mm
(4.625")
32mm
(1.25")
Dia.
Note: Measurements may vary ± 6mm (0.25")
Refer to www.specselect.com for individual models. Note: Use this page front and back as a product submittal sheet.
Page 1.C.6 DSP–22C Rev. E
DSP–22C Rev. E
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.
OPEN GRID STRAINER
(supplied with Product Variation 4 and 9)
57mm
(2.25")
DIA.
216mm
(8.5")
32mm
(1.25")
Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.
57mm
(2.25") MAX.
OFFSET OPEN GRID STRAINER
(supplied with Product Variation 5)
57mm
(2.25")
DIA.
32mm
(1.25")
282mm
(11.0")
194mm
(7.63")
51mm
(2.0") MAX
130mm
(5.1")
