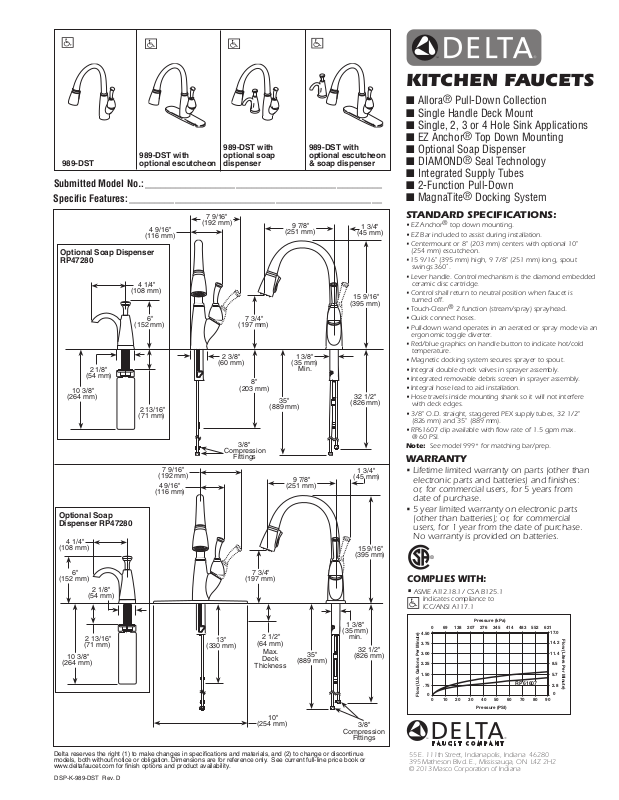

Page 1
0
.75
1.50
2.25
3.00
3.75
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
4.50
069 138 207 276 345 414 483 552 621
0
2.8
5.7
8.5
11.4
14.2
17.0
Pressure (kPa)
Flow (Liters Per Minute)
RP61607
989-DST
®
989-DST with
optional escutcheon
989-DST with
optional soap
dispenser
989-DST with
optional escutcheon
& soap dispenser
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
7 9/16"
(116 mm)
Optional Soap Dispenser
RP47280
4 1/4"
(108 mm)
6"
(152 mm)
2 1/8"
(54 mm)
10 3/8"
(264 mm)
2 13/16"
(71 mm)
Optional Soap
Dispenser RP47280
4 1/4"
(108 mm)
4 9/16"
7 9/16"
(192 mm)
4 9/16"
(116 mm)
(192 mm)
2 3/8"
(60 mm)
Compression
7 3/4"
(197 mm)
(203 mm)
3/8"
Fittings
8"
9 7/8"
(251 mm)
35"
(889 mm)
9 7/8"
(251 mm)
1 3/8"
(35 mm)
Min.
1 3/4"
(45 mm)
15 9/16"
(395 mm)
32 1/2"
(826 mm)
1 3/4"
(45 mm)
15 9/16"
(395 mm)
KITCHEN FAUCETS
■ Allora® Pull-Down Collection
■ Single Handle Deck Mount
■ Single, 2, 3 or 4 Hole Sink Applications
■ EZ Anchor® Top Down Mounting
■ Optional Soap Dispenser
■ DIAMOND® Seal Technology
■ Integrated Supply Tubes
■ 2-Function Pull-Down
■ MagnaTite® Docking System
STANDARD SPECIFICATIONS:
• EZ Anchor® top down mounting.
• EZ Bar included to assist during installation.
•
Centermount or 8" (203 mm) centers with optional 10"
(254 mm) escutcheon.
•
15 9/16" (395 mm) high, 9 7/8" (251 mm) long, spout
swings 360˚.
•
Lever handle. Control mechanism is the diamond embedded
ceramic disc cartridge.
•
Control shall return to neutral position when faucet is
turned off.
•
Touch-Clean® 2 function (stream/spray) sprayhead.
•
Quick connect hoses.
•
Pull-down wand operates in an aerated or spray mode via an
ergonomic toggle diverter.
•
Red/blue graphics on handle button to indicate hot/cold
temperature.
•
Magnetic docking system secures sprayer to spout.
• Integral double check valves in sprayer assembly.
• Integrated removable debris screen in sprayer assembly.
• Integral hose lead to aid installation.
• Hose travels inside mounting shank so it will not interfere
with deck edges.
• 3/8" O.D. straight, staggered PEX supply tubes, 32 1/2"
(826 mm) and 35" (889 mm).
• RP61607 clip available with flow rate of 1.5 gpm max.
@ 60 PSI.
Note: See model 999* for matching bar/prep.
WARRANTy
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
6"
(152 mm)
2 1/8"
(54 mm)
2 13/16"
(71 mm)
10 3/8"
(264 mm)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-989-DST Rev. D
13"
(330 mm)
7 3/4"
(197 mm)
2 1/2"
(64 mm)
Max.
Deck
Thickness
10"
(254 mm)
35"
(889 mm)
1 3/8"
(35 mm)
min.
32 1/2"
(826 mm)
3/8"
Compression
Fittings
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
55 E. 111th Street, Indianapolis, Indiana 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2013 Masco Corporation of Indiana
