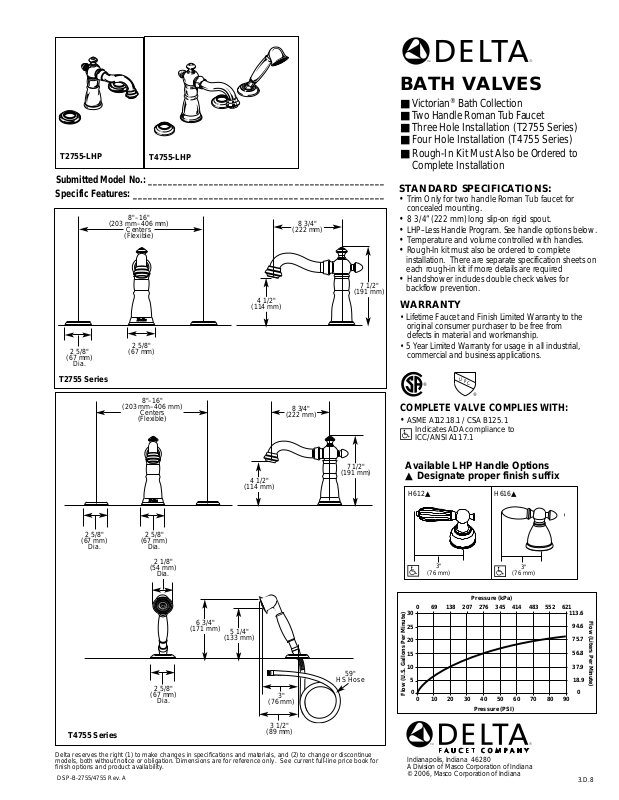

Delta DLT2764 Specification Sheet

Submitted Model No.: _______________________________________________ Specific Features: __________________________________________________
T2755-LHP
DSP-B-2755/4755 Rev. A
COMPLETE VALVE COMPLIES WITH:
ASME A112.18.1/ CSA B125.1
Indicates ADA compliance to ICC/ANSI A117.1
BATH VALVES
Victorian®Bath Collection
Two Handle Roman Tub Faucet
Three Hole Installation (T2755 Series)
Four Hole Installation (T4755 Series)
Rough-In Kit Must Also be Ordered to
Complete Installation
T2755 Series
STANDARD SPECIFICATIONS:
Trim Only for two handle Roman Tub faucet for
concealed mounting.
8 3/4” (222 mm) long slip-on rigid spout.
LHP–Less Handle Program. See handle options below.
Temperature and volume controlled with handles.
Rough-In kit must also be ordered to complete
installation. There are separate specification sheets on each rough-in kit if more details are required
Handshower includes double check valves for
backflow prevention.
2 5/8"
(67 mm)
Dia.
8"–16"
(203 mm–406 mm)
Centers
(Flexible)
8 3/4"
(222 mm)
Available LHP Handle Options Designate proper finish suffix
H612
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current full-line price book for finish options and product availability.
2 5/8"
(67 mm)
3"
(76 mm)
H616
3"
(76 mm)
4 1/2"
(114 mm)
7 1/2"
(191 mm)
Indianapolis, Indiana 46280 A Division of Masco Corporation of Indiana © 2006, Masco Corporation of Indiana
3.D.8
WARRANTY
• Lifetime Faucet and Finish Limited Warranty to the original consumer purchaser to be free from defects in material and workmanship.
•5 Year Limited Warranty for usage in all industrial, commercial and business applications.
T4755-LHP
T4755 Series
8 3/4"
(222 mm)
8"–16"
(203 mm–406 mm)
Centers
(Flexible)
4 1/2"
(114 mm)
2 5/8"
(67 mm)
Dia.
6 3/4"
(171 mm)
3"
(76 mm)
3 1/2"
(89 mm)
2 1/8"
(54 mm)
Dia.
59"
HS Hose
7 1/2"
(191 mm)
2 5/8"
(67 mm)
Dia.
5 1/4"
(133 mm)
2 5/8"
(67 mm)
Dia.
U
P
®
C
®
0 69 138 207 276 345 414 483 552 621
30 25 20 15 10
5
0
Flow (U.S. Gallons Per Minute)
0 102030405060708090
Pressure (kPa)
Pressure (PSI)
113.6 Flow (Liters Per Minute)
94.6
75.7
56.8
37.9
18.9
0
