T14169-LHP▲ T14269-LHP▲ T14469-LHP▲
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure
(
PSI)
Flow (U.S.
G
allons Per Minute)
6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow
(
Liters Per Minute
)
7
26.5
Tub Filler
30.3
34.1
8
9
Showerhead
2.0 GPM
2.5 GPM
®
®
U
P
C

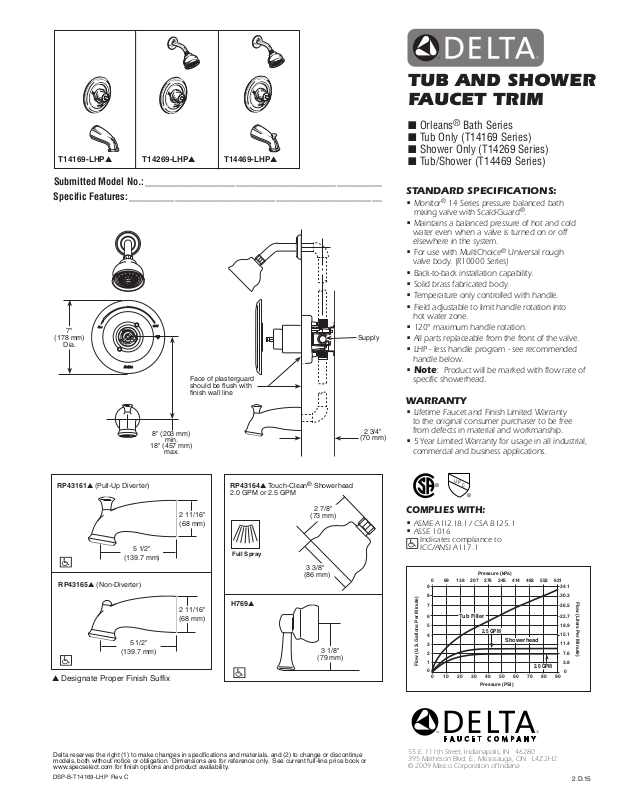

Tub AND SHOWER
FAuCET TRIM
■ Orleans® Bath Series
■ Tub Only (T14169 Series)
■ Shower Only (T14269 Series)
■ Tub/Shower (T14469 Series)
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
7"
(178 mm)
Dia.
8" (203 mm)
min.
18" (457 mm)
max.
Face of plasterguard
should be flush with
finish wall line
Supply
2 3/4"
(70 mm)
STANDARD SPECIFICATIONS:
•
Monitor® 14 Series pressure balanced bath
mixing valve with Scald-Guard®.
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
For use with MultiChoice® Universal rough
valve body. (R10000 Series)
•
Back-to-back installation capability.
•
Solid brass fabricated body.
•
Temperature only controlled with handle.
•
Field adjustable to limit handle rotation into
hot water zone.
•
120° maximum handle rotation.
•
All parts replaceable from the front of the valve.
•
LHP - less handle program - see recommended
handle below.
• Note:
Product will be marked with flow rate of
specific showerhead.
WARRANTy
•
Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
RP43161▲ (Pull-Up Diverter)
RP43165▲ (Non-Diverter)
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-B-T14169-LHP Rev. C
5 1/2"
(139.7 mm)
5 1/2"
(139.7 mm)
2 11/16"
(68 mm)
2 11/16"
(68 mm)
RP43164▲ Touch-Clean® Showerhead
2.0 GPM or 2.5 GPM
2 7/8"
(73 mm)
Full Spray
3 3/8"
(86 mm)
H769▲
3 1/8"
(79 mm)
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
55 E. 111th Street, Indianapolis, IN 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2009 Masco Corporation of Indiana
2.D.15
