Delta CBKB2887 w
T14032-
p
T14232-
Submitted Model No.:
Specic Features:

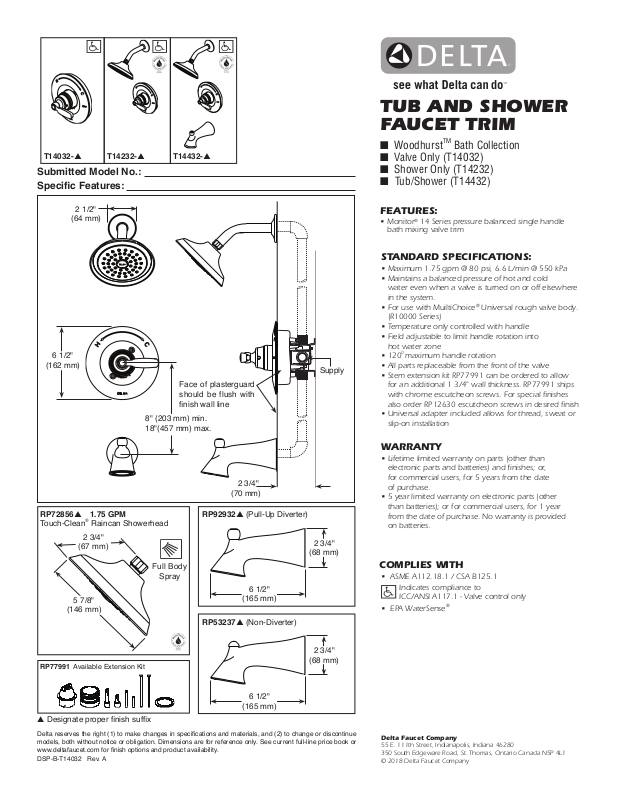

TUB AND SHOWER
FAUCET TRIM
Woodhurst
■
T14432-
p
p
Valve Only (T14032)
■
Shower Only (T14232)
■
Tub/Shower (T14432)
■
TM
Bath Collection
2 1/2"
(64 mm)
6 1/2"
(162 mm)
RP72856p 1.75 GPM
Touch-Clean
®
Raincan Showerhead
2 3/4"
(67 mm)
5 7/8"
(146 mm)
Face of plasterguard
should be flush with
nish wall line
8" (203 mm) min.
18"(457 mm) max.
RP92932
Full Body
Spray
RP53237
2 3/4"
(70 mm)
(Pull-Up Diverter)
p
6 1/2"
(165 mm)
(Non-Diverter)
p
Supply
2 3/4"
(68 mm)
FEATURES:
• Monitor® 14 Series pressure balanced single handle
bath mixing valve trim
STANDARD SPECIFICATIONS:
• Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off elsewhere
in the system.
• For use with MuiltiChoice® Universal rough valve body.
(R10000 Series)
• Temperature only controlled with handle
• Field adjustable to limit handle rotation into
hot water zone
• 1200 maximum handle rotation
• All parts replaceable from the front of the valve
• Stem extension kit RP77991 can be ordered to allow
for an additional 1 3/4" wall thickness. RP77991 ships
with chrome escutcheon screws. For special finishes
also order RP12630 escutcheon screws in desired finish
• Universal adapter included allows for thread, sweat or
slip-on installation
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and inishes; or,
for commercial users, for 5 years from the date
of purchase.
• 5 year limited warranty on electronic parts (other
than batteries); or for commercial users, for 1 year
from the date of purchase. No warranty is provided
on batteries.
COMPLIES WITH
• ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
• EPA WaterSense
®
2 3/4"
RP77991 Available Extension Kit
6 1/2"
(165 mm)
Designate proper nish sufx
▲
Delta reserves the right (1) to make changes in specications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for nish options and product availability.
DSP-B-T14032 Rev. A
(68 mm)
Delta Faucet Company
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario Canada N5P 4L1
© 2018 Delta Faucet Company
