Page 1
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Shampoo Rinsing Spray (SR)
= Shampoo Rinsing
Spray
w/Massage (SRM)
=
Full Spray w/Massage (FSM)
= High-Efficiency Spray (HE)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Fast Massage (FM)
= Soft Drench w/Full Spray (SDF)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
SR
CF
CFM
HE
SDF
AF
SRM
SF
FB
SD
P
FSM
FM
= Massage Spray (M)
M
= Slow Massage (SM)
SM
= H
2
Okinetic™ Spray (H2O)
H
2
O
= Soft Drench Spray w/Massage (SDM)
SDM
AH
2
O
= Pause (P)
P
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
CF
CFM
AF
SF
FB
SD
P
= Massage Spray (M)
M
= Slow Massage (SM)
SM
AH
2
O
T17T043-▲
T17T043-▲-PR
T17T243-▲
T17T243-▲-PR
T17T443-▲
T17T443-▲-PR
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
6 5/8"
(168 mm)
8" (203 mm)
min.
18" (457 mm)
max.
RP93248▲ (Pull-Up Diverter)
2 7/16"
(62 mm)
6 3/4"
(171 mm)
RP93249▲ (Non Diverter)
8 13/16"
(224 mm)
(76 mm)
4 1/2"
(114 mm)
Face of plasterguard
should be flush with
finished wall line
52684▲ 1.75 GPM H2O Shower Head
Full Body
Spray
3 1/2"
(88 mm)
H2Okinetic
Spray
3"
Pause

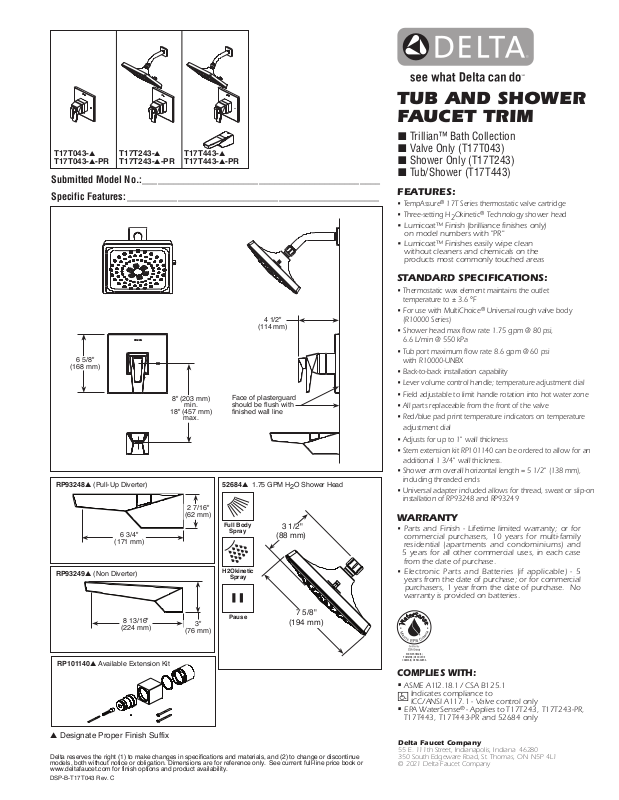

TUB AND SHOWER
FAUCET TRIM
■ Trillian™ Bath Collection
■ Valve Only (T17T043)
■ Shower Only (T17T243)
■ Tub/Shower (T17T443)
FEATURES:
• TempAssure® 17T Series thermostatic valve cartridge
• Three-setting H2Okinetic
• Lumicoat™ Finish (brilliance finishes only)
on model numbers with "PR"
• Lumicoat™ Finishes easily wipe clean
without cleaners and chemicals on the
products most commonly touched areas
STANDARD SPECIFICATIONS:
• Thermostatic wax element maintains the outlet
temperature to ± 3.6 °F
• For use with MultiChoice® Universal rough valve body
(R10000 Series)
• Shower head max flow rate 1.75 gpm @ 80 psi,
7 5/8"
(194 mm)
6.6 L/min @ 550 kPa
• Tub port maximum flow rate 8.6 gpm @ 60 psi
with R10000-UNBX
• Back-to-back installation capability
• Lever volume control handle; temperature adjustment dial
• Field adjustable to limit handle rotation into hot water zone
• All parts replaceable from the front of the valve
• Red/blue pad print temperature indicators on temperature
adjustment dial
• Adjusts for up to 1" wall thickness
• Stem extension kit RP101140 can be ordered to allow for an
additional 1 3/4" wall thickness.
• Shower arm overall horizontal length = 5 1/2" (138 mm),
including threaded ends
• Universal adapter included allows for thread, sweat or slip-on
installation of RP93248 and RP93249
WARRANTY
•
Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
•
Electronic Parts and Batteries (if applicable) - 5
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
®
Technology
shower head
RP101140▲ Available Extension Kit
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17T043 Rev. C
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
•
EPA WaterSense® - Applies to T17T243, T17T243-PR,
T17T443, T17T443-PR and 52684 only
Delta Faucet Company
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2021 Delta Faucet Company
