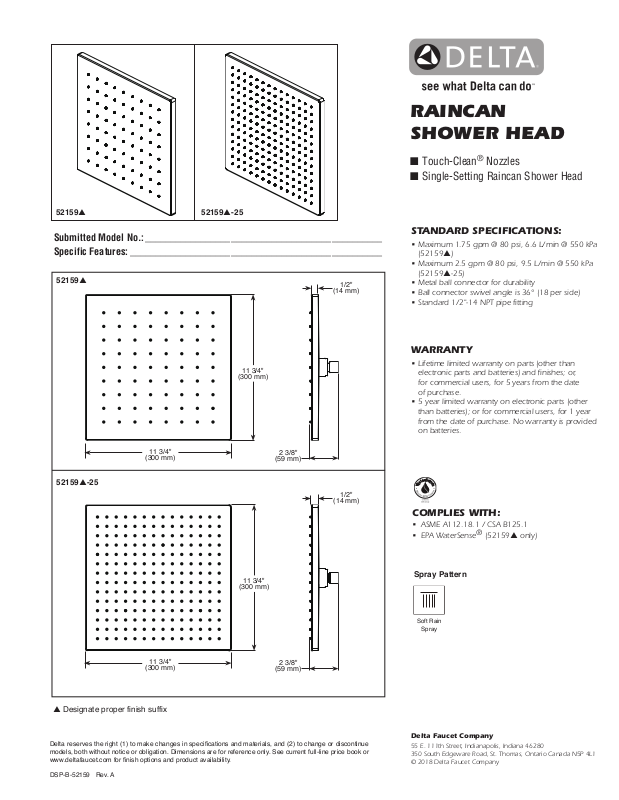

Delta CBKB2288 Specifications
RAINCAN
SHOWER HEAD
52159p
52159p-25
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
52159p
11 3/4"
(300 mm)
11 3/4"
(300 mm)
2 3/8"
(59 mm)
1/2"
(14 mm)
Touch-Clean
n
Single-Setting Raincan Shower Head
n
®
Nozzles
STANDARD SPECIFICATIONS:
• Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
(52159p)
• Maximum 2.5 gpm @ 80 psi, 9.5 L/min @ 550 kPa
(52159p-25)
• Metal ball connector for durability
• Ball connector swivel angle is 36° (18 per side)
• Standard 1/2"-14 NPT pipe fitting
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and inishes; or,
for commercial users, for 5 years from the date
of purchase.
• 5 year limited warranty on electronic parts (other
than batteries); or for commercial users, for 1 year
from the date of purchase. No warranty is provided
on batteries.
52159p-25
1/2"
(14 mm)
11 3/4"
(300 mm)
11 3/4"
(300 mm)
p Designate proper finish suffix
Delta reserves the right (1) to make changes in specications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for nish options and product availability.
DSP-B-52159 Rev. A
2 3/8"
(59 mm)
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• EPA WaterSense® (52159p only)
Spray Pattern
Soft Rain
Spray
Delta Faucet Company
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario Canada N5P 4L1
© 2018 Delta Faucet Company
