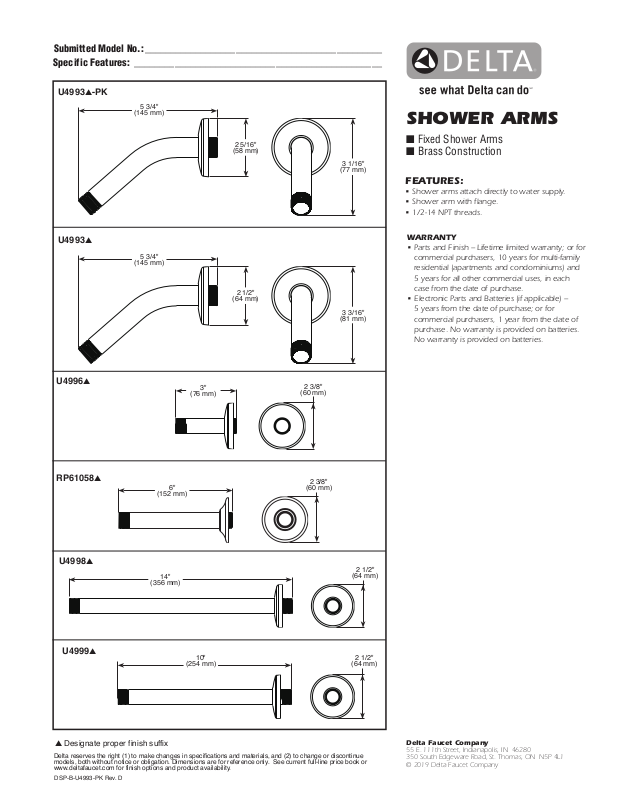

Delta CBKB2283 Specifications
Submitted Model No.: _______________________________________________
Specific Features: _________________________________________________
U4993▲-PK
5 3/4"
(145 mm)
SHOWER ARMS
U4993
U4996▲
2 5/16"
(58 mm)
3 1/16"
(77 mm)
■ Fixed Shower Arms
■ Brass Construction
FEATURES:
• Shower arms attach directly to water supply.
• Shower arm with flange.
• 1/2-14 NPT threads.
▲
5 3/4"
(145 mm)
2 1/2"
(64 mm)
3 3/16"
(81 mm)
3"
(76 mm)
2 3/8"
(60 mm)
WARRANTY
• Parts and Finish – Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each
case from the date of purchase.
• Electronic Parts and Batteries (if applicable) –
5 years from the date of purchase; or for
commercial purchasers, 1 year from the date of
purchase. No warranty is provided on batteries.
No warranty is provided on batteries.
RP61058▲
6"
(152 mm)
2 3/8"
(60 mm)
U4998▲
2 1/2"
14"
(356 mm)
U4999▲
10"
(254 mm)
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-U4993-PK Rev. D
(64 mm)
2 1/2"
(64 mm)
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2019 Delta Faucet Company
