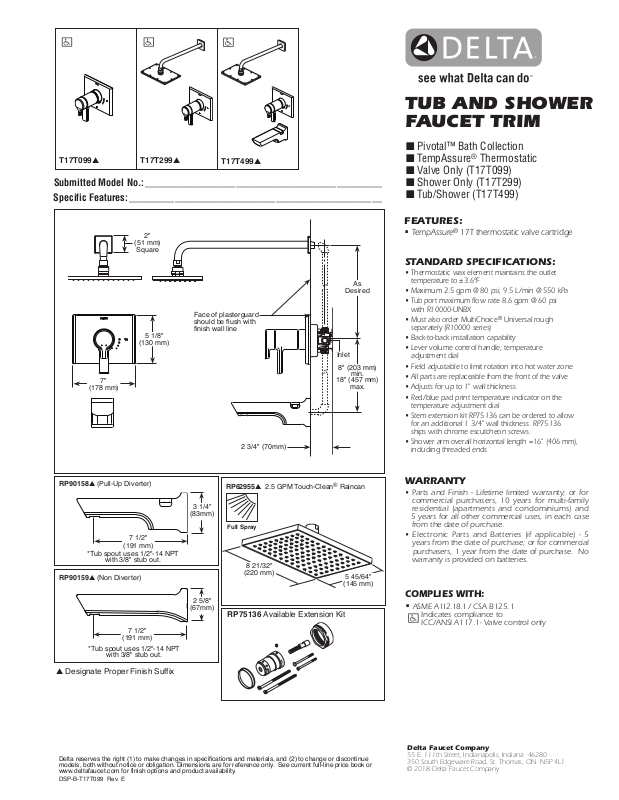

Delta CBKB2239 Specifications
TUB AND SHOWER
FAUCET TRIM
T17T099▲
T17T299▲
T17T499▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
2"
(51 mm)
Square
As
Desired
Face of plasterguard
should be flush with
finish wall line
2 3/4" (70mm)
Inlet
8" (203 mm)
min.
18" (457 mm)
max.
7"
(178 mm)
5 1/8"
(130 mm)
■ Pivotal™ Bath Collection
®
■ TempAssure
Thermostatic
■ Valve Only (T17T099)
■ Shower Only (T17T299)
■ Tub/Shower (T17T499)
FEATURES:
•
TempAssure® 17T thermostatic valve cartridge
STANDARD SPECIFICATIONS:
• Thermostatic wax element maintains the outlet
temperature to ±3.6ºF
• Maximum 2.5 gpm @ 80 psi, 9.5 L/min @ 550 kPa
• Tub port maximum flow rate 8.6 gpm @ 60 psi
with R10000-UNBX
• Must also order MultiChoice® Universal rough
separately (R10000 series)
• Back-to-back installation capability
• Lever volume control handle; temperature
adjustment dial
• Field adjustable to limit rotation into hot water zone
• All parts are replaceable from the front of the valve
• Adjusts for up to 1" wall thickness
• Red/blue pad print temperature indicator on the
temperature adjustment dial
• Stem extension kit RP75136 can be ordered to allow
for an additional 1 3/4" wall thickness. RP75136
ships with chrome escutcheon screws.
• Shower arm overall horizontal length =16" (406 mm),
including threaded ends
RP90158▲ (Pull-Up Diverter)
3 1/4"
(83mm)
7 1/2"
*Tub spout uses 1/2"-14 NPT
RP90159▲ (Non Diverter)
*Tub spout uses 1/2"-14 NPT
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17T099 Rev. E
(191 mm)
with 3/8" stub out.
7 1/2"
(191 mm)
with 3/8" stub out.
2 5/8"
(67mm)
RP62955s 2.5 GPM Touch-Clean® Raincan
Full Spray
8 21/32"
(220 mm)
RP75136 Available Extension Kit
5 45/64"
(145 mm)
WARRANTY
•
Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
•
Electronic Parts and Batteries (if applicable) - 5
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1- Valve control only
Delta Faucet Company
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2018 Delta Faucet Company
