Optional 6"
Escutcheon
RP78359

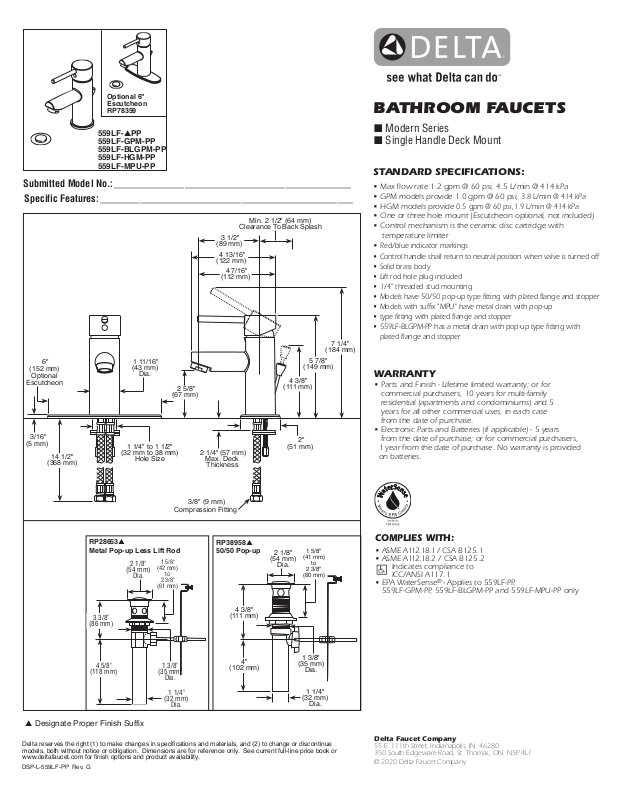

BATHROOM FAUCETS
559LF-▲PP
559LF-GPM-PP
559LF-BLGPM-PP
559LF-HGM-PP
559LF-MPU-PP
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 2 1/2" (64 mm)
Clearance To Back Splash
3 1/2"
(89 mm)
4 13/16"
(122 mm)
4 7/16"
(112 mm)
7 1/4"
(184 mm)
6"
(152 mm)
Optional
Escutcheon
3/16"
(5 mm)
14 1/2"
(368 mm)
1 11/16"
(43 mm)
Dia.
1 1/4" to 1 1/2"
(32 mm to 38 mm)
Hole Size
2 5/8"
(67 mm)
2 1/4" (57 mm)
Max. Deck
Thickness
(149 mm)
4 3/8"
(111 mm)
2"
(51 mm)
5 7/8"
■ Modern Series
■ Single Handle Deck Mount
STANDARD SPECIFICATIONS:
• Max low rate 1.2 gpm @ 60 psi, 4.5 L/min @ 414 kPa
• GPM models provide 1.0 gpm @ 60 psi,
• HGM models provide
0.5 gpm @ 60 psi,1.9 L/min @ 414 kPa
• One or three hole mount (Escutcheon optional, not included)
• Control mechanism is the ceramic disc cartridge with
temperature limiter
•
Red/blue indicator markings
• Control handle shall return to neutral position when valve is turned off
• Solid brass body
• Lift rod hole plug included
• 1/4
"
threaded stud mounting
• Models have 50/50 pop-up type fitting with plated flange and stopper
• Models with suffix "MPU" have metal drain with pop-up
• type fitting with plated flange and stopper
• 559LF-BLGPM-PP has a metal drain with pop-up type fitting with
plated flange and stopper
WARRANTY
• Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and 5
years for all other commercial uses, in each case
from the date of purchase.
• Electronic Parts and Batteries (if applicable) - 5 years
from the date of purchase; or for commercial purchasers,
1 year from the date of purchase. No warranty is provided
on batteries.
3.8 L/min @ 414 kPa
3/8" (9 mm)
Compression Fitting
RP28653p
3 3/8"
(86 mm)
4 5/8"
(118 mm)
2 1/8"
(54 mm)
Dia.
1 5/8"
(42 mm)
to
2 3/8"
(61 mm)
1 3/8"
(35 mm)
Dia.
1 1/4"
(32 mm)
Dia.
RP38958p
50/50 Pop-upMetal Pop-up Less Lift Rod
4 3/8"
(111 mm)
4"
(102 mm)
2 1/8"
(54 mm)
Dia.
1 5/8"
(41 mm)
to
2 3/8"
(60 mm)
1 3/8"
(35 mm)
Dia.
1 1/4"
(32 mm)
Dia.
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-559LF-PP Rev. G
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.1
• EPA WaterSense® - Applies to 559LF-PP,
559LF-GPM-PP, 559LF-BLGPM-PP and 559LF-MPU-PP only
