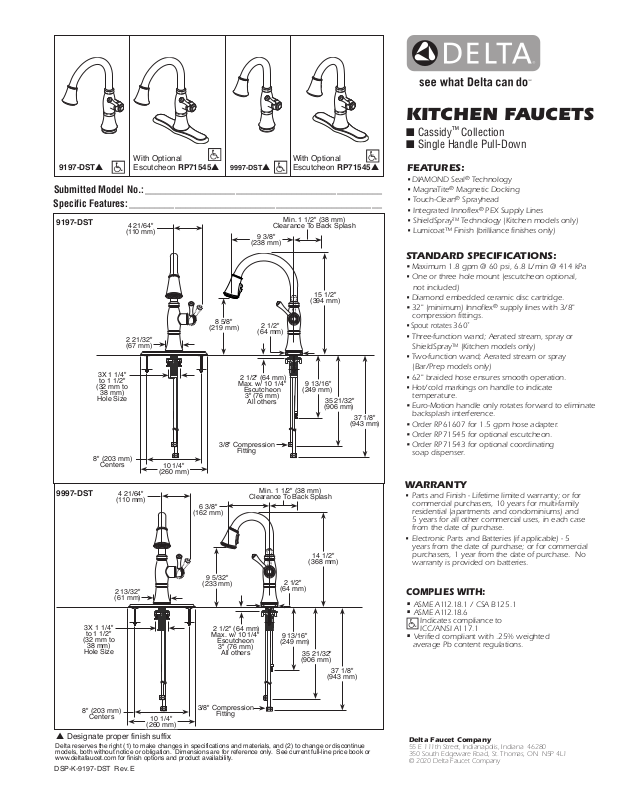

Delta CBKB2043 Specifications
9197-DST
▲
With Optional
Escutcheon RP71545▲
9997-DST
▲
With Optional
Escutcheon RP71545▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
9197-DST
9997-DST
3X 1 1/4"
(32 mm to
Hole Size
3X 1 1/4"
to 1 1/2"
(32 mm to
38 mm)
Hole Size
8" (203 mm)
Centers
to 1 1/2"
38 mm)
4 21/64"
(110 mm)
2 21/32"
(67 mm)
4 21/64"
(110 mm)
2 13/32"
(61 mm)
10 1/4"
(260 mm)
8 5/8"
(219 mm)
6 3/8"
(162 mm)
9 5/32"
(233 mm)
2 1/2" (64 mm)
Max. w/ 10 1/4"
(238 mm)
2 1/2" (64 mm)
Max. w/ 10 1/4"
Escutcheon
3" (76 mm)
All others
3/8" Compression
Fitting
Clearance To Back Splash
Escutcheon
3" (76 mm)
All others
Min. 1 1/2" (38 mm)
Clearance To Back Splash
9 3/8"
15 1/2"
(394 mm)
2 1/2"
(64 mm)
9 13/16"
(249 mm)
Min. 1 1/2" (38 mm)
14 1/2"
(368 mm)
2 1/2"
(64 mm)
9 13/16"
(249 mm)
35 21/32"
(906 mm)
35 21/32"
(906 mm)
37 1/8"
(943 mm)
37 1/8"
(943 mm)
KITCHEN FAUCETS
■ Cassidy™ Collection
■ Single Handle Pull-Down
FEATURES:
•
DIAMOND Seal® Technology
•
MagnaTite® Magnetic Docking
•
Touch-Clean® Sprayhead
•
Integrated Innoflex® PEX Supply Lines
•
ShieldSprayTM Technology (Kitchen models only)
•
Lumicoat™ Finish (brilliance finishes only)
STANDARD SPECIFICATIONS:
• Maximum 1.8 gpm @ 60 psi, 6.8 L/min @ 414 kPa
•
One or three hole mount (escutcheon optional,
not included)
•
Diamond embedded ceramic disc cartridge.
• 32" (minimum) Innoflex® supply lines with 3/8"
compression fittings.
• Spout rotates
•
Three-function wand; Aerated stream, spray or
ShieldSpray
•
Two-function wand; Aerated stream or spray
(Bar/Prep models only)
•
62" braided hose ensures smooth operation.
•
Hot/cold markings on handle to indicate
temperature.
• Euro-Motion handle only rotates forward to eliminate
backsplash interference.
• Order RP61607 for 1.5 gpm hose adapter.
• Order RP71545 for optional escutcheon.
• Order RP71543 for optional coordinating
soap dispenser.
WARRANTY
•
Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
•
Electronic Parts and Batteries (if applicable) - 5
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
•
Verified compliant with .25% weighted
average Pb content regulations.
360˚
TM
(Kitchen models only)
8" (203 mm)
Centers
10 1/4"
(260 mm)
3/8" Compression
Fitting
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-9197-DST Rev. E
Delta Faucet Company
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2020 Delta Faucet Company
