= Pause (P)
P
= Massage Spray (M)
M
= Adjustable H2Okinetic® PowerDrench®
Spray (AH
2
O)
= Soft Full Spray (SF)
=
Full Spray w/Massage (FSM)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Fast Massage Spray (FM)
= Soft Drench w/Full Spray (SDF)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Body Spray (AF)
CF
CFM
SDF
AF
SF
FB
SD
P
FSM
FM
= Massage Spray (M)
M
= Slow Massage Spray (SM)
SM
= Soft Drench Spray w/Massage (SDM)
SDM
AH
2
O
= Pause (P)
P
= Adjustable H2Okinetic® PowerDrench®
Spray (AH
2
O)
= Soft Full Spray (SF)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Body Spray (AF)
CF
CFM
AF
SF
FB
SD
P
= Massage Spray (M)
M
= Slow Massage Spray (SM)
SM
AH
2
O

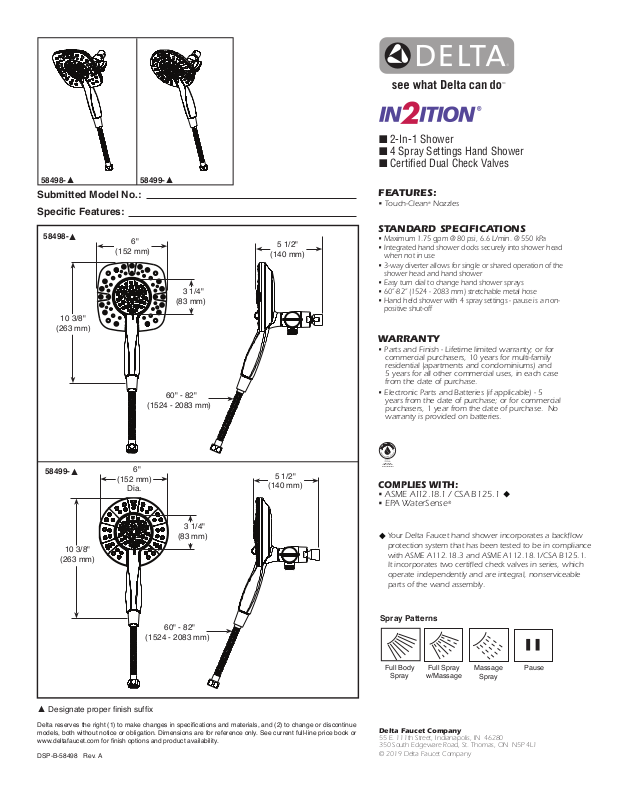

58498-
▲
Submitted Model No.:
Specic Features:
58498-
▲
10 3/8"
(263 mm)
58499-
6"
(152 mm)
▲
3 1/4"
(83 mm)
60" - 82"
(1524 - 2083 mm)
5 1/2"
(140 mm)
■ 2-In-1 Shower
■ 4 Spray Settings Hand Shower
■ Certified Dual Check Valves
FEATURES:
• Touch-Clean® Nozzles
STANDARD SPECIFICATIONS
• Maximum 1.75 gpm @ 80 psi, 6.6 L/min. @ 550 kPa
• Integrated hand shower docks securely into shower head
when not in use
• 3-way diverter allows for single or shared operation of the
shower head and hand shower
• Easy turn dial to change hand shower sprays
• 60”-82” (1524 - 2083 mm) stretchable metal hose
• Hand held shower with 4 spray settings - pause is a non-
positive shut-off
WARRANTY
•
Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
•
Electronic Parts and Batteries (if applicable) - 5
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
58499-
▲
6"
(152 mm)
Dia.
5 1/2"
(140 mm)
10 3/8"
(263 mm)
3 1/4"
(83 mm)
Designate proper nish sufx
▲
Delta reserves the right (1) to make changes in specications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for nish options and product availability.
DSP-B-58498 Rev. A
(1524 - 2083 mm)
60" - 82"
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
EPA WaterSense
®
Your Delta Faucet hand shower incorporates a back low
protection system that has been tested to be in compliance
with ASME A112.18.3 and ASME A112.18.1/CSA B125.1.
It incorporates two certi led check valves in series, which
operate independently and are integral, nonserviceable
parts of the wand assembly.
Spray Patterns
Full Body
Spray
Full Spray
w/Massage
Massage
Spray
Pause
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2019 Delta Faucet Company
