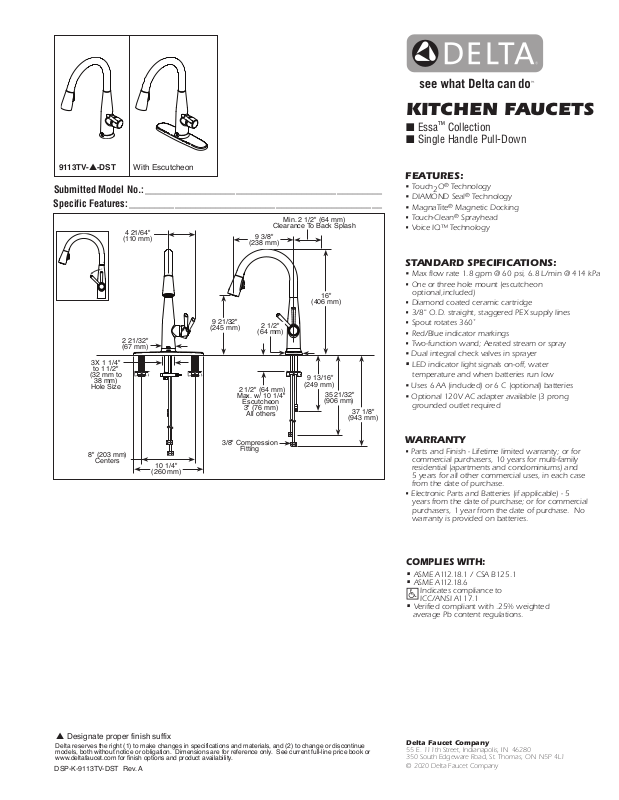

KITCHEN FAUCETS
■ Essa™ Collection
■ Single Handle Pull-Down
9113TV-▲-DST
With Escutcheon
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 2 1/2" (64 mm)
Clearance To Back Splash
9 3/8"
(238 mm)
2 1/2"
(64 mm)
Escutcheon
3" (76 mm)
All others
16"
(406 mm)
9 13/16"
(249 mm)
35 21/32"
(906 mm)
37 1/8"
(943 mm)
C
H
3X 1 1/4"
to 1 1/2"
(32 mm to
38 mm)
Hole Size
8" (203 mm)
Centers
4 21/64"
(110 mm)
2 21/32"
(67 mm)
10 1/4"
(260 mm)
9 21/32"
(245 mm)
2 1/2" (64 mm)
Max. w/ 10 1/4"
3/8" Compression
Fitting
FEATURES:
• Touch2O® Technology
• DIAMOND Seal
• MagnaTite
•
Touch-Clean® Sprayhead
•
Voice IQ™ Technology
®
Technology
®
Magnetic Docking
STANDARD SPECIFICATIONS:
• Max flow rate 1.8 gpm @ 60 psi, 6.8 L/min @ 414 kPa
• One
or three hole mount (escutcheon
optional,included)
•
Diamond coated ceramic cartridge
•
3/8" O.D. straight, staggered PEX supply lines
•
Spout rotates 360˚
•
Red/Blue indicator markings
•
Two-function wand; Aerated stream or spray
• Dual integral check valves in sprayer
•
LED indicator light signals on-off, water
temperature and when batteries run low
• Uses 6 AA (included) or 6 C (optional) batteries
• Optional 120V AC adapter available (3 prong
grounded outlet required
WARRANTY
•
Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
•
Electronic Parts and Batteries (if applicable) - 5
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-9113TV-DST Rev. A
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
•
Verified compliant with .25% weighted
average Pb content regulations.
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2020 Delta Faucet Company
