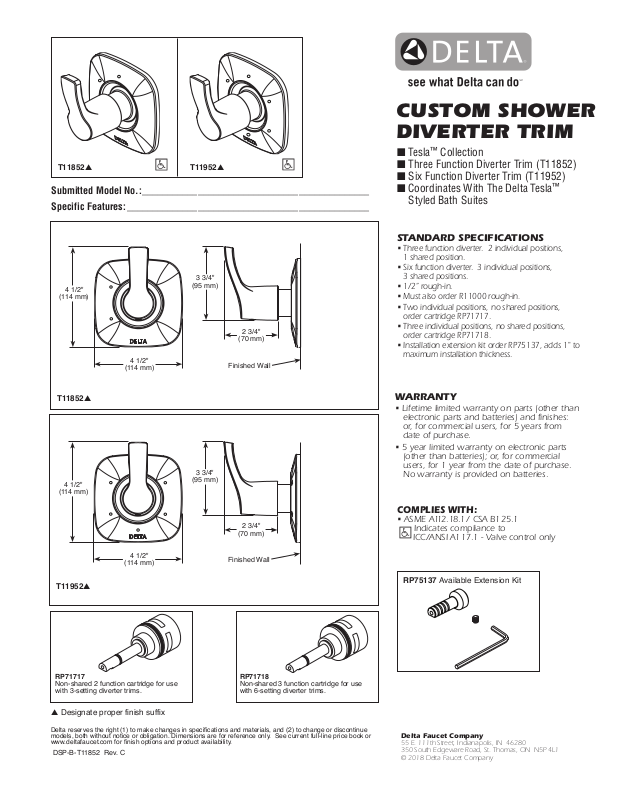

Delta CBKB1937 Specifications
T11852▲
T11952▲
Submitted Model No.: _____________________________________________
Specific Features: ________________________________________________
3 3/4"
4 1/2"
(114 mm)
4 1/2"
(114 mm)
(95 mm)
2 3/4"
(70 mm)
Finished Wall
CUSTOM SHOWER
DIVERTER TRIM
■ Tesla™ Collection
■ Three Function Diverter Trim (T11852)
■ Six Function Diverter Trim (T11952)
■ Coordinates With The Delta Tesla
Styled Bath Suites
STANDARD SPECIFICATIONS
• Three function diverter. 2 individual positions,
1 shared position.
• Six function diverter. 3 individual positions,
3 shared positions.
• 1/2” rough-in.
• Must also order R11000 rough-in
• Two individual positions, no shared positions,
order cartridge RP71717.
• Three individual positions, no shared positions,
order cartridge RP71718.
• Installation extension kit order RP75137, adds 1" to
maximum installation thickness.
.
™
T11852▲
4 1/2"
(114 mm)
4 1/2"
(114 mm)
T11952▲
RP71717
Non-shared 2 function cartridge for use
with 3-setting diverter trims.
▲ Designate proper finish suffix
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
3 3/4"
(95 mm)
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
2 3/4"
(70 mm)
Finished Wall
RP71718
Non-shared 3 function cartridge for use
with 6-setting diverter trims.
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
RP75137 Available Extension Kit
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T11852 Rev. C
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2018 Delta Faucet Company
