Flow (U.S. Gallons Per Minute)
T13420▲
= Soft Drench Spray (SD)
= Pause (P)
SD
P
= Massage Spray (M)
M
T13420-▲SOS
T13420-▲PD
T13420-▲PDSOS
T13420-H2O
T13420-SHC
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
7"
(178 mm)
Dia.
8" (203 mm)
min.
18" (457 mm)
max.
RP5836 (Slip-On)
▲ (Non-Metallic)
RP17453
▲
RP17454
(Metallic)
5 1/4"
(133 mm)
RP5834
RP19820
▲
(Slip-On)
5"
(127 mm)
RP48717
2 3/4"
(70 mm)
4 1/2"
(114 mm)
3 7/8"
(98 mm)
RP19895
5"
(127 mm)
RP54752▲
1.5 GPM
H2O Showerhead
Full Spray
RP77991 Available Extension Kit
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T13420 Rev. J
Face of plasterguard
should be flush with
finish wall line
2 1/2"
(64 mm)
2 1/2"
(64 mm)
3 3/16"
(81 mm)
RP43381▲ Touch-Clean® Raincan Showerhead
1.75 GPM
4 3/4"
Full Spray
Massage Spray
Soft Drench
Spray
RP38357 Touch-Clean® Showerhead
1.75 GPM
Full Spray
RP46384▲
1.5 GPM
H2O Showerhead
Full Spray
(121 mm)
4 7/8"
(124 mm)
2 3/4"
(70 mm)
2 5/8"
(66 mm)
4 3/4"
(121 mm)
3 1/4"
(83 mm)
T13420▲-H2OT
Supply
2 3/4"
(70 mm)

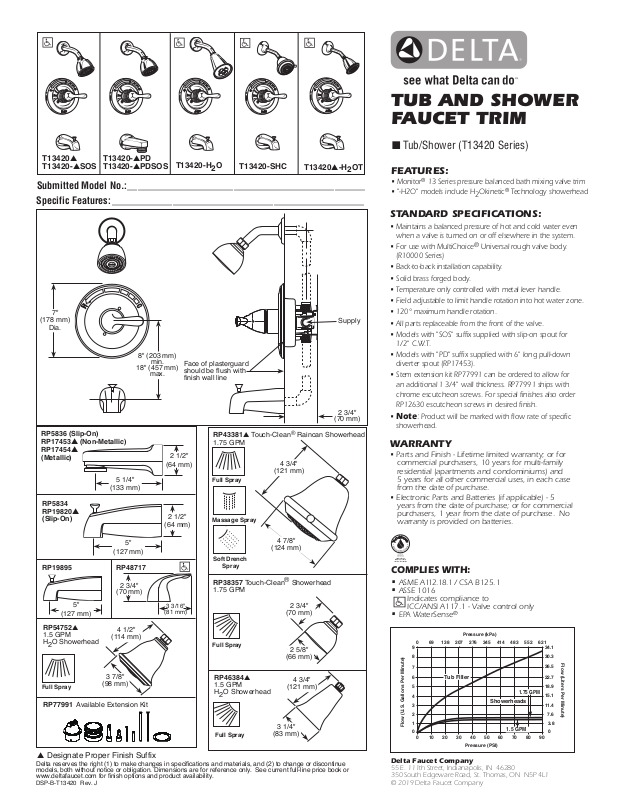

TUB AND SHOWER
FAUCET TRIM
■ Tub/Shower (T13420 Series)
FEATURES:
• Monitor® 13 Series pressure balanced bath mixing valve trim
• "-H2O" models include H2Okinetic® Technology showerhead
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold water even
when a valve is turned on or off elsewhere in the system.
• For use with MultiChoice® Universal rough valve body.
(R10000 Series)
• Back-to-back installation capability.
• Solid brass forged body.
• Temperature only controlled with metal lever handle.
• Field adjustable to limit handle rotation into hot water zone.
• 120° maximum handle rotation.
• All parts replaceable from the front of the valve.
• Models with "SOS" suffix supplied with slip-on spout for
1/2" C.W.T.
• Models with "PD" suffix supplied with 6" long pull-down
diverter spout (RP17453).
• Stem extension kit RP77991 can be ordered to allow for
an additional 1 3/4" wall thickness. RP77991 ships with
chrome escutcheon screws. For special finishes also order
RP12630 escutcheon screws in desired finish.
•
Note:
showerhead.
WARRANTY
•
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
•
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
COMPLIES WITH:
•
•
•
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2019 Delta Faucet Company
Product will be marked with flow rate of specific
Parts and Finish - Lifetime limited warranty; or for
Electronic Parts and Batteries (if applicable) - 5
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
EPA WaterSense
069 138 207 276 345 414 483 552 621
9
8
7
6
5
4
3
2
1
0
0102030405060708090
®
Tub Filler
Pressure (kPa)
Pressure (PSI)
Showerheads
1.5 GPM
1.75 GPM
34.1
30.3
Flow (Liters Per Minute)
26.5
22.7
18.9
15.1
11.4
7.6
3.8
0
