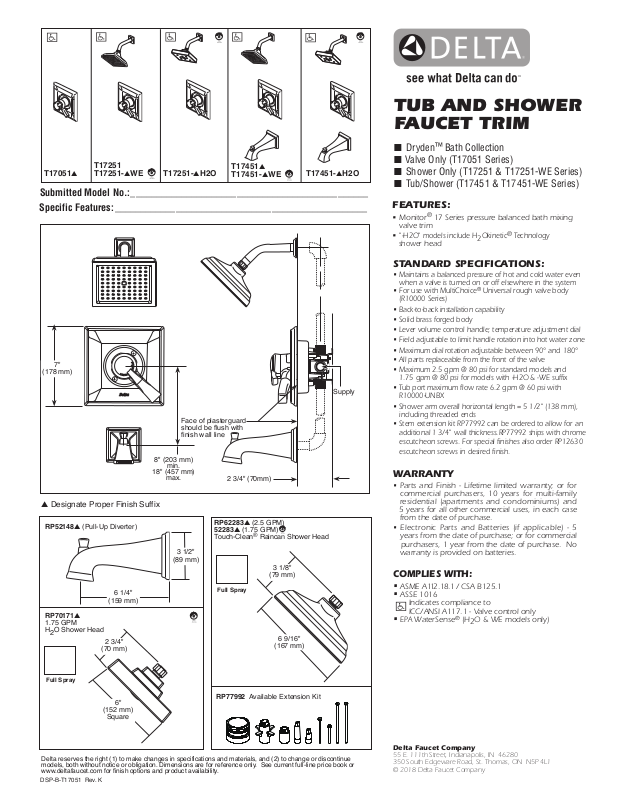

Delta CBKB1912 Specifications
T17051▲
CABEZA(S) DE REGADERA
T17251
T17251-▲WE
T17251-▲H2O
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
T17451▲
T17451-▲WE
T17451-▲H2O
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
7"
(178 mm)
Supply
Face of plasterguard
should be flush with
finish wall line
8" (203 mm)
min.
18" (457 mm)
▲ Designate Proper Finish Suffix
RP52148▲ (Pull-Up Diverter)
6 1/4"
(159 mm)
RP70171▲
1.75 GPM
H2O Shower Head
2 3/4"
(70 mm)
max.
3 1/2"
(89 mm)
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
2 3/4" (70mm)
RP62283▲ (2.5 GPM)
52283▲ (1.75 GPM)
Touch-Clean
Full Spray
®
Raincan Shower Head
3 1/8"
(79 mm)
(167 mm)
SHOWER HEAD(S)
POMME(S) DE DOUCHE
6 9/16"
TUB AND SHOWER
FAUCET TRIM
■ Dryden™ Bath Collection
■ Valve Only (T17051 Series)
■ Shower Only (T17251 & T17251-WE Series)
■ Tub/Shower (T17451 & T17451-WE Series)
FEATURES:
• Monitor® 17 Series pressure balanced bath mixing
valve trim
•
"-H2O" models include H2Okinetic® Technology
shower
head
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold water even
when a valve is turned on or off elsewhere in the system
• For use with MultiChoice® Universal rough valve body
(R10000 Series)
• Back-to-back installation capability
• Solid brass forged body
• Lever volume control handle; temperature adjustment dial
• Field adjustable to limit handle rotation into hot water zone
• Maximum dial rotation adjustable between 90° and 180°
• All parts replaceable from the front of the valve
• Maximum 2.5 gpm @ 80 psi for standard models and
1.75 gpm @ 80 psi for models with -H2O & -WE suffix
• Tub port maximum flow rate 6.2 gpm @ 60 psi with
R10000-UNBX
• Shower arm overall horizontal length = 5 1/2" (138 mm),
including threaded ends
• Stem extension kit RP77992 can be ordered to allow for an
additional 1 3/4" wall thickness.RP77992 ships with chrome
escutcheon screws. For special finishes also order RP12630
escutcheon screws in desired finish.
WARRANTY
•
Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
•
Electronic Parts and Batteries (if applicable) - 5
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
•
EPA WaterSense® (H2O & WE models only)
Full Spray
6"
(152 mm)
Square
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17051 Rev. K
RP77992 Available Extension Kit
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2018 Delta Faucet Company
