CABEZA(S) DE REGADERA
= Pause (P)
P
= Massage Spray (M)
M
= Pause (P)
P
= Adjustable H2Okinetic® PowerDrench®
Spray (AH
2
O)
= Soft Full Spray (SF)
= Shampoo Rinsing Spray (SR)
= Shampoo Rinsing
Spray
w/Massage (SRM)
=
Full Spray w/Massage (FSM)
= High-Efficiency Spray (HE)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Fast Massage Spray (FM)
= Soft Drench w/Full Spray (SDF)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Body Spray (AF)
SR
CF
CFM
HE
SDF
AF
SRM
SF
FB
SD
P
FSM
FM
= Massage Spray (M)
M
= Slow Massage Spray (SM)
SM
= H
2
Okinetic® PowerDrench® Spray (H2O)
H
2
O
= Soft Drench Spray w/Massage (SDM)
SDM
AH
2
O
= Soft Full Spray (SF)
= Shampoo Rinsing Spray (SR)
= Shampoo Rinsing
Spray
w/Massage (SRM)
= Soft Drench w/Full Spray (SDF)
= Soft Rain Spray (SRS)
SR
SDF
SF
= Slow Massage Spray (SM)
SM
= Soft Drench Spray w/Massage (SDM)
SRS
WFS
= Wide Full Spray (WFS)
FSA
= Full Spray w/Aeration (FSA)
NSM
= Narrow spray w/Massage (NSM)
DS
= Drenching Spray (DS)
DMS
= Drenching Mist Spray (DMS)
US
= Ultra Soak (US)

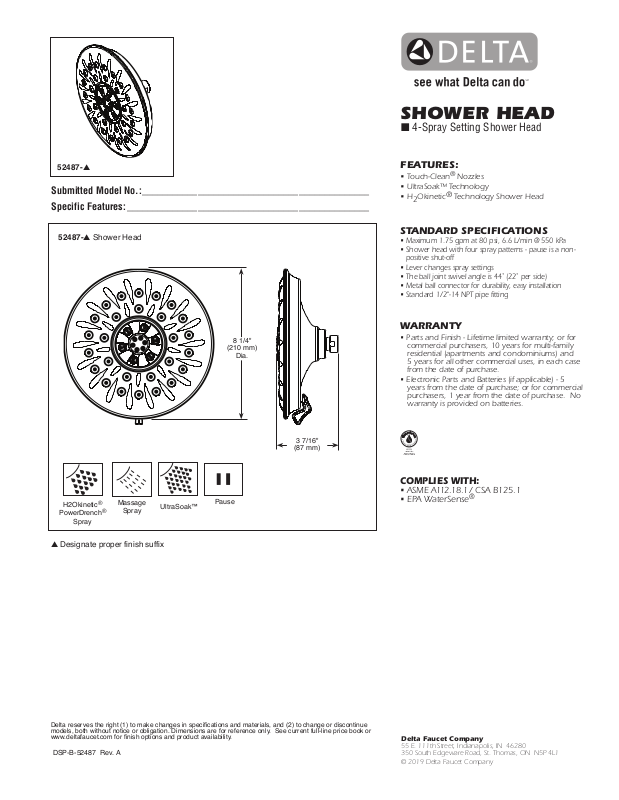

SHOWER HEAD
n 4-Spray Setting Shower Head
52487-▲
Submitted Model No.: _____________________________________________
Specific Features: ________________________________________________
52487-▲ Shower Head
8 1/4"
(210 mm)
Dia.
3 7/16"
(87 mm)
H2Okinetic®
PowerDrench
Spray
®
Massage
Spray
UltraSoak™
Pause
FEATURES:
• Touch-Clean® Nozzles
• UltraSoak™ Technology
• H2Okinetic® Technology Shower Head
STANDARD SPECIFICATIONS
• Maximum 1.75 gpm at 80 psi, 6.6 L/min @ 550 kPa
• Shower head with four spray patterns - pause is a non positive shut-off
• Lever changes spray settings
• The ball joint swivel angle is 44˚ (22˚ per side)
• Metal ball connector for durability, easy installation
• Standard 1/2"-14 NPT pipe fitting
WARRANTY
•
Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
•
Electronic Parts and Batteries (if applicable) - 5
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
SHOWER HEAD(S)
POMME(S) DE DOUCHE
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
EPA WaterSense
®
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-52487 Rev. A
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2019 Delta Faucet Company
