Page 1
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
CF
CFM
AF
SF
FB
SD
P
= Massage Spray (M)
M
= Slow Massage (SM)
SM
AH
2
O
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
T17059▲ T17259▲
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
T17459▲ T17259-▲LHD T17459-▲LHD
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
C/L
Supply
Lines
6 1/2"
(165 mm)
Dia.
Face of plasterguard
should be flush with
finish wall line
Supply
8" (203 mm)
min.
18" (457 mm)
max.

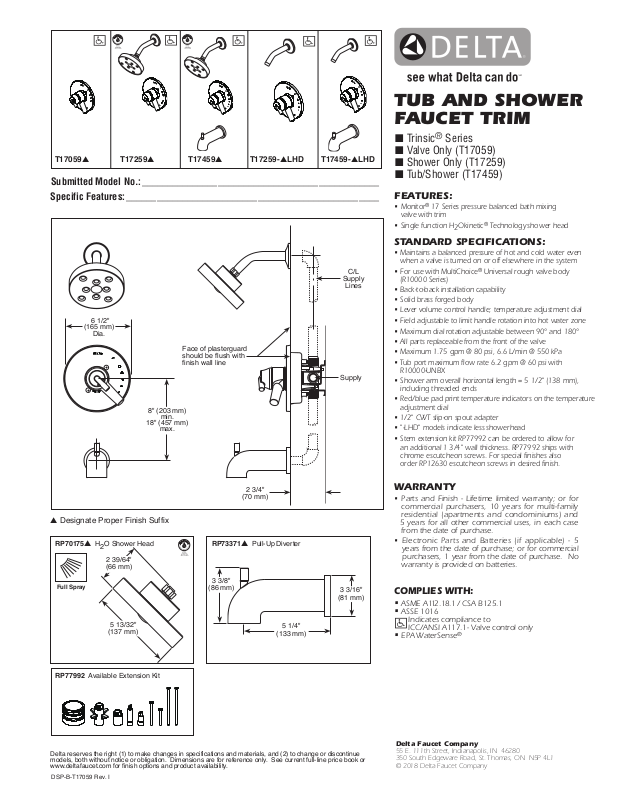

TUB AND SHOWER
FAUCET TRIM
■ Trinsic® Series
■Valve Only (T17059)
■Shower Only (T17259)
■Tub/Shower (T17459)
FEATURES:
• Monitor® 17 Series pressure balanced bath mixing
valve with trim
• Single function H2Okinetic® Technology shower head
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold water even
when a valve is turned on or off elsewhere in the system
• For use with MultiChoice
(R10000 Series)
• Back-to-back installation capability
• Solid brass forged body
• Lever volume control handle; temperature adjustment dial
• Field adjustable to limit handle rotation into hot water zone
• Maximum dial rotation adjustable between 90° and 180°
• All parts replaceable from the front of the valve
• Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Tub port maximum flow rate 6.2 gpm @ 60 psi with
R10000-UNBX
• Shower arm overall horizontal length = 5 1/2" (138 mm),
including threaded ends
• Red/blue pad print temperature indicators on the temperature
adjustment dial
• 1/2" CWT slip-on spout adapter
• "-LHD" models indicate less showerhead
• Stem extension kit RP77992 can be ordered to allow for
an additional 1 3/4" wall thickness. RP77992 ships with
chrome escutcheon screws. For special finishes also
order RP12630 escutcheon screws in desired finish.
®
Universal rough valve body
▲ Designate Proper Finish Suffix
RP70175▲ H2O Shower Head
2 39/64"
Full Spray
RP77992 Available Extension Kit
(66 mm)
5 13/32"
(137 mm)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
SHOWER HEAD(S)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17059 Rev. I
2 3/4"
(70 mm)
RP73371▲ Pull-Up Diverter
3 3/8"
(86 mm)
5 1/4"
(133 mm)
WARRANTY
•
Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
•
Electronic Parts and Batteries (if applicable) - 5
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
3 3/16"
(81 mm)
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1- Valve control only
•
EPA WaterSense
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2018 Delta Faucet Company
®
