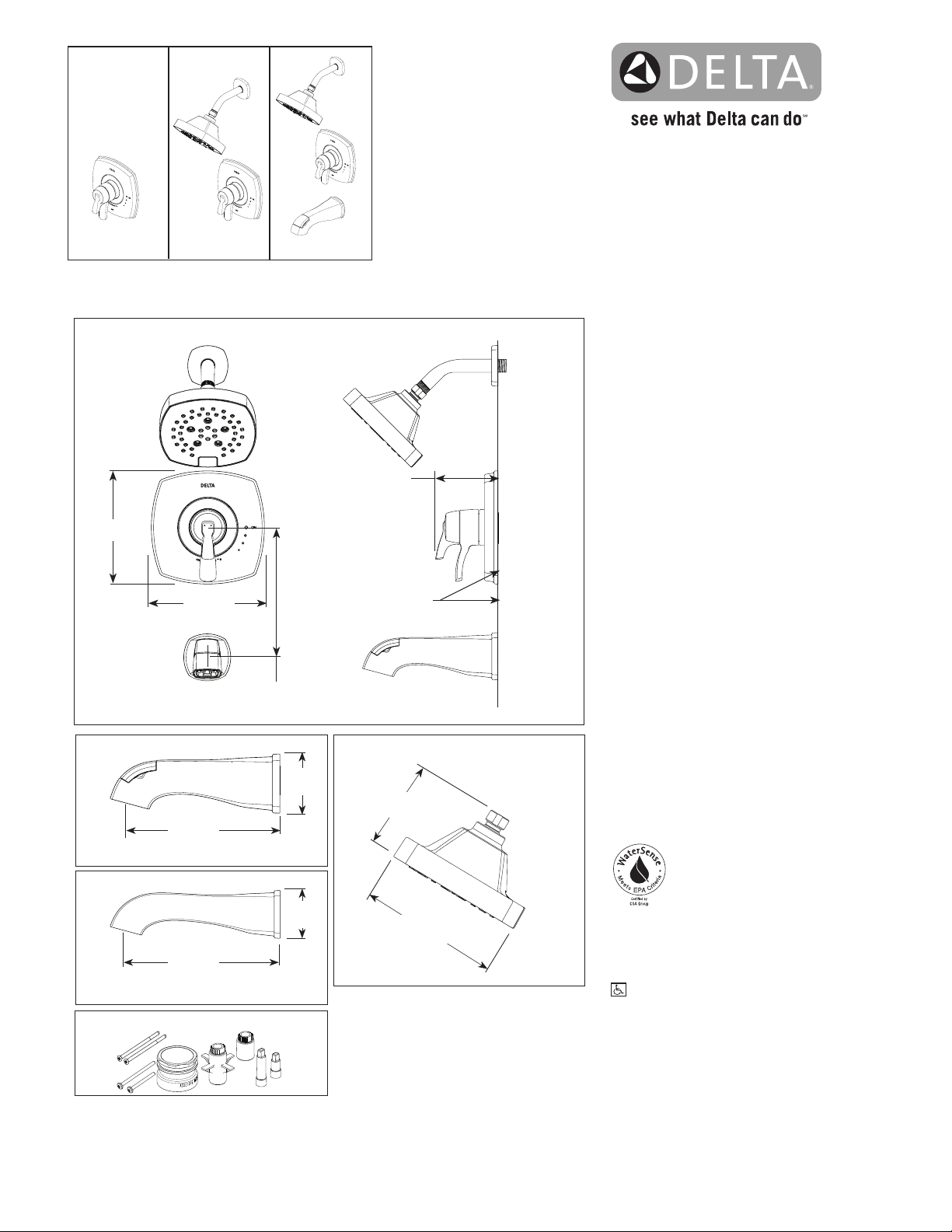

T17076▲
T17276▲
T17476▲
Submitted Model No.: _______________________________________
Specific Features: __________________________________________
3 13/16"
(96 mm)
7"
(178 mm)
Face of plasterguard
7"
(178 mm)
should be flush with
finished wall line
TUB AND SHOWER
FAUCET TRIM
■ Stryke™ Bath Collection
■ Valve Only (T17076)
■ Shower Only (T17276)
■ Tub/Shower (T17476)
FEATURES:
• Monitor® 17 Series pressure balanced bath mixing valve trim
®
• Five-setting H2Okinetic
Technology
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold water even
when a valve is turned on or off elsewhere in the system
• Max. flow rate 1.75 gpm @ 80 psi, 7.60 L/min @ 550 kPa.
• For use with MultiChoice® Universal rough valve body
(R10000 Series)
• Back-to-back installation capability.
• Lever volume control handle; temperature adjustment dial
• Field adjustable to limit handle rotation into hot water zone
• All parts replaceable from the front of the valve
• Red/blue pad print temperature indicators on temperature
adjustment dial
• Stem extension kit RP77992 can be ordered to allow for an
additional 1 3/4" wall thickness. RP77992 ships with chrome
escutcheon screws.
shower head
8" (203 mm)
18" (457 mm)
RP93376▲ (Pull-Up Diverter)
7 5/16"
(186 mm)
*Tub spout uses 1/2"-14 NPT
with 3/8" stub out.
RP93377▲ (Non Diverter)
9 3/8"
(238 mm)
*Tub spout uses 1/2"-14 NPT
with 3/8" stub out.
RP77992 Available Extension Kit
▲ Designate Proper Finish Suffix
min.
max.
2 7/8"
(74mm)
2 7/8"
(74mm)
52663▲ 1.75 GPM H2O Shower Head
3 15/16"
(99 mm)
6"
(152 mm)
WARRANTY
•
Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
•
Electronic Parts and Batteries (if applicable) - 5
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
•
EPA WaterSense® - Applies to T17276, T17476, and
52663 only
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17076 Rev. D
Delta Faucet Company
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2022 Delta Faucet Company
