Delta CBKB1238 Specifications
52171p
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Shampoo Rinsing Spray (SR)
= Shampoo Rinsing
Spray
w/Massage (SRM)
=
Full Spray w/Massage (FSM)
= High-Efficiency Spray (HE)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Fast Massage (FM)
= Soft Drench w/Full Spray (SDF)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
SR
CF
CFM
HE
SDF
AF
SRM
SF
FB
SD
P
FSM
FM
= Massage Spray (M)
M
= Slow Massage (SM)
SM
= H
2
Okinetic™ Spray (H2O)
H
2
O
= Soft Drench Spray w/Massage (SDM)
SDM
AH
2
O
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
2 5/8"
(65 mm)
6"
(154 mm)

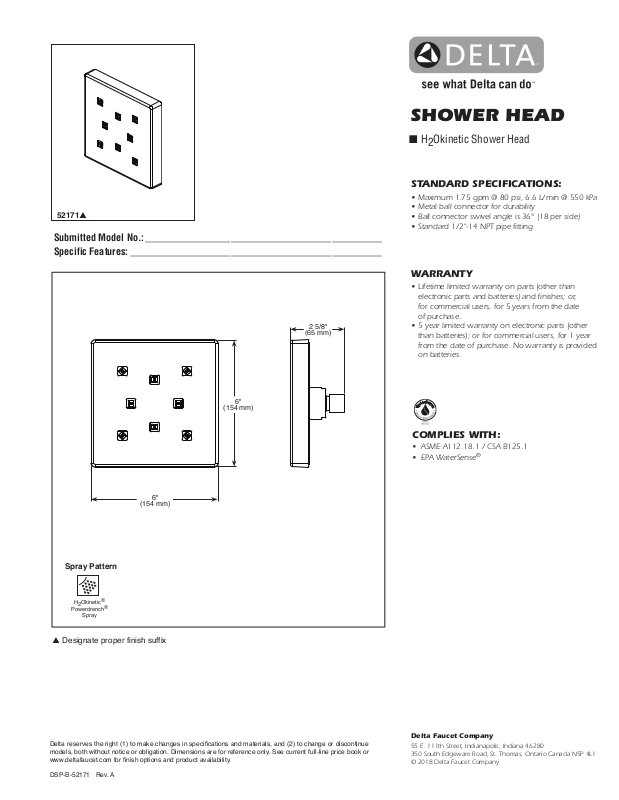

SHOWER HEAD
H2Okinetic Shower Head
n
STANDARD SPECIFICATIONS:
• Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Metal ball connector for durability
• Ball connector swivel angle is 36° (18 per side)
• Standard 1/2"-14 NPT pipe fitting
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and inishes; or,
for commercial users, for 5 years from the date
of purchase.
• 5 year limited warranty on electronic parts (other
than batteries); or for commercial users, for 1 year
from the date of purchase. No warranty is provided
on batteries.
Spray Pattern
®
H2Okinetic
Powerdrench®
Spray
p Designate proper finish suffix
6"
(154 mm)
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• EPA WaterSense
®
Delta reserves the right (1) to make changes in specications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for nish options and product availability.
DSP-B-52171 Rev. A
Delta Faucet Company
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario Canada N5P 4L1
© 2018 Delta Faucet Company
