Optional 8"
Escutcheon
RP92233

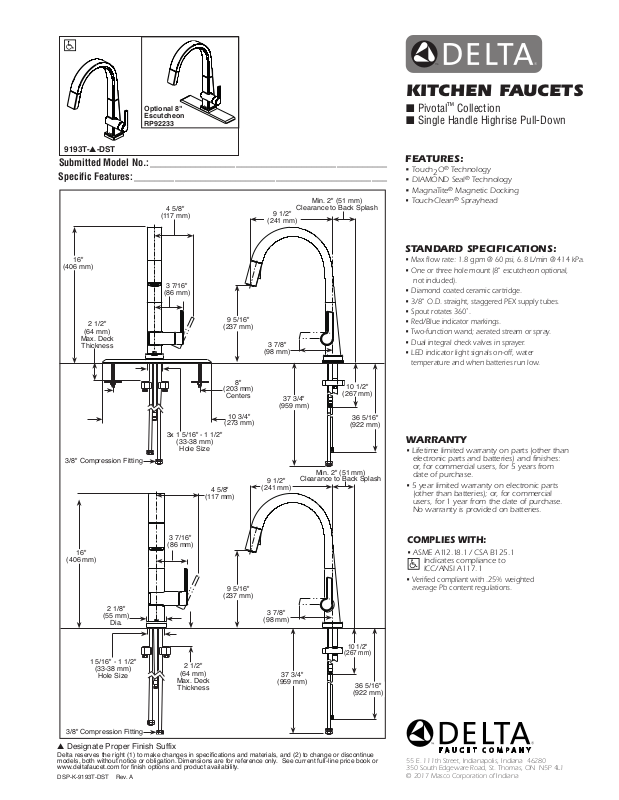

KITCHEN FAUCETS
■ Pivotal™ Collection
■ Single Handle Highrise Pull-Down
9193T-▲-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 2" (51 mm)
Clearance to Back Splash
9 1/2"
(241 mm)
3 7/8"
37 3/4"
(959 mm)
9 1/2"
Clearance to Back Splash
10 1/2"
(267 mm)
36 5/16"
(922 mm)
Min. 2" (51 mm)
16"
(406 mm)
2 1/2"
(64 mm)
Max. Deck
Thickness
3/8" Compression Fitting
4 5/8"
(117 mm)
3 7/16"
(86 mm)
3x 1 5/16" - 1 1/2"
(33-38 mm)
Hole Size
(237 mm)
(203 mm)
Centers
(273 mm)
4 5/8"
(117 mm)
9 5/16"
(98 mm)
8"
10 3/4"
(241 mm)
FEATURES:
• Touch2O® Technology
• DIAMOND Seal
• MagnaTite® Magnetic Docking
•
Touch-Clean® Sprayhead
®
Technology
STANDARD SPECIFICATIONS:
• Max flow rate: 1.8 gpm @ 60 psi, 6.8 L/min @ 414 kPa.
• One or three hole mount (8" escutcheon optional,
not included).
• Diamond coated ceramic cartridge.
• 3/8" O.D. straight, staggered PEX supply tubes.
• Spout rotates 360˚.
• Red/Blue indicator markings.
• Two-function wand; aerated stream or spray.
• Dual integral check valves in sprayer.
• LED indicator light signals on-off, water
temperature and when batteries run low.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
3 7/16"
16"
(406 mm)
2 1/8"
(55 mm)
Dia.
1 5/16" - 1 1/2"
(33-38 mm)
Hole Size
3/8" Compression Fitting
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-9193T-DST Rev. A
(86 mm)
2 1/2"
(64 mm)
Max. Deck
Thickness
9 5/16"
(237 mm)
3 7/8"
(98 mm)
37 3/4"
(959 mm)
10 1/2"
(267 mm)
36 5/16"
(922 mm)
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
• Verified compliant with .25% weighted
average Pb content regulations.
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2017 Masco Corporation of Indiana
