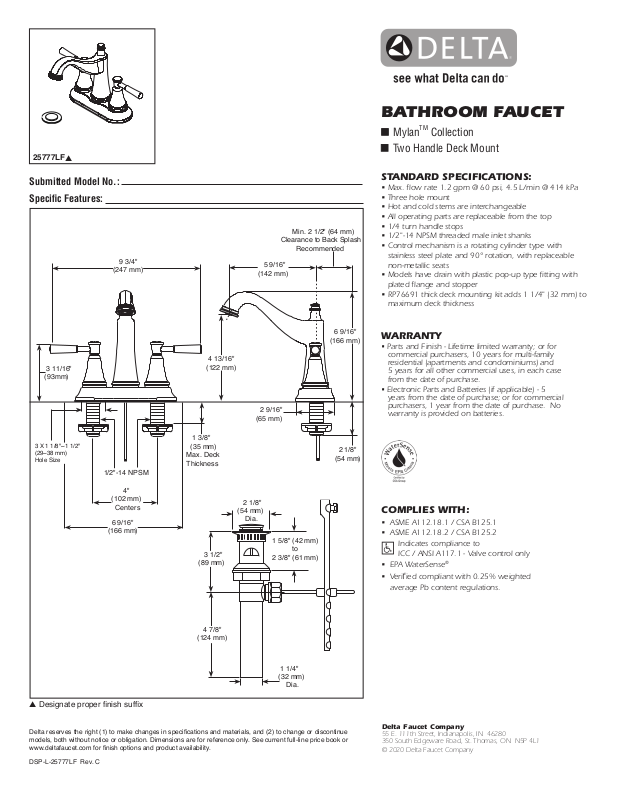

25777LF
BATHROOM FAUCET
TM
Mylan
Two Handle Deck Mount
▲
Collection
Submitted Model No.:
Specific Features:
3 11/16"
(93mm)
3 X 1 1/8"~1 1/2"
(29~38 mm)
Hole Size
1/2"-14 NPSM
9 3/4"
(247 mm)
4 13/16"
(122 mm)
1 3/8"
(35 mm)
Max. Deck
Thickness
Min. 2 1/2" (64 mm)
Clearance to Back Splash
Recommended
5 9/16"
(142 mm)
2 9/16"
(65 mm)
6 9/16"
(166 mm)
2 1/8"
(54 mm)
STANDARD SPECIFICATIONS:
• Max. low rate 1.2 gpm @ 60 psi, 4.5 L/min @ 414 kPa
• Three hole mount
• Hot and cold stems are interchangeable
• All operating parts are replaceable from the top
• 1/4 turn handle stops
• 1/2"-14 NPSM threaded male inlet shanks
• Control mechanism is a rotating cylinder type with
stainless steel plate and 90° rotation, with replaceable
non-metallic seats
• Models have drain with plastic pop-up type itting with
plated lange and stopper
• RP76691 thick deck mounting kit adds 1 1/4" (32 mm) to
maximum deck thickness
WARRANTY
•
Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
•
Electronic Parts and Batteries (if applicable) - 5
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
4"
(102 mm)
Centers
6 9/16"
(166 mm)
3 1/2"
(89 mm)
4 7/8"
(124 mm)
Designate proper nish sufx
▲
Delta reserves the right (1) to make changes in specications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for nish options and product availability.
DSP-L-25777LF Rev. C
2 1/8"
(54 mm)
Dia.
1 5/8" (42 mm)
to
2 3/8" (61 mm)
1 1/4"
(32 mm)
Dia.
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC / ANSI A117.1 - Valve control only
• EPA WaterSense
• Veri ied compliant with 0.25% weighted
average Pb content regulations.
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2020 Delta Faucet Company
®
