VENTILATION FAN
MODEL 80HLED/80L/80LED/100HLED/100LED
TABLE OF CONTENTS
Package Contents 2
General Safety Information 3
Preparation 4
Assembly Instructions 5
New Construction 5
Existing Construction 6
Connect Wiring 7
80L
Grille Installation 8
Operation 8

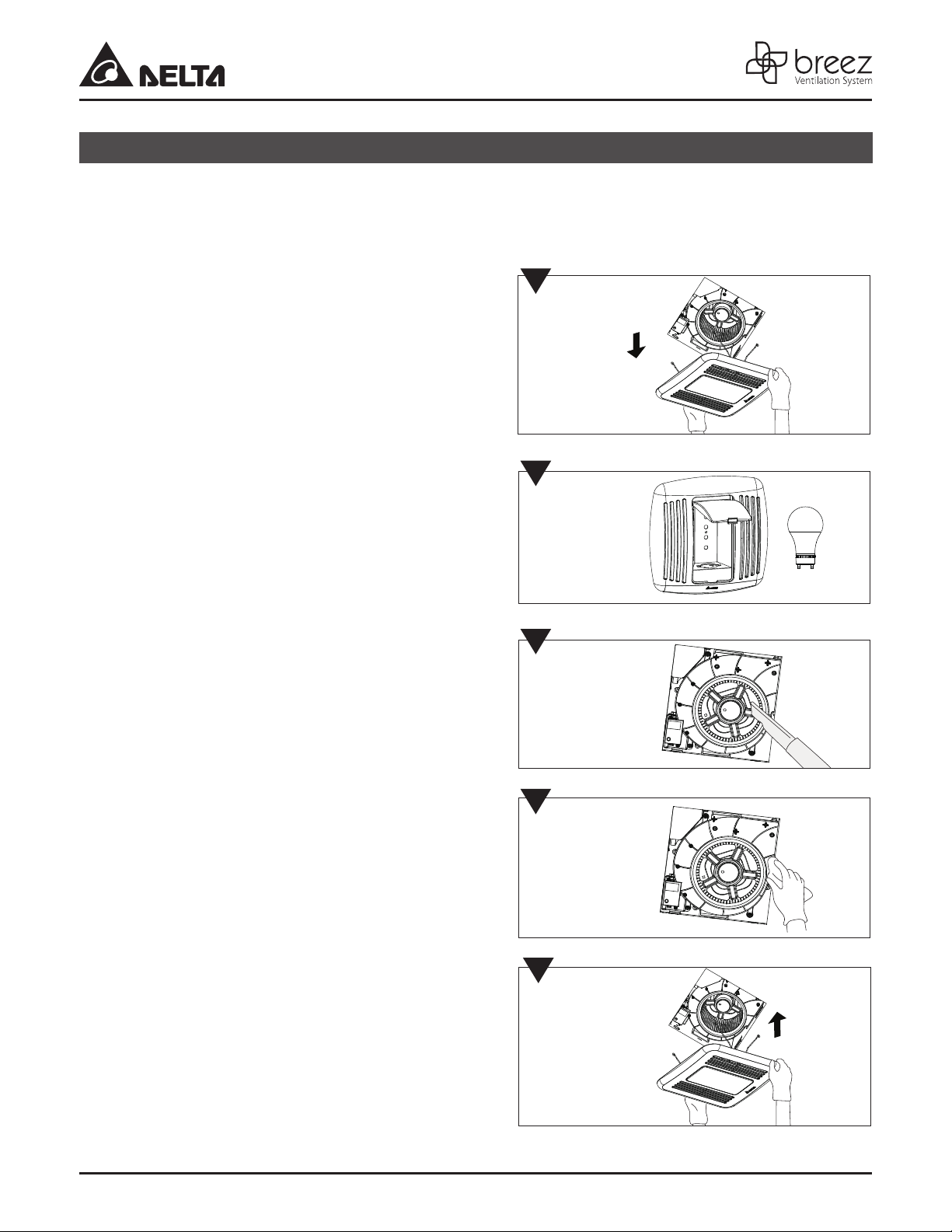

Care and Maintenance
Troubleshooting 10
Dimensions 11
Product Specifications 11
Warranty 12
9
80HLED/80LED/100HLED/100LED
READ AND SAVE THESE INSTRUCTIONS
Address: 46101 Fremont Boulevard, Fremont, CA 94538
US Toll Free Number: 1-888-979-9889
www.deltabreez.com
MFG Model :
VFB80HLED2/VFB080C4L 2 /VFB080C4LED2/
VFB100HLED2/VFB100C4LED1
PACKAGE CONTENTS
For all Models
Part name
Connector
Duct
(4’’)
Tapping
Screw
(Ø4×25)
Appearance Quantity
1
8
Machine Screw
(#8-32x5/16’’)
Hanger Bar
For Model of 80LED/100LED
Part name Appearance Quantity
Grille
Fan Body
Housing
1
1
1
4
4
For Model of 80L
Part name Appearance Quantity
Grille
Fan Body
Housing
1
1
1
For Model of 80HLED/100HLED
Part name Appearance Quantity
Grille
Fan Body
Housing
1
1
1
Machine Screw
(#8- 32x1-1/4’’)
Machine Screw
(M4x6)
Grille Bracket
GU24 Base
Lamp (11W)
2
1
1
1
1
GENERAL SAFETY INFORMATION
Turning angle too large Duct shrink
ydob eht raen woblEswoble ynam ooT
Body
Minimum 18 in.
READ AND SAVE THESE INSTRUCTIONS
1. Make sure that the electric service supply voltage is AC
120V, 60Hz.
2. Follow all local electrical and safety codes, as well as the
National Electrical Code (NEC) and the Occupational Safety
and Health Act (OSH Act).
3. Always disconnect the power source before working on or
near the ventilating fan, motor or junction box.
4. Protect the power cord from sharp edges, oil, grease, hot
surfaces, chemicals or other objects.
5. Do not kink the power cord.
6.
7. Provide suction parts with proper ventilation.
8. This unit is UL Listed for use over a bathtub or shower
when installed in a GFCI protected branch circuit.
. (Fig.A)
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
7. If this unit is to be installed over a tub or shower, it must
be marked as appropriate for the application and be
connected to a GFCI (Ground Fault Circuit lnterrupter) –
protected branch circuit.
8. Do not use this unit with any other solid-state control
device. Solid-state control device may cause harmonic
distortion, which can cause a motor humming noise.
9. NEVER place a switch where it can be reached from a
tub or shower.
10. Not to be installed in a ceiling thermally insulated to a
value greater than R50. (This is required for installation
in Canada only).
Turning angle too large Duct shrink
ydob eht raen woblEswoble ynam ooT
Body
1. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
2. Before servicing or cleaning unit, switch power off
at the service panel and lock the service disconnecting
means to prevent the power from being switched on
accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by
4.
burning equipment to prevent backdrafting. Follow the
heating equipment manufacturer’s guideline and safety
standards such as those published by the National Fire
Protection Association (NFPA), and the American Society
of Heating, Refrigerating and Air-Conditioning Engineers
(ASHRAE) and local code authorities.
5. When cutting or drilling into the wall or ceiling, do not
damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
Minimum 18 in.
Fig. A
CAUTION
1. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
2. Not for use in cooking areas. (Fig.B)
3. This product must properly connect to the grounding
conductor of the supply circuit.
4. To reduce the risk of injury to persons, install the fan at
Cooking area
Do not install above or
inside this area
4
5
5°
4
Cooking
Equipment
°
floor
Fig. B
3
PREPARATION
BLACK
ON/OFF SWITCH
(purchase separately)
SWITCH BOX
WHITE
GROUND
(bare)
BLUE
Tools Required for Assembly (not included): Hammer,
Flathead Screwdriver, Wire Nuts, Nails, Duct Tape,
Phillips Head Screwdriver, Utility Knife.
Helpful Tools (not included): Electric Drill, Drill Bits.
WARNING: Turn off electricity at breaker box
before beginning installation.
Carefully remove unit from carton.
Check area above installation location to be sure that
wiring can run to the planned location and that duct
proper ventilation.
Inspect duct work and wiring before proceeding with
installation.
Before installation, provide inspection and future
maintenance access at a location that will not
interfere with installation work.
You may need the help of a second person to install
this fan: one person on the attic side and one on the
room side.
Note: Installations may vary depending on how the
previous bath fan was installed. Supplies necessary
for the installation of your bath fan are not all included.
However, most are available at your local home
improvement or hardware store.
Roof cap
(with built-in
Short piece of flexible
duct helps alignment
and absorbs
sound
Fan housing
Seal gap
around
housing
Caulk termination
to duct
damper)
or
Wall cap
Wall cap
(with built-in
(with built-in
damper)
damper)
Proper insulation around the fan to minimize building
heat loss and gain. The ducting from this fan to the
outside of the building has a strong effect on the air
flow, noise and energy use of the fan. Use the
shortest, straightest duct routing possible for best
performance, and avoid installing the fan with smaller
ducts than recommended. Insulation around the
ducts can reduce energy loss and inhibit mold growth.
Fans installed with existing ducts may not achieve
their rated air flow.
Locate unit above (GFCI-protected circuit required)
or within 5 feet of the shower head.
Locate unit away from heating or cooling sources
which can affect humidity levels.
Do not locate near window. Unit may respond to the
outdoor humidity level.
Unit must be installed in ceiling to properly sense
moisture.
proper sensing.
Use a roof cap or wall cap that has a built-in damper
to reduce backdrafts.
External timer/dimmer switch can be used, please
contact Delta Breez customer service and consult
with a licensed electrician for compability.
4
ASSEMBLY INSTRUCTIONS
NEW CONSTRUCTION
BEFORE INSTALLATION
Turn off power source. Review all safety precautions.
MOUNT HOUSING WITH FLANGE:
make housing tabs contact the bottom of the joist.
Screw housing to joist through lowest holes
in each mounting flange, then through the
other holes.
USING HANGER BARS
3.
Insert hanger bars into the channels on housing.
Sliding hanger bars to allow for your
specific positioning of housing anywhere
between joists and span up to 24”.
tapping screws 4 htiw stnuom gnisuoh ehT .2
(ø 4x25).
1
dna seerged 09 ot tuo sbat gnisuoh eht dneb oT .1
Joist
2
Tapping Screw
3
Hanger Bar
Tab
Joist
4. Extend hanger bars to the width of the
joists. Make sure the fan body is level and
perpendicular with the joist, and flush with
ceiling surface. Fasten hanger bars to
joists with tapping screws (ø 4×25). Secure
hanger bars together with machine screws
(#8-32 x 5/16”).
4
Machine Screw
Tapping Screw
5
Channel
Joist
ASSEMBLY INSTRUCTIONS (Continued)
a
b
EXISTING CONSTRUCTION–ACCESSIBLE
EVOBA MORF
1. Measure the existing ceiling opening or cut a new
opening to ensure it is large enough to accommodate
the new fan (8 in. x 8.25 in. suggested).
a
2. Place housing in opening so that its bottom edge is
flush with finished ceiling. Screw housing to joist
through lowest holes in each mounting flange.
3.
Insert the duct (not provided) into the duct connector
and tape all ductworks connection to make them
secure and air tight. Install the duct with a gradient
1°~2° to the outside.
1
9.4"
8.25 in.
8 in.
9.4"
2
Joist
wercS Ø4×25
3
Gradient
1º~2º
EXISTING CONSTRUCTION–ACCESSIBLE
FROM BELOW (No Attic Access)
1. Measure the existing ceiling opening or cut a new
1
opening to ensure it is large enough to accommodate
the new fan (9 in. x 9 in. suggested).
A piece of wood (not provided) may be necessary
14 in.
4 in.
that is screwed in from below through the ceiling
board. Suggested size is H 4in. x L 14 in. Position
the screws far enough from the edge of the ceiling
board that it does not crumble and give way.
Wood
9 in.
9 in.
6
ASSEMBLY INSTRUCTIONS (Continued)
2. Unplug light and fan connectors from junction box.
Remove fan body from housing.
3. Insert the duct (not provided) into the duct
connector and tape all ductworks connection
to make them secure and airtight by through
the ceiling opening. Using wire nuts (not provided)
connect house wires to fan wires as shown
in the connect wiring diagram on page 8.
2
Machine Screws
(M4 x 45)
3
4. Insert housing into ceiling opening and secure
4
housing by using tapping screws (ø 4×25mm).
Insert fan body into housing by using three
machine screws (M4 x 45) originally on the fan
body and plug in light and fan connectors.
CONNECT WIRING
TURN OFF POWER SOURCE. REVIEW ALL SAFETY PRECAUTION.
1. Follow all local electrical and safety codes,
ANSI/NFPA70.
2. NEVER place a switch where it can be reached from a
tub or shower.
3. Using wire nuts (not provided), connect house power
cable to ventilating fan.
Connect wires are shown in wiring diagrams.
4. 14 AWG (2.1 mm ) is the smallest conductor that shall
2
be used for branch-circuit wiring.
7
ASSEMBLY INSTRUCTIONS (Continued)
JUNCTION BOX
BLACK
WHITE
BLUE (80L)
RED (80LED / 100LED)
WHITE
GREEN
SWITCH BOX
OFF
ON
FAN SWITCH
OFF
ON
LIGHT SWITCH
L
N
L
N
GRD
GRILLE INSTALLATION
1. For Model of 80L
Insert the grille bracket into the fan body, and lock it
with machine screw (M4×6).
Plug the light connector into the junction box of housing.
Mount the grille to the grille bracket by machine screw
(#8-32×1-1/4”). Install lamp and attach the cover.
2. For Model of 80HLED/80LED/100HLED/100LED
Plug the light connector into the junction box of housing.
Insert the mounting springs into the slots and mount
the grille to the fan body.
BLUE (80L)
RED (80LED / 100LED)
GROUND (bare)
ON/OFF SWITCH
(purchase separately)
LIGHT
SWITCH
2
1
Machine Screw
(M4 x 6)
2
2
SWITCH BOX
FAN
SWITCH
Machine Screw
(#8-32x1-1/4")
Grille
120 VAC
LINE IN
BLACK
WHITE
WIRING
PLATE
Light Connector
Spring
OPERATION
1. For Model of 80L/80LED/100 LED
Turn on the fan switch or light switch to operate ON.
2. For Model of 80HLED/100HLED
Turn on the fan switch or light switch to operate ON.
Humidity Sensing Mode: Turn on the fan to operate
ON. The LED indicator light will be BLUE. The fan will
automatically start when the humidity level in the room
is above 60%. If humidity level is below 60%, the fan
will stop automatically.
Full Speed Mode:
operate at full speed mode. The LED indicator light
will be AMBER.
Cycle ON/OFF fan switch to
BLUE LED Indicator Light
(Humidity Sensing Mode)
Full Speed Mode Only
(NO HUMIDITY SENSING MODE):
Locate humidity sensor inside housing (small black box
with LED indicator). Loosen screws around sensor box
and unplug the cable to disconnect.
AMBER LED Indicator Light
(Full Speed Mode)
1
2
8
CARE AND MAINTENANCE
TURN OFF POWER SOURCE. REVIEW ALL SAFETY PRECAUTION.
See safety information before proceeding. Routine maintenance should be done at least once a year.
• Never use solvents, thinner or harsh chemicals when cleaning the fan.
• Do not allow water to enter the motor.
• Do not immerse metal parts in water.
• Do not immerse resin parts in water over 140º F.
TTo remove grille, unplug the light connector, squeeze
.1
springs and pull down. Wash and clean grille with
non-abrasive kitchen detergent. Then wipe dry
with a new cloth.
1
For Model of 80L only, open lens cover and remove
.2
the lamp carefully. Disassemble the machine screw
on the grille bracket, and unplug the light connector.
Wash and clean grille with non-abrasive kitchen
detergent. Then wipe dry with a new cloth.
Caution: Do not let water into the lamp base.
Remove dust and dirt from the fan body with a
.3
vacuum cleaner.
Using a cloth dampened with non-abrasive kitchen
.4
detergent, remove dust and dirt from the fan body.
Then wipe dry with new cloth.
2
3
Vacuum
cleaner
4
5. Replace the grille back onto the fan body. Plug
the light connector into the junction box of housing.
Turn on fan/light switch to operate fan/light again.
5
9
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan is not turning on 1. Power off
2. Faulty switch
3. Faulty wire connection
The fan seems louder
than it should
The fan is not clearing
the room
1. CFM too great
2. Damper not working
properly or damaged
3. Bend in duct too close
to fan discharge
4. Fan discharge
duct
5. Fan body not securely
attached
1.
airfow within room
1. Make sure power supply is on.
2. Test or replace switch.
3. Check wire in switch box.
1. Be sure the CFM rating on the fan matches the
size of your room.
2. Check damper to ensure it is opening and closing
properly. If the damper has become damaged,
please call Customer Service.
3. Be sure you do not have any sharp bends in duct
closer than 18 in. to the fan discharge.
4. Use recommended size ducting to reduce fan
noise.
5. Be sure the fan is securely attached to your ceiling
joists.
1. Be sure a door or window is slightly ajar or opened
The fan keeps running
even though the house
humidity level is lower
than 60% RH
The light is not turning
ON
2.
1. Our sensor tolerance
is +/-10% RH
2. Outdoor humidity is
back drafting to the
fan
3. Indoor temperature
level
1. Power off
2. Faulty switch
3. Faulty wire connection
2. Be sure the CFM rating on the fan matches the
requirements for your room size.
1. Continue to let the fan run since it is good to keep
venting the house and the electric bill is minimal
(approximately less than $10 per year).
2. Turn the fan off when not in use.
1. Make sure power supply is on.
2. Test or replace switch.
3. Check wire in switch box.
10
DIMENSIONS
2700K
13W LED,
2700K
2700K
2700K
2700K
10
"
3
4
"
1
4
8
8"
4"
PRODUCT SPECIFICATIONS
Voltage Frequency Air Flow @0.1"SP Power @ 0.1"SP Max Current Weight
(V) (Hz) (CFM) (W) (Amps) (lb.)
80L /
VFB080C4L2
120 60 80 11 0.50 6.4 Single Speed
5
"
3
10
4
80HLED/80LED/
100HLED/100LED
"
3
4
11"
11"
80L
Note Light SpecModel No.
11W LED,
1100 Lum ens ,
80HLED /
VFB80HLED2
80LED /
VFB080C4LED2
100HLED /
VFB100HLED2
100LED /
VFB100C4LED1
Note: Design and specifications subject to change without notice.
120 60 80 11 0.33 6.1 Single Speed
120 60 80 11 0.33 6 Single Speed
120 60 100 13.6 0.35 6.3 Single Speed
120 60 100 13.6 0.35 6.2 Single Speed
11
850 Lumens,
13W LED,
850 Lumens,
13W LED,
850 Lumens,
LED/11 Watt
850 Lumens,
WARRANTY
DELTA ELECTRONICS THREE YEAR LIMITED WARRANTY
Delta Electronics Inc. (“Delta Electronics”) warrants to the original consumer purchaser in the USA and Canada that
the Breez ventilation fan products will be free from defects in material or workmanship. This warranty is limited to
three (3) years from the original date of purchase.
Limitations and Exclusions
1. During the warranty period, a replacement for any defective product will be supplied free of charge for installation
by the consumer. The warranty provided herein does not cover charges for labor or other costs incurred in the
troubleshooting, repair, removal, and installation service.
2. All returns of defective parts or products must include the product model number, and must be made through an
authorized Delta Electronics distributor. Authorized returns must be shipped prepaid. Repaired or replacement
products will be shipped by Delta Electronics F.O.B. shipping point.
3. Delta Electronics shall not be liable for any indirect, incidental, consequential, punitive, or special damages
arising out of or in connection with products use or performance, regardless of the form of action whether in
contract, tort (including negligence), strict product liability or otherwise.
4.
5. The warranty does not cover if user does not comply with manufacturer’s installation manual.
6. To qualify for warranty service, you must notify Delta Electronics at the address or telephone number below.
7. Delta Electronics shall have no liability to the original owner-user with respect to any defect caused by abuse,
misuse, neglect, improper transportation or storage, improper testing, improper installation, improper operation,
accident of products or parts thereof, or unusual deterioration or degradation of products or parts thereof due to
Address: 46101 Fremont Boulevard, Fremont, CA 94538
US Toll Free Number: 1-888-979-9889
www.deltabreez.com
LED
12
Loading...
