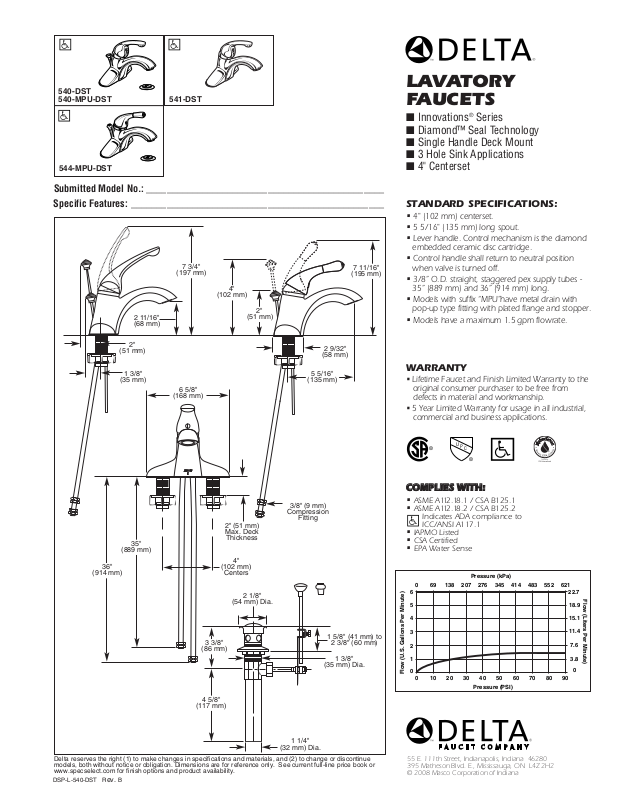

Delta 540-MPU-DST, 544-MPU-DST User Manual
540-DST
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
®
®
U
P
C
540-MPU-DST
541-DST
544-MPU-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
3/4"
11/16"
2
(68 mm)
7
(197 mm)
4"
102 mm)
(
2"
(51 mm)
7 11/16"
(195 mm)
LAVATORY
FAUCETS
■ Innovations®Series
■ Diamond™ Seal Technology
■ Single Handle Deck Mount
■ 3 Hole Sink Applications
■ 4" Centerset
STANDARD SPECIFICATIONS:
• 4" (102 mm) centerset.
• 5 5/16" (135 mm) long spout.
• Lever handle. Control mechanism is the diamond
embedded ceramic disc cartridge.
• Control handle shall return to neutral position
when valve is turned off.
• 3/8” O.D. straight, staggered pex supply tubes -
35” (889 mm) and 36” (914 mm) long.
• Models with suffix “MPU”have metal drain with
pop-up type fitting with plated flange and stopper.
• Models have a maximum 1.5 gpm flowrate.
36"
(914 mm)
2"
(51 mm)
1 3/8"
(35 mm)
35"
(889 mm)
6 5/8"
(168 mm)
3 3/8"
(86 mm)
2" (51 mm)
Max. Deck
Thickness
4"
(102 mm)
Centers
2 1/8"
(54 mm) Dia.
5 5/16"
(135 mm)
3/8" (9 mm)
Compression
Fitting
2 9/32"
(58 mm)
1 5/8" (41 mm) to
2 3/8" (60 mm)
1 3/8"
(35 mm) Dia.
WARRANTY
• Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from
defects in material and workmanship.
• 5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
CCOOMMPPLLIIEESS WWIITTHH:
•
ASME A112 .18 .1 / CSA B125.1
•
ASME A112 .18 .2 / CSA B125.2
Indicates ADA compliance to
ICC/ANSI A117.1
•
IAPMO Listed
•
CSA Certified
•
EPA Water Sense
:
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-L-540-DST Rev. B
4 5/8"
(117 mm)
1 1/4"
(32 mm) Dia.
55 E. 111th Street, Indianapolis, Indiana 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2008 Masco Corporation of Indiana
