Delta 33-892, 33-891, 33-890, 33-895X User Manual

12"

Radial Arm Saw

Scie à bras

33-890

33-895X

33-891 33-892

radial de 12 po

Sierra de

brazo radial

de 12”

Instruction Manual Manuel d’utilisation Manual de instrucciones

FRANÇAIS (29) ESPAÑOL (56)

www.deltamachinery.com

(800) 223-7278 - US (800) 463-3582 - CANADA

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ....................2

SAFETY GUIDELINES - DEFINITIONS .....................2

GENERAL SAFETY RULES .......................................3

ADDITIONAL SPECIFIC SAFETY RULES ................6

FUNCTIONAL DESCRIPTION ...................................7

CARTON CONTENTS ...............................................8

ASSEMBL Y .................................................................8

OPERA TION ...............................................................15

TROUBLESHOOTING ................................................27

MAINTENANCE ..........................................................27

SERVICE .....................................................................28

ACCESSORIES ...........................................................28

WARRANTY ................................................................28

FRANÇAIS ..................................................................29

ESPAÑOL ....................................................................56

IMPORTANT SAFETY INSTRUCTIONS

Read and understand all warnings and operating instructions before using any tool or equipment. When using tools or equipment, basic safety precautions should always be followed to reduce the risk of personal injury. Improper operation, maintenance or modification of tools or equipment could result in serious injury and property damage. There are certain applications for which tools and equipment are designed. Delta Machinery strongly recommends that this product NOT be modified and/or used for any application other than for which it was designed.

If you have any questions relative to its application DO NOT use the product until you have written Delta Machinery and we have advised you. Contact us online at www.deltamachinery.com or by mail at Technical Service Manager, Delta Machinery, 4825 Highway 45 North, Jackson, TN 38305. In Canada,125 Mural St. Suite 300, Richmond Hill, ON, L4B 1M4)

Information regarding the safe and proper operation of this tool is available fr om the following sources:

• Power Tool Institute, 1300 Sumner Avenue, Cleveland, OH 44115-2851or online at www.powertoolinstitute.org

• National Safety Council, 1121 Spring Lake Drive, Itasca, IL 60143-3201

• American National Standards Institute, 25 W est 43r d Street, 4 floor, New York, NY 10036 www .ansi.org - ANSI 01.1

Safety Requirements for Woodworking Machines

• U.S. Department of Labor regulations www .osha.gov

SAVE THESE INSTRUCTIONS!

SAFETY GUIDELINES - DEFINITIONS

It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information.

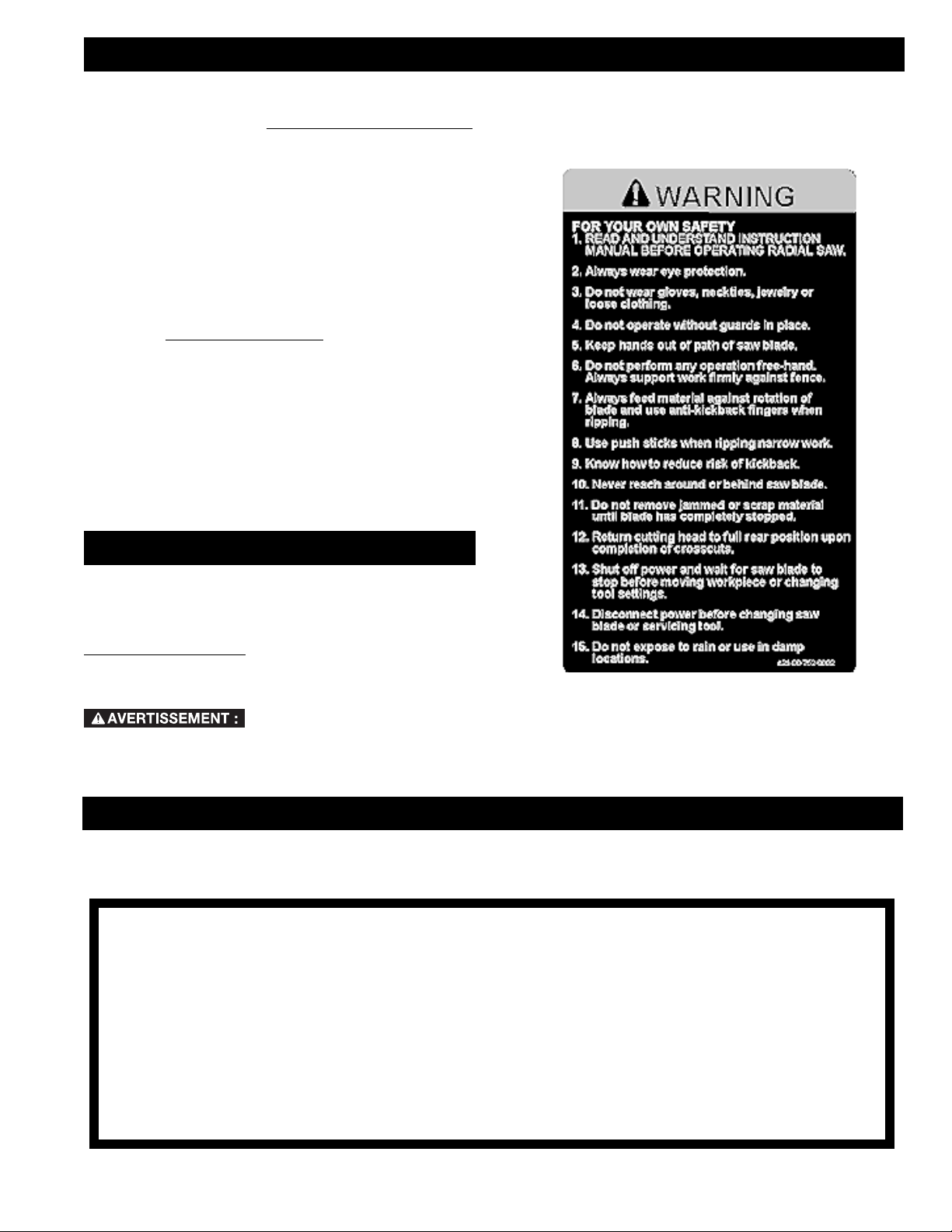

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious

injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

GENERAL SAFETY RULES

in electric shock, fire and/or serious injury.

Read all instructions before operating the product. Failure to follow all instructions listed below may result

SAVE THESE INSTRUCTIONS!

electrocution.

GROUNDING INSTRUCTIONS

If the saw is of grounded construction, read the following instructions.

ALL GROUNDED, CORD-CONNECTED MACHINES

In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This machine is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accor dance with all local codes and ordinances. Do not modify the plug provided - if it will not fit the outlet, have the proper outlet installed by a qualified electrician. Improper connection of the equipment-grounding conductor can result in risk of electric shock. The conductor with insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding conductor. If repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding conductor to a live terminal. Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the machine is properly grounded. Use only three-wire extension cords that have three-prong grounding type plugs and matching three-conductor receptacles that accept the machine's plug, as shown in Fig. A. Repair or replace damaged or worn cord immediately.

FOLLOW ALL WIRING CODES and recommended electrical connections to prevent shock or

SHOCK HAZARD. This machine must be grounded while in use. Serious injury could result.

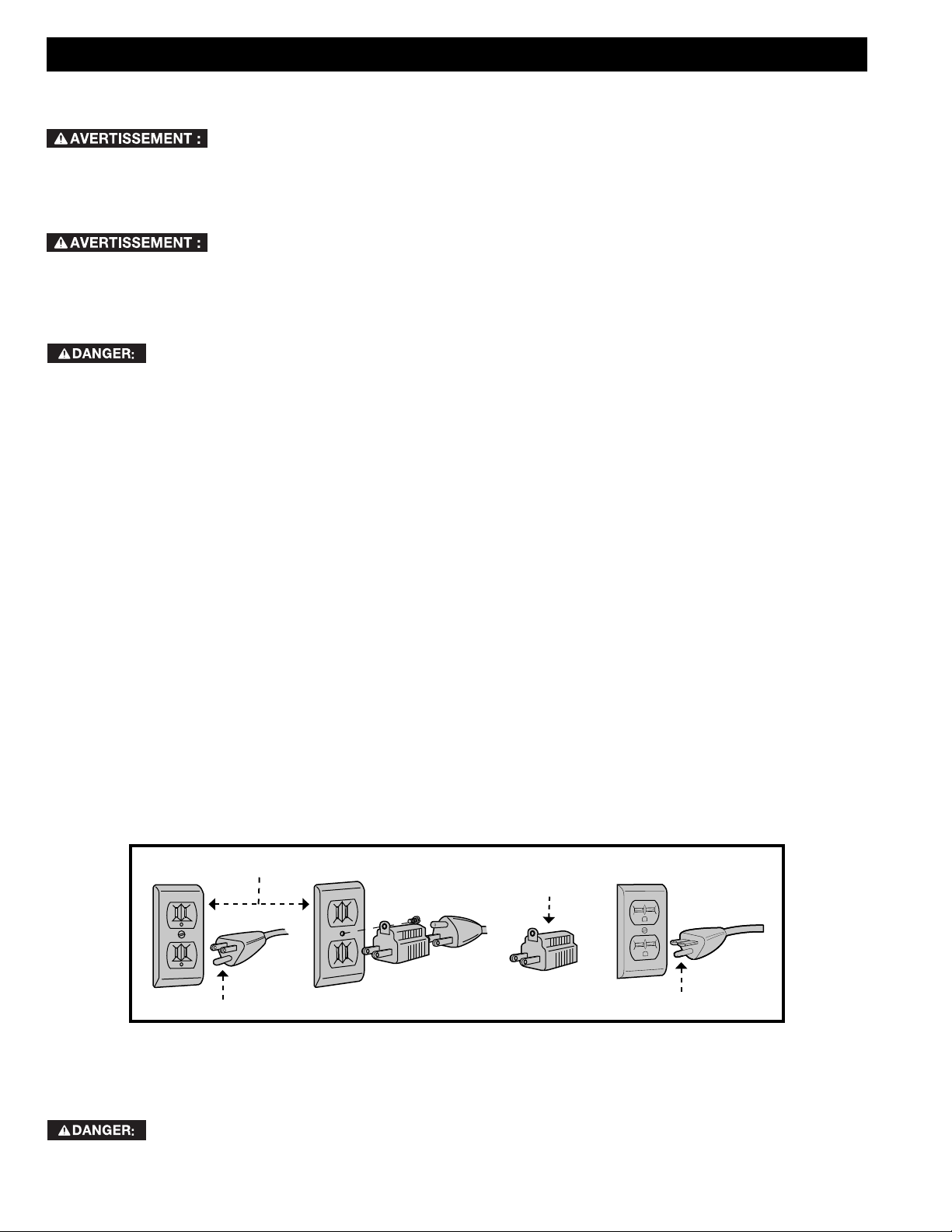

GROUNDED, CORD-CONNECTED MACHINES INTENDED FOR USE ON A SUPPLY CIRCUIT HAVING A NOMINAL RATING LESS THAN 150 VOLTS

If the machine is intended for use on a circuit that has an outlet that looks like the one illustrated in Fig. A, the machine will have a grounding plug that looks like the plug illustrated in Fig. A. A temporary adaptor, which looks like the adapter illustrated in Fig. B may be used to connect this plug to a matching two-conductor receptacle as shown in Fig. B if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet can be installed by a qualified electrician. The green-colored rigid ear, lug, and the like, extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. Whenever the adapter is used, it must be held in place with a metal screw.

NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electric Code.

In all cases, make certain that the receptacle in question is properly grounded. If you are not sure, have a

qualified electrician check the receptacle.

Grounded Outlet

Grounding Pin

Box

Grounding

Means

Adapter

Grounding Pin

DOUBLE INSULATION

If your saw is of double-insulated construction, read the following instructions. Double-insulated tools are constructed throughout with two separate layers of electrical insulation or one double thickness

of insulation between you and the tool's electrical system. Tools built with this insulation system are not intended to be grounded. As a result, your tool is equipped with a two-prong plug which permits you to use extension cor ds without concern for maintaining a ground connection.

NOTE: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for added protection against injury resulting from a possible electrical insulation failure within the tool.

POLARIZED PLUGS

To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

240 VOLT SINGLE PHASE OPERATION

The 120/240 volt, dual-voltage motor supplied with your machine was shipped prepared for 120 volt operation. It can be converted for 240 volt operation.

Use the following instructions to convert your saw to 240 volts.

Disconnect the machine from the power source!

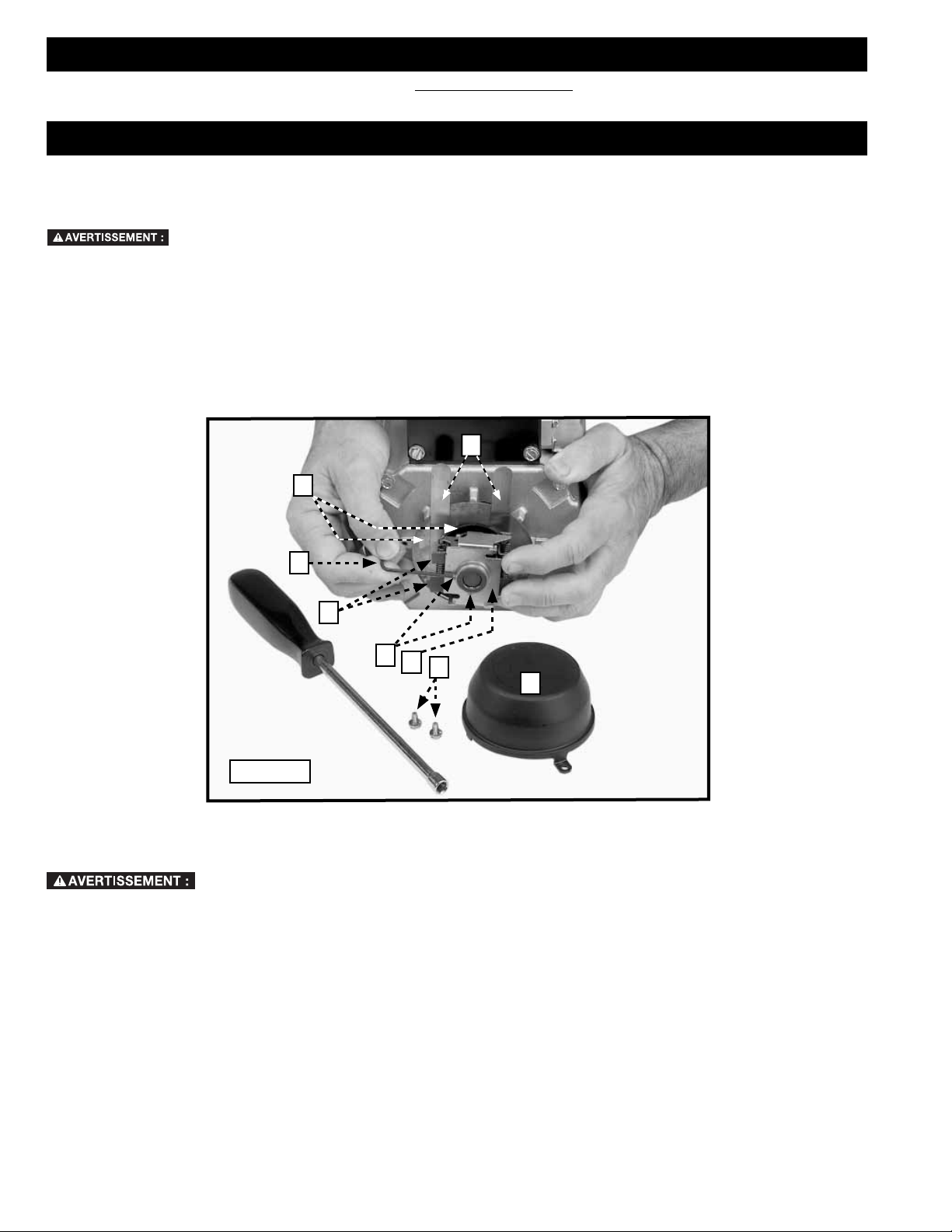

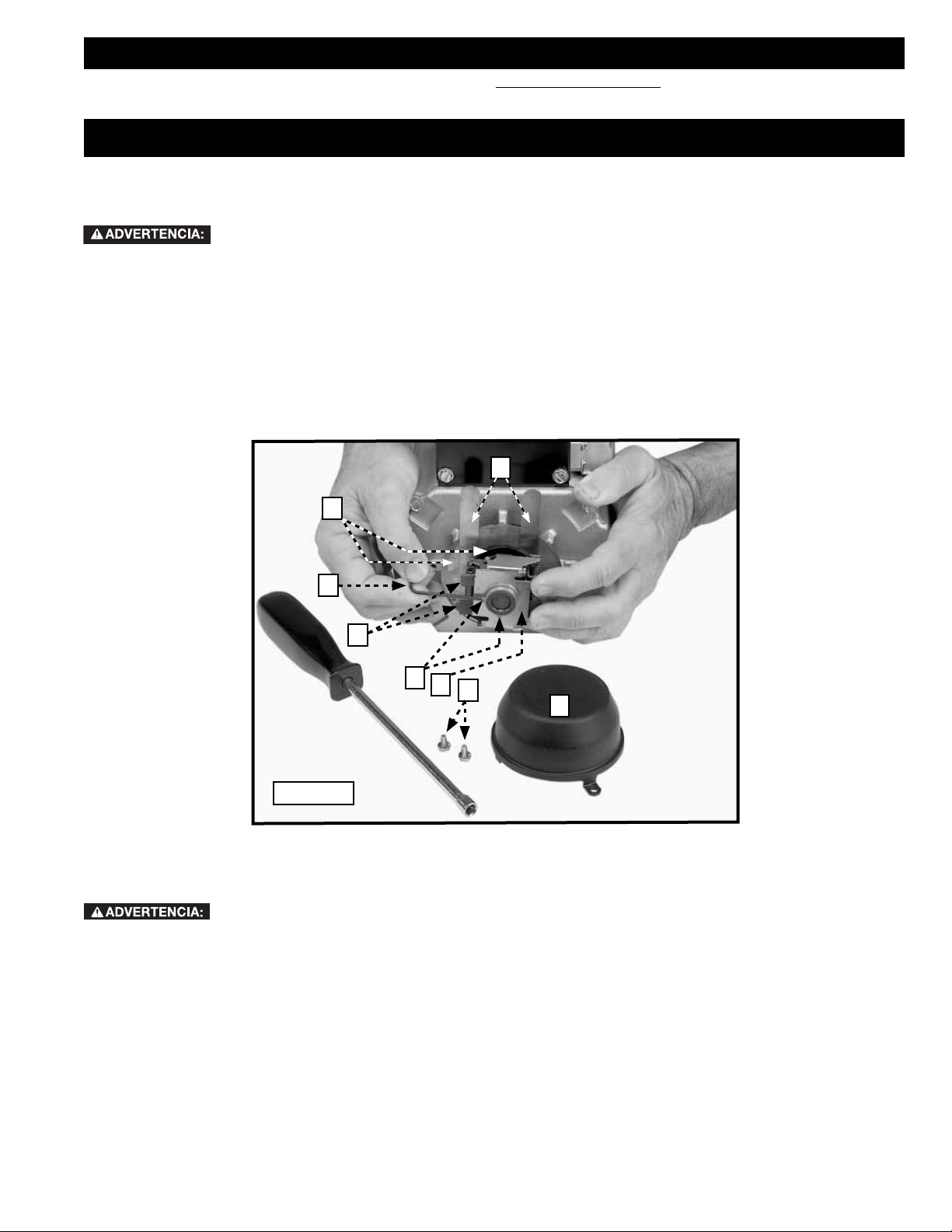

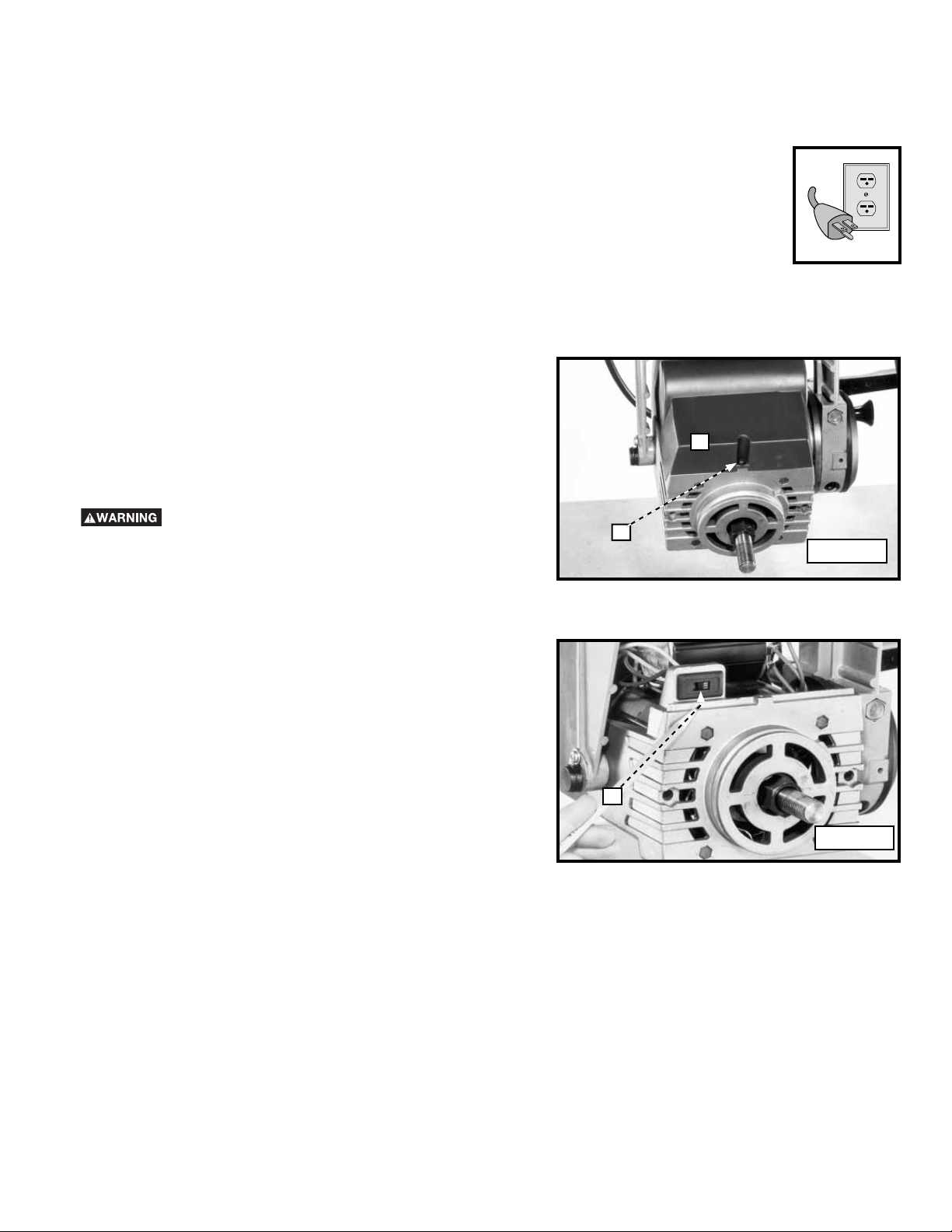

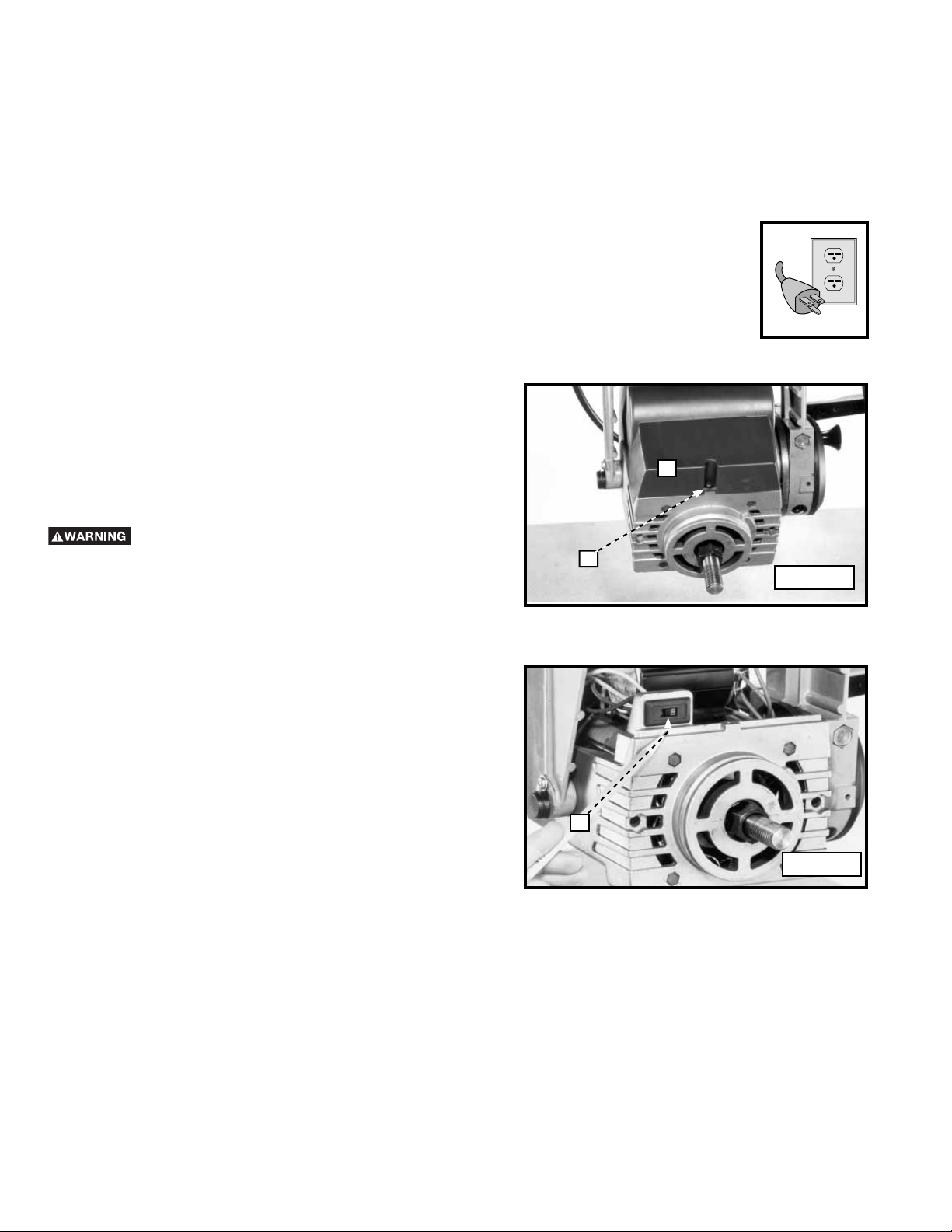

1. Remove the screw (C) Fig. D and remove the nameplate cover (B).

2. Carefully slide the switch (C) Fig. D in the motor junction box to read 240 volts. Replace the nameplate cover and screw that were removed in STEP 1.

3. You must also replace the 120 volt plug with a UL/CSA listed plug suitable for 240 volts and the rated current of the saw.

Either use a qualified electrician to do the conversion, or take the machine to an Authorized Delta Service Center. The machine must conform to the National Electric

Code and all local codes and ordinances. Use the 240 volt plug ONLY in an outlet that has the same

configuration as the plug illustrated in Fig. C. DO NOT use an adapter with the 240 volt plug.

Fig. C

Fig. D

IMPORTANT SAFETY INSTRUCTIONS

1. TO REDUCE THE RISK OF KICKBACK AND OTHER INJURIES, KEEP GUARDS IN PLACE and in working order.

2. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting wrenches are

removed from spindle before turning tool on. Tools, scrap pieces, and other debris can be thrown at high speed, causing injury.

3. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.

4. DO NOT USE THE MACHINE IN A DANGEROUS ENVIRONMENT. The use of power tools in damp or wet locations

or in rain can cause shock or electrocution. Keep your work area well-lit to avoid tripping or placing arms, hands, and fingers in danger.

5. KEEP CHILDREN AWAY. All visitors should be kept at a safe distance from work area. Your shop is a potentially dangerous environment.

6. MAKE WORKSHOP CHILDPROOF with padlocks, master switches, or by removing starter keys. The unauthorized start-up of a machine by a child or visitor may result in injury.

7. DO NOT FORCE TOOL. It will do the job better and be safer at the rate for which it was designed.

8. USE RIGHT TOOL. Don't force tool or attachment to do a job for which it was not designed. Using the incorrect tool or attachment may result in personal injury.

9. USE PROPER EXTENSION CORD. Make sure that your extension cord is in good condition. If your product is equipped a cord set, use only three-wire extension cords that have three-prong grounding-type plugs, and three-pole receptacles that accept the tool's plug. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

MINIMUM GAUGE FOR CORD SETS

Volts Total Length of Cord in Feet

120V 240V

0-25 0-50

26-50

51-100

101-200

101-150 201-300

Ampere Rating

More Than

Not More

Than

O - 6 6 - 10 10 - 12 12 - 16

18 18 16 14

AWG

16 16 16 12

16 14 14

Not Recommended

14 12 12

10. WEAR PROPER APPAREL. No loose clothing, gloves, neckties, rings, bracelets, or other jewelry to get caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair. Air vents may cover moving parts and should also be avoided.

11. ALWAYS USE SAFETY GLASSES. Everyday glasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS wear certified safety equipment:

ANSI A87.1 eye protection (CAN/CSA Z94.3)

 

ANSI S12.6 (S3.19) hearing protection



NIOSH/OSHA respiratory protection

12. DO NOT OVERREACH. Keep proper footing and balance at all times. Loss of balance may cause personal injury.

13. MAINTAIN TOOLS WITH CARE. Keep blades sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories. Poorly maintained blades and machines can further damage the blade or machine and/or cause injury.

14. TURN THE MACHINE "OFF" AND DISCONNECT THE MACHINE FROM THE POWER SOURCE before installing or removing accessories, before adjusting or changing set-ups, when making repairs or changing locations. Do not touch the plug's metal prongs when unplugging or plugging in the cord. An accidental start-up can cause injury.

15. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure that the switch is in the "OFF" position before plugging in the power cord. In the event of a power failure, move the switch to the "OFF" position. An accidental startup can cause injury.

16 USE RECOMMENDED ACCESSORIES. Use only accessories that are recommended by the manufacturer for

your model. Accessories that may be suitable for one tool may be hazardous when used on another tool. Consult the instruction manual for recommended accessories. The use of improper accessories may cause risk of injury to persons.

17. NEVER STAND ON THE TOOL. Serious injury could occur if the tool is tipped or if the cutting tool is unintentionally contacted.

18. CHECK FOR DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repair ed or replaced. Do not use tool if switch does not turn it on and off. Damaged parts can cause further damage to the machine and/or personal injury.

19. DIRECTION OF FEED. Feed wok into a blade or cutter against the direction of rotation of the blade or cutter only.

20. NEVER LEAVE THE TOOL RUNNING UNATTENDED. TURN THE POWER OFF. Don't leave tool until it comes to a complete stop. Serious injury can result.

21. DO NOT OPERATE ELECTRIC TOOLS NEAR FLAMMABLE LIQUIDS OR IN GASEOUS OR EXPLOSIVE ATMOSPHERES. Motors and switches in these tools may spark and ignite fumes.

22. ST AY ALERT, WATCH WHAT YOU ARE DOING, AND USE COMMON SENSE. DO NOT USE THE MACHINE WHEN YOU ARE TIRED OR UNDER THE INFLUENCE OF DRUGS, ALCOHOL, OR MEDICA TION. A moment of inattention while operating power tools may result in serious injury.

23. DO NOT ALLOW FAMILIARITY (gained from frequent use of your saw) TO REPLACE SAFETY RULES. Always remember that a careless fraction of a second is sufficient to inflict severe injury.

ADDITIONAL SPECIFIC SAFETY RULES

1. mask if cutting operation is dusty. All users and bystanders MUST ALWAYS wear certified safety equipment:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),

• ANSI S12.6 (S3.19) hearing protection,

• NIOSH/OSHA/MSHA respiratory protection..

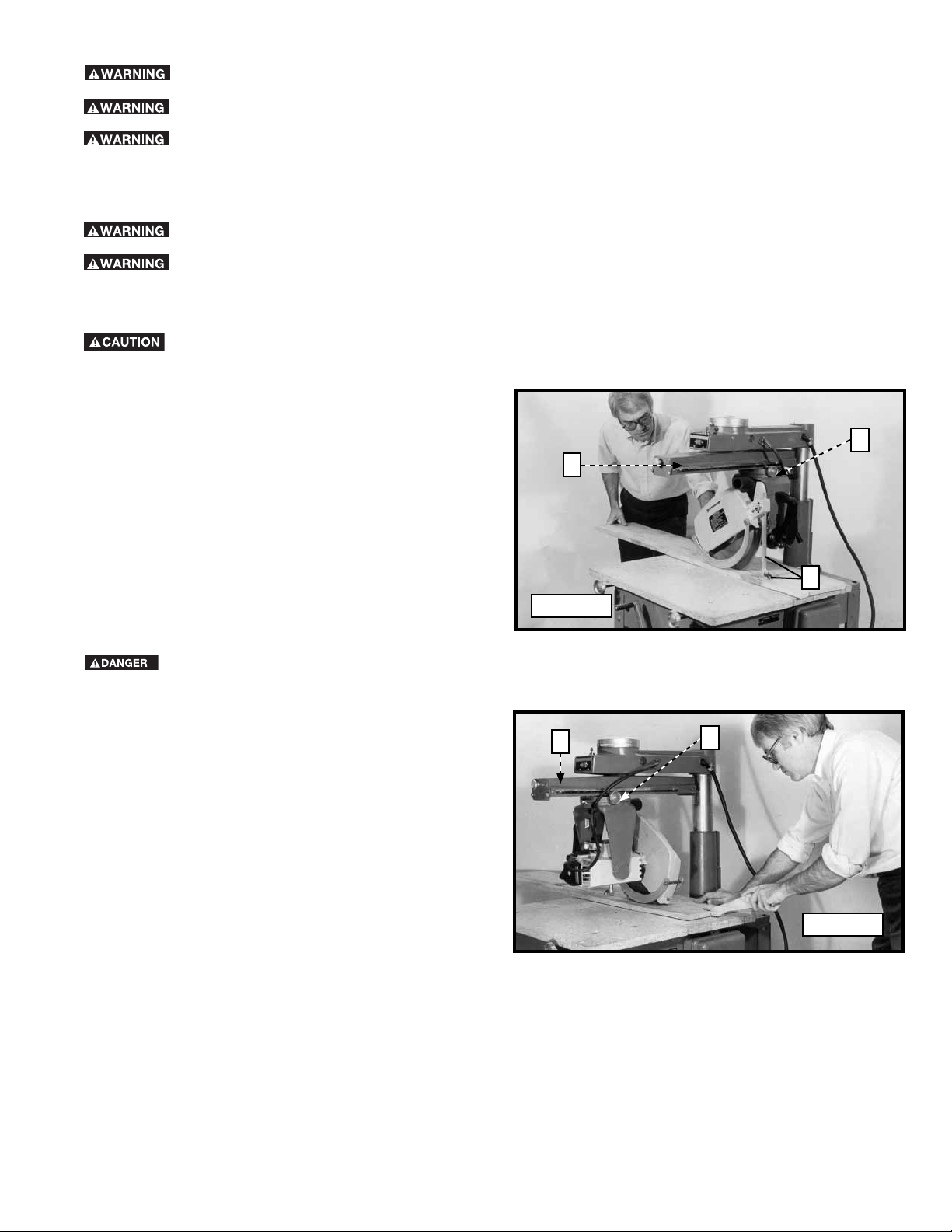

2. AVOID AWKWARD POSITIONS where a sudden slip could cause a hand to move into a saw blade or other cutting tool.

3. KEEP ARMS, HANDS, AND FINGERS AWAY from the blade to prevent serious injury.

4. USE A PUSH STICK OR PUSH BLOCK THAT IS APPROPRIATE TO THE APPLICATION TO PUSH WORKPIECES THROUGH THE SAW. A push stick is a wooden or non-metallic stick, usually homemade that should be used whenever the size or shape of the workpiece would cause you to place your hands within six inches of the blade. Use hold-downs, jugs, fixtures, or feather boards to help guide and control the workpiece when the guard cannot be used. Use saw-blade guard and spreader for every operation for which it can be used, including all through sawing.

5. DO NOT PERFORM RIPPING, CROSSCUTTING, OR ANY OTHER OPERATION FREEHAND.

6. NEVER reach around or over the saw blade.

7. STABILITY. Make sure that the radial arm saw is firmly mounted to a secure surface before use and does not move. If the mobility kit is installed, raise the moveable casters)) so that the saw is in its stationary position.

8. NEVER CUT FERROUS METALS (those with iron or steel content) or masonry. Damage to the saw and personal injury may result.

9. THE PROPER THROAT PLAT MUST BE IN PLACE AT ALL TIMES to reduce the risk of a thrown workpiece and possible injury.

10. USE THE CORRECT SAW BLADE FOR THE INTENDED OPERATION. The blade must rotate toward the front of the saw. Always tighten the blade arbor nut securely. Before use, inspect the blade for cracks or missing teeth. Do not use a damaged blade.

11. NEVER ATTEMPT TO FREE A STALLED SAW BLADE WITHOUT FIRST TURNING THE MACHINE OFF. If a workpiece or cut-off piece becomes trapped inside the guard, turn the saw off and wait for the blade to stop before lifting the guard and removing the piece.

12. NEVER START THE MACHINE with the workpiece against the blade to reduce the risk of a thrown workpiece and personal injury.

15. NEVER HAVE ANY PART OF YOUR BODY IN LINE WITH THE PATH OF THE SAW BLADE. Personal injury will occur.

16. NEVER PERFORM LAYOUT, ASSEMBLY, OR SET-UP WORK on the table/work area when the machine is running. A sudden slip could cause a hand to move into the blade. Sever injury can result.

17. CLEAN THE TABLE/WORK AREA BEFORE LEAVING THE MACHINE. Lock the switch in the "OFF" position to prevent unauthorized use.

18. DO NOT LEAVE A LONG BOARD (OR OTHER WORKPIECE) UNSUPPORTED SO THE SPRING OF THE BOARD CAUSES IT TO SHIFT ON THE T ABLE RESULTING IN LOSS OF CONTROL AND POSSIBLE INJURY. Provide proper support for the workpiece, base on its size and the type of operation to be performed. Hold the work firmly against the fence and down against the table surface. If supports are attached to the saw , be certain that the saw will not tip under the load.

19. DO NOT OPERATE THIS MACHINE until it is completely assembled and installed according to the instructions. A machine incorrectly assembled can cause serious injury.

20. OBTAIN ADVICE from your supervisor, instructor, or another qualified person if you are not thoroughly familiar with the operation of this machine. Knowledge is safety.

21. ADDITIONAL INFORMATION regarding the safe and proper operation of power tools (i.e. a safety video) is available from the Power Tool Institute, 1300 Sunmer Avenue, Cleveland, OH 44115-2581 (www.powertoolinstitute.com). Information is also available from the National Safety Council, 1121 Spring Lake Drive, Itasca, IL 60143-3201. Please refer to the American National Standards Institute ANSI 01.1 Safety Requirements for Woodworking Machines and the U.S. Department of Labor OSHA 1910.213 Regulations.

ALW AYS USE SAFETY GLASSES. Everyday eyeglasses are NOT safety glasses. Also use face or dust

of potential hazards of the lower blade guard, use the following rules:

a. KEEP YOUR HANDS AWAY FROM THE GUARD. As the blade cuts, the guard will lift and leave part of the blade

exposed.

b. TURN THE UNIT OFF AND DISCONNECT THE MACHINE FROM THE POWER SOURCE BEFORE FREEING A

JAMMED LOWER GUARD. The guard can get jammed in previous kerfs in the table or fence. Always anticipate the

path of the guard. c. USE CAUTION when making bevel cuts to be sure that the lower guard is never pinched toward the blade. d. THE LOWER GUARD CAN JAM AGAINST THE FENCE DURING NARROW IN-RIPS. Should the guard jam against

the fence, disconnect the saw from the power, wait for the blade to stop, then lift the blade guard and rest it on top of

the fence.

The lower retractable blade guard provides operator protection from the saw blade. To reduce the risk

TERMS: The following terms will be used throughout the manual. Become familiar with them.

THROUGH-SAWING - refers to any cut that completely severs the workpiece.

PUSH STICK - refers to a wooden stick, usually homemade, that is used to push a small workpiece through the

saw and keeps the operator's hands clear of the blade.

KICKBACK - occurs when the saw blade binds in the cut and violently thrusts the workpiece back toward the

operator.

FREEHAND - refers to cutting without the use of a miter gauge or rip fence or any other means of guiding or holding

the workpiece other than the operator's hand.

SAW BLADE GUARD AND SPREADER

Your radial arm saw is equipped with a blade guard and spreader assembly that covers the blade and prevents accidental contact. The spreader is a flat plate that fits into the cut made by the saw blade and effectively fights kickback by lessening the tendency of the blade to bind in the cut. Use the spreader only when making through cuts that sever the wood. When making dadoes, rabbets, and other cuts that make less than through cuts, the blade guard and spreader assembly must be removed from the saw. Two antikickback pawls are located on the sides of the spreader that allow the wood to pass through the blade in the cutting direction, but lock if the wood tries to move backward toward the operator.

KICKBACKS

How to avoid them and protect yourself from possible injury.

a. Keep saw blade guard, splitter, and anti-kickback teeth in place and operating properly. Keep teeth sharp. If teeth are not

operational, return your unit to the nearest authorized Delta service center for repair. The splitter must be in alignment with the saw blade and the teeth must stop a kickback once it has started. Check their action before ripping by pushing the wood under the anti-kickback teeth. The teeth must prevent the wood from being pulled toward the front of the saw.

b. Plastic and composition (like hardboard) materials may be cut on your saw. However, since these are usually quite hard and

slippery, the anti-kickback pawls may not stop a kickback. Therefore, be especially attentive to following proper set-up and

cutting procedures for ripping. c. Use saw blade guard and splitter for every operation for which it can be used, including all through-sawing. d. NEVER rip a workpiece that is twisted or warped, or does not have a straight edge to guide along the fence. e. NEVER saw a large workpiece that cannot be controlled. f. NEVER saw a workpiece with loose knots, flaws, nails, or other foreign objects. g. NEVER rip a workpiece shorter than 10".

chemicals know to the State of California to cause cancer, birth defects, or other reproductive harm. Some examples of these are:

  

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.



Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear

protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin

may promote absorption of harmful chemicals.

other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body. Always operated tool in a well-ventilated area and provide for prober dust removal. Use dust collection system wherever possible.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains

Lead from Lead-based points, Crystalline silica from bricks and cement and other masonry products, and Arsenic and chromium from chemically-treated lumber (CCA).

Use of this tool can generate and/or disburse dust, which may cause serious and permanent respiratory or

FUNCTIONAL DESCRIPTION

FOREWORD

Delta’s 12" Radial Arm Saws are built for capacity with versatility. They have a full 3-3/4" depth of cut at 90°, and 2-1/2" depth of cut at 45°. The saws can crosscut 14-3/8" in a single pass. They also have a unique turret arm action which permits the motor assembly to rotate 360° above the work table.

NOTICE: The photo on the manual cover illustrates the current production model. All other illustrations contained in the manual are representative only and may not depict the actual labeling or accessories included. These are are intended to illustrate technique only.

UNPACKING AND CLEANING

Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from all unpainted surfaces. This coating may be removed with a soft cloth moistened with k e rosene (do not use acetone, gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household floor paste wax.

assembled and you read and understand the entire instruction manual.

To reduce the risk of injury, do not connect the machine to the power source until the machine is completely

CARTON CONTENTS

Fig. 1

S T

Fig. 2

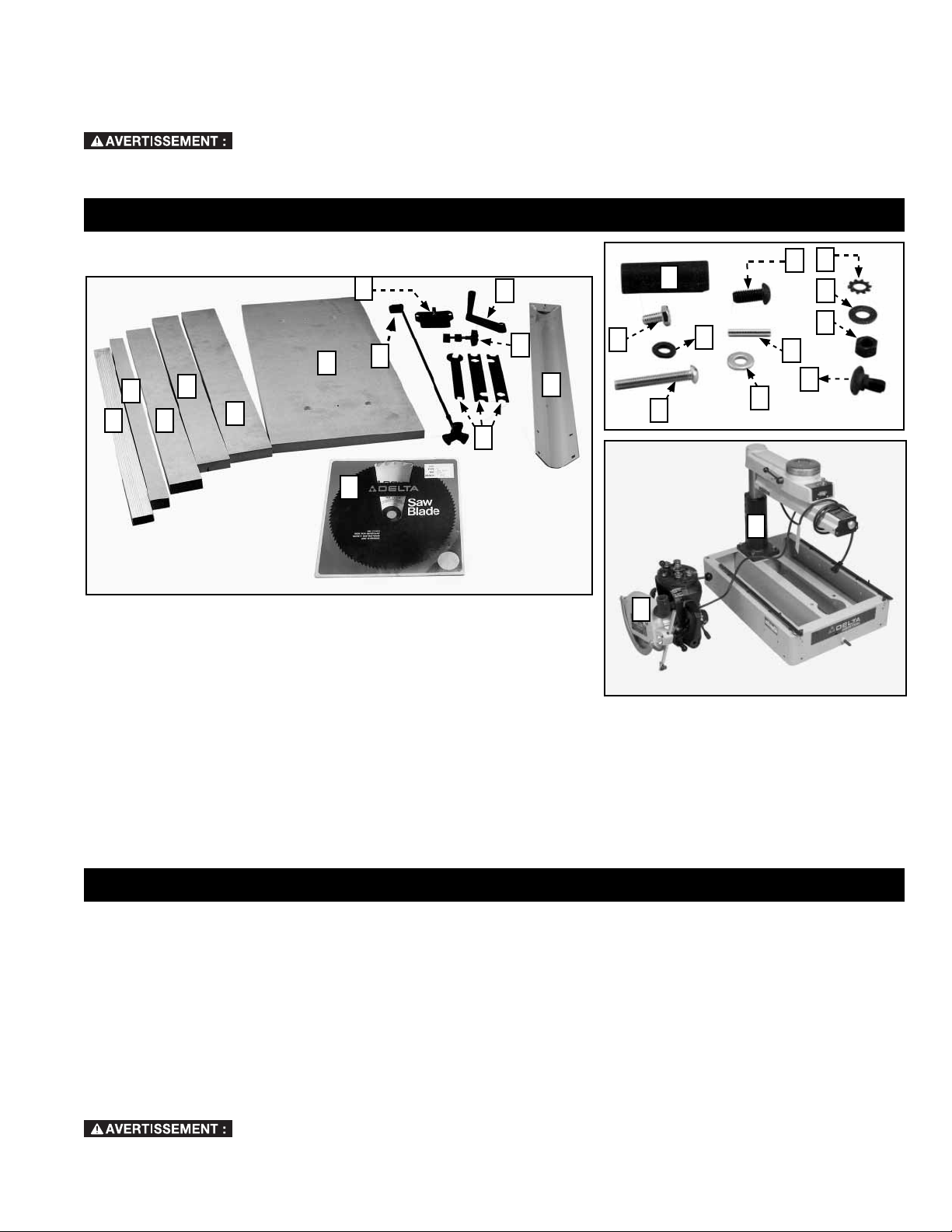

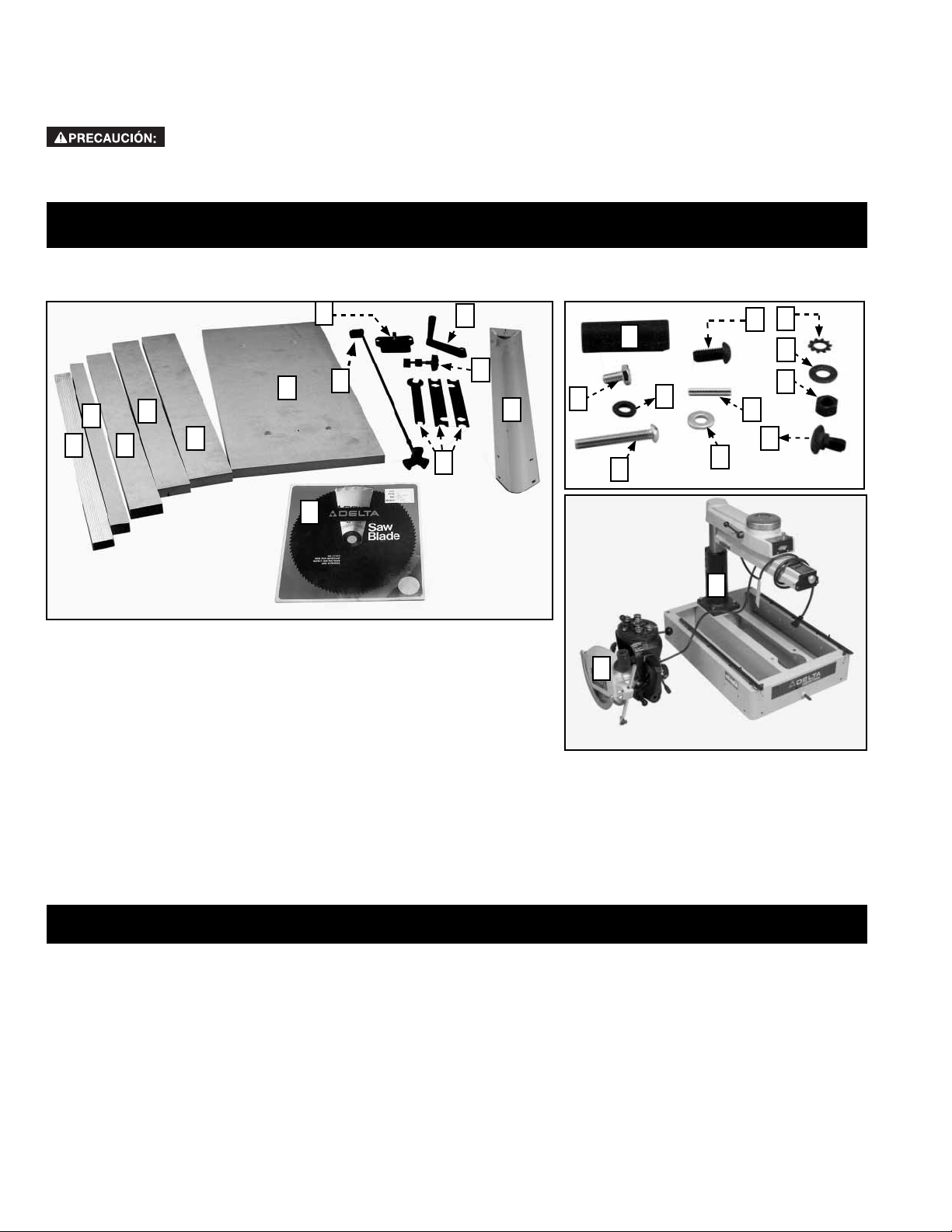

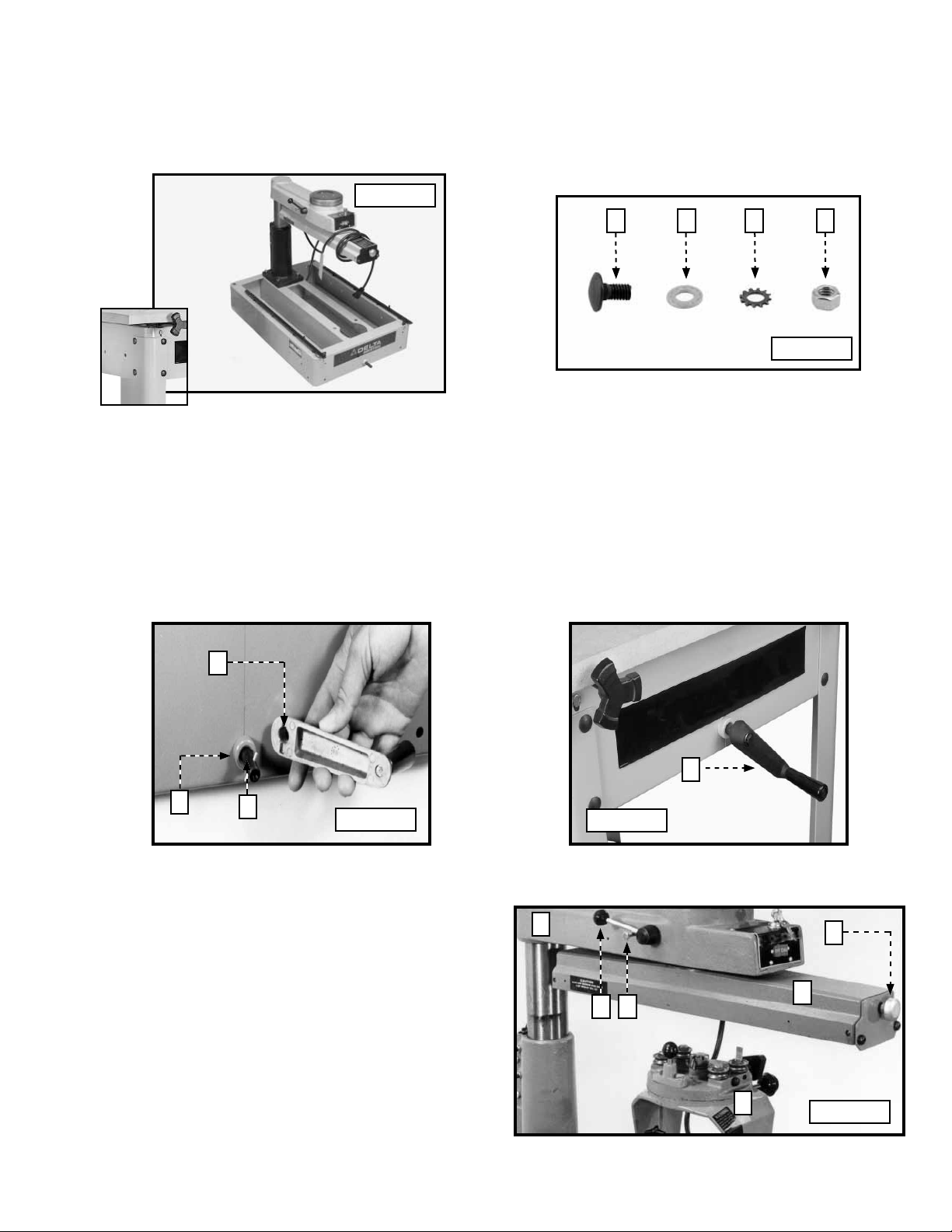

A. Fence B. Table boards (4) C. Table D. Table mounting bracket (2) E. Track arm end cap and stop F. Overarm elevating handle G. Cutting head clamp H. Wrenches I. Legs (4) J. 12" blade K. Special wrench socket L. 1/4-20X1/2" hex head cap screw

1/2” and 3/8” open end or socket wrenches (not included)

Assembly for this machine takes approximately 2-3 hours.

M. 5/16" lock washer (2) N. Round head screw (4) O. 5/16"-18x3/4" button head screws P. Sheer pin Q. 1/4" flat washer R. 5/16" flat washer S. 5/16" flat washer T. 5/16" hex nut U. 5/16" carriage head bolt V. Cuttinghead assembly W. Base and overarm assembly

ASSEMBLY

ASSEMBLY TOOLS REQUIRED

Blade wrenches (supplied)

5/16" hex wrench (not included)

Flat screwdriver and hammer (not included)

ASSEMBLY TIME ESTIMATE

Fig. 3

source before attempting to move it, change accessories or make any adjustments.

Shock Hazard. To reduce the risk of serious personal injury, turn unit off and disconnect machine from power

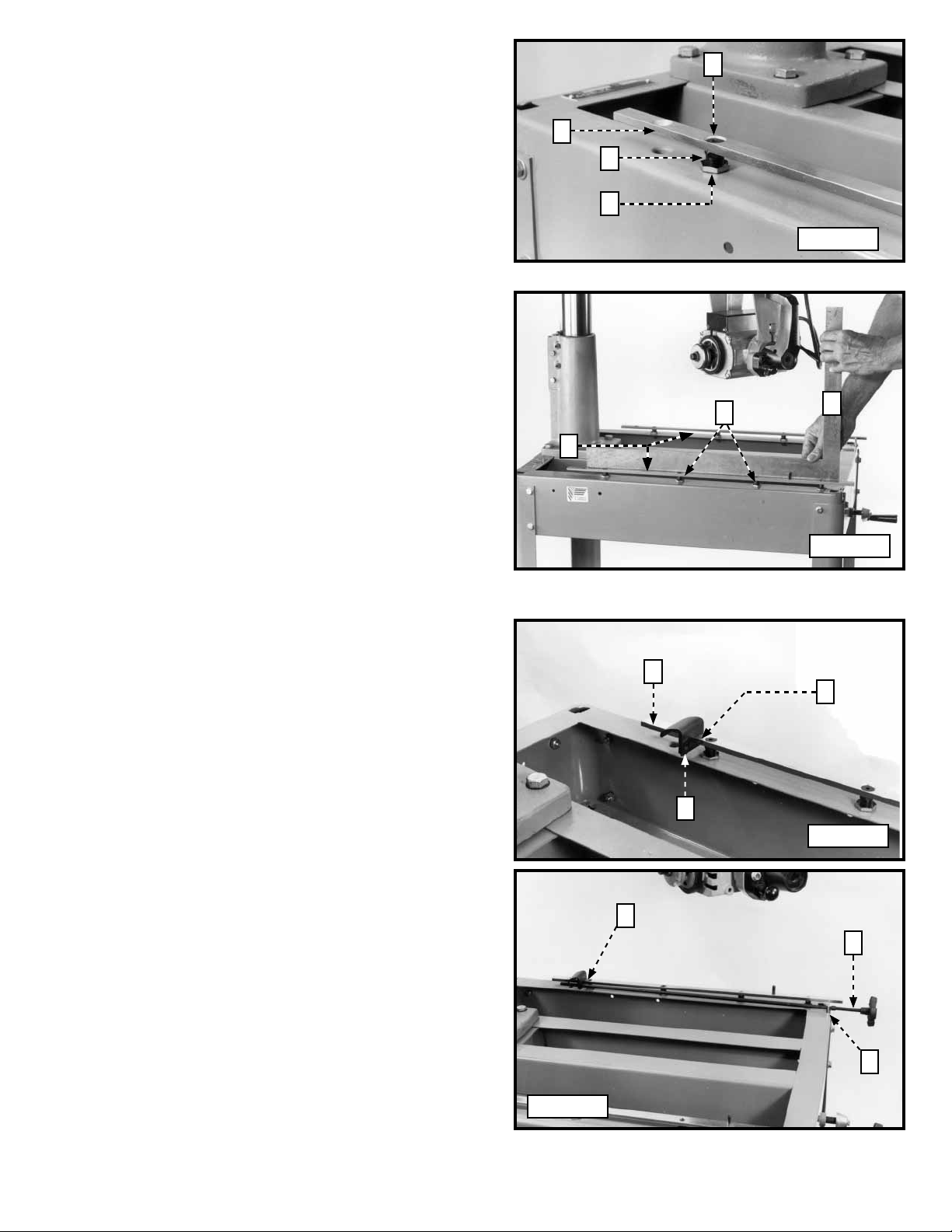

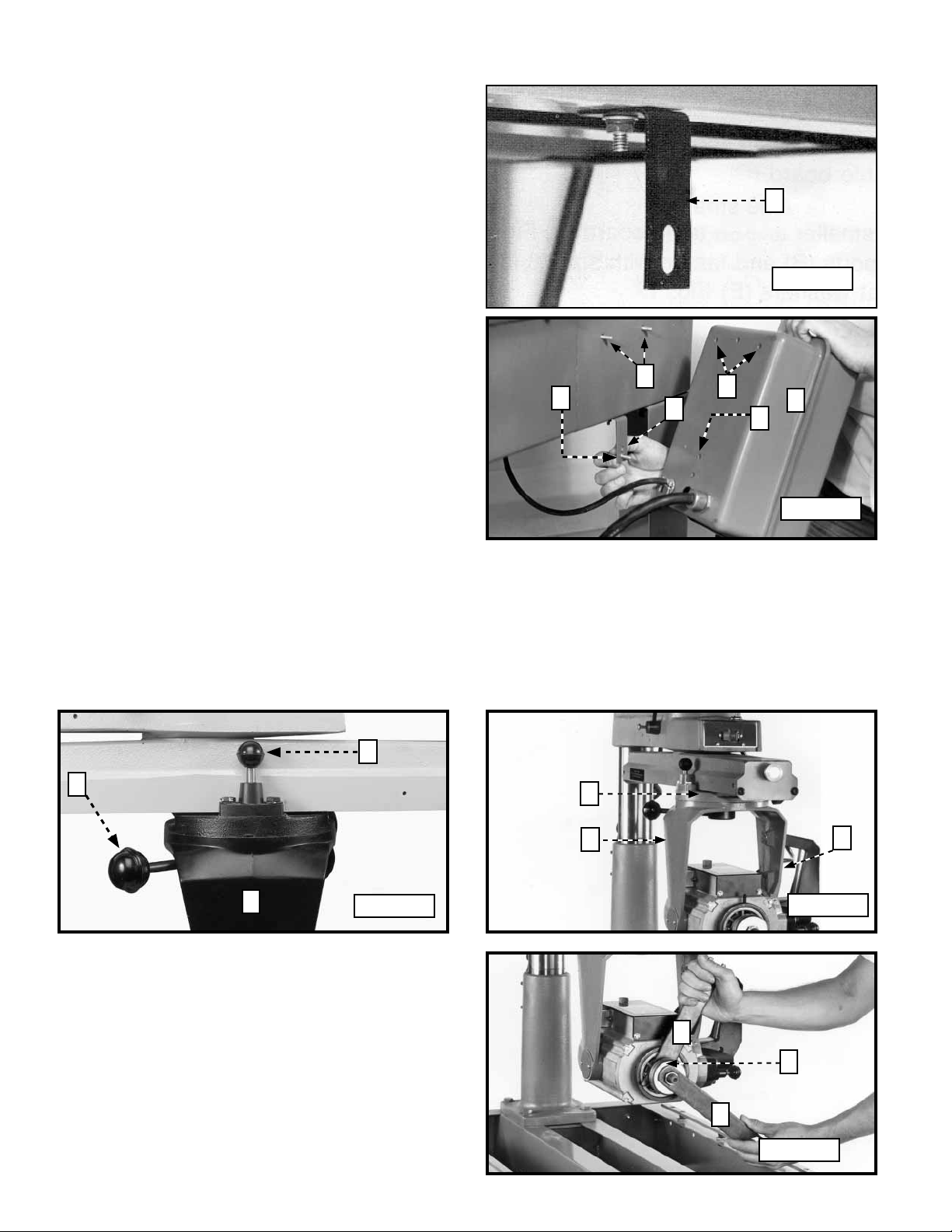

ATTACHING THE LEGS TO THE BASE

Use a heavy-duty lifting device (fork lift, pulley, etc.) with lifting straps that can support the weight to lift the machine. While the machine is suspended, attach the legs to each corner (see inset) of the base. Use sixteen 5/16-18 x 5/8" carriage head screws (A) Fig. 4A and Fig. 4B, 5/16" flat washers (B), 5/16" lockwashers (C) and 5/16" hex nuts (D). Tighten the hardware firmly.

Slowly and carefully, lower the saw/base assembly to the floor.

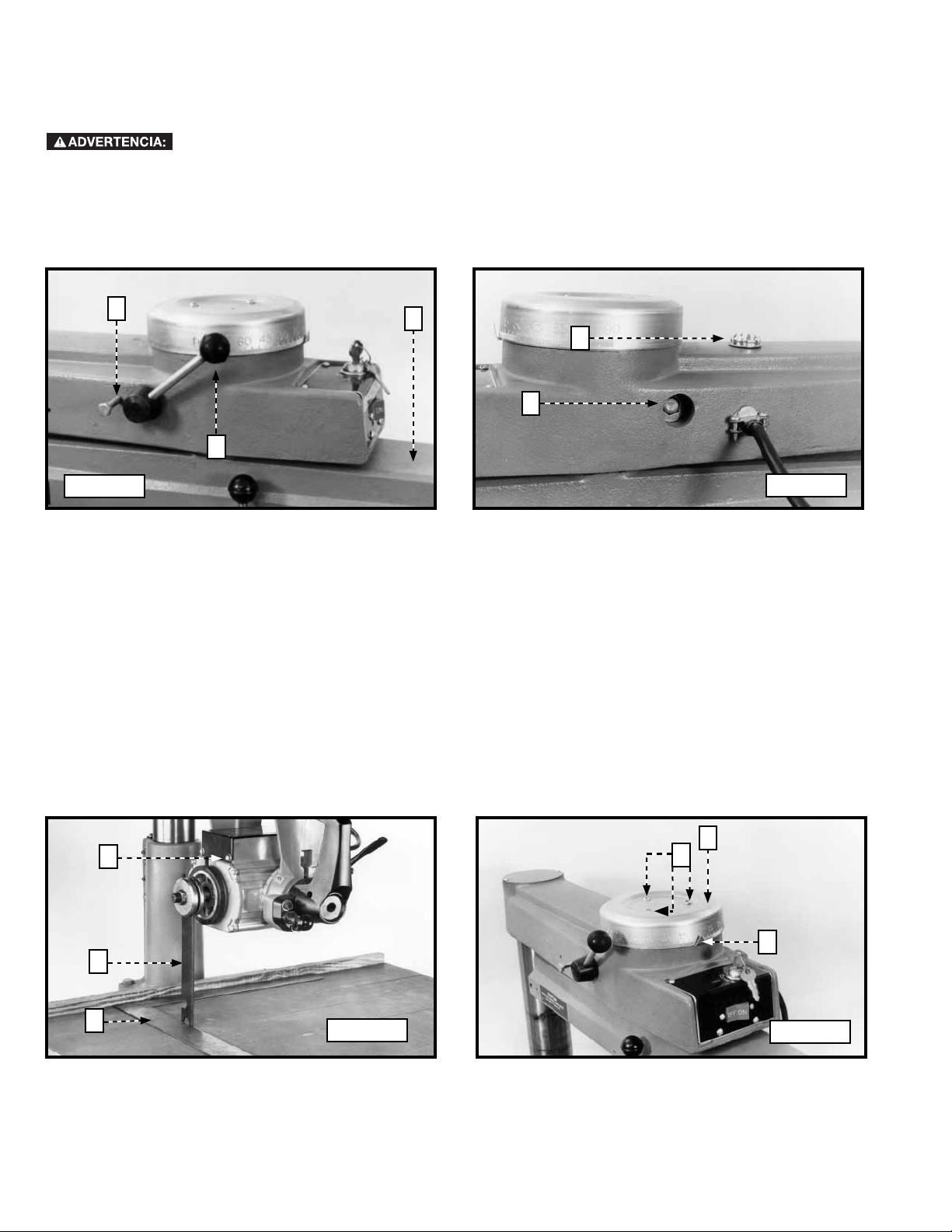

Fig. 4A

B C D

Fig. 4B

ATTACHING THE OVERARM ELEVATING HANDLE

1. Insert the shear pin (A) Fig. 5 into the hole in the elevating shaft (B). Use a hammer to tap this pin in place (Fig. 5).

2. Align the slots in the elevating handle (C) Fig. 5 with the shear pin (A). Place the handle on the shaft (B) making certain that the roll pin is engage in the slots.

3. Fasten the elevating handle (C) Fig. 5 to the shaft (B) with a 1/4"-20 x 1/2" hex head screw and 1/4" flat washer (Fig. 6).

Fig. 5

Fig. 6

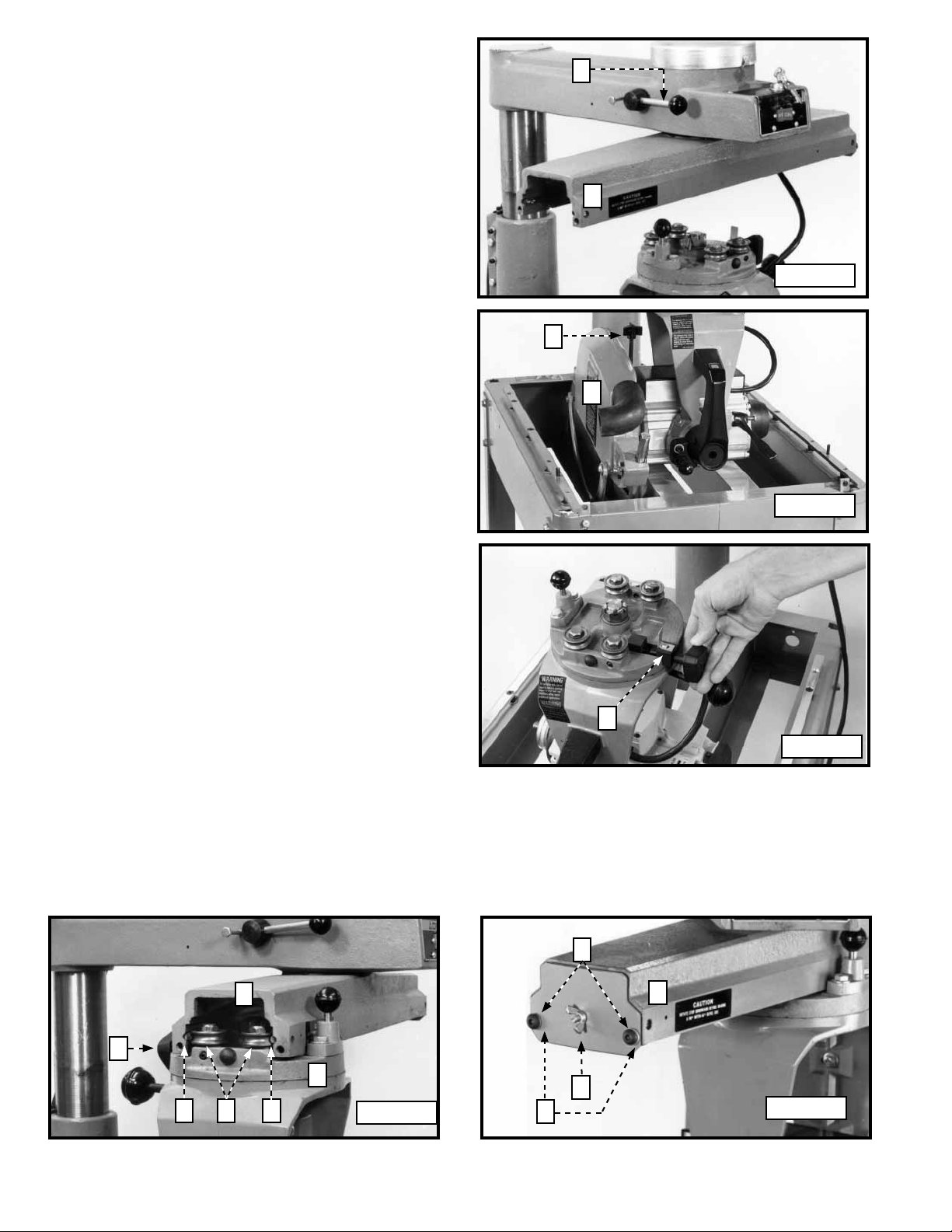

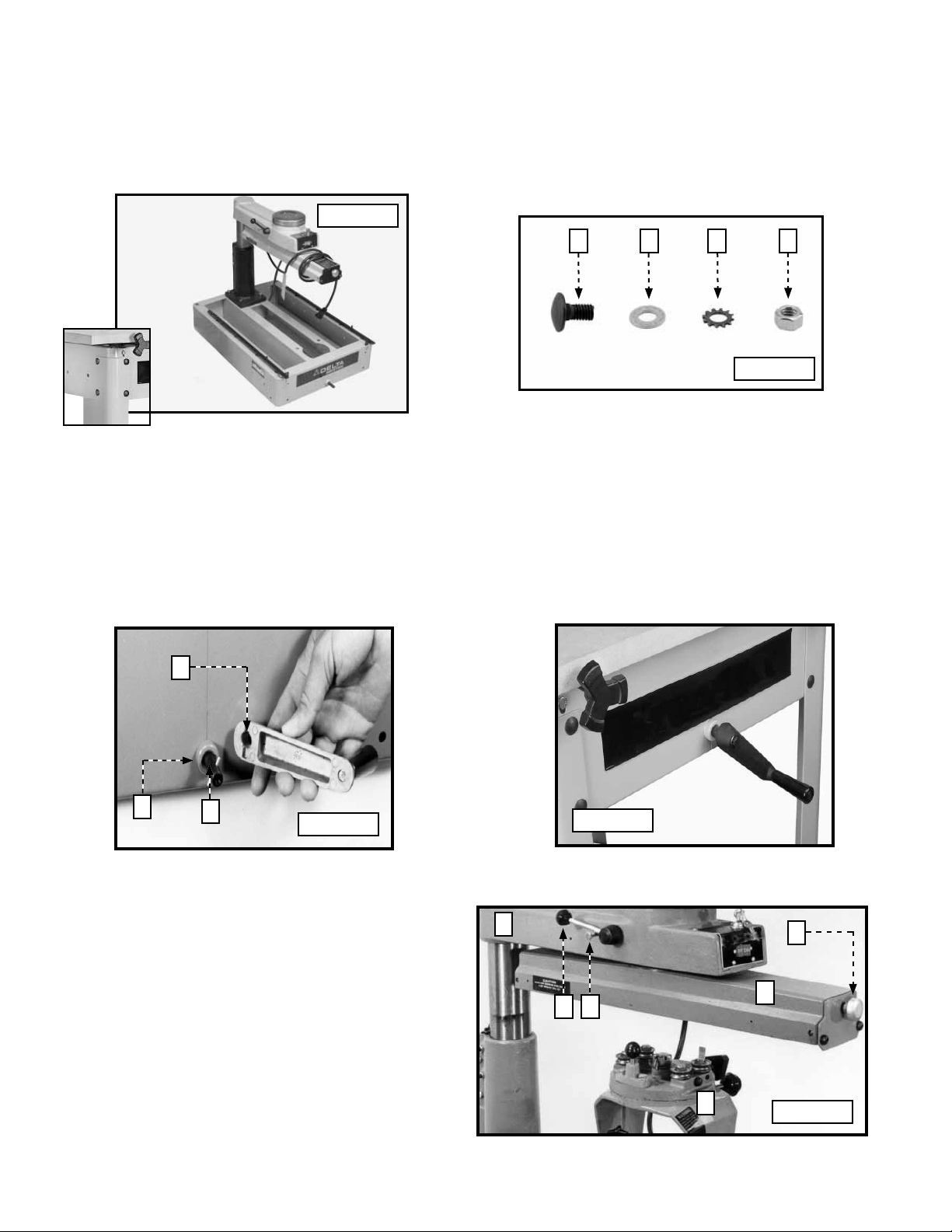

ATTACHING THE CUTTINGHEAD TO THE TRACK ARM

1. Raise the track arm assembly (A) Fig. 7 by turning the overarm elevating handle (D).

2. Remove the packing material from around the cuttinghead assembly (B) Fig. 7.

3. Push track arm clamp lever (C) Fig. 7 to the rear until it rests against stop (D).

4. Pull out on track arm index knob (E) Fig. 7.

Fig.7

5. Rotate the track arm (F) 90° (Fig. 8). Tighten the track arm clamp lever (C) Fig. 8 by pulling it to the front position.

Fig. 8

6. Remove the blade guard clamping rod and washer

(G) Fig. 9. Remove blade guard assembly (H).

Fig. 9

7. Place the cuttinghead clamp (J) Fig. 10 in the slot on top of the cuttinghead.

NOTE: The jaws of the cuttinghead clamp must be open.

Fig. 10

8. Lift the cuttinghead assembly (B) Fig. 11. Insert the roller bearings (K) into the track arm assembly. NOTE: Make certain that the roller bearings (K) are riding on the track rods (L). Push the cuttinghead assembly (B) Fig.

11 into the track arm assembly (A). Tighten the cuttinghead clamp (J) Fig. 11.

9. Attach the end cap (N) Fig. 12 to the rear of track arm assembly (A). Secure it with two 5/16-18 x 3/4" button head

screws (P) and 5/16" lockwashers (Q) supplied.

K L

Fig. 11

Fig. 12

ATTACHING THE STARTER BOX TO THE BASE (33-891 AND 33-892 MODELS)

For machines with a magnetic starter, trans form er, and overload protection, follow these instructions to attach the starter box to the base:

1. Attach the bracket (A) to the bottom of the right side of the saw base (Fig. 13). Place a 1/4" flat washer on a 1/4-20 x 3/4" hex head screw. Insert the screw through the hole in the bottom of the right side of the saw base. Place the bracket (A) Fig. 13 on the screw . Place a 1/4" lock washer on the screw . Thr ead a 1/420 hex nut on screw. Tighten securely.

2. Attach the starter box (B) Fig. 14 to the right side of the base. Place a 1/4" lockwasher on a 1/4-20 x 1/2" hex head screw. Place a 1/4" flat washer on the screw . Insert the hex head screw (C) thr ough the hole in the in the bracket (E). Thread the screw into the weld nut (D) Fig. 14 in the back of the starter box (B). Repeat this process for the two remaining holes in the base (G) and the holes (F) in the starter box.

Fig. 13

Fig. 14

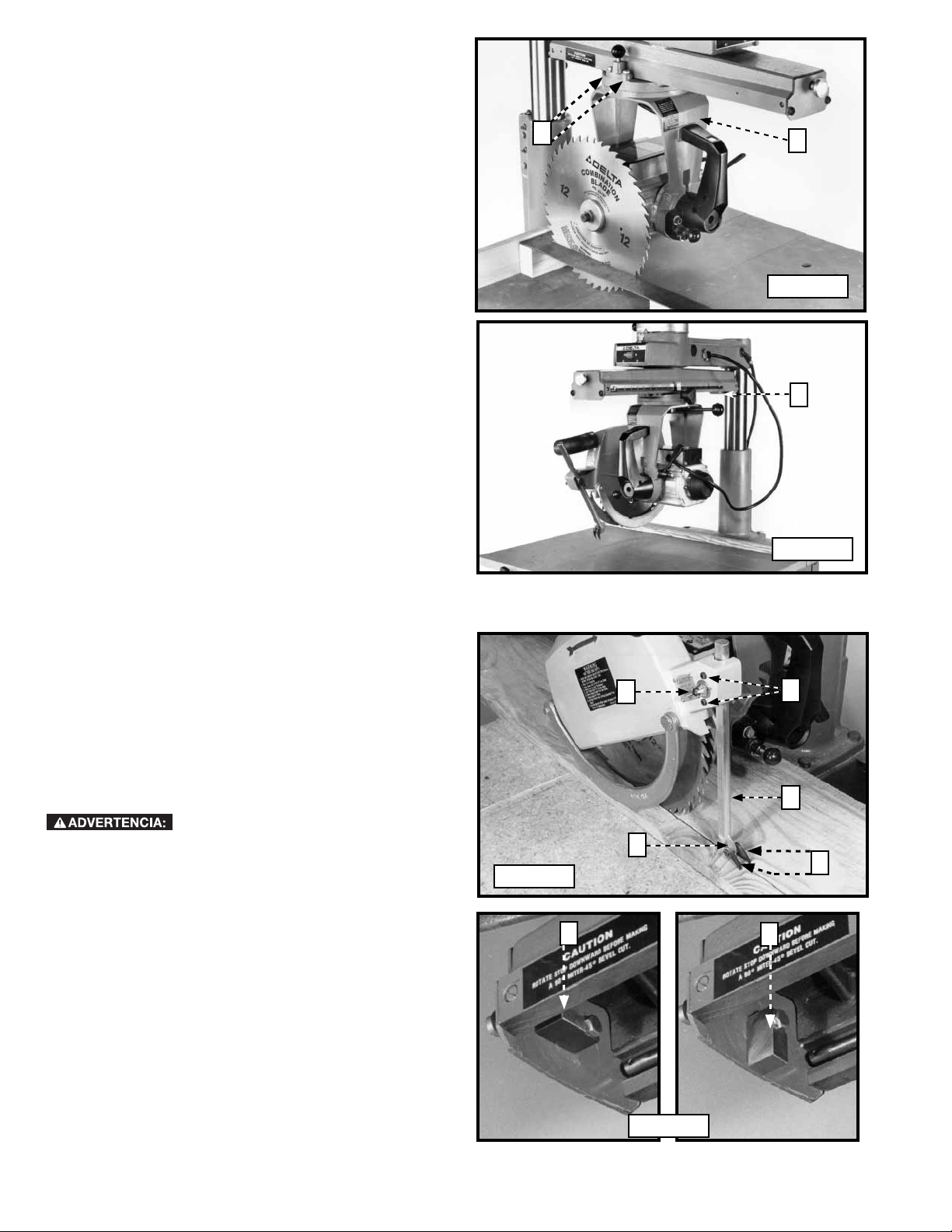

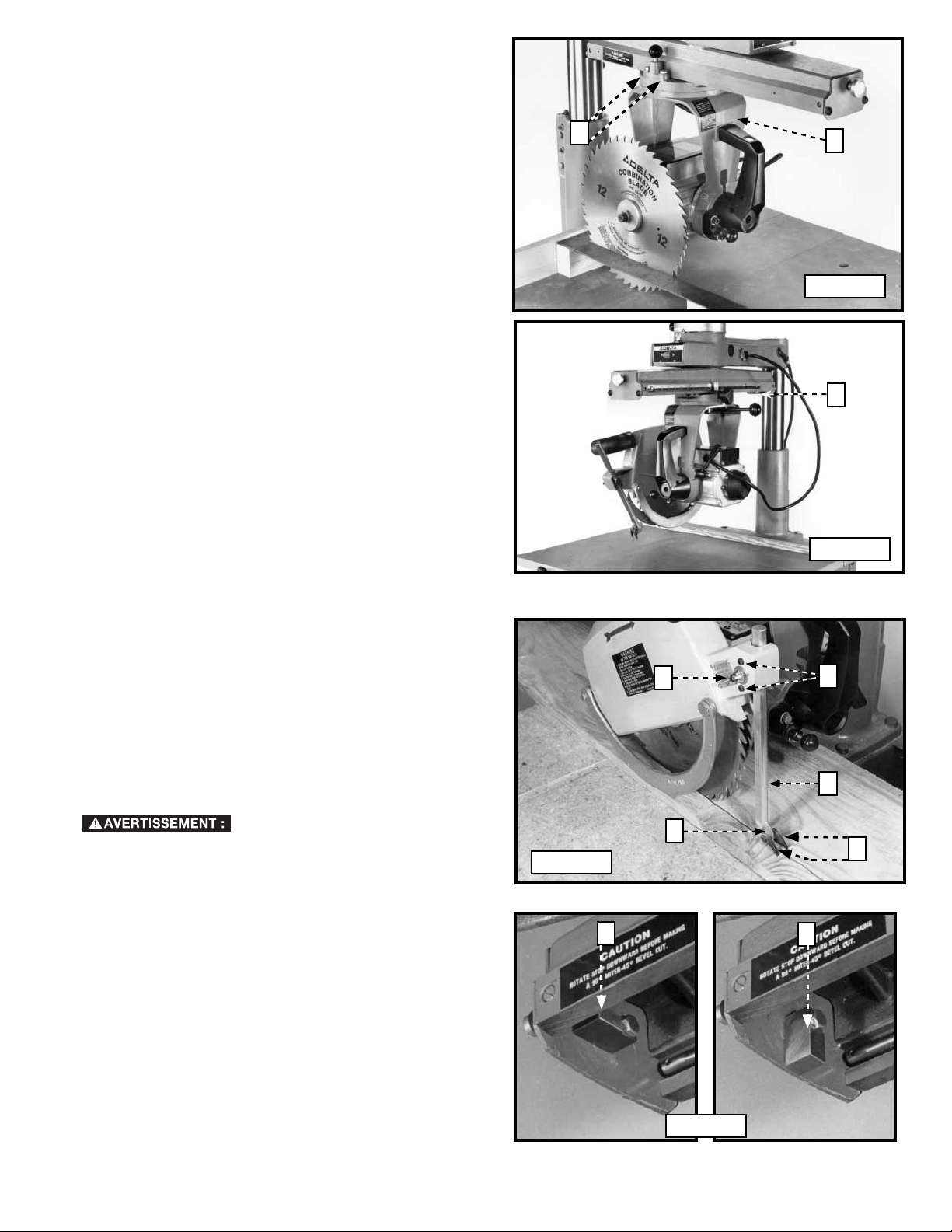

ADJUSTING THE TABLE BRACKETS PARALLEL TO THE TRACK ARM

To perform accurate work, be sure that the track arm is parallel to the table top brackets at both the front and rear of the machine. To check the alignment:

1. Loosen the yoke clamp locking lever (A) Fig. 15. Pull up the yoke clamp index knob (B) and rotate the yoke (C) Fig. 16 to the out-rip position. Tighten the yoke clamp locking lever (A) Fig. 15.

Fig. 15

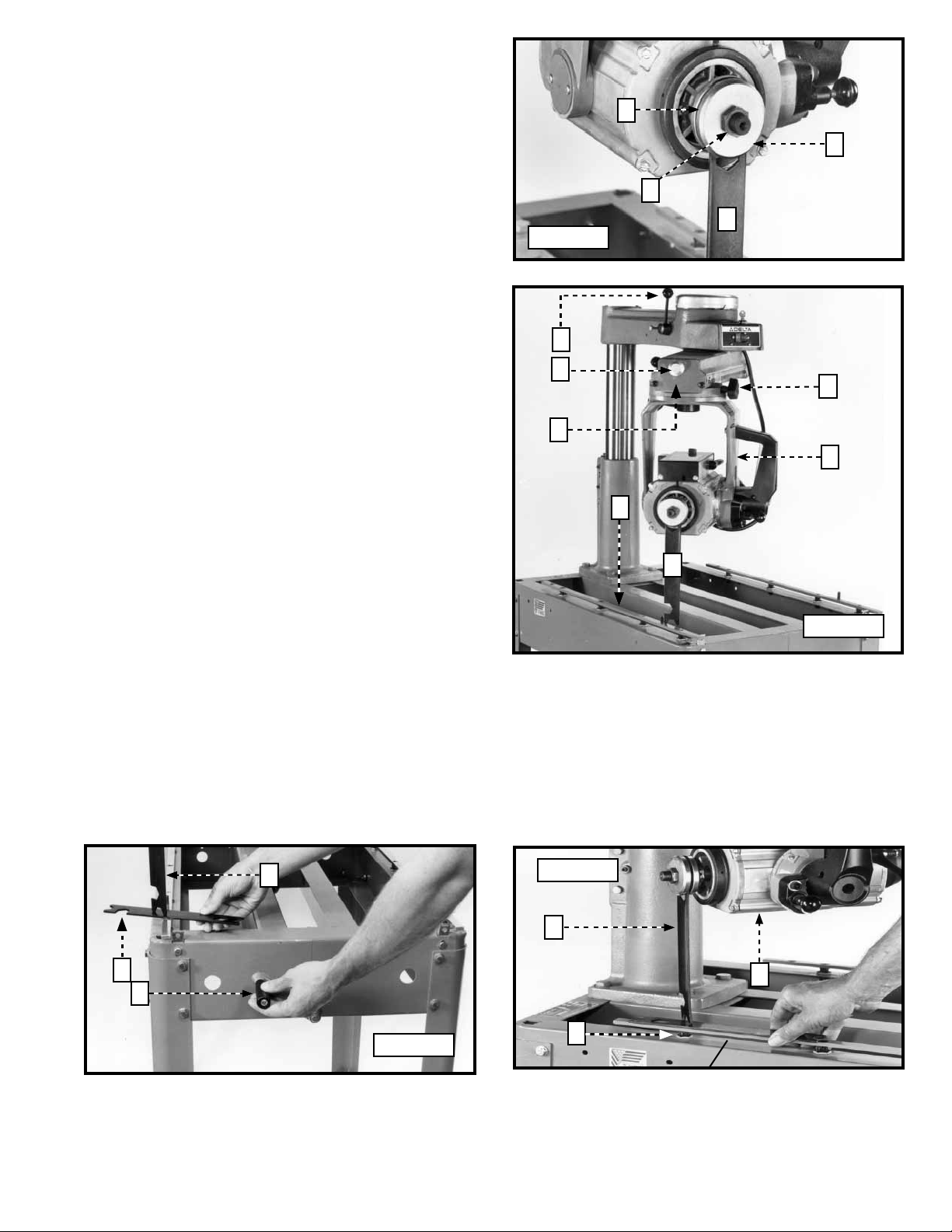

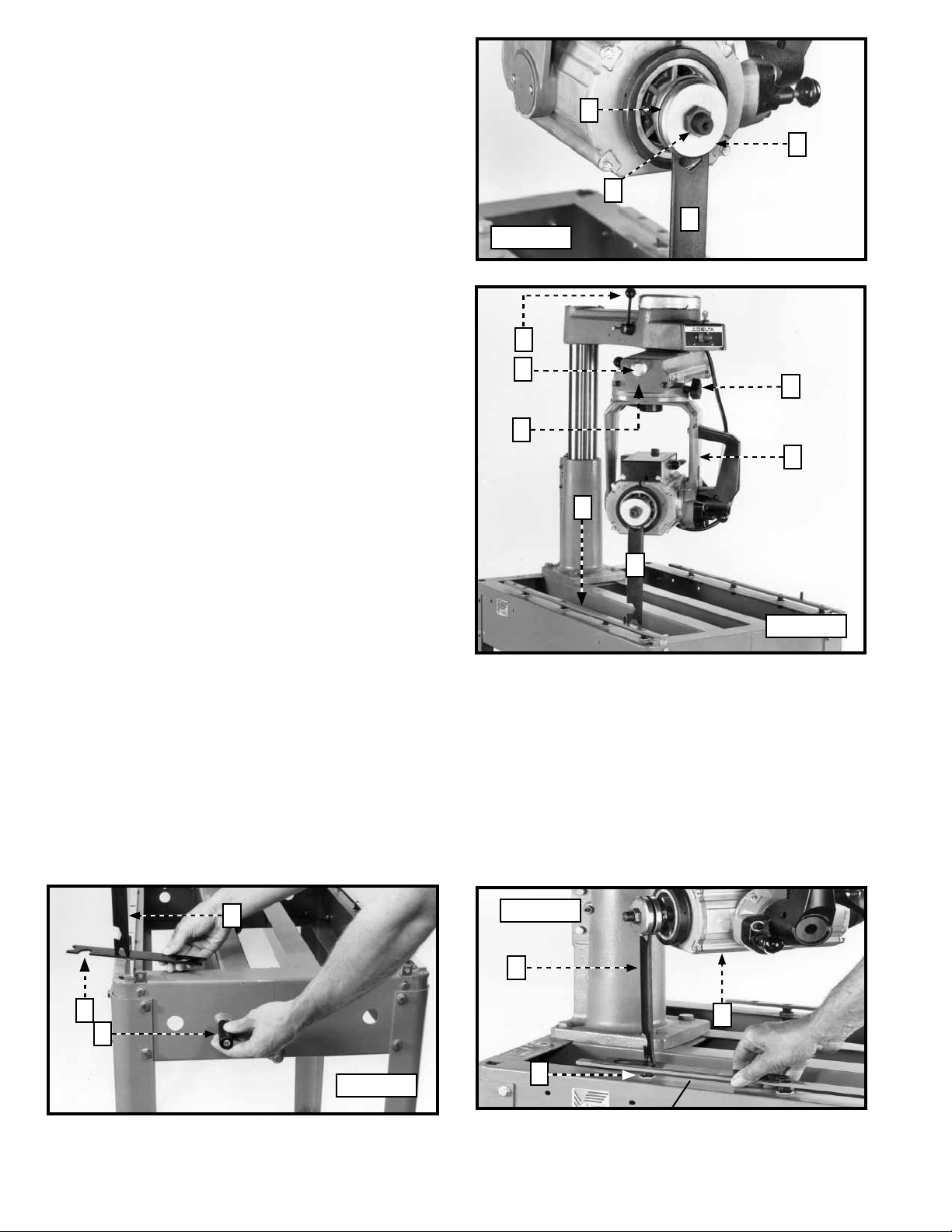

2. Use the open-end wrench (D) Fig. 17 on the flats of the arbor and loosen the arbor nut (E) with the other wrench (F).

Fig. 16

Fig. 17

3. Place the wrench (F) Fig. 18 between the inner flange (G), and outer flange (H). Tighten the arbor nut (E). Make certain that the wrench (F) is above the table surface. If necessary, raise the track arm.

Fig. 18

4. Loosen the cuttinghead clamp knob (J) Fig. 19.

Move the cuttinghead (C) to the front of the track arm

(K). Loosen the track arm locking lever (L). Pull out on the track arm index knob (M). Rotate the track arm

(K) until the wrench (F) is over the left table bracket (N). Make certain that the wrench (F) is in the vertical

position. Tighten the knob (J) and lever (L) Fig. 19.

Fig. 19

5. Use your wrench (D) Fig. 20 as a feeler gauge. Lower the track arm assembly by turning handle (P) until the track

arm assembly (F) touches the wrench (D).

IMPORTANT: Do not raise or lower the track arm any farther until the table brackets have been adjusted.

6. Lo o s e n the tr a ck arm locking lever (L) Fi g. 19. Pull out the track arm index kn ob (M). Rotate the track arm ( K) until the wrench D) Fig. 20 is directly above the rear table bracket (N). Tighten the knob (J) and the lever (L) Fig. 19. Use the wrench (D)Fig. 20 as a feeler gauge to see if the height of the cuttinghead (C) Fig. 21 at the rear of the table bracket (N) is the same height as the front table bracket.

Fig. 21

Fig. 20

7. To adjust, remove the screw (R) Fig. 22. Loosen the locknut (S) and turn the leveling screw (T) to raise or lower table mounting bracket (N). After adjustment, tighten the locknut (S) and replace the screw (R).

8. Check and adjust the other table mounting bracket in the same manner.

IMPORTANT: Do not raise or lower the track arm assembly during this operation.

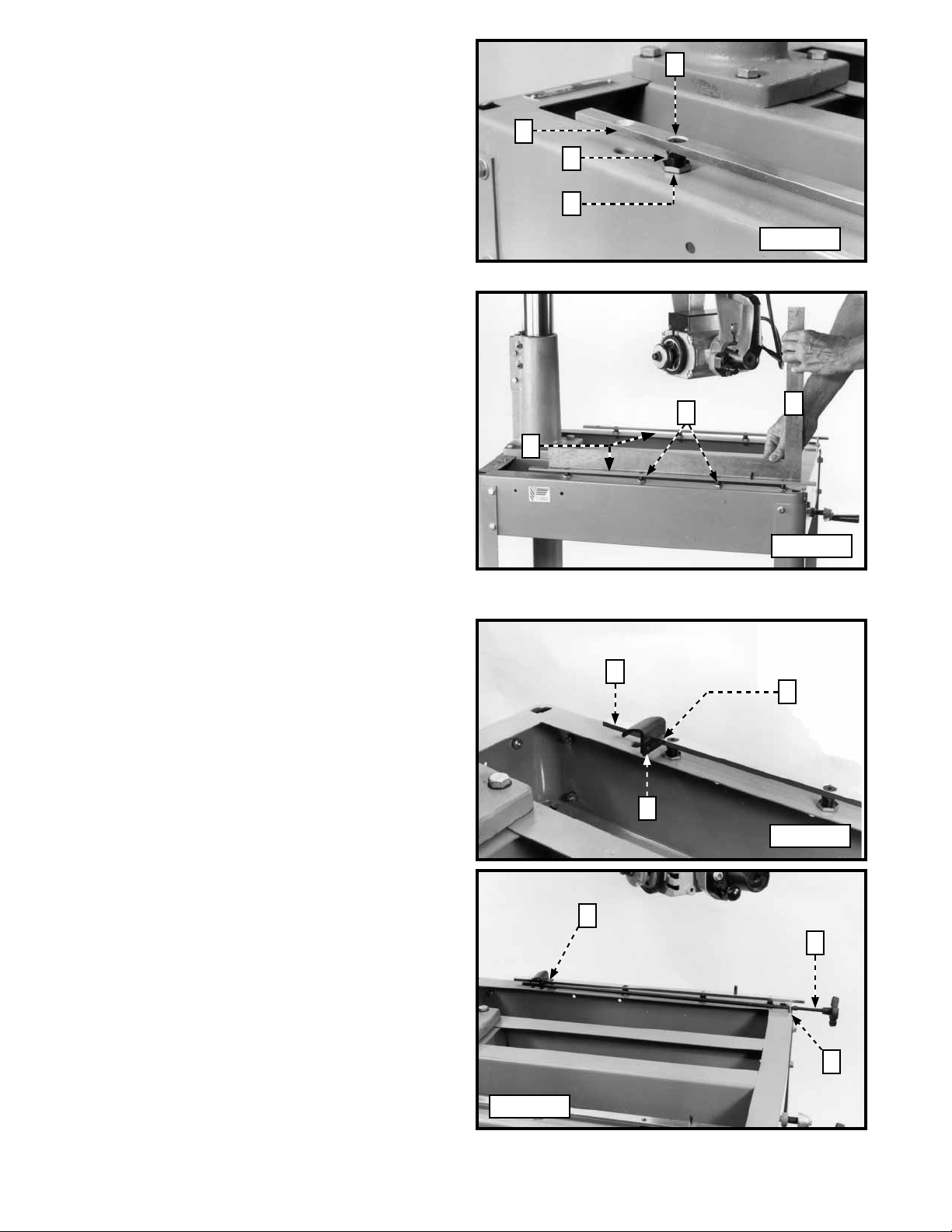

9. Place a straight edge (V) Fig. 23 on the table mounting brackets (N). Adjust the two center positions (W) on both brackets.

Fig. 22

Fig. 23

ATTACHING THE TABLE CLAMPS AND TABLE CLAMP RODS

1. Unscrew the metal clamps from the table clamp rods.

2. Position the metal clamp (A) Fig. 24 on the end of the table mounting bracket (B).

NOTE: Attach the metal clamp (A) so that the threaded hole (C) is on the inside of table mounting bracket.

3. Insert the threaded end of table clamp rod (D) Fig. 25 through the metal support (E) at the front of the saw. Thread the rod through the tapped hole in the table clamp (A). Hand-tighten the rod for further adjustment.

4. Attach the remaining table clamp and table-clamp rod to the other side of the table in the same manner. Hand tighten the rod for further adjustment.

Fig. 24

Fig. 25

ATTACHING THE TABLE BOARDS

1. Place the main table board (A) Fig. 26 on the table mounting brackets. Fit the the two roll pins in the table mounting brackets into the two holes in the bottom of the main table board (A). Fasten the table in place, Place a 1/4" flat washer on each of the 1/4-20 x 1-3/4" round head screws. Secure the table by inserting the screws through pre-drilled holes (B) in the main table board (A) and tighten securely.

2. Place the re main ing loose boards (C) Fig. 27 and fence (D) on the table mounting brackets, and tighten the two table clamp rod knobs (E). You can reposition the fence (D) as re quired.

Fig. 26

Fig. 27

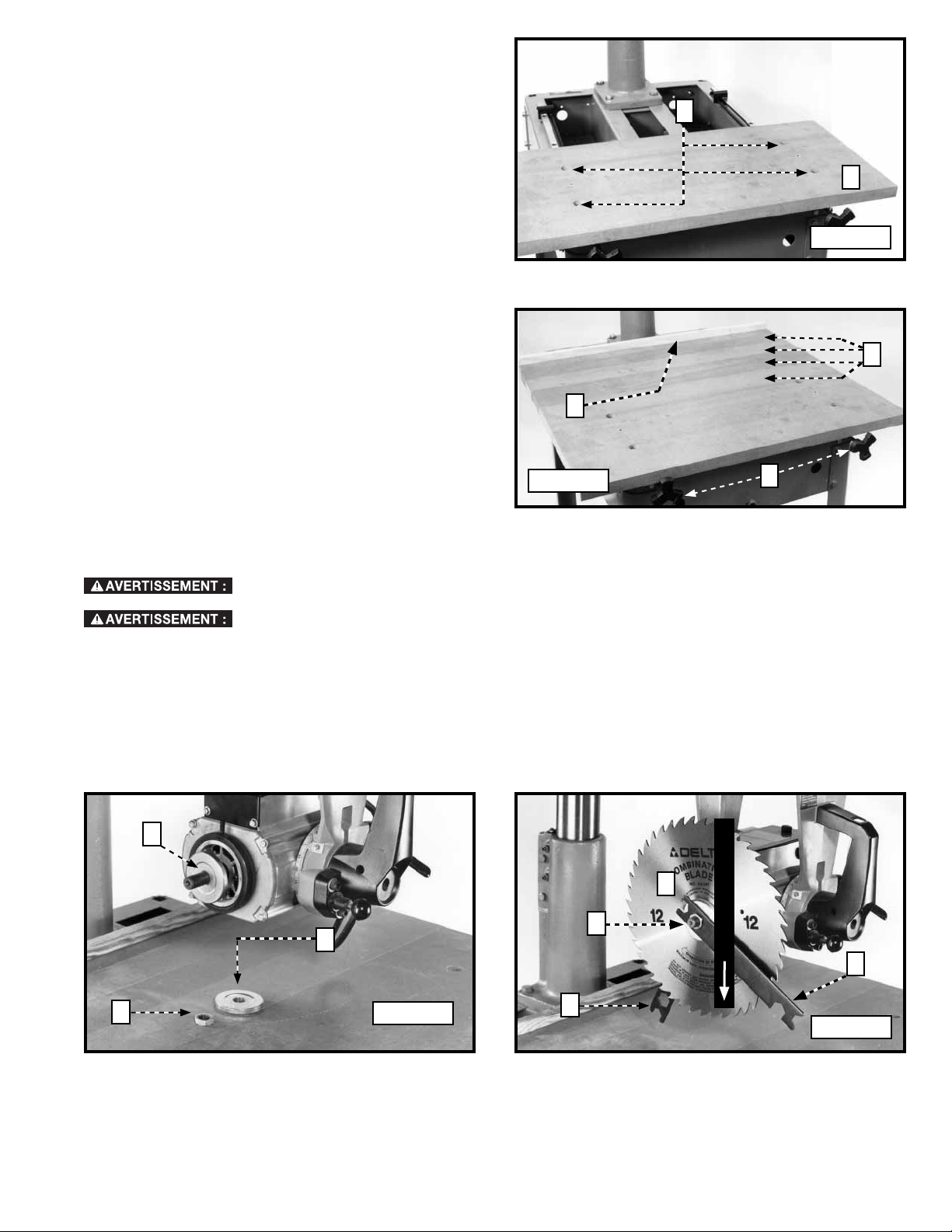

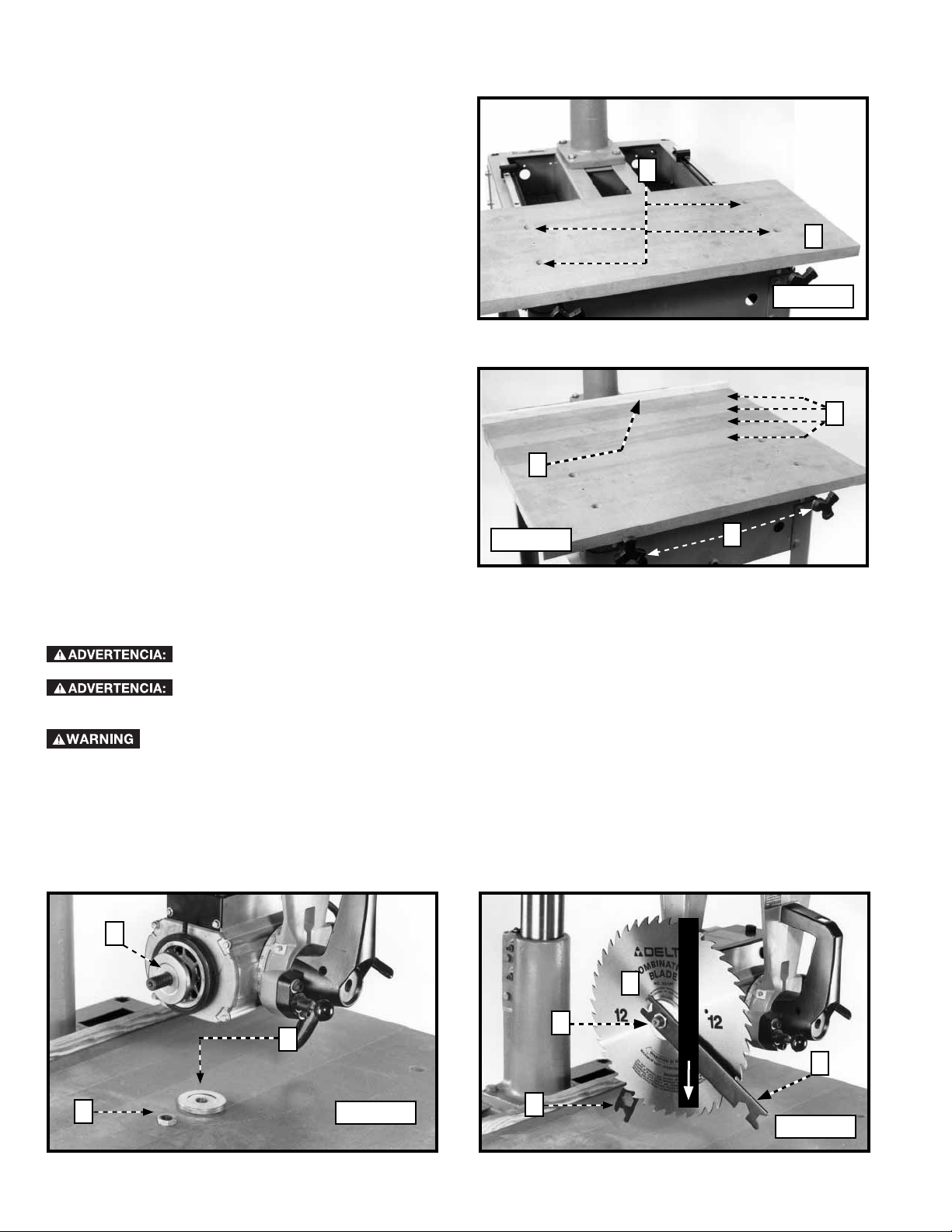

ATTACHING THE SAW BLADE AND BLADE GUARD

Use only 12” blades rated for at least 3450 rpm.

Disconnect the machine from the power source!

IMPORTANT: The blade guard should be in place for all cuts.

Before connecting the saw to the power source or operating the saw , always inspect the guar d and

splitter for proper alignment and clearance with saw blade. Check alignment after each change of bevel angle.

1. Remove the arbor nut (A) Fig. 28 and the outside blade flange (B).

2. Attach the saw blade (D) Fig. 29 between the two blade flanges (B) and (C) Fig. 28. Make sure that the teeth of the saw blade are pointing down (Fig. 29).

3. Place the arbor nut (A) Fig. 29 on the shaft. Tighten the arbor nut with the wrench (E) Fig. 29, while keeping arbor shaft from turning with the other wrench (F).

L A D E

T E E T H

Fig. 28

Fig. 29

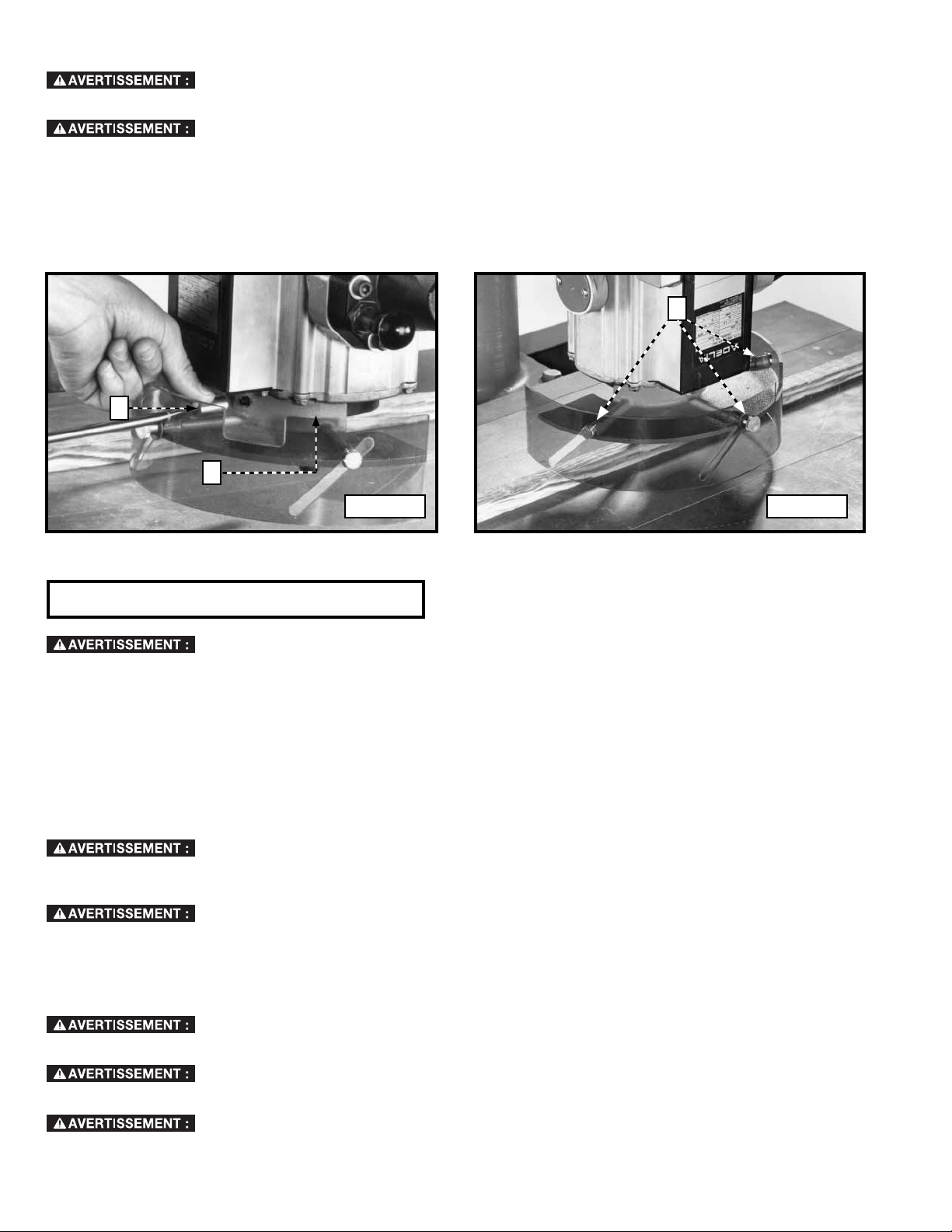

4. Remove the screw, flat washer and spacer (G) Fig. 30 that fasten the front inside leaf guard (H) to the front end of blade guard (J). Attach the blade guard (J) to the motor assembly with a locking rod and washer (K).

5. Re-attach the leaf guard (H) Fig. 30 to the blade guard (J) using the screw, flat washer and spacer (G).

The lower retractable blade guard provides protection in a LATERAL direction to the saw blade.

Use the following guidelines to eliminate potential hazards with the lower blade guard.

A) Keep your hands away from the guard. As the blade cuts, the guard rises to leave a portion of the blade

exposed.

B) Shut off the power before freeing a jammed lower guard. The guard can become jammed in previous kerfs

in the table or fence. Always anticipate the path of the guard and the blade. C) Use caution when bevel cutting to ensure that the lower guard is never pinched toward the blade. D) The lower guard can jam against the fence during narrow in-rips. Should the guard jam against the fence,

disconnect the saw from power source, wait for the blade to stop, then lift the blade guard and rest it on top of

the fence.

Make sure that the switch is in the “OFF” position before plugging cord into outlet. Do not touch the

plug’s metal prongs when unplugging or plugging in the cord.

Fig. 30

OPERATION

OPERATIONAL CONTROLS AND ADJUSTMENTS

CONNECTING THE SAW TO THE POWER SOURCE

position.

Be sure your power supply agrees with the nameplate marking. AC Only means that your saw will operate on alternating current only. A voltage decrease of 10 percent or more will cause a loss of power and overheating. All DELTA tools are factory tested. If this tool does not operate, check the power supply.

To reduce the risk of injury, before connecting saw to power source, make sure the switch is in the "OFF"

STARTING AND STOPPING

position before plugging cord into outlet. Do not touch

Make sure that the switch is in the “OFF”

the plug’s metal prongs when unplugging or plugging in the cord.

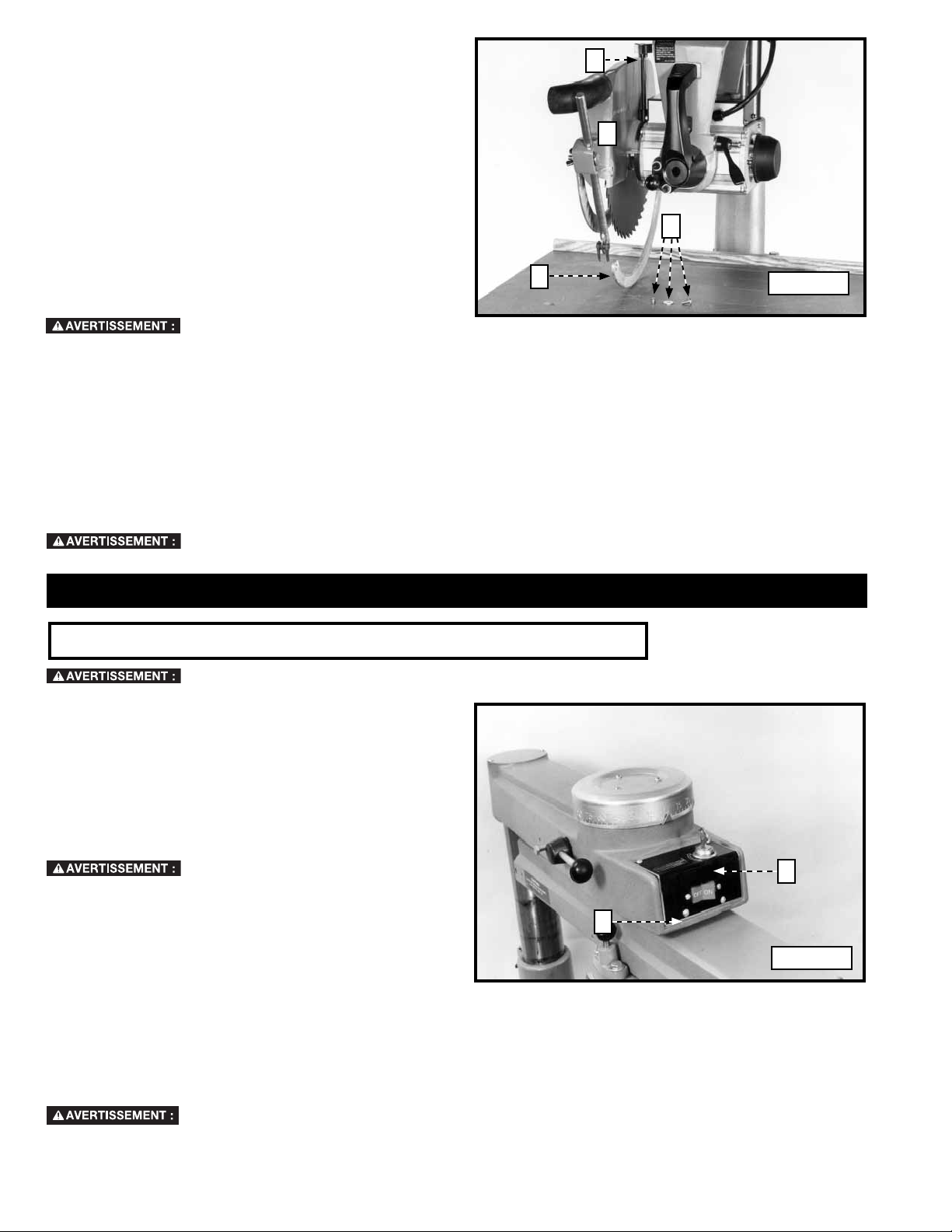

The on/off switch (A) Fig. 31 is located at the front of the cuttinghead. To tur n the saw “ON”, move the switch (A) up to the “ON” position. To tur n the saw “OFF”, move the switch down to the “OFF” position.

Fig. 31

LOCKING SWITCH IN THE "OFF" POSITION

IMPORTANT: When the machine is not in use, lock the

switch in the “OFF” position to prevent unauthorized use by removing and storing the key (B) Fig. 31 in a safe place.

In the event of a power outage (such as a breaker or fuse trip), always move the switch to the “OFF”

position until the main power is restored.

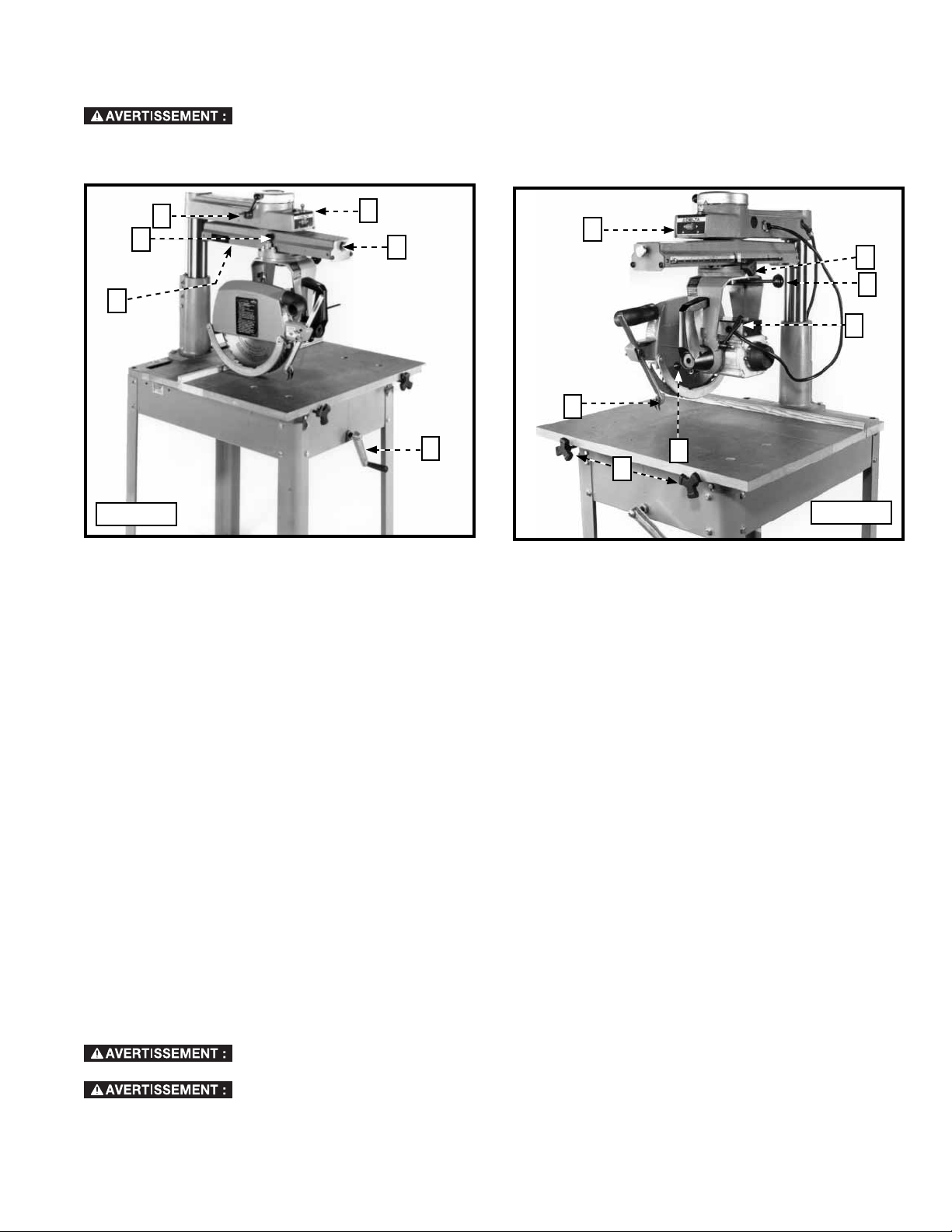

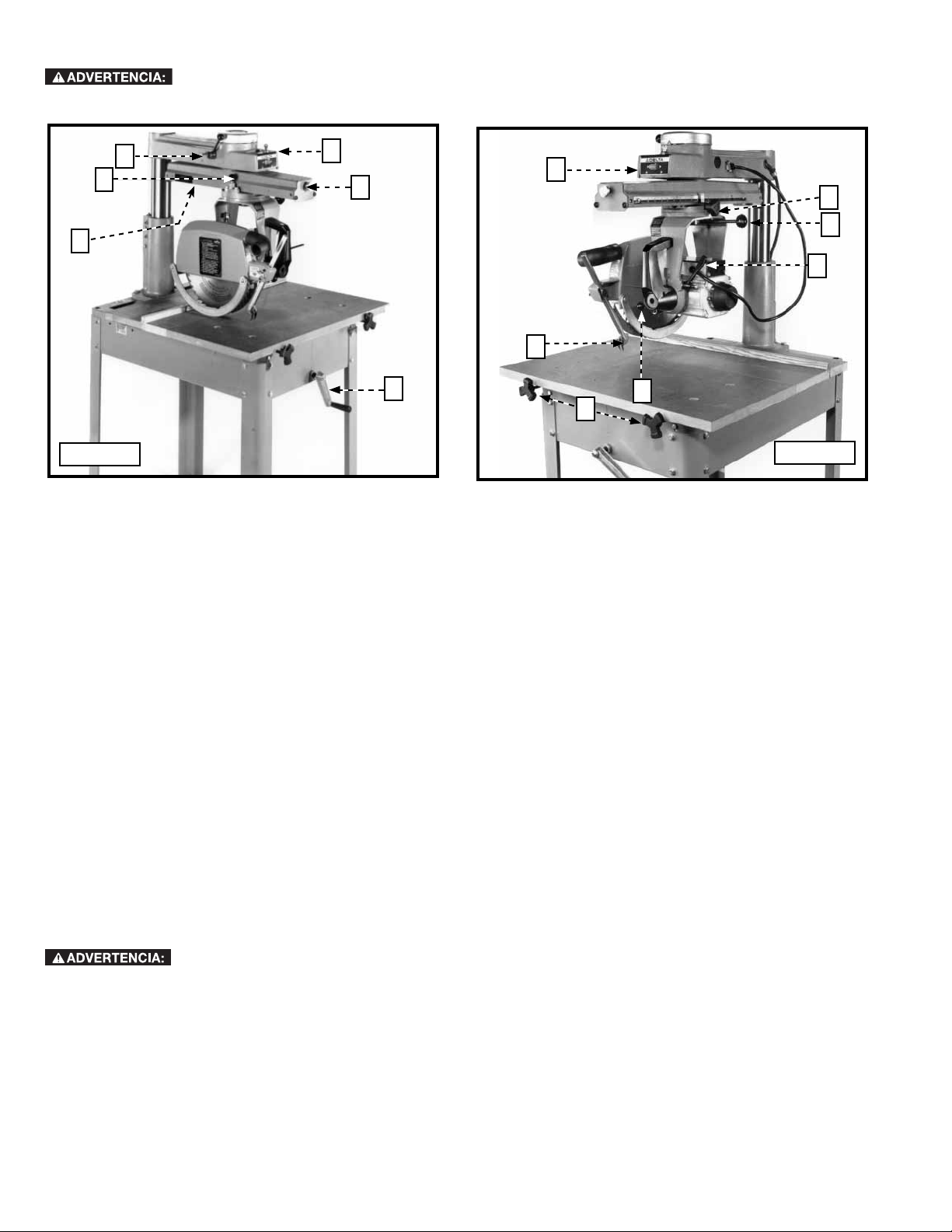

GUIDE TO CONTROLS

the power. Doing otherwise may cause damage to the saw or personal injury.

Study the following terms and explanations carefully to familiarize yourself with the controls before turning on

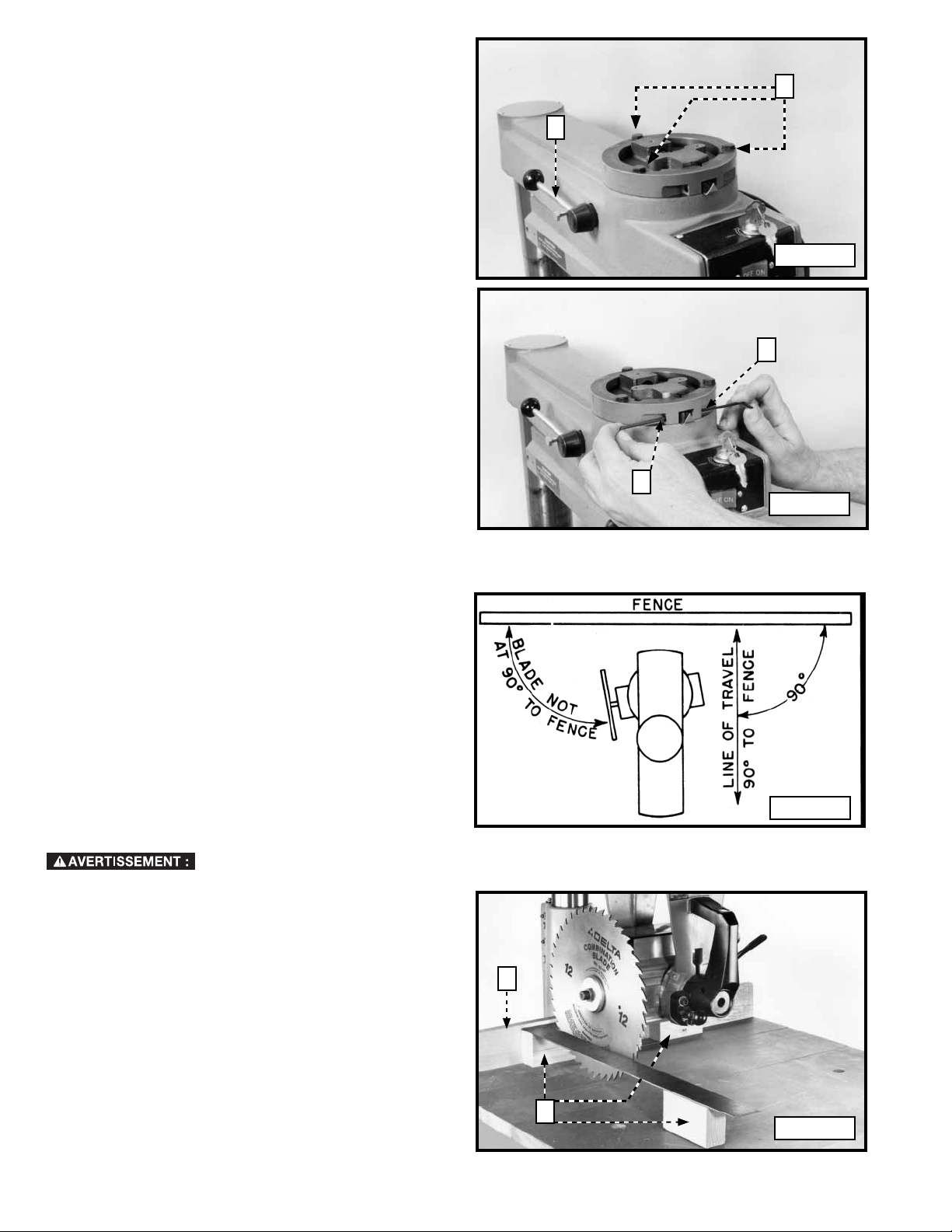

Fig. 32

Fig. 33

A. THE TRACK ARM CLAMP KNOB controls the swing of the

track arm for all miter cutting operations. It locks the track arm at any angle for the full 360º rotation. To rotate the track arm, loosen the clamp knob and rotate the arm. The arm will stop at the 0º and 45º positions right and left. To move the arm past these points, pull out the track arm index knob (B) Fig. 32.

B. THE TRACK ARM INDEX KNOB - (See instruction A). C. THE YOKE INDEX LEVER locates each 90º position of

the yoke for ripping or cross-cutting operations. When you rotate the yoke, first loosen the yoke clamp handle (Fig. 33.

D. THE YOKE CLAMP HANDLE. (See Instruction C). E. THE ANTI-KICKBACK DEVICE helps prevent kickback.

When ripping, position and clamp the yoke so that the blade is parallel to the fence. Lower the infeed side of the blade guard until it almost touches the workpiece. Lower the anti-kickback rod so that the fingers catch and hold the workpiece. Never rip from the anti-kickback end of the blade guard. (Fig. 33)

F. THE OVERARM ELEVATING HANDLE controls the depth

of cut. Turning the handle raises or lowers the overarm. (Fig.

32)

G. THE CUTTINGHEAD CLAMP KNOB locks the cuttinghead

at any position on the track arm. Make sure that the cutting clamp is tight when you rip a workpiece (Fig. 33).

H. THE BEVEL INDEX KNOB locates 0º and 45º and 90º bevel

positions of the motor. To tilt the motor for bevel cutting, loosen the bevel clamp handle (Fig. 33).

J. THE BEVEL CLAMP LEVER controls the tilt of the motor for

bevel cutting operations. It locks the motor at any desired angle on the bevel scale (Fig. 33).

K. THE TABLE CLAMP KNOBS allow you to quickly set the

desired fence position (Fig. 33).

L. THE ON-OFF SWITCH is placed at eye level and can be

turned on or off instantly for your protection (Fig. 33).

M. THE MITER SCALE indicates the position, left and right, of

the track arm. (Fig. 32)

N. THE TRACK ARM STOP is located under the track arm.

This stop prevents the blade from contacting the column when making straight cut-offs with the motor tilted for a 45º bevel cut.

Before using the saw , verify the following each and every time:

1. ALWAYS wear proper eye, hearing, and respiratory equipment.

2. Blade is tight.

3. Bevel angle and height lock knobs are tight.

4. If ripping, ensure fence lock lever is tight and fence is parallel to the blade.

5. If crosscutting, miter gauge knob is tight.

6. The blade guard is properly attached and the anti-kick teeth are functioning.

7. ALWAYS inspect the guard and splitter for proper alignment operation and clearance with saw blade.

Failure to adhere to these common safety rules can greatly incr ease the likelihood of injury.

To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set-ups, or when making repairs. An accidental start-up can cause injury. Before connecting the radial arm saw to the power source or operating the saw, always inspect the guard and splitter for proper operation alignment and clearance with saw blade. Personal injury may result.

If your saw makes an unfamiliar noise, or if it vibrates excessively, cease operating immediately until the source has been located and the problem corrected. The proper throat plate must be in place at all times to reduce the risk of a thrown workpiece and possible injury .

ADJUSTING THE OVERARM COLUMN

After extended use, the overarm might develop side motion. To correct:

Disconnect the machine from the power source!

1. Loosen the hex nuts (A) Fig. 34 and the gib-adjusting screws (B) and (C).

2. Adjust the column base by loosening the hex nuts (D) Fig. 34. Tighten or loosen the bolts (E) until the column base wraps around the column securely and the column can be raised or lowered without binding. Tighten locknuts (D).

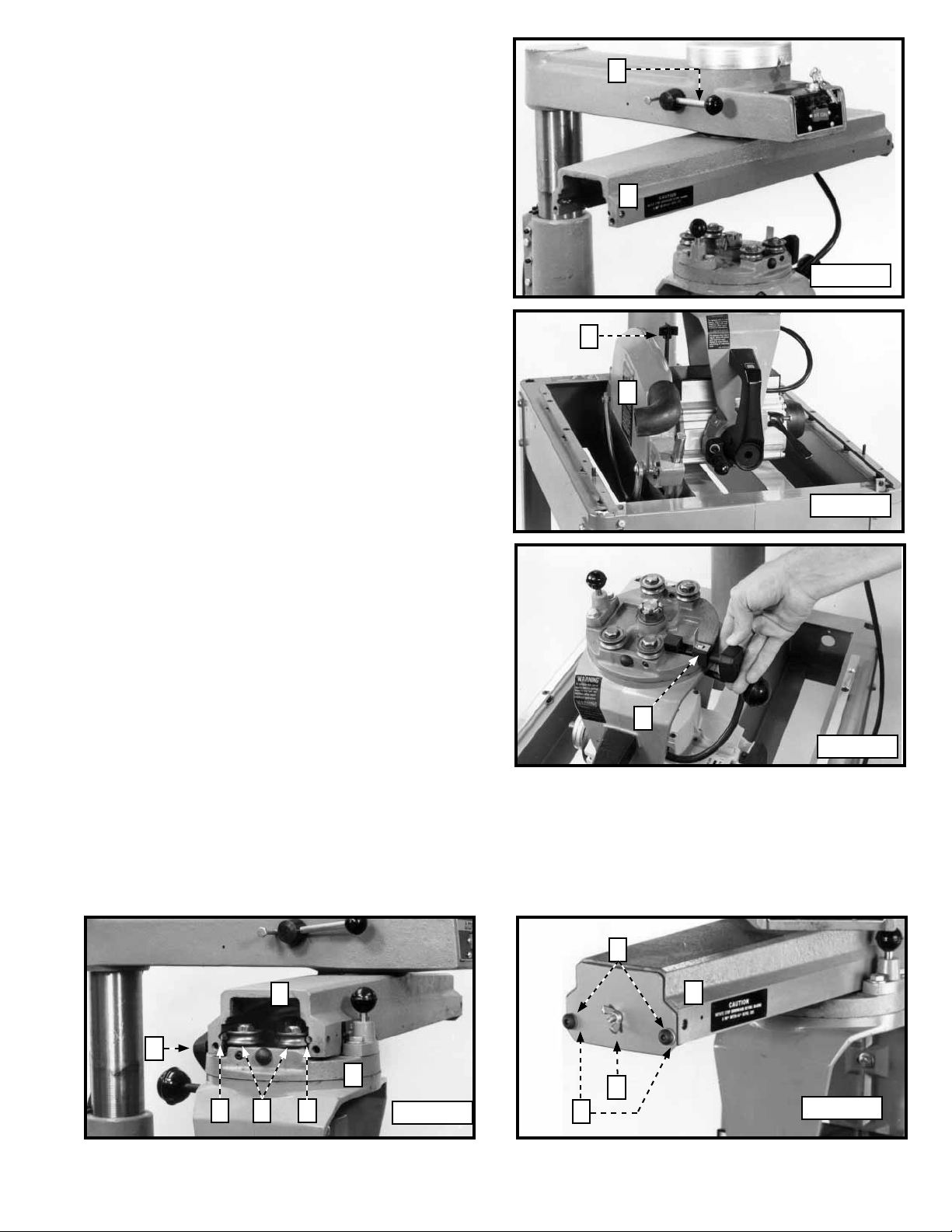

3. After adjustment, tighten the screws (C) Fig. 34 against the column gib until all side motion disappears in the overarm.

4. Tighten the hex nuts (A) and screw (B) Fig. 34.

Fig. 34

ADJUSTING THE YOKE CLAMP HANDLE

The yoke clamp handle (A) Fig. 35 allows the yoke (B) to rotate to the rip or cross-cut positions. To reposition the cuttinghead, push the yoke handle (A) to the rear. Turn the yoke (B) to desired position. To lock the yoke in position, pull the yoke clamp handle toward you.

To adjust the yoke clamp handle if it does not lock the yoke completely, or does not lock in a convenient position:

Disconnect the machine from the power source!

1. Remove the blade guard assembly (C) Fig. 35, and the saw blade.

2. Remove the rear end plate from the track arm and remove the cuttinghead assembly (D) Fig. 35 from the track arm.

3. Loosen the yoke clamp handle (A) Fig. 35, and remove the cotter pin (E).

4. Turn the hex nut (F) Fig. 36, clockwise 60° and replace the cotter pin (E).

5. Reinstall the cuttinghead on the track arm and replace the items removed in STEPS 2 and 3.

Fig. 35

Fig. 36

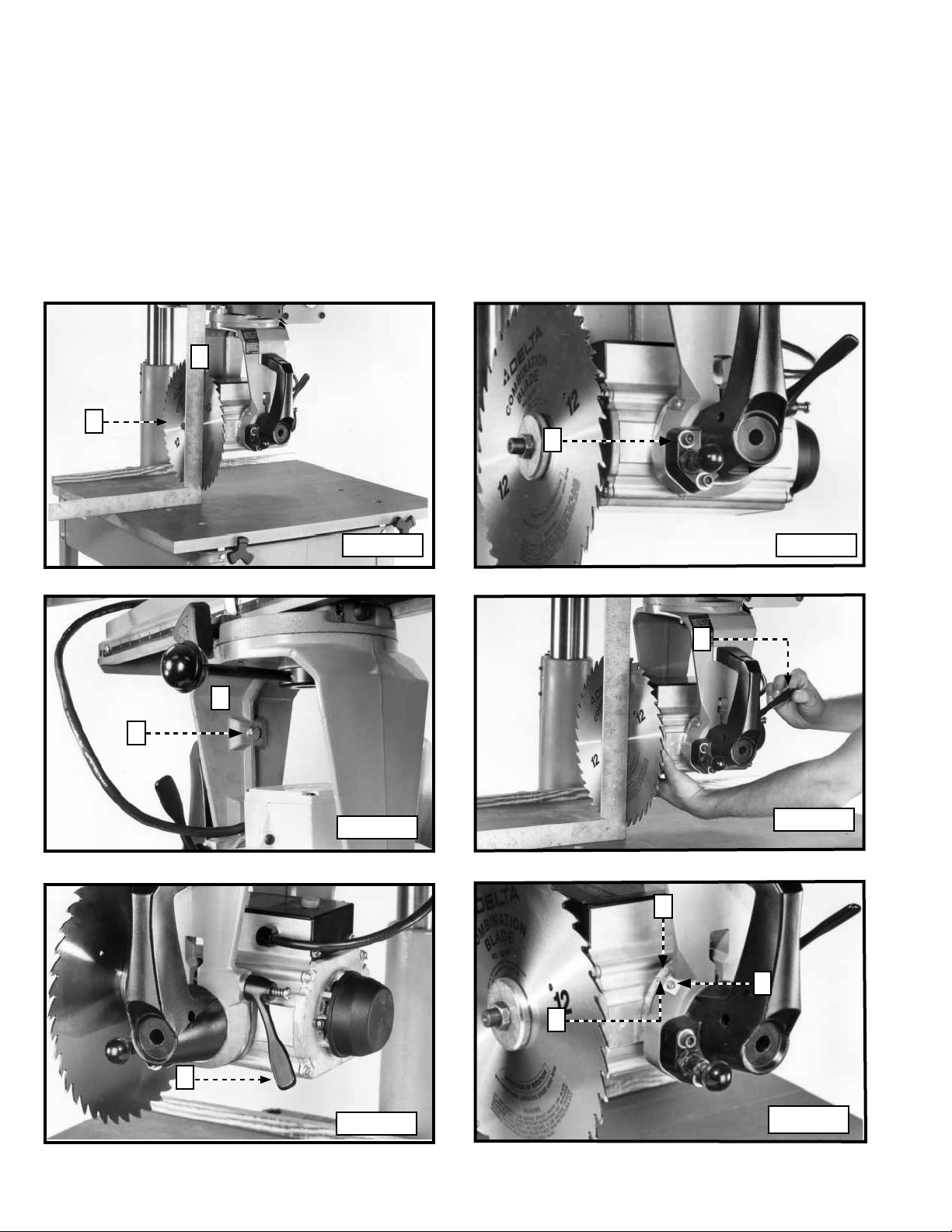

ADJUSTING THE CUTTINGHEAD BALL BEARINGS AGAINST THE TRACK RODS

The carriage is mounted on four pre-loaded, pre-lubricated, shielded ball bearings - two on fixed shafts (on the saw blade side of the track arm) and the other two on adjustable eccentric shafts.

The ball bearings must ride smoothly and evenly against the track rods to do accurate work. To adjust the ball bearings when "play" develops between the ball bearings and the track rods:

Disconnect the machine from the power source!

1. Move the cuttinghead to the center of the track, and check to see if any play is present.

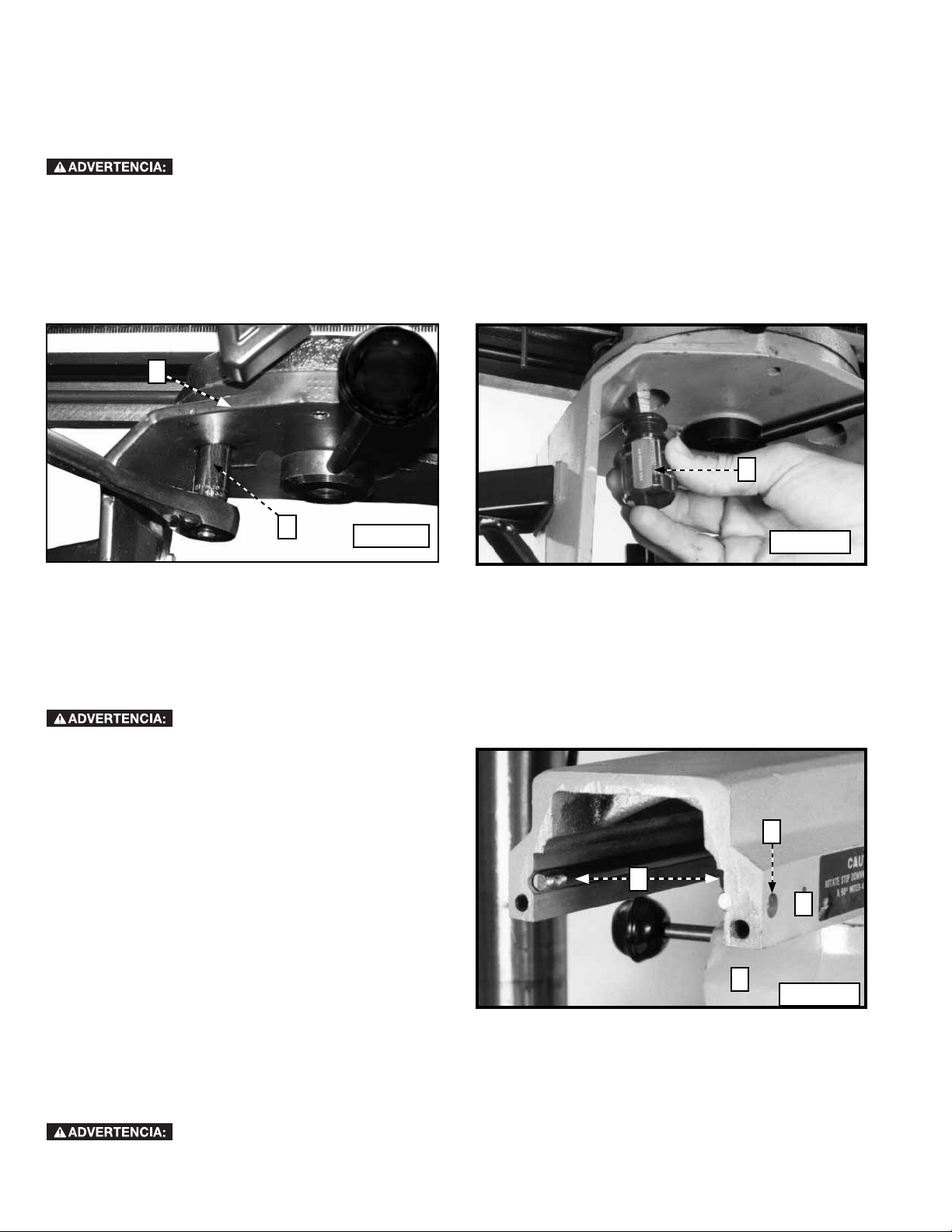

2. To adjust, place a 1/2" socket (A) Fig. 37 over the hex nut, located un der neath the carriage. Loosen the hex nut.

3. Loosen the set screw (C) Fig. 37 inset with a hex wrench to release the locking action of the eccentric shaft.

4. Use a small screwdriver (D) Fig. 38 to turn the screw slightly until all play is removed.

5. Lock the set screw (C) Fig. 37. Tighten the hex nut with the special socket wrench (A).

6. Use the same procedure to adjust the rear bearing.

Fig. 37

Fig. 38

ADJUSTING THE TRACK RODS

After a period of heavy use, the two track rods (A) Fig. 39 may show signs of wear, especially where the cuttinghead is used most often in the track arm. This wear can cause an uneven bearing surface for the cuttinghead bearings.

To adjust:

Disconnect the machine from the power source!

1. Remove the rear plate from the track arm (B) Fig.

39.

2. Remove the cuttinghead assembly (C) Fig. 39 from the track arm (B).

3. Remove the four screws (D) Fig. 39 (one of which is shown), and rotate the track rods (A) 180°.

4. Replace the track rods (A) Fig. 39 inside the track arm (B). Fasten it with the four screws (D).

5. Replace the cuttinghead assembly.

6. Replace the rear plate on the track arm.

Fig. 39

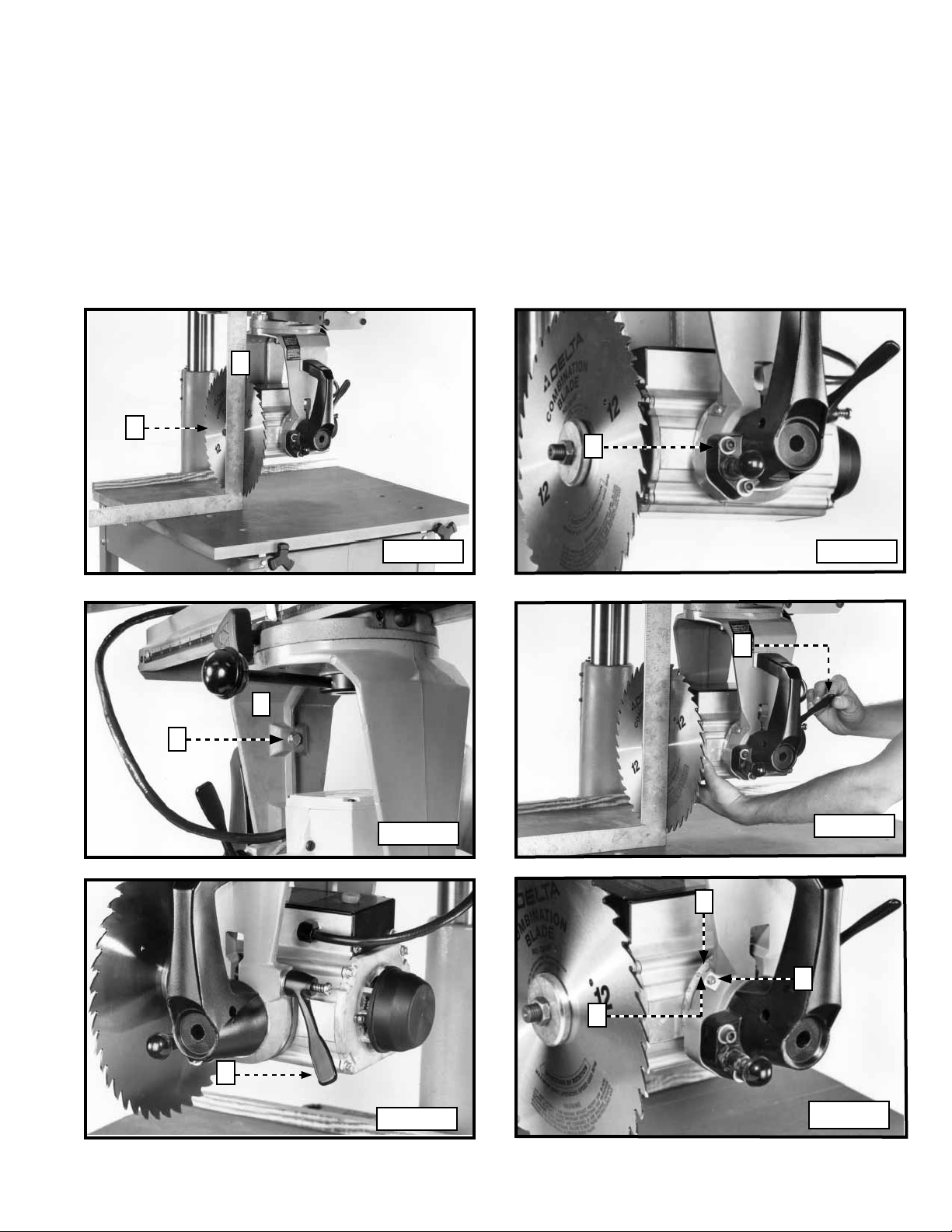

ADJUSTING THE BLADE SQUARE WITH THE TABLE TOP

The saw blade must be square with the table top in order to produce accurate work. To see if the blade is square with the table:

Disconnect the machine from the power source!

1. Remove the blade guard and place the cuttinghead in a cross-cut position (Fig. 40).

2. Place a square (A) Fig. 40 against saw blade (B) and table, and see if the blade (B) is square with the table. Make certain the square is between the teeth of the saw blade.

3. To adjust, loosen the two bolts (C) Fig. 41.

4. Loosen the screw (D) Fig. 42, located inside of the yoke (E).

5. Hold the cuttinghead with your left hand (Fig. 43). Loosen the bevel clamp handle (F) and tilt the motor until the saw blade is flush against the square.

6. After adjusting, tur n the bevel clamp handle (F) Fig. 44 counter-clockwise to lock the motor in position.

NOTE: If the bevel clamp handle (F) does not completely lock the motor, pull out the handle and reposition it on the

serrated nut.

7. Tighten the clamp bolt (D) Fig. 42 and two bolts (C) Fig. 41.

8. Loosen the screw (G) Fig. 45. Move pointer (H) to zero mark on the bevel scale (J). Tighten screw (G).

9. Replace the blade guard that was removed in STEP 2.

Fig. 40

Fig. 41

Fig. 42

Fig. 43

Fig. 44

Fig. 45

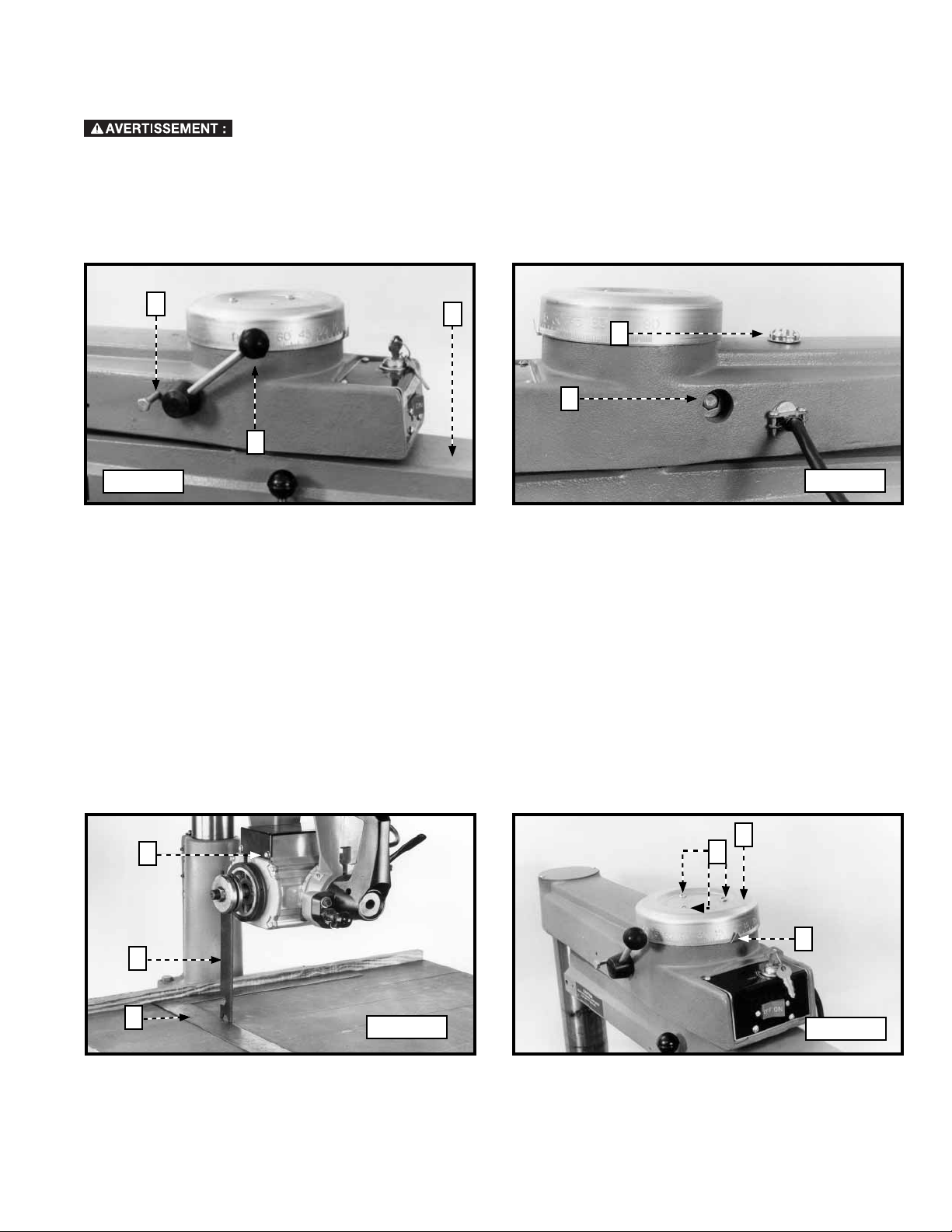

ADJUSTING THE TRACK ARM CLAMP HANDLE

The track-arm clamp handle in the forward position (A) Fig. 46 should lock the clamp arm. The track arm should be unlocked when the handle is in the rear position, resting on the stop (C). To adjust the track-arm handle:

Disconnect the machine from the power source!

1. Unscrew and remove the stop (C) Fig. 46. Unscrew and remove the track-arm clamp handle assembly (A).

2. Remove the clamp (D) Fig. 47 from the opposite side of track arm and change the position of the bolt head (E).

3. Replace the track-arm clamping handle assembly (A) Fig. 46. Check for proper locking.

4. Replace the stop (C) Fig. 46 and the cap (D) Fig. 47.

Fig. 46

Fig. 47

ADJUSTING THE SQUARE OF THE SAW TRAVEL TO THE FENCE

The 12” Radial Arm Saw is equipped with 90° and 45° positive miter stops. This feature makes it possible to produce accurate miter cuts and cross-cuts quickly. To make accurate cuts, the saw blade travel must be 90° to the fence. To check the travel and adjust:

1. Remove the blade guard assembly and the saw blade from the cuttinghead assembly (A) Fig. 48. Insert a wrench (B) between the arbor flanges in place of blade. Tighten the arbor nut.

2. Place a square (C) Fig. 48 against the fence. Lower the cuttinghead assembly (A) so that the wrench (B) just clears the table top.

3. Pull the cuttinghead assembly (A) Fig. 48 along the square (C).

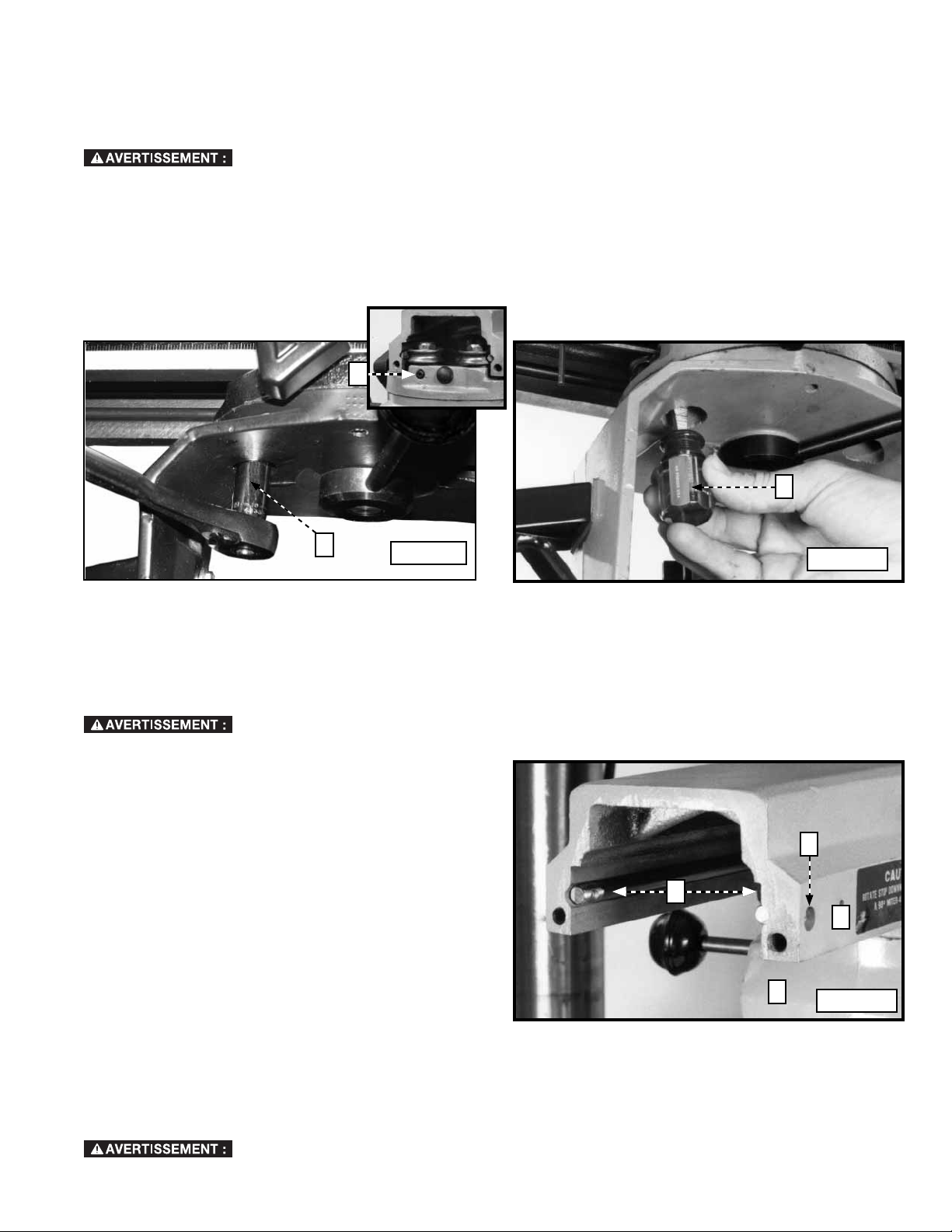

4. If the wrench (B) does not travel parallel to the square (C), remove three screws (D) Fig. 49, and remove miter scale (E).

Fig. 48

Fig. 49

5. Loosen the three screws (F) Fig. 50, and the track arm clamp handle (G).

6. To move the front of the track arm to the right, loosen the set screw (H) Fig. 51, and tighten the set screw (J). To move the front end of track arm to the left, loosen the set screw (J) and tighten the set screw (H).

7. When the cuttinghead is parallel to the square, tighten the three screws (F) Fig. 50. Replace the miter scale (E) Fig. 49, and replace the three screws (D). Make certain the zero graduation mark on the scale (E) aligns with the pointer (K).

8. Replace the blade and blade guard assembly.

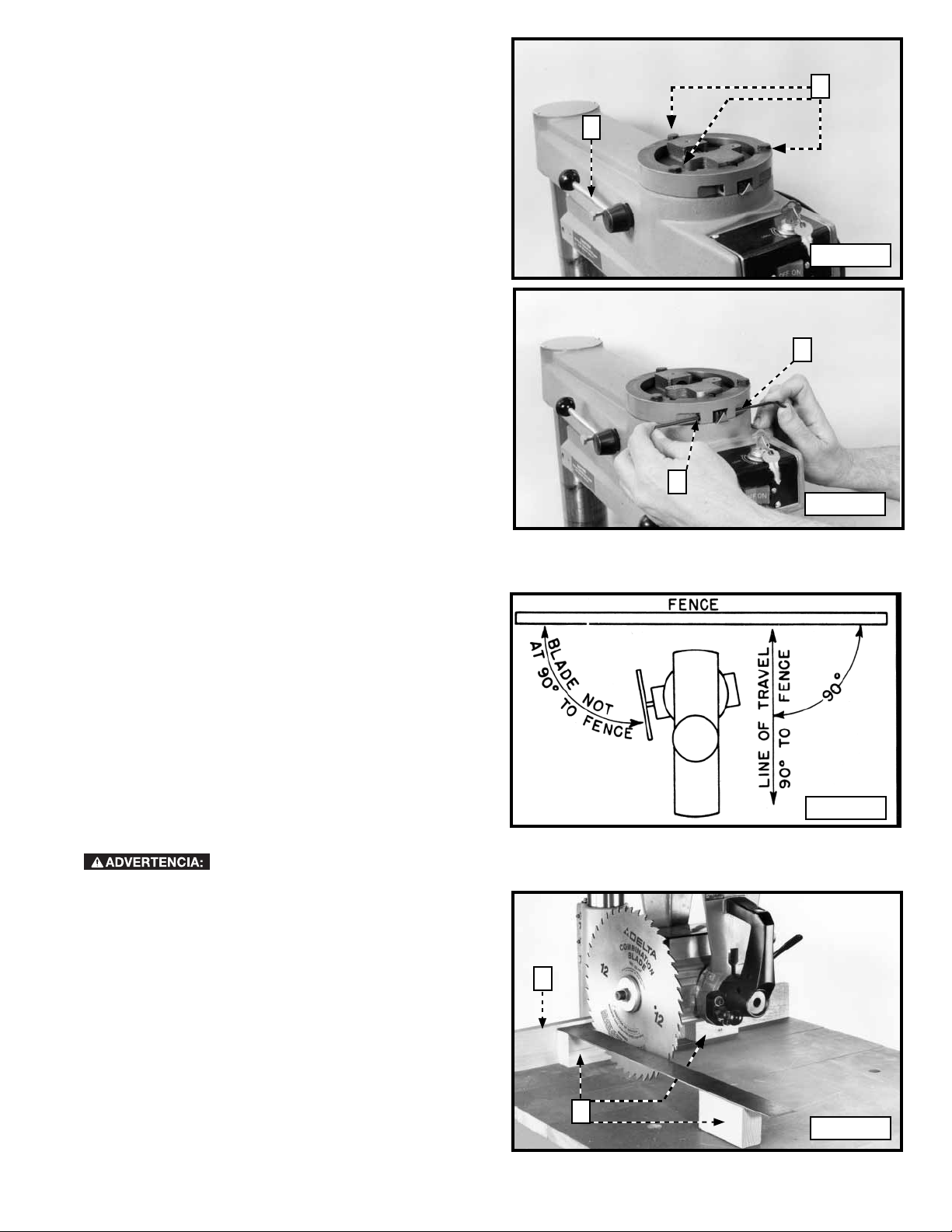

REMOVING THE “HEELING” IN THE SAW CUT

Fig. 50

Fig. 51

Even though the cuttinghead travel may be perfectly aligned at 90° to the fence, the blade may not be 90° or square with the fence (Fig. 52). This condition is known as “heeling.”

To check and adjust:

Disconnect the machine from the power source!

1. Take a piece of 3/4” plywood or similar piece of wood (A) Fig. 53, at least 5” wide, and clamp it between the table boards in place of the fence.

2. Use three 2 x 4’s (4" tall) (B) Fig. 53. Place a square

on the 2 x 4’s with one end of the square against the plywood (A) and the other end against the saw blade.

Fig. 52

Fig. 53

3. To adjust, loosen the yoke-clamping handle and the two screws (C) Fig. 54. Swivel the yoke (D) until the saw blade is parallel with the square. Tighten the yoke-clamping handle and the two screws (C) Fig.

54.

CROSS-CUT STOP

A block of wood placed at (B) Fig. 55 (clamped to the track arm with a small “C” clamp) will prevent unnecessary travel of the cutting-head on the track arm. This is especially useful when performing repetitive operations. Clamp the block of wood to the right side of the track arm at a position which will stop the cutting-head travel as soon as the saw blade cuts through the workpiece.

Fig. 54

Fig. 55

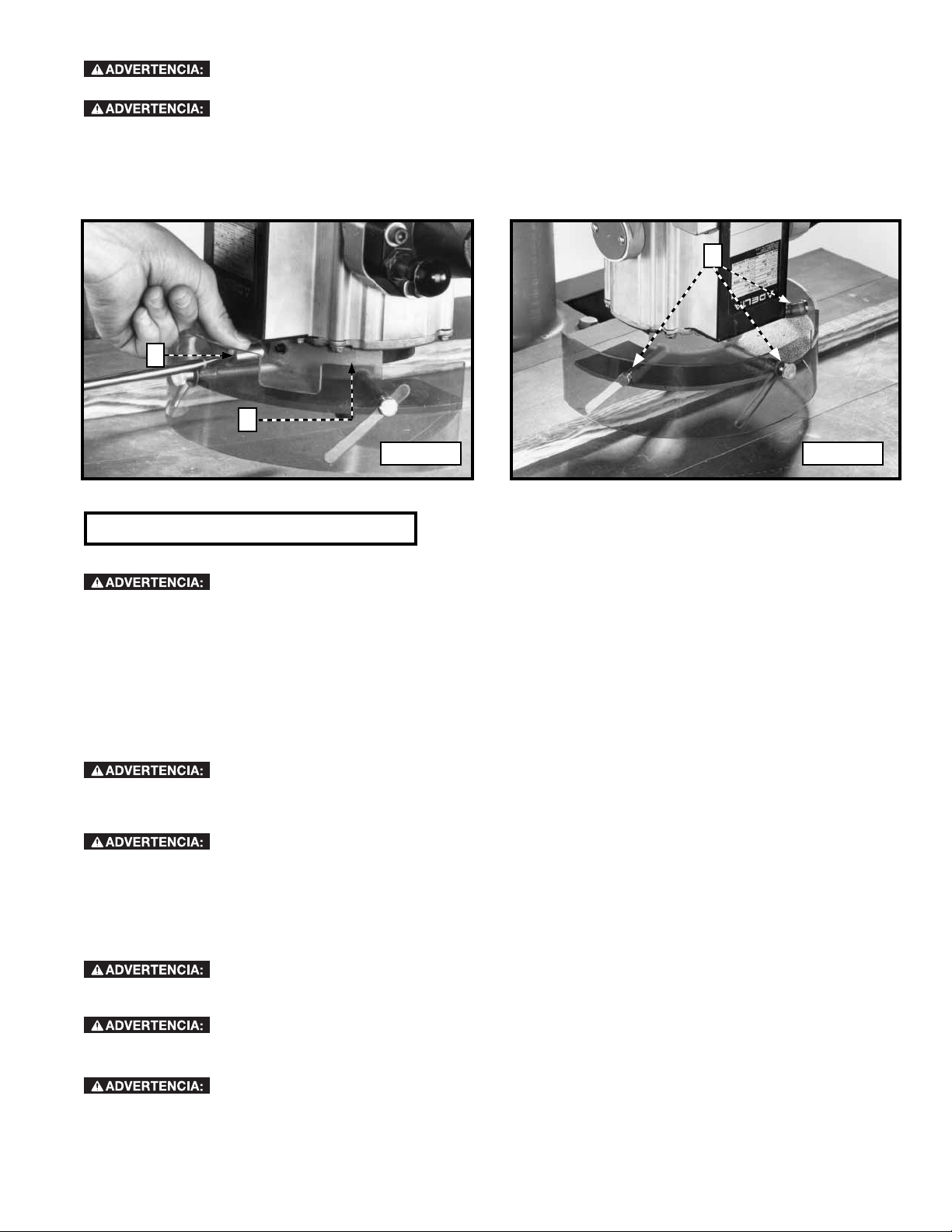

ADJUSTING THE BLADE GUARD AND THE ANTI-KICKBACK ROD

On all ripping and plowing operations, lower the infeed side of the blade guard so that it just clears the material to prevent the material from being lifted off the table. Lower the kickback rod (A) Fig. 56 so that the kickback fingers (B) are below the surface of the workpiece. Loosen the wing nut (C) to raise or lower the rod (A). Move the kickback rod to the desired position and tighten the wing nut. This action will allow the kickback fingers (B) to come into contact with the workpiece, preventing “kickback.” The splitter (D) Fig. 56 should be in line with the saw blade. To adjust:

Disconnect the machine from the power

source!

Fig. 56

Tighten or loosen the two screws (E) Fig. 56 on the Rod (A).

ADJUSTING THE TRACK ARM STOP

To make cuts with the track arm in the straight cut-off position and the motor tilted for a 45° bevel cut, rotate the stop (A) Fig. 57 to the "down" position to prevent the saw blade from contacting the column.

Fig. 57

ATTACHING THE ACCESSORY 33-967 MOULDING CUTTERHEAD GUARD

Use the molding cutter guard on all molding operations.

Disconnect the machine from the power source!

1. Remove the blade and blade guard assembly.

2. Move the motor so that the arbor is in the down position (Fig. 58).

3. Place the guard (A) Fig. 58 on the motor with the stud on the motor inserted through the hole in the guard. Thread the special nut (B) on the motor stud and fasten with a screwdriver (Fig. 58).

4. Position the motor as shown in Fig. 59. Adjust the height of the guard (A) Fig. 58 by loosening the three screws (C).

Fig. 58

Fig. 59

MACHINE USE

Before using the saw, verify the following each and every time:

1. ALWAYS wear proper eye, hearing and respiratory equipment.

2. Blade is tight.

3. Bevel angle and height lock knobs are tight.

4. If ripping, ensure fence lock lever is tight and fence is parallel to the blade.

5. If crosscutting, miter gauge knob is tight.

6. The blade guard is properly attached and the anti-kickback teeth are functioning.

7. ALWAYS inspect the guard and splitter for proper alignment operation and clearance with saw blade.

Failure to adhere to these common safety rules can greatly increase the likelihood of injury.

installing and removing accessories, before adjusting or changing set-ups, or when making repairs. An accidental start-up can cause injury.

guard and splitter for proper operation alignment and clearance with the saw blade. Personal injury may result.

To reduce the risk of injury, turn unit off and disconnect the machine from the power source before

Before connecting the radial arm saw to the power source or operating the saw, always inspect the

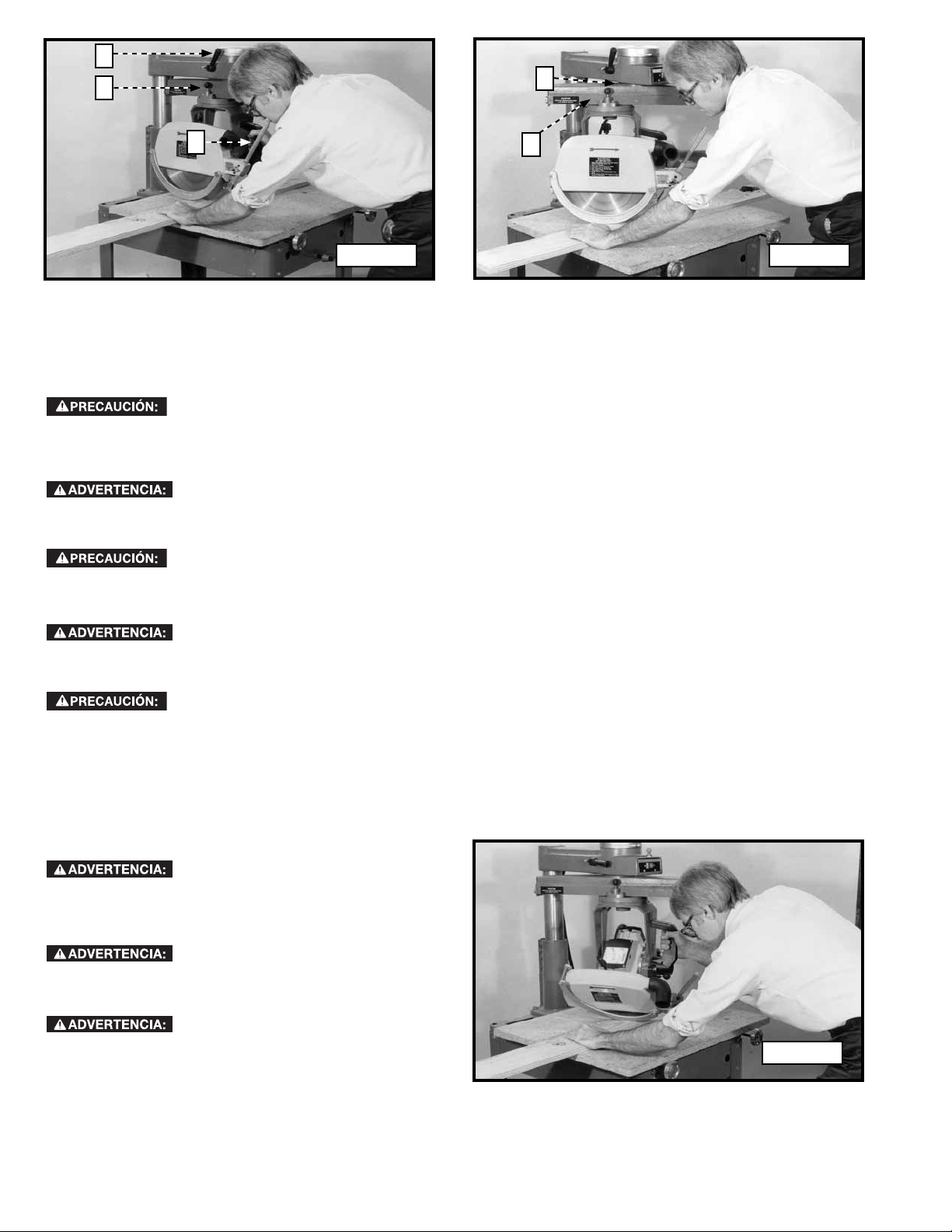

CROSS-CUTTING

installing and removing accessories, before adjusting or changing set-ups, or when making repairs. An accidental start-up can cause injury.

and/or the saw blade is rotating. The piece may contact the blade resulting in a thrown workpiece and possible injury.

damage to the saw and possible injury.

To reduce the risk of injury, turn unit off and disconnect the machine from the power source before

NEVER touch the "free end" of the workpiece or a "free piece" that is cut off while the power is "ON"

Use caution when starting the cut to prevent binding of the guard against the workpiece resulting in

B A

Fig. 60

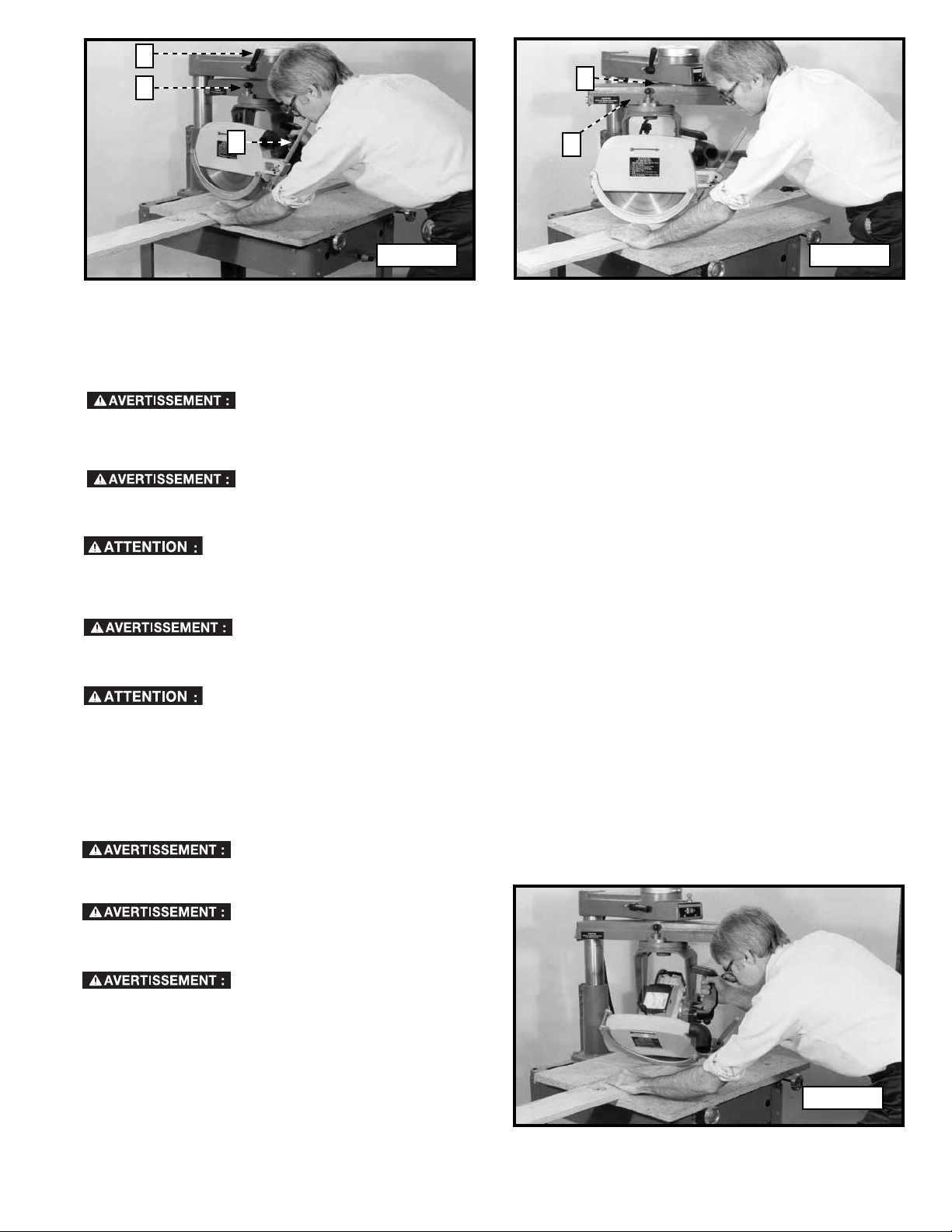

Cross-cutting consists of supporting the workpiece against the fence and pulling the saw blade through the material. Before cross-cutting, set the track arm (A) at “0” and tighten the track arm clamp handle (B) Fig. 60. Clamp the fence Make sure

that the saw blade is to the left and behind the fence. Place the workpiece on the table and butt it against the fence. The saw blade should be clear of the fence and table when the machine is turned on. Lower the saw blade until it lightly cuts into the table surface. Position yourself a little to the left of the machine for better visibility. Pull the saw blade across the workpiece and, after the cut is complete, return the saw blade to its starting position. Wait for the blade to stop before removing the cut-off piece.

Make sure that your hands are clear of the blade. Hold the workpiece firmly. As an added measure of safe ty, turn the anti-kickback rod (C) upside down and lock it in place so that the rod just clears the workpiece. In this position, the rod can act as a guard from the exposed teeth of the blade. See Fig. 60 for an illustration of a cross-cutting operation on a radial saw. Be sure to return the cutterhead carriage to the full rear position after each cross-cut operation.

Always be conscious of your hand position. Make sure that your hands are clear of the blade and that you

are holding the workpiece firmly.

Additionally, you can turn the anti-kickback rod upside down and lock it in place so that the rod just clears the workpiece. The rod can act as a guard from the exposed teeth of the blade.

Always return the cutterhead carriage to the full rear position after each cross-cut operation.

NOTE: When cross-cutting material more than 1" thick, position the fence immediately behind the fixed front table board.

Fig. 61

MITER CUTTING

personal injury. Before starting the motor, test the operation by feeding the workpiece into the guard. If the guard contacts the blade, place the workpiece under the guard, not touching the blade before starting the motor.

cut. If the guard contacts the blade, place the workpiece under the guard, not touching the blade, before starting the motor.

Miter angles greater than 45° may force the guard into the saw blade causing damage to the guard and

Certain workpiece shapes, such as molding may not lift the guard properly. Feed the workpiece slowly to start the

Miter cutting is similar to cross-cutting except that the workpiece is cut off at an angle (up to 45° right or left). The settings and operation are performed in the same manner as cross-cutting except that you should position the track arm (A) Fig. 63 to the desired angle on the miter scale before you clamp it in place with clamp handle (B). Position your hand that holds the workpiece on the opposite side of the direction of the miter so that you pull the blade through the workpiece and away from your hand. See Fig. 63 for a typical miter cutting operation on the radial saw.

COMPOUND MITER CUTTING

and disconnect the machine from the power source before installing and removing accessories, before adjusting or changing set-ups, or when making repairs. An accidental start-up can cause injury.

binding of the guard against the workpiece resulting in damage to the saw and possible personal injury.

the power source or operating the saw, always inspect the guard and splitter for proper operation alignment and clearance with the saw blade. Check the alignment after each change of bevel angle.

Compound miter cutting is performed the same as miter cutting except that the saw blade is tilted to the desired angle on the bevel scale and clamped for a bevel cut. See Fig. 62 for an illustration of the compound miter cut.

To reduce the risk of injury, turn unit off

Use caution when starting the cut to prevent

Before connecting the radial arm saw to

Fig. 62

RIPPING

and removing accessories, before adjusting or changing set-ups, or when making repairs. An accidental start-up can cause injury.

the saw blade is rotating. The piece may contact the blade resulting in a thrown workpiece and possible injury.

If teeth are not operational, return your unit to the nearest authorized Delta service center for repair. The splitter must be in alignment with the saw blade and the teeth must stop a kickback once it has start. Check their action before ripping by pushing the wood under the anti-kickback teeth. The teeth must prevent the wood from being pulled toward the front of the saw.

NEVER perform a ripping operation freehand. ALWA YS lock the fence to the rail.

away from the fence and hands. Keep hands clear of the blade and use a push stick to feed the workpiece if there is less than 6" (152mm) between the fence and the blade.

To reduce the risk of injury, turn unit off and disconnect the machine from the power source before installing

NEVER touch the "free end" of the workpiece or a "free piece" that is cut off while the power is "ON" and/or

Keep the saw blade guard, splitter, and anti-kickback teeth in place and operating properly. Keep teeth sharp.

A rip fence should ALWAYS be used for ripping operations to prevent loss of control and personal injury.

When bevel ripping and whenever possible, place the fence on the side of the blade so that the blade is tilted

IMPORTANT: In certain applications, you may need to use two push sticks, and/or featherboards.

Keep all push sticks, featherboards, etc. handy so that you can reach them without having to get near the blade.

Ripping is a lengthwise cut through board along the grain. Clamp the track arm at “0” on the miter scale. Position and clamp the yoke so that the blade is parallel to the fence in either the inboard or outboard position. When feeding the workpiece, make sure that one edge rides against the fence

with the flat side resting on the table. Lower the guard on the in-feed side until it almost touches the workpiece (Fig. 63) to act as a holddown. Adjust the splitter and antikickback fingers (A) Fig. 63 as described under the section

“ADJUSTING THE SPLITTER AND ANTI-KICKBACK FINGERS” in this manual. Keep your hands well away from,

and to the side of the blade. When ripping narrow work,

always use a push stick (Fig. 64) to push the work between the fence and blade.

Fig. 63

NOTE: The workpiece must have one straight edge to follow the fence. If the board is bowed, place the hollow side down.

Securely tighten the cuttinghead clamp knob for all ripping operations.

Never feed the workpiece into the outfeed end of the blade guard.

OUT-RIPPING

Out-ripping is generally the same as ripping except that you clamp the yoke at a right angle to the track arm with the blade guard facing the FRONT of the machine. Position the

cuttinghead on the out-rip scale to the desired setting and clamp it in position. Feed the workpiece from the left side of the saw. A typical out-ripping operation is illustrated in Fig.

63.

IN-RIPPING

In-ripping is generally the same as ripping except that you clamp the yoke at a right angle to the track arm with the blade guard facing the REAR of the machine. Position the cuttinghead on the in-rip scale to the desired setting and clamp it in position. Feed the workpiece from the right side of the saw. A typical in-ripping operation is illustrated in Fig.

Fig. 64

64.

PUSH-STICKS

In order to operate your radial arm saw safely, you must use a push-stick whenever the size or shape of the workpiece would cause your hands to be within 6" (152mm) of the saw blade or other cutter. No special wood is needed to make a push-stick as long as it's sturdy and long enough. A length of 12" 9305mm) is recommended with a notch that fits against the edge of the workpiece to prevent slipping. It's a good idea to have several push-sticks of the same length [12" (305 mm) with different size notches for different workpiece thicknesses. See the next page for an illustration of a push-stick. The shape can vary to suit your own needs as long as it performs its intended function of keeping your hands away from the blade.

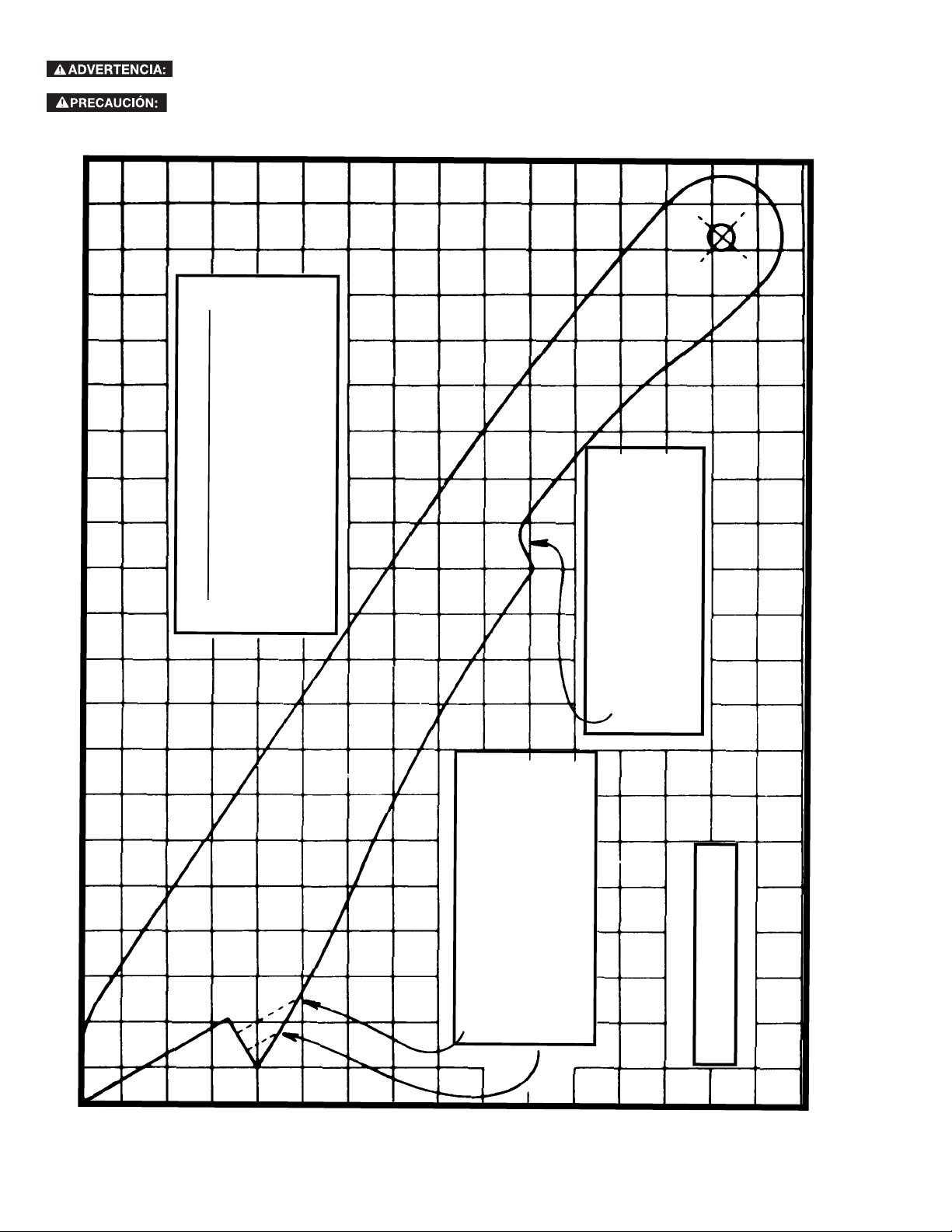

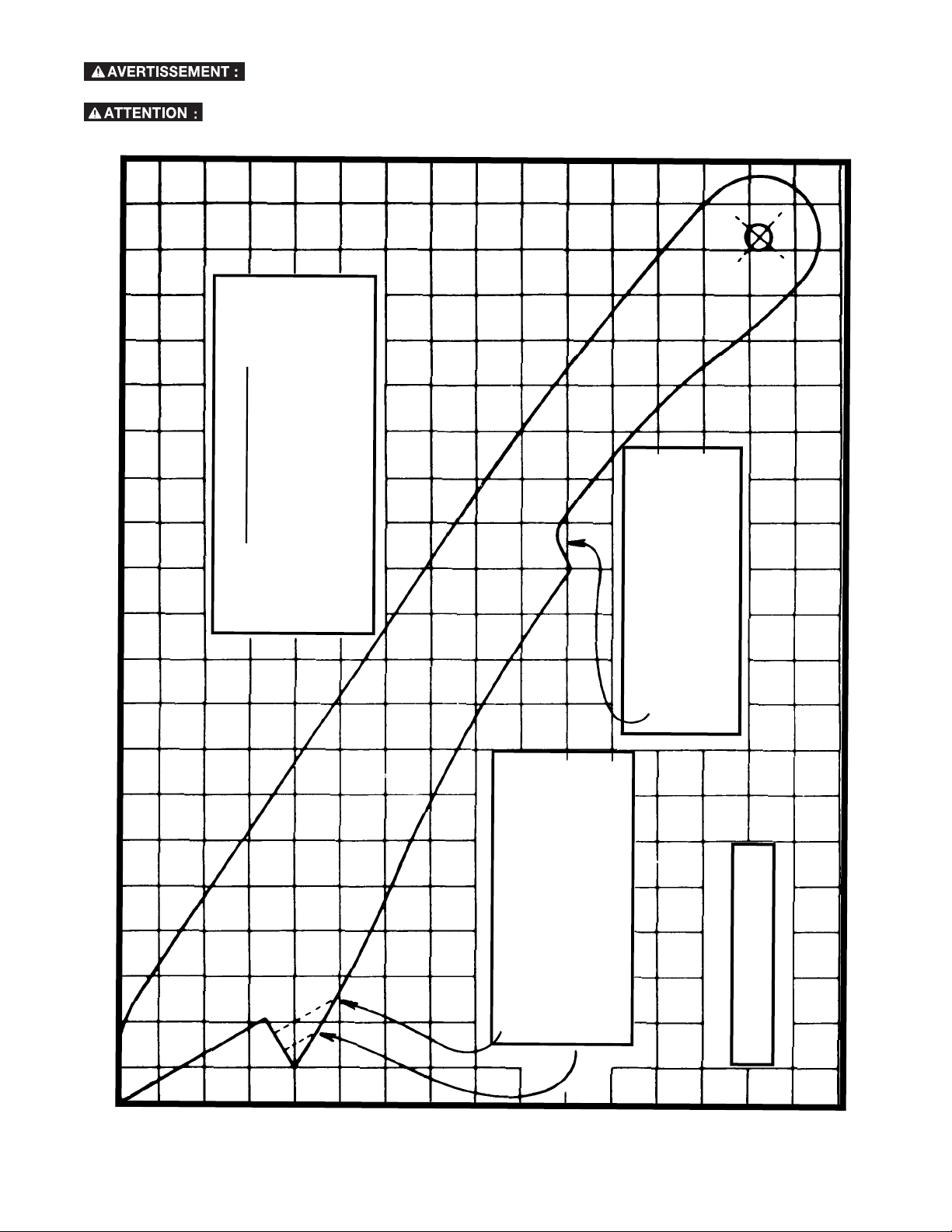

CONSTRUCTING A PUSH STICK

When ripping work less than 6" wide, a push-stick should be used to complete the feed and could

easily be made from scrap material by following this pattern.

Make a push-stick from plywood or softwood, equal to or less than the width of the workpiece.

PUSH STICK

thickness less than

width of material to be cut.

Make from 1/2" OR 3/4" WOOD or

prevent hand

Notch to help

from slipping.

Cut here to push 1/4" wood.

Cut here to push 1/2" wood.

1/2" Squares

+ 58 hidden pages
