Delta 33-400, 33-401, 33-402, 33-403, 33-410 User guide

INSTRUCTION MANUAL

PART NO. 424-03-651-0019 - 07-18-02

Copyright © 2002 Delta Machinery

To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.

For Parts, Service, Warranty or other Assistance,
please call

1-800-223-7278 (In Canada call 1-800-463-3582).

14", 16", and 18"

Long Arm Radial Saws

(Models 33-400, 33-401, 33-402, 33-403, 33-410, 33-411,

33-412, 33-413, 33-420, 33-421, 33-422, 33-423)

2

GENERAL SAFETY RULES

Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there
are certain hazards involved with the operation of the product. Using the machine with respect and caution will
considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored,
personal injury to the operator may result. Safety equipment such as guards, push sticks, hold-downs, featherboards,
goggles, dust masks and hearing protection can reduce your potential for injury. But even the best guard won’t make
up for poor judgment, carelessness or inattention. Always use common sense and exercise caution in the workshop.
If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels safer. REMEMBER: Your
personal safety is your responsibility.

This machine was designed for certain applications only. Delta Machinery strongly recommends that this machine not
be modified and/or used for any application other than that for which it was designed. If you have any questions relative
to a particular application, DO NOT use the machine until you have first contacted Delta to determine if it can or should
be performed on the product.

Technical Service Manager
Delta Machinery
4825 Highway 45 North
Jackson, TN 38305

(IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)

WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY

1. FOR YOUR OWN SAFETY, READ INSTRUCTION

MANUAL BEFORE OPERATING THE TOOL. Learn the

tool’s application and limitations as well as the specific
hazards peculiar to it.

2. KEEP GUARDS IN PLACE and in working order.

3. ALWAYS WEAR EYE PROTECTION.

Wear safety
glasses. Everyday eyeglasses only have impact resistant
lenses; they are not safety glasses. Also use face or dust
mask if cutting operation is dusty. These safety glasses
must conform to ANSI Z87.1 requirements. NOTE:
Approved glasses have Z87 printed or stamped on them.

4. REMOVE ADJUSTING KEYS AND WRENCHES. Form

habit of checking to see that keys and adjusting wrenches
are removed from tool before turning it “on”.

5. KEEP WORK AREA CLEAN. Cluttered areas and

benches invite accidents.

6. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t

use power tools in damp or wet locations, or expose them
to rain. Keep work area well-lighted.

7. KEEP CHILDREN AND VISITORS AWAY. All children

and visitors should be kept a safe distance from work area.

8. MAKE WORKSHOP CHILDPROOF – with padlocks,

master switches, or by removing starter keys.

9. DON’T FORCE TOOL. It will do the job better and be

safer at the rate for which it was designed.

10. USE RIGHT TOOL. Don’t force tool or attachment to
do a job for which it was not designed.

11. WEAR PROPER APPAREL. No loose clothing, gloves,
neckties, rings, bracelets, or other jewelry to get caught in
moving parts. Nonslip footwear is recommended. Wear
protective hair covering to contain long hair.

12. SECURE WORK. Use clamps or a vise to hold work
when practical. It’s safer than using your hand and frees
both hands to operate tool.

13. DON’T OVERREACH. Keep proper footing and
balance at all times.

14. MAINTAIN TOOLS IN TOP CONDITION. Keep tools
sharp and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.

15. DISCONNECT TOOLS before servicing and when
changing accessories such as blades, bits, cutters, etc.

16. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by Delta
may cause hazards or risk of injury to persons.

17. REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure switch is in “OFF” position before plugging in
power cord.

In the event of a power failure, move switch

to the “OFF” position.

18. NEVER STAND ON TOOL. Serious injury could occur if
the tool is tipped or if the cutting tool is accidentally
contacted.

19. CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be
carefully checked to ensure that it will operate properly and
perform its intended function – check for alignment of
moving parts, binding of moving parts, breakage of parts,
mounting, and any other conditions that may affect its
operation. A guard or other part that is damaged should be
properly repaired or replaced.

20. DIRECTION OF FEED. Feed work into a blade or
cutter against the direction of rotation of the blade or cutter
only.

21. NEVER LEAVE TOOL RUNNING UNATTENDED.
TURN POWER OFF. Don’t leave tool until it comes to a
complete stop.

22.

STAY ALERT, WATCH WHAT YOU ARE DOING, AND
USE COMMON SENSE WHEN OPERATING A POWER
TOOL. DO NOT USE TOOL WHILE TIRED OR UNDER
THE INFLUENCE OF DRUGS, ALCOHOL, OR
MEDICATION. A moment of inattention while operating

power tools may result in serious personal injury.

23. MAKE SURE TOOL IS DISCONNECTED FROM
POWER SUPPLY while motor is being mounted,
connected or reconnected.

24. THE DUST GENERATED by certain woods and wood
products can be injurious to your health. Always operate
machinery in well ventilated areas and provide for proper
dust removal. Use wood dust collection systems whenever
possible.

25.

WARNING: SOME DUST CREATED BY
POWER SANDING, SAWING, GRINDING, DRILLING,
AND OTHER CONSTRUCTION ACTIVITIES contains

chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals
are:

· lead from lead-based paints,

· crystalline silica from bricks and cement and other

masonry products, and

· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure
to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those
dust masks that are specially designed to filter out
microscopic particles.

SAVE THESE INSTRUCTIONS.

Refer to them often and use them to instruct others.

3

ADDITIONAL SAFETY RULES FOR

RADIAL ARM SAWS

WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY

1. DO NOT OPERATE THIS MACHINE UNTIL it is
assembled and installed according to the

instructions.

2. OBTAIN ADVICE from your supervisor, instructor,
or another qualified person if you are not familiar
with the operation of this machine.

3. FOLLOW ALL WIRING CODES and recommended
electrical connections.

4. USE THE GUARDS WHENEVER POSSIBLE.

Check to see that they are in place, secured, and
working correctly.

5. ENSURE THAT END PLATES ARE SECURELY
FASTENED TO TRACK ARM prior to use.

6. TIGHTEN ALL CLAMP HANDLES prior to use
except for the motor carriage clamp. Tighten this
clamp only for ripping operations.

7. AVOID KICKBACK BY:

A. keeping blade sharp and free of rust and pitch.

B. keeping blade parallel to the fence when

ripping.

C. using anti-kickback fingers when ripping.

Lower the guard on the infeed end and adjust
the anti-kickback attachment properly.

D. never ripping a workpiece that is twisted or

warped, or does not have a straight edge to
guide along the fence.

E. never sawing a large workpiece that cannot be

controlled.

F. never sawing a workpiece with loose knots or

other flaws.workpiece.

8. REMOVE CUT-OFF PIECES AND SCRAPS from
the table before starting the saw. The vibration of the
machine may cause them to move into the saw
blade and be thrown out. After cutting, turn the
machine off. When the blade has come to a
complete stop, remove all debris.

9. NEVER perform “free-hand” operations.Use the
fence to position and guide the workpiece.

10. KEEP ARMS, HANDS, AND FINGERS away from

the blade.

11. NEVER REACH around the saw blade.

12. NEVER PERFORM a “crossed arm” operation.

13. PROPERLY SUPPORT LONG OR WIDE

workpieces.

14. NEVER START THE MACHINE with the workpiece

against the blade.

15. FOLLOW ALL RIPPING WARNINGS on machine.

NEVER FEED THE WORKPIECE into the anti­kickback end of the machine. FEED WORKPIECE
against blade rotation.

16. USE PUSH STICK(S) for ripping a narrow

workpiece.

17. RETURN THE CUTTERHEAD to the full rear

position behind the fence after each crosscut
operation.

18. NEVER PERFORM LAYOUT, ASSEMBLY, or set-up

work on the table/work area when the machine is
running.

19. TURN THE MACHINE “OFF” AND DISCONNECT
THE MACHINE from the power source before
installing or removing accessories, before adjusting
or changing set-ups, or when making repairs.

20. TURN THE MACHINE “OFF”, disconnect the
machine from the power source, and clean the
table/work area before leaving the machine. LOCK
THE SWITCH IN THE “OFF” POSITION to prevent
unauthorized use.

21. ADDITIONAL INFORMATION regarding the safe

and proper operation of this tool is available from the
Power Tool Institute, 1300 Summer Avenue,
Cleveland, OH 44115-2851. Information is also
available from the National Safety Council, 1121
Spring Lake Drive, Itasca, IL 60143-3201. Please
refer to the American National Standards Institute
ANSI 01.1 Safety Requirements for Woodworking
Machines and the U.S.

Department of Labor OSHA

1910.213 Regulations.

SAVE THESE INSTRUCTIONS.

Refer to them often

and use them to instruct others

.

4

LONG ARM RADIAL SAW PARTS

Fig. 1 Fig. 1A

Fig. 1A Hardware

1. 3/8-16x1" Hex Head Screw (12)

2. 1/4-20x7/8" Round Head Screw (15)

3. 1/4-20x1/2" Hex Head Screw (12)

4. 3/8" Flat Washer (12)

5. 9/32" Flat Washer (15)

6. 3/8" Lockwasher (12)

7. 1/4" Lockwasher (4)

8. 3/8-16 Hex Nut (12)

9. 1/4-20 Hex Nut (1)

Fig. 1 Parts

1. Blade Guard (1)

2. Angle Support (3)

3. Blade (1)

4. Cross Stop (1)

5. Track-Arm Lock Handle (1)

6. 1/16" Open End Wrench (1)

7. Spanner Wrench with a 1-5/8" Box End (1)

8. Roller Head Wrench (1)

9. Anti-kickback Rod (1)

10. Cable Clamp (1)

11. Elevating Crank Handle (1)

12. Starter Box Bracket (1)

13. Cutterhead Return Spring (1)

1

2

3

4

5

6

7

8

9

1

2

3

4

5

6

7

8

9

10

11

12

13

5

GROUNDING INSTRUCTIONS

WARNING: THIS TOOL MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.

1. Permanently connected tools:

This tool should be connected to a grounded metal permanent wiring system; or to a system having an equipment­grounding conductor.

OPERATING INSTRUCTIONS

FOREWORD

Deltas Long Arm Radial Saws have a totally enclosed, fan cooled motor, with electro-mechanical blade brake; 18", 16",
or 14" blade guard with anti-kickback attachment; retractable leaf guard; cutterhead return attachment; cuttinghead
clamp knob; adjustable crosscut stop and steel legs.

UNPACKING AND CLEANING

Carefully unpack the tool and all loose items from the shipping container(s). Remove the protective coating from all
unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone, gasoline
or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household floor paste
wax.

NOTICE: THE MANUAL COVER PHOTO ILLUSTRATES THE CURRENT

PRODUCTION MODEL. ALL OTHER ILLUSTRATIONS ARE REPRESENTATIVE

ONLY AND MAY NOT DEPICT THE ACTUAL COLOR, LABELING OR

ACCESSORIES AND MAY BE INTENDED TO ILLUSTRATE TECHNIQUE ONLY.

SELECTING FLOOR SPACE

Before unpacking, determine exactly where you want to
set up the machine. It is highly desirable to locate the
machine against the wall where it will be out of the way
and will actually facilitate material handling through the
shop.

UNPACKING AND ASSEMBLING
LEGS TO BASE

IMPORTANT: Remove the carton from the machine.

Remove bolts that fasten the machine to the skid.
IMPORTANT: To gain access to the four bolts that
fasten the saw to the wooden shipping skid, loosen two
table lock knobs (A) Fig. 2. Remove fence (B), angled
front table board (C) and at least two table boards (D).
Do not remove the packing material around the motor at
this time.

Mechanically lift the machine using a forklift and lifting
straps, and support the machine. Attach the four steel
legs (E) Fig. 3, to each corner of the base using twelve
3/8-16x1" hex head screws (F), 3/8" flat washers (G),
and 3/8" lockwashers (I) and 3/8-16 hex nuts (H).
Remove the packing material from around the motor.
The motor will be positioned on the table as shown in
Fig. 2.

Fig. 2

Fig. 3

F

G

H

E

I

ELECTRICAL INFORMATION

The Long Arm Radial Saws are not supplied with a power cord. They must be permanently connected to the building
electrical system and grounded according to the National Electrical Code. These connections should be made by a
qualified electrician. Since they are permanently connected to the building electrical system, extension cords cannot
be used with the Long Arm Radial Saws.

6

A - TRACK-ARM CLAMP HANDLE Fig. 4. Controls
swing of track-arm for all miter cutting operations. Locks
track-arm at any angle for the full 180° rotation. To rotate
track-arm, loosen clamp handle and rotate arm. The arm
will stop at the 0° and 45° positions right and left. To
move the arm past these points the track-arm index
knob (B) must be pulled out.

B - TRACK-ARM INDEX KNOB Fig. 4. Locates 0° and
45° miter position, right and left, of the track-arm

C - YOKE INDEX KNOB Fig. 4. Locates each 90°
position of the yoke for ripping or cross-cutting
operations. When rotating the yoke, the yoke clamp
handle (D) must first be loose.

D - YOKE CLAMP HANDLE Fig. 5. The yoke clamp
handle must be loose when rotating the yoke to the rip
or cross-cut position.

E - ANTI-KICKBACK DEVICE Fig. 4. When ripping, the
yoke is positioned and clamped so that the blade is
parallel to the fence. The rear of the blade guard is
lowered until it almost touches the workpiece. The anti­kickback rod is then lowered so that the fingers catch
and hold the workpiece. Never rip from the anti­kickback end of the blade guard.

F - ELEVATING CRANK HANDLE Fig. 5. Controls the
depth of cut in all operations. Turning the crank handle
raises or lowers the over-arm.

G - CUTTINGHEAD CLAMP KNOB Fig. 5. Locks
cuttinghead at any position on the track-arm. When
ripping the cutting clamp knob must be tight.

H - CROSS-CUT STOP Fig. 5. Prevents unnecessary
travel of the cuttinghead on the track-arm. It is
especially useful when performing repetitive operations.
Clamp the stop to the side of the track-arm at a position
which will stop the cuttinghead travel as soon as the
blade cuts through the workpiece.

J - BEVEL INDEX KNOB Fig. 5. Locates 0° and 45°
and 90° positions of the motor when bevel cutting.
When tilting the motor for bevel cutting, the bevel clamp
handle (K) must first be loose.

K - BEVEL CLAMP HANDLE Fig. 5. Controls tilt of
motor for bevel cutting operations. Locks motor at any
desired angle on the bevel scale.

L - TABLE CLAMP KNOBS. Fig 5. Allows the operator
to quickly set the desired fence position.

M - CUTTINGHEAD RETURN ATTACHMENT Fig. 4.

Automatically returns the cuttinghead to the rear of the
track-arm after completion of the cut.

OPERATING CONTROLS

The following is an explanation of the operating controls of the Delta 14", 16" and 18" Radial Arm Saws. All users will
benefit by knowing how to set and operate the controls for all cutting operations. To avoid the possibility of damage
to the machine and/or injury to the operator, all user’s should become familiar with the operations and the controls
before turning the machine “ON’.

M

A

B

C

Fig. 4

Fig. 5

E

F

7

ELEVATING CRANK HANDLE

Assemble elevating crank handle (A) Fig. 6, to rod in
front of base using the roll pin (B).

TRACK-ARM LOCK

Assemble track-arm lock handle (A) to the overarm, as
shown in Fig. 7, and tighten set screw (B). Lock handle
(A) should be tight when in the position shown in Fig. 7,
and loose when pulled forward and resting against stop
(C).

CUTTINGHEAD AND CROSS­CUT STOP TO TRACK-ARM

1. Remove two screws (A) and end cap (B) from track­arm, Fig. 8.

2. Hold cuttinghead assembly (D) Fig. 9, with both
hands and insert the ball bearings (E) into the track-arm,
as shown. Push cuttinghead all the way onto track-arm
and tighten clamp knob (F).

F

D

E

Fig. 6

Fig. 7

Fig. 8

Fig. 9

ASSEMBLY

8

3. Assemble cross-cut stop (C) to the track-arm as
shown in Fig. 10.

4. Replace end cap (B) that was removed in STEP 1,
as shown in Fig. 11.

STARTER BOX TO BASE

1. Assemble bracket (A) to the bottom of the right side
of saw base, as shown in Fig. 12, using the 1/4-20x1/2"
hex head screw (B), 1/4" lockwasher (D), and 1/4-20 nut
(E).

2. Assemble the starter box (B) Fig. 13, to the right side
of the base by inserting the three1/4-20x1/2" hex head
screws (C) with 1/4" lock-washers, through the two
holes in the base and the hole in the bracket and into the
three 1/4-20 weld nuts in the back of the starter box. A
cable clamp is supplied to attach the power cord to saw
frame.

3. Fig. 14, illustrates the starter box assembled to the
base.

Fig. 10

Fig. 11

Fig. 12

Fig. 13

Fig. 14

B

D

E

9

TABLE BOARDS AND FENCE

1. Assemble loose table boards and fence (A) Fig. 15, on
the table brackets.

2. Assemble three angle supports (B) Fig. 15, to the fixed
front table board (C) using nine 1/4-20x7/8" round head
screws and 9/32" flat washers.

3. Fig. 16, illustrates three angle supports (B) assembled
to the fixed table board (C).

4. Place the smaller angled table board (D) Fig. 16, on the
angle supports (B) and fasten with six 1/4-20x7/8" round
head screws and 9/32" flat washers shown at locations
(E) Fig. 17.

Fig. 15

Fig. 16

Fig. 17

10

ADJUSTING TABLE TOP
PARALLEL TO TRACK-ARM

For accurate work the track-arm must be parallel to the
table top at all points.

To check and adjust, proceed as follows:

1. Move the motor and cuttinghead assembly (A) to the
vertical position shown in Fig. 18. Position saw arbor (B)
Fig. 18, so it is approximately in the center of the front
table board, as shown. Push track-arm clamp handle (C)
Fig. 18, to the rear to secure track-arm and tighten
cuttinghead clamp knob (G) Fig. 5.

Using the spanner wrench (E) Fig. 18, as a feeler gage,
raise or lower track-arm by turning elevating handle (F)
Fig. 19, until saw arbor (B) just touches wrench (E). DO

NOT RAISE OR LOWER TRACK-ARM ANY FURTHER
UNTIL LEVELING ADJUSTMENT IS COMPLETED.

2. Move cuttinghead (A) so that the saw arbor (B) Fig.
19, is at the left front table, as shown. Make sure track­arm clamp lever and cuttinghead lock knob are tight.
Using the spanner wrench (E) Fig. 19, as a feeler gage,
check to see if an adjustment is necessary. To lower the
table, loosen nut (G) and tighten nut (H) Fig. 19. To raise
the table, reverse this adjustment. Check table at points
(J) and (K) and adjust if necessary. Check table on right
side in the same manner.

C

A

B

E

Fig. 18

Fig. 19

F

BLADE GUARD AND ANTI­KICKBACK DEVICE

1. Loosen set screw (E) Fig. 22. Remove arbor nut (A)
and outer blade flange (B).

Fig. 22

11

2. Install blade on the saw arbor with teeth of blade
pointing downward when viewed from front of saw, as
shown in Fig. 23. Place the recessed end of blade flange
(B) Fig. 23, against the blade, and thread the arbor nut
(A) onto the arbor.

3. IMPORTANT: To prevent arbor nut from spinning
when blade stops, proceed as follows:

Place the 1/16" wrench (C) Fig. 23, on flats of arbor
and firmly tighten arbor nut (A), with the 1-5/8" box
end spanner wrench (D), (left handed thread). Firmly
tighten set screw (E).

4. Remove screw (F) Fig. 25, that attaches inside leaf
guard (G) to rear of blade guard (H).

5. Assemble blade guard (H) Fig. 25, to motor housing,
as shown. Position bracket (J) over motor housing and
blade guard flange (K) and loosely fasten 1/2-13 hex nut
(L) with wrench supplied.

Fig. 23

Fig. 24

Fig. 25

6. Place leaf guard (G) Fig. 26, in place on blade guard
(H) and fasten with special shoulder bolt (F) as shown.

7. Assemble anti-kickback rod (M) Fig 27, to blade
guard (H), as shown, and fasten in place with thumb
screw (N). NOTE: It will be necessary to tilt the blade
guard (H) to the rear in order to assemble anti-kickback
rod (M). Tighten nut (L) Fig. 25.

Fig. 26

Fig. 27

L

J

K

H

12

CUTTERHEAD RETURN SPRING

1. DISCONNECT MACHINE FROM POWER SOURCE.

2. Remove fence from the table and return the
cuttinghead assembly to rear of track arm. Rotate track
arm 90 degrees to the right.

3. Remove left screw (B) Fig. 28, from yoke assembly.

4. Assemble reel (C) Fig. 29, to yoke assembly (D) and
fasten with screw (B), which was removed in STEP 3.

5. Attach eyelet (H) Fig. 30, of cable assembly (C) to "S"
bracket (E) as shown.

Fig. 28

Fig. 29

Fig. 30

B

C

B

D

H

C

E

6. NOTE: To prevent premature wear of return reel
cable, position the return reel so that the cable does not
rub against the wall of the return reel.

13

OPERATING ADJUSTMENTS

Every Delta Radial Arm Saw is thoroughly tested, inspected and accurately aligned before leaving the factory and when
delivered is ready for operation after it is assembled. However, regardless of the care with which this or any piece of
fine machinery is manufactured, inspected and shipped, it is possible that rough handling in shipment, or wear over a
period of time, may make minor adjustments necessary.

CAUTION: ALWAYS DISCONNECT MACHINE FROM POWER SOURCE BEFORE MAKING ANY ADJUSTMENTS.

TAKING SIDE MOTION OUT OF
OVER-ARM

If side motion develops in over-arm, it can be corrected
as follows:

1. DISCONNECT MACHINE FROM POWER SOURCE.

2. Loosen hex nuts (A) and gib adjusting screws (B)
and (C) Fig. 31.

3. Loosen nuts (D) Fig. 31, and adjust bolts (E), so that
base wraps around column securely. If column is tight in
base, turn bolts (E) clockwise to loosen. IMPORTANT:
Turning bolts (E) clockwise will open the base jaws,
while turning bolts (E) counterclockwise and tightening
nuts (D) will close the base jaws. Check elevation by
turning crank handle, making sure the column moves up
and down without binding.

4. Tighten screws (B) Fig. 31, against the column gib
until all side motion disappears in over-arm.

5. Securely lock hex nuts (A) while holding screws (B)
and tighten screw (C).

Fig. 31

TIGHTENING YOKE AGAINST
BEARING CARRIAGE

After extended use "play" may develop between yoke
(C) Fig. 32, and bearing carriage (B). To reduce "play"
proceed as follows:

1. DISCONNECT MACHINE FROM POWER SOURCE.

2. Remove guard and saw blade.

3. Remove end plate and cross cut stop from track­arm.

4. Remove yoke assembly from track-arm and place
yoke assembly (C) Fig. 32, on saw table.

5. Pull yoke clamp handle (A) to the position shown in
Fig. 32, to loosen, and loosen set screw (D) one turn
only.

6. Turn nut (E) Fig. 32, clockwise until "play" between
the yoke (C) and bearing carriage (B) is removed. Then
tighten set screw (D),Fig. 32

7. Tighten yoke clamp handle (A) Fig. 32, by moving it
forward, and reassemble yoke (C) assembly to track­arm.

Fig. 32

D

14

ADJUSTING BALL BEARINGS
AGAINST TRACK RODS

The carriage is mounted on four double row, sealed ball

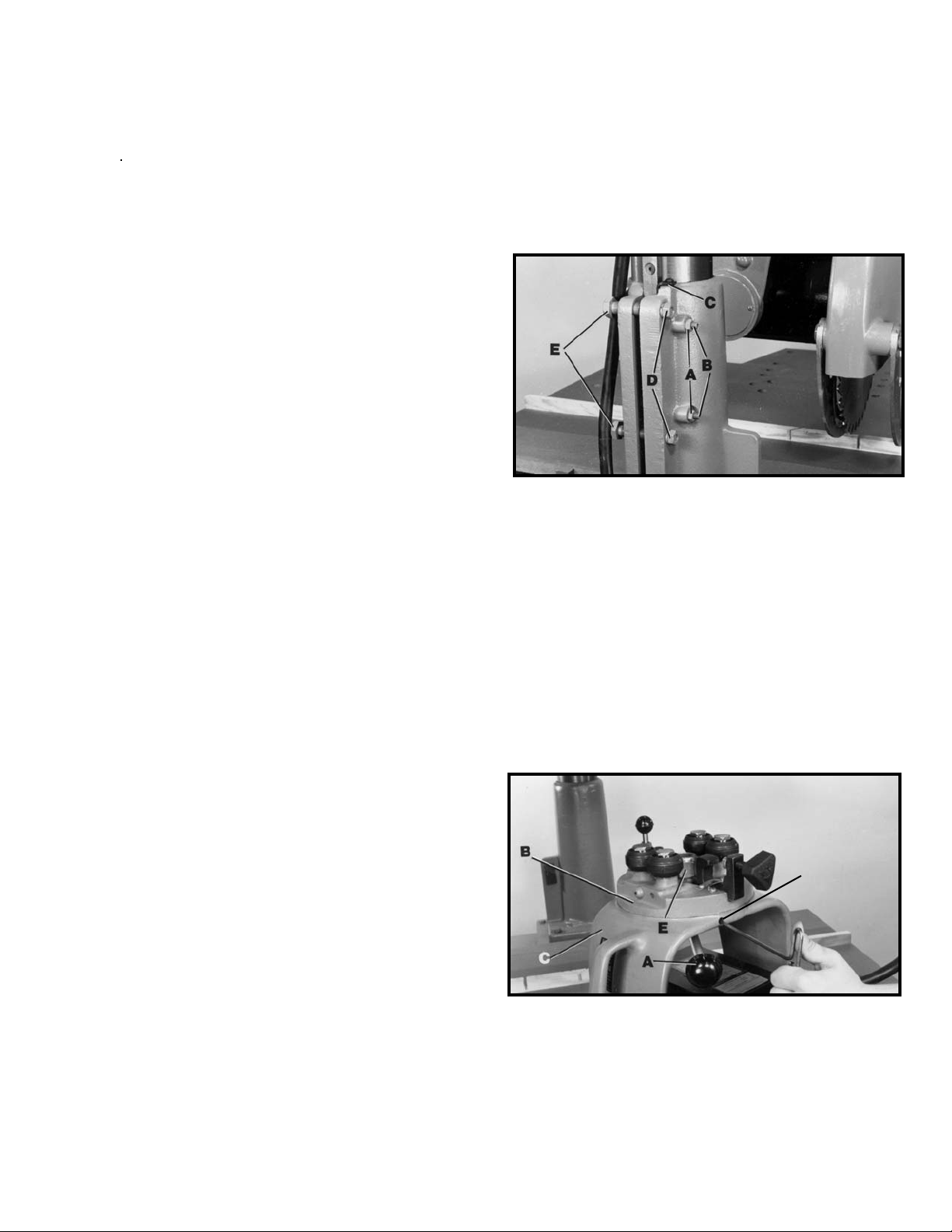

bearings, two on fixed shafts. To adjust the ball bearings
against the track rods, proceed as follows:

1. DISCONNECT MACHINE FROM POWER SOURCE.

2. Remove end plate from track-arm, loosen clamp
knob (A) Fig. 33, and move cuttinghead (B) to the front
of the track-arm, as shown; then tighten clamp knob (A).

3. Loosen two set screws, one of which is shown at (C)
Fig. 33, that lock both front and rear bearing eccentric
shafts. The other screw is at the rear of the carriage.

4. Rotate yoke (B) Fig. 33, until hole in yoke is under
either eccentric shaft (D).

5. Place roller head wrench (E) over hex nut (G) that
locks shaft (D), as shown in Fig. 33, and loosen hex nut.
Repeat this procedure at rear bearing.

6. Insert hex wrench (F) into eccentric shaft, as shown
in Fig. 33, and turn until all "play" is removed between
bearing (D) and track rods. Repeat this procedure for the
rear bearing.

7. Tighten hex nuts with wrench (E) and lock set screws
(C) with wrench, at both bearings, Fig. 33. Replace end
cap on track-arm.

Fig. 33

ADJUSTING TRACK RODS

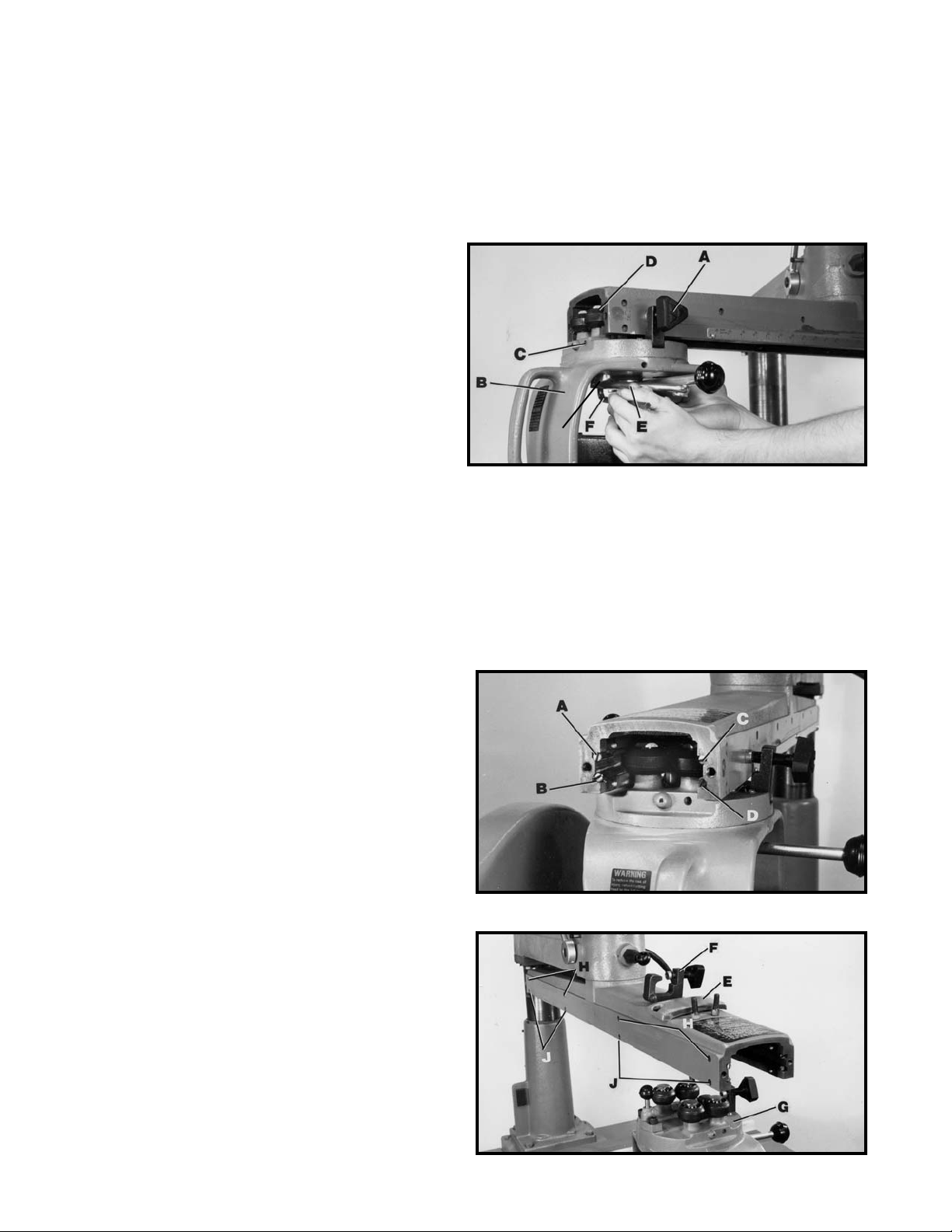

Each track rod (A, B, C, D) Fig. 34, can be adjusted
individually to present a new bearing surface. Adjust the
track rods one at a time as follows:

1. DISCONNECT MACHINE FROM POWER

SOURCE.

2. Remove end cap (E) Fig. 35, cross-cut stop (F) and
cutterhead assembly (G), from the track-arm as shown
in Fig. 35.

3. Loosen series of top screws (H) Fig. 35, just enough
to release holding action on the top left track rod (A) Fig.

34. Insert screw driver into slotted end of track rod (A)
Fig. 34, and turn slightly right or left. Retighten all top
screws (H) Fig. 35.

4. Bottom left track rod (B) Fig. 34, is adjusted in the
same manner by loosening series of bottom screws (J)
Fig. 35.

5. Adjust the right side track rods (C & D) Fig. 34, in the
same manner. NOTE: When adjusting bottom right track
rod (D) the rip scale must first be removed.

6. Reassemble the cutterhead assembly.

NOTE: After adjusting the track rods, check to see if
the blade is square to the table top.

Fig. 34

Fig. 35

G

15

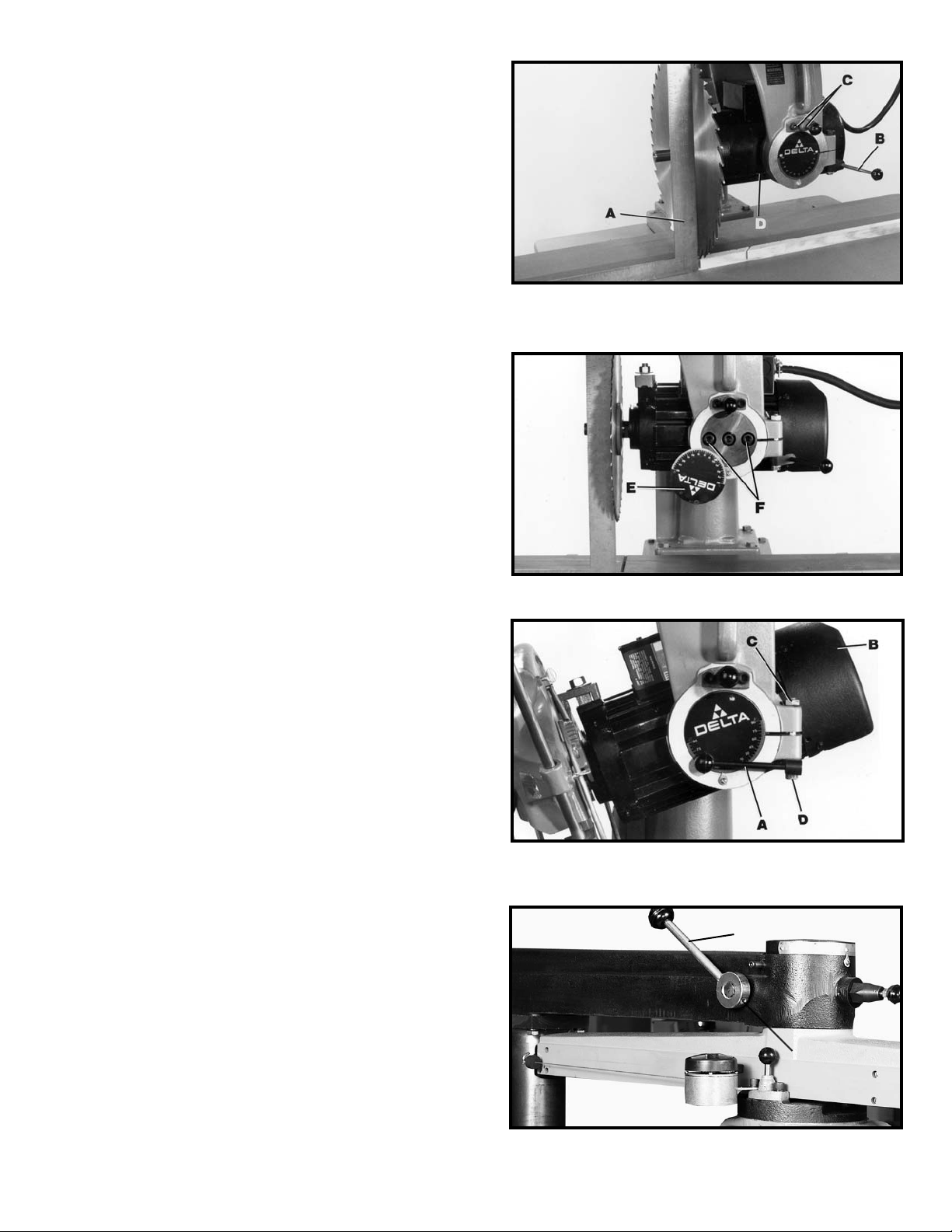

ADJUSTING BLADE SQUARE
WITH TABLE TOP

1. DISCONNECT MACHINE FROM POWER
SOURCE.

2. Remove blade guard and place saw blade in cut-off
position over fixed portion of table.

3. Place a square (A) Fig. 36, against saw blade. Be
sure square is on the table surface, and between the
gullets of the teeth, not against the saw teeth.

4. Loosen bevel clamp handle (B) Fig. 36, and loosen
two screws (C).

5. Tilt the motor assembly (D) Fig. 36, until square is
flush against saw blade and tighten bevel clamp handle
(B) Fig. 36, to hold position. Then tighten two screws (C).

6. If the above adjustment is not sufficient, remove
scale (E) Fig. 37, and loosen the two socket head
screws (F) located on each side of the center pivot
screw. Rotate motor for approximate adjustment and
retighten the two socket head screws (F).

7. Replace scale plate (E) Fig. 37, and repeat STEPS 4
and 5 for final adjustment.

8. Replace the guard.

Fig. 36

Fig. 37

ADJUSTING BEVEL CLAMP
HANDLE

If the bevel clamp handle (A) Fig. 38, does not securely
lock the motor when the handle is in the locked position,
as shown, an adjustment can be made as follows:

1. DISCONNECT MACHINE FROM POWER SOURCE.

2. Place motor (B) Fig. 38, in a bevel cutting position
between positive stops, as shown, and place bevel
clamp handle (A) in the locked position, as shown.

3. Loosen nut (C) Fig. 38, and tighten bolt (D) until
motor is locked. CAUTION: DO NOT OVER TIGHTEN

BOLT (D).

4. While holding bolt (D) Fig. 38, tighten lock nut (C).

Fig. 38

ADJUSTING TRACK-ARM
CLAMP HANDLE

When the track-arm clamp handle (A) Fig. 39, has to be
moved beyond the position shown to clamp the track­arm, an adjustment can be made as follows:

1. DISCONNECT MACHINE FROM POWER SOURCE.

2. Move clamp handle (A) Fig. 39, to the rear as far as
it will go.

3. Loosen set screw (B) Fig. 39, remove clamp handle
(A) and reposition handle (A) on stud. Move handle to
the rear until track-arm is completely locked. Then
tighten set screw (B).

A

B

Fig. 39

16

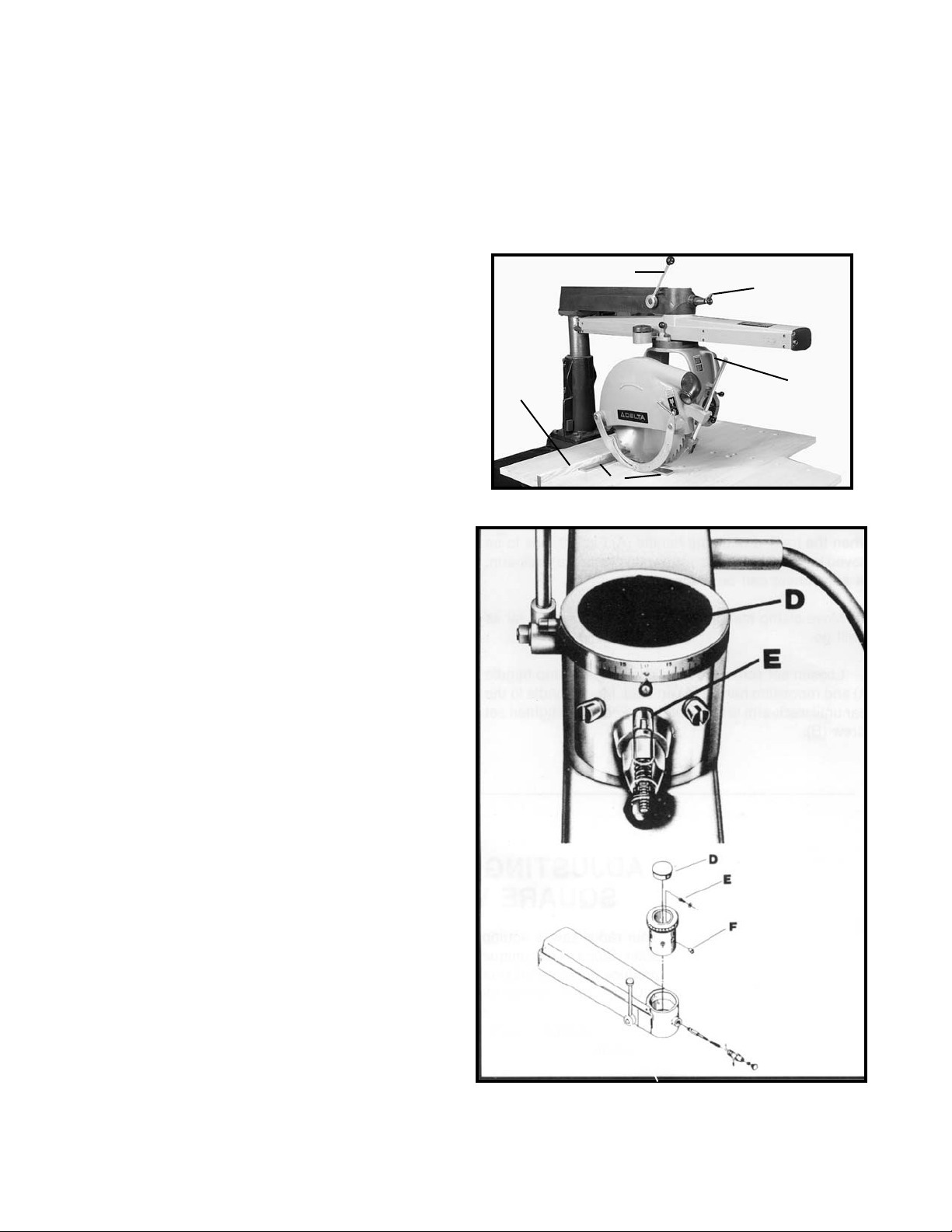

ADJUSTING SAW TRAVEL SQUARE WITH FENCE

Your radial saw is equipped with exclusive "Micro-Set" Miter Stops. This unique feature makes it possible to produce
accurate miter cuts and perfectly square cross-cuts at all times by individual adjustment of the three stop positions.
These stops are accurately adjusted at the factory; however, adjustments can be made if necessary.

Once the "Micro-Set" stops are set, you can be assured of quick, positive settings at the three positions.

Before determining if the "Micro-Set" stops require adjustment, check saw travel for squareness with table fence. To
do accurate work, saw travel must be 90 degrees to the fence. Check and adjust as follows:

1. DISCONNECT MACHINE FROM POWER SOURCE.

2. Place a square (A) Fig. 40, against fence (B), as
shown, and lower cuttinghead (C) so that saw blade just
clears table top.

3. Pull cuttinghead (C) Fig. 40, along square (A). If saw
blade does not travel parallel to the square, the following
adjustment is necessary.

4. Remove cover plate (D) Fig. 41.

5. Locate center cap screw (E) Fig. 41, inside pivot
column and loosen slightly. Tap center cap screw (E)
sharply with a block of wood or insert a thin wooden
wedge inside the column to loosen the tapered plug (F)
Fig. 41, that is attached to the cap screw (E). It is very
important that the tapered plug (F) is loosened before
any further adjustment is made.

6. Loosen clamp handle (G) Fig. 40.

7. Using wrench on hex nut (H) Fig. 40, turn slightly to
one side. CAUTION: Do not attempt to rotate
completely. Notice that the entire track also moves.

8. When saw blade tracks evenly against steel square,
tighten clamp handle (G) Fig. 40, and center cap screw
(E) Fig. 41.

9. Check pointer and adjust to 0 degrees, if necessary.

10. Replace cover plate (D) Fig. 41.

11. Right and left miter positions can be independently
adjusted using the same procedure as above. If square
is not available, trial cuts can be made to determine if
adjustment is necessary.

Fig. 40

Fig. 41

B

A

G

H

C

17

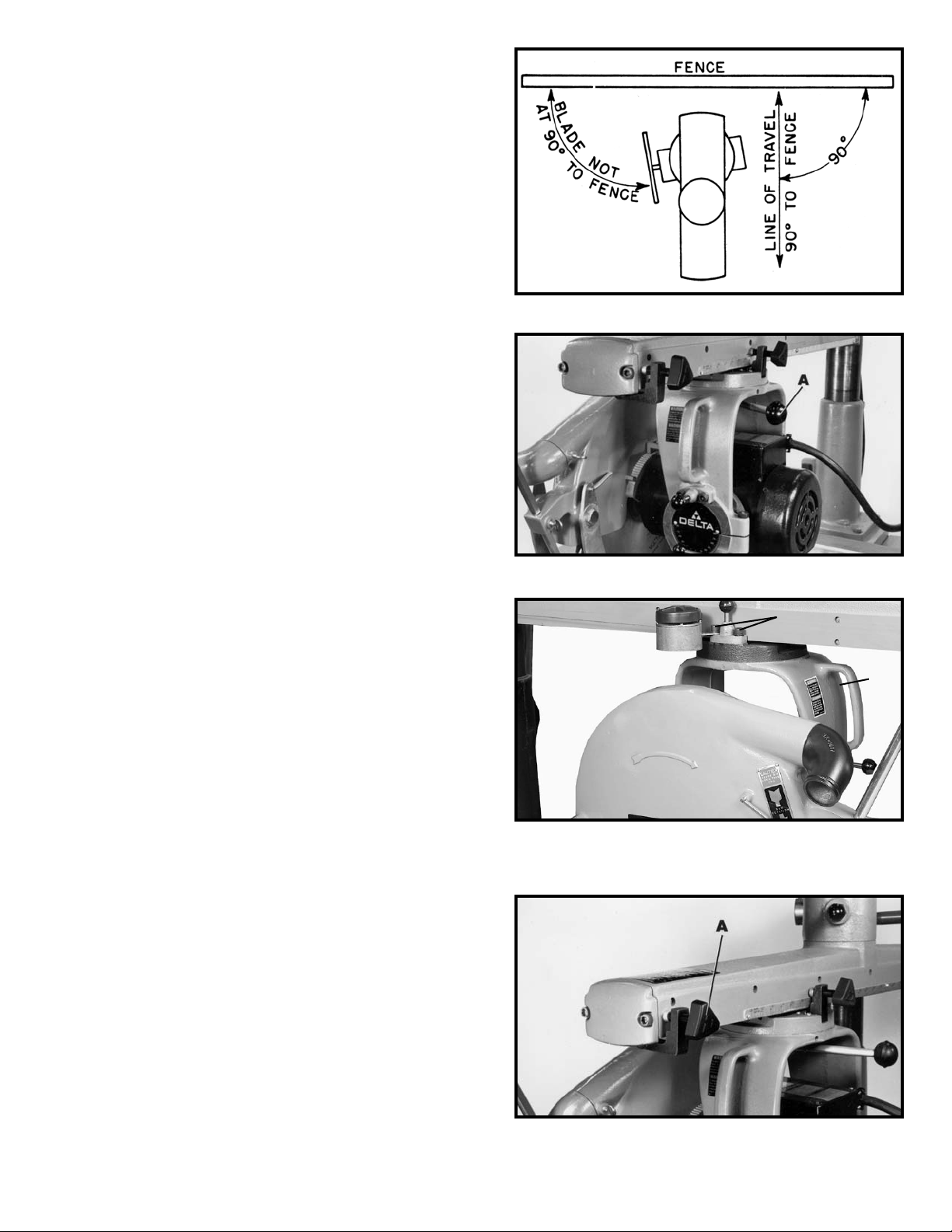

REMOVING "HEELING"
IN SAW CUT

Even though the cuttinghead travel may be perfectly
aligned at 90 degrees to the fence, the blade itself may
not be 90 degrees or square with the fence, as shown in
Fig. 42. This condition is known as "heeling."

To check and adjust, proceed as follows:

1. Cross-cut a board and see on which side of the cut
board saw teeth marks appear.

2. DISCONNECT MACHINE FROM POWER SOURCE.

3. If saw teeth marks appear on the right side, the back
end of the saw blade must be shifted toward left side.

4. Loosen yoke clamp handle (A) Fig. 43. Then loosen

both screws (B) Fig. 44, and turn yoke (C) COUNTER-
CLOCKWISE. If saw teeth marks appear on left side of
board, turn yoke (C) CLOCKWISE.

5. Tighten yoke clamp handle (A) Fig. 43, to hold

position and retighten screws (B) Fig. 44.

6. Make another test cut and repeat steps 1 through 5

until “heeling” is eliminated.

ADJUSTABLE CROSS-CUT
STOP

An adjustable cross-cut stop (A) Fig. 45, is provided to
prevent unnecessary travel of the cuttinghead on the
track-arm. It is especially useful when performing
repetitive operations. Clamp the stop to the side of the
track-arm at a position which will stop the cuttinghead
travel as soon as the blade cuts through the workpiece.

B

C

Fig. 42

Fig. 43

Fig. 44

Fig. 45

18

ADJUSTING
BLADE GUARD

On all ripping and plowing operations, the back part of
the blade guard is lowered so that it just clears the
material. This will prevent the material from being lifted
off the table. Also, lower the kickback rod (A) Fig. 46, so
that the kickback fingers are 1/8" below surface of
material. The kickback fingers will then come into
contact with the material preventing "kickback." Adjust
dust elbow (B) Fig. 46, to direct sawdust to rear of
machine.

CHECKING AND ADJUSTING
AUTOMATIC BRAKE

After a period of extended use, the automatic brake
should be checked and adjusted if necessary to
maintain proper blade braking action.

NOTE: The blade stopping time should be a
maximum of one second per one inch of the blade
diameter.

To check the setting on the automatic brake:

1. DISCONNECT MACHINE FROM POWER SOURCE.

2. Remove four screws, three of which are shown at (A)
Fig. 47, and remove fan cover (B) from the motor.

3. The air gap (D) Fig. 48, must be maintained between
.008" and .012". Use a feeler gauge (C) to measure the
gap.

4. If an adjustment is necessary, turn lock nut (F) Fig.
48, until a proper gap setting of .010" is attained.

5. Replace fan cover that was removed in Step 2.

Fig. 46

Fig. 47

Fig. 48

LOCKING SWITCH IN THE “OFF”
POSITION

IMPORTANT: When the tool is not in use, the switch

should be locked in the “OFF” position using a padlock
(A) Fig. 48A, with a 3/16" diameter shackle to prevent
unauthorized use.

Fig. 48A

A

19

ADJUSTING TENSION
ON CUTTINGHEAD RETURN
ASSEMBLY

The cuttinghead return assembly is properly tensioned
when there is just enough cable tension to return the
cuttinghead (A) Fig. 49, without excessive force, to the
rear of the track arm (B) after completion of the cut. If an
adjustment is necessary:

1. DISCONNECT MACHINE FROM POWER SOURCE.

2. To INCREASE cable tension, turn adjustment dial

(C), Fig. 49, clockwise.

3. To DECREASE cable tension, pull back on cable

tension release knob (D) Fig. 50, until the desired tension
is achieved.

WRENCH
STORAGE BRACKETS

The Radial Arm Saw is supplied with three brackets (A)
Fig. 51, for storing wrenches when not in use.

A

B

C

D

D

Fig. 49

Fig. 50

Fig. 51

20

CROSS-CUT STOP

A block of wood placed at (B) Fig. 53 clamped to the
track arm with a small “C” clamp will prevent
unnecessary travel (T) of the cutting-head on the track
arm. This is especially useful when performing repetitive
operations. Clamp the block of wood to the right side of
the track arm at a position which will stop the cutting­head travel as soon as the saw blade cuts through the
workpiece.

AUXILIARY TABLE BOARD FACING

To prevent repeated cutting into the table surface which will eventually cause the table to sag, an auxiliary table board
facing can be cut and fitted to the table. It can be made from 1/4″ plywood or particle board and should be cut to a
size that will exactly cover all of the table boards in front of the fence. The auxiliary table board facing should be placed
flat on the table and butted against the table fence. Fasten it to the table with a small brad or finish nail in each corner.

The life of the table boards will be greatly extended by the use of an auxiliary facing.The auxiliary facing can be replaced
as often as is necessary to protect the table.

USING A TABLE EXTENSION

When a table extension more than 24 inches long is attached to the saw, a sturdy outrigger support should be provided
or the stand or bench must be secured to the floor.

OPERATIONS

CROSS-CUTTING

Cross-cutting consists of supporting the workpiece
against the fence and pulling the saw blade through the
material at right angles to it.

When cross-cutting, the track arm should be indexed at
“0” and the track arm clamp handle tightened. The fence
should be clamped between the table boards. The saw
blade is to be to the left and behind the fence. The
workpiece is placed on the table and butted against the
fence. The saw blade should be clear of the fence and
table when the machine is turned on. Then the saw blade
is lowered until it lightly cuts into the table surface. The
operator should position himself a little to the left of the
machine for better visibility while cutting. Pull the saw
blade through the work, just far enough to cut it off, and
return the saw blade to its starting position. Turn tool off.
and wait for the blade to stop before touching the cut-off
piece. The operator should always be sure to return the
cutter-head carriage to the full rear position after each
cross-cut operation.

NOTE: When cross-cutting material more than 1

″″

thick, the fence must be positioned immediately
behind the fixed front table board.

Fig. 54

MITER CUTTING

Miter cutting is similar to cross-cutting except the
workpiece is cut off at an angle (up to 45 degrees right or
left) rather than being cut off square. The settings and
operation are performed in the same manner as cross­cutting except that the track arm is first positioned to the
desired angle on the miter scale before it is clamped in
place. The operator should position the hand holding the
workpiece on the opposite side to the direction of the
miter so the blade is pulled through the workpiece and
away from the hand. Fig. 54, shows a typical miter cutting
operation on the radial saw.

Fig. 52

Fig. 53

B

T

21

COMPOUND
MITER CUTTING

Compound miter cutting is performed in the same
manner as miter cutting except the saw blade is also tilted
to cut a bevel. The settings and operation are similar to
miter cutting except that the blade is first tilted to the
desired angle on the bevel scale before it is clamped in
place. Fig. 55, shows a compound miter cutting
operation on the radial saw.

RIPPING

IMPORTANT: In certain applications it may be necessary

to use two push sticks, and/or featherboards. Also, if a
push stick or other feeding device is necessary to assist
in the feeding of material, make certain it is conveniently
located so it may be reached easily without having to
stretch or reach near the blade.

Ripping involves making a lengthwise cut through a board
along the grain. When ripping, the track arm is clamped at
“0” on the miter scale. The yoke is then positioned and
clamped so that the blade is parallel to the fence. When
feeding the material, one edge rides against the fence
while the flat side of the board rests on the table. The
guard should be lowered on the in-feed side until it almost
touches the workpiece, as shown in Figs. 56 and 57, to
act as a holddown. The splitter and anti-kickback fingers
(A) Fig. 56, should be adjusted as described under the
section “ADJUSTING SPLITTER AND ANTI-KICKBACK
FINGERS” in this manual. The operators hands should
always be well away from and to the side of the blade.
When ripping narrow work, always use a push stick as
shown in Fig. 58, to push the work between the fence and
blade. The workpiece must have one straight edge to
follow the fence. If board is bowed, place hollow side
down. The cutting-head clamp knob should be securely
tightened for all ripping operations.

WARNING:THE MATERIAL MUST NEVER BE FED

INTO THE OUTFEED END OF THE BLADE GUARD.

OUT-RIPPING

Out-ripping involves all of the general conditions stated
above. The yoke is clamped at right angle to the track arm
with the blade guard facing the front of the machine. The
cutting-head is positioned on the out-rip scale to the
desired setting and clamped in position. The workpiece is
fed from the left side of the saw. Fig. 56, shows a typical
out-ripping operation on the radial saw.

IN-RIPPING

In-ripping involves all of the general conditions stated
under RIPPING. The yoke is clamped at right angle to the
track arm with the blade guard facing the rear of the
machine. The cutting-head is positioned on the in-rip
scale to the desired setting and clamped in position. The
workpiece is fed from the right side of the saw. Fig. 57,
shows a typical in-ripping operation on the radial saw.

WARNING: WHEN RIPPING WORK LESS THAN FOUR INCHES WIDE, A PUSH
STICK SHOULD BE USED TO COMPLETE THE FEED (SEE FIG. 58)

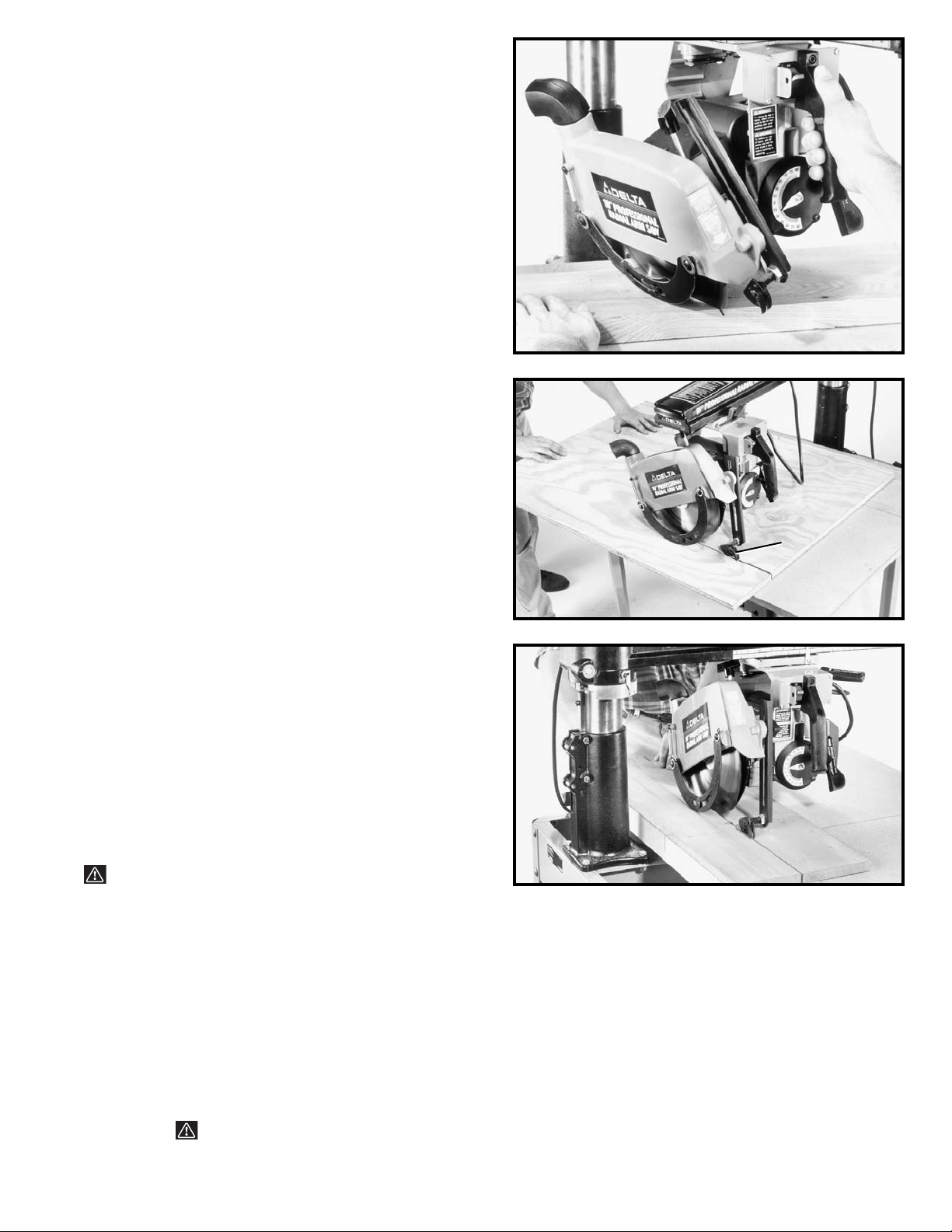

Fig. 55

Fig. 56

Fig. 57

A

B

22

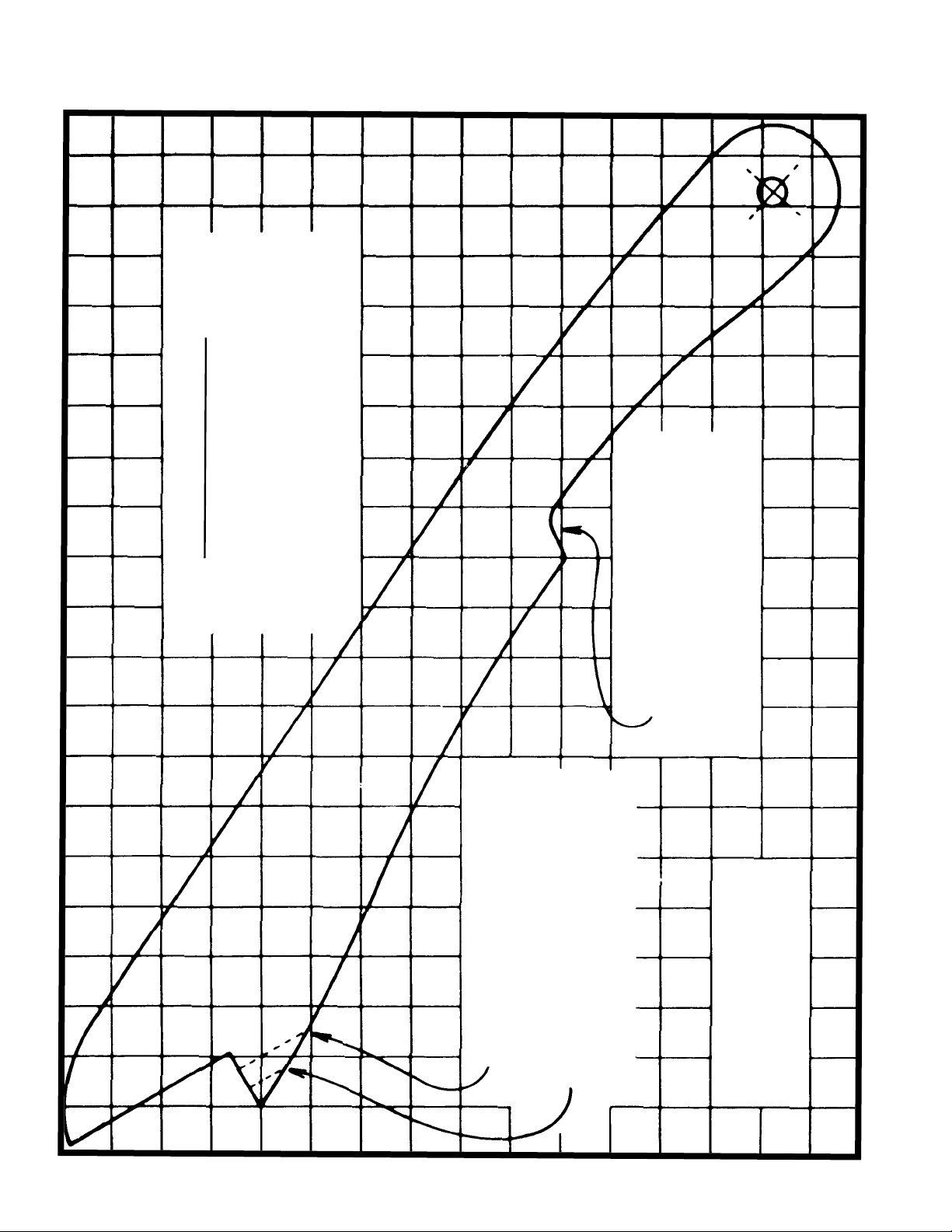

CONSTRUCTING A PUSH STICK

When ripping work less than 4 inches wide, a push stick should be used to complete the feed and could easily be
made from scrap material by following the pattern shown in Fig. 58.

Fig. 58

PUSH STICK

MAKE FROM 1/2″ OR 3/4″

WOOD OR THICKNESS

LESS THAN WIDTH OF

MAT’L. TO BE CUT

CUT OFF HERE TO

PUSH 1/4″ WOOD

CUT OFF HERE TO

PUSH 1/2″ WOOD

NOTCH TO HELP

PREVENT HAND

FROM SLIPPING

1/2″ SQUARES

23

Two Year Limited Warranty

Delta will repair or replace, at its expense and at its option, any Delta machine, machine part, or machine accessory which
in normal use has proven to be defective in workmanship or material, provided that the customer returns the product
prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two
years and provides Delta with reasonable opportunity to verify the alleged defect by inspection. Delta may require that
electric motors be returned prepaid to a motor manufacturer’s authorized station for inspection and repair or replacement.
Delta will not be responsible for any asserted defect which has resulted from normal wear, misuse, abuse or repair or
alteration made or specifically authorized by anyone other than an authorized Delta service facility or representative. Under
no circumstances will Delta be liable for incidental or consequential damages resulting from defective products. This
warranty is Delta’s sole warranty and sets forth the customer’s exclusive remedy, with respect to defective products; all
other warranties, express or implied, whether of merchantability, fitness for purpose, or otherwise, are expressly
disclaimed by Delta.

Printed in U.S.A.

PARTS, SERVICE OR WARRANTY ASSISTANCE

All Delta Machines and accessories are manufactured to high quality standards and are serviced by a network
of Porter-Cable • Delta Factory Service Centers and Delta Authorized Service Stations. To obtain additional
information regarding your Delta quality product or to obtain parts, service, warranty assistance, or the location
of the nearest service outlet, please call 1-800-223-7278 (In Canada call 1-800-463-3582).

ACCESSORIES

A complete line of accessories is available from your Delta Supplier, Porter-Cable • Delta Factory Service Centers,
and Delta Authorized Service Stations. Please visit our Web Site

www.deltamachinery.com for a catalog or

for the name of your nearest supplier.

WARNING: Since accessories other than those offered by Delta have not been tested
with this product, use of such accessories could be hazardous. For

safest operation, only

Delta recommended accessories should be used with this product.

The following are trademarks of PORTER-CABLE·DELTA (Las siguientes son marcas registradas de PORTER-CABLE S.A.): Auto-Set®,
BAMMER®, B.O.S.S.®, Builder’s Saw®, Contractor’s Saw®, Contractor’s Saw II™, Delta®, DELTACRAFT®, DELTAGRAM™, Delta Series
2000™, DURATRONIC™, Emc²™, FLEX®, Flying Chips™, FRAME SAW®, Homecraft®, INNOVATION THAT WORKS®, Jet-Lock®,
JETSTREAM®, ‘kickstand®, LASERLOC®, MICRO-SET®, Micro-Set®, Midi Lathe™, MORTEN™, NETWORK™, OMNIJIG®, POCKET
CUTTER®, PORTA-BAND®, PORTA-PLANE®, PORTER-CABLE®&(design), PORTER-CABLE®PROFESSIONAL POWER TOOLS, Posi-Matic®,
Q-3®&(design), QUICKSAND®&(design), QUICKSET™, QUICKSET II®, QUICKSET PLUS™, RIPTIDE™&(design), SAFE GUARD II®, SAFE­LOC®, Sanding Center®, SANDTRAP®&(design), SAW BOSS®, Sawbuck™, Sidekick®, SPEED-BLOC®, SPEEDMATIC®, SPEEDTRONIC®,
STAIR EASE®, The American Woodshop®&(design), The Lumber Company®&(design), THE PROFESSIONAL EDGE®, THE PROFESSIONAL
SELECT®, THIN-LINE™, TIGER®, TIGER CUB®, TIGER SAW®, TORQBUSTER®, TORQ-BUSTER®, TRU-MATCH™, TWIN-LITE®,
UNIGUARD®, Unifence®, UNIFEEDER™, Unihead®, Uniplane™, Unirip®, Unisaw®, Univise®, Versa-Feeder®, VERSA-PLANE®, WHISPER
SERIES®, WOODWORKER’S CHOICE™.

Trademarks noted with ™ and ® are registered in the United States Patent and Trademark Office and may also be registered in other
countries. Las Marcas Registradas con el signo de ™ y ® son registradas por la Oficina de Registros y Patentes de los Estados Unidos y
también pueden estar registradas en otros países.

PORTER-CABLE • DELTA SERVICE CENTERS

(CENTROS DE SERVICIO DE PORTER-CABLE

• DELTA)

Parts and Repair Service for Porter-Cable •Delta Machinery are Available at These Locations

(Obtenga Refaccion de Partes o Servicio para su Herramienta en los Siguientes Centros de Porter-Cable

•

Delta)

Authorized Service Stations are located in many large cities. Telephone [phone] or 731-541-6042 for assistance locating one.
Parts and accessories for Porter-Cable

·

Delta products should be obtained by contacting any Porter-Cable·Delta Distributor, Authorized

Service Center, or Porter-Cable

·

Delta Factory Service Center. If you do not have access to any of these, call 800-223-7278 and you will

be directed to the nearest Porter-Cable·Delta Factory Service Center. Las Estaciones de Servicio Autorizadas están ubicadas en muchas
grandes ciudades. Llame al 800-438-2486 ó al 731-541-6042 para obtener asistencia a fin de localizar una. Las piezas y los accesorios
para los productos Porter-Cable

·

Delta deben obtenerse poniéndose en contacto con cualquier distribuidor Porter-Cable·Delta, Centro

de Servicio Autorizado o Centro de Servicio de Fábrica Porter-Cable·Delta. Si no tiene acceso a ninguna de estas opciones, llame al
800-223-7278 y le dirigirán al Centro de Servicio de Fábrica Porter-Cable

·

Delta más cercano.

ARIZONA

Tempe 85282 (Phoenix)
2400 West Southern Avenue
Suite 105
Phone: [phone]
Fax: [phone]

CALIFORNIA

Ontario 91761 (Los Angeles)
3949A East Guasti Road
Phone: [phone]
Fax: [phone]

San Leandro 94577 (Oakland)
3039 Teagarden Street
Phone: [phone]
Fax: [phone]

COLORADO

Arvada 80003 (Denver)
8175 Sheridan Blvd., Unit S
Phone: [phone]
Fax: [phone]

FLORIDA

Davie 33314 (Miami)
4343 South State Rd. 7 (441)
Unit #107
Phone: [phone]
Fax: [phone]

Tampa 33609
4538 W. Kennedy Boulevard
Phone: [phone]
Fax: [phone]

GEORGIA

Forest Park 30297 (Atlanta)
5442 Frontage Road,
Suite 112
Phone: [phone]
Fax: [phone]

ILLINOIS

Addison 60101 (Chicago)
400 South Rohlwing Rd.
Phone: [phone]
Fax: [phone]

Woodridge 60517 (Chicago)
2033 West 75th Street
Phone: [phone]
Fax: [phone]

MARYLAND

Elkridge 21075 (Baltimore)
7397-102 Washington Blvd.
Phone: [phone]
Fax: [phone]

MASSACHUSETTS

Braintree 02185 (Boston)
719 Granite Street
Phone: [phone]
Fax: [phone]

Franklin 02038 (Boston)
Franklin Industrial Park
101E Constitution Blvd.
Phone: [phone]
Fax: [phone]

MICHIGAN

Madison Heights 48071 (Detroit)
30475 Stephenson Highway
Phone: [phone]
Fax: [phone]

MINNESOTA

Minneapolis 55429
5522 Lakeland Avenue North
Phone: [phone]
Fax: [phone]

MISSOURI

North Kansas City 64116
1141 Swift Avenue
P.O. Box 12393
Phone: [phone]
Fax: [phone]

St. Louis 63119
7574 Watson Road
Phone: [phone]
Fax: [phone]

NEW YORK

Flushing 11365-1595 (N.Y.C.)
175-25 Horace Harding Expwy.
Phone: [phone]
Fax: [phone]

NORTH CAROLINA

Charlotte 28270
9129 Monroe Road, Suite 115
Phone: [phone]
Fax: [phone]

OHIO

Columbus 43214
4560 Indianola Avenue
Phone: [phone]
Fax: [phone]

Cleveland 44125
8001 Sweet Valley Drive
Unit #19
Phone: [phone]
Fax: [phone]

OREGON

Portland 97230
4916 NE 122 nd Ave.

Phone: [phone]
Fax: [phone]

PENNSYLVANIA

Willow Grove 19090
520 North York Road
Phone: [phone]
Fax: [phone]

TEXAS

Carrollton 75006 (Dallas)
1300 Interstate 35 N, Suite 112
Phone: [phone]
Fax: [phone]

Houston 77055
West 10 Business Center
1008 Wirt Road, Suite 120
Phone: [phone]
Fax: [phone]

WASHINGTON

Auburn 98001(Seattle)
3320 West Valley HWY, North
Building D, Suite 111
Phone: [phone]
Fax: [phone]

Printed in U.S.A.

CANADIAN PORTER-CABLE • DELTA SERVICE CENTERS

ALBERTA

Bay 6, 2520-23rd St. N.E.
Calgary, Alberta
T2E 8L2
Phone: [phone]
Fax: [phone]

BRITISH COLUMBIA

8520 Baxter Place
Burnaby, B.C.
V5A 4T8
Phone: [phone]
Fax: [phone]

MANITOBA

1699 Dublin Avenue
Winnipeg, Manitoba
R3H 0H2
Phone: [phone]
Fax: [phone]

ONTARIO

505 Southgate Drive
Guelph, Ontario
N1H 6M7
Phone: [phone]
Fax: [phone]

QUÉBEC

1515 ave.
St-Jean Baptiste,
Québec, Québec
G2E 5E2
Phone: [phone]
Fax: [phone]

1447, Begin
St-Laurent, (Montréal),
Québec
H4R 1V8
Phone: [phone]
Fax: [phone]
