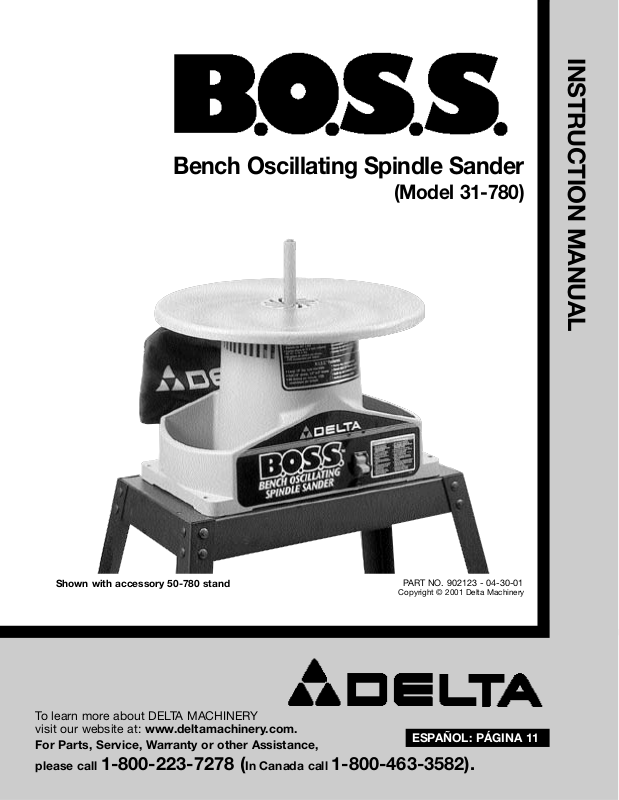

INSTRUCTION MANUAL

PART NO. 902123 - 04-30-01

Copyright © 2001 Delta Machinery

ESPAÑOL: PÁGINA 11

To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.

For Parts, Service, Warranty or other Assistance,
please call

1-800-223-7278 (In Canada call 1-800-463-3582).

Bench Oscillating Spindle Sander

(Model 31-780)

Shown with accessory 50-780 stand

2

SAFETY RULES

Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery, certain
hazards are involved with the operation of the product. Using the machine with respect and caution will considerably lessen
the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the
operator may result. Safety equipment (guards, push sticks, hold-downs, featherboards, goggles, dust masks and hearing
protection) can reduce your potential for injury However, the best guard is no protection against poor judgment, carelessness
or inattention. Always use common sense

and exercise caution in the workshop. If a procedure feels dangerous, don’t try it.

Use an alternative procedure that is safer. REMEMBER: Your personal safety is your responsibility.
This machine was designed for certain applications only. DO NOT be modify and/or use it for any application other than that

for which it was designed. If you have any questions relative to a particular application, DO NOT use the machine until you have
first contacted Delta to determine if it can or should be performed on the product.

Technical Service Manager

Delta Machinery
4825 Highway 45 North
Jackson, TN 38305

(IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)

WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.

1. FOR YOUR OWN SAFETY, READ INSTRUCTION

MANUAL BEFORE OPERATING THE TOOL. Learn the tool’s

application and limitations as well as the specific hazards
peculiar to it.

2. KEEP GUARDS IN PLACE and in working order.

3. ALWAYS WEAR EYE PROTECTION.

4. REMOVE ADJUSTING KEYS AND WRENCHES. Form

habit of checking to see that keys and adjusting wrenches are
removed from tool before turning it “on”.

5. KEEP WORK AREA CLEAN. Cluttered areas and benches

invite accidents.

6. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use

power tools in damp or wet locations, or expose them to rain.
Keep work area well-lighted.

7. KEEP CHILDREN AND VISITORS AWAY. All children and

visitors should be kept a safe distance from work area.

8. MAKE WORKSHOP CHILDPROOF – with padlocks,

master switches, or by removing starter keys.

9. DON’T FORCE TOOL. It will do the job better and be safer

at the rate for which it was designed.

10. USE RIGHT TOOL. Don’t force tool or attachment to do a
job for which it was not designed.

11. WEAR PROPER APPAREL. No loose clothing, gloves,
neckties, rings, bracelets, or other jewelry to get caught in
moving parts. Non-slip footwear is recommended. Wear
protective hair covering to contain long hair.

12.

ALWAYS USE SAFETY GLASSES. Wear safety glasses.

Everyday eyeglasses only have impact resistant lenses; they
are not safety glasses. Also use face or dust mask if cutting
operation is dusty. These safety glasses must conform to
ANSI Z87.1 requirements. Note: Approved glasses have Z87
printed or stamped on them.

13. SECURE WORK. Use clamps or a vise to hold work when
practical. It’s safer than using your hand and frees both hands
to operate tool.

14. DON’T OVERREACH. Keep proper footing and balance at
all times.

15. MAINTAIN TOOLS IN TOP CONDITION. Keep tools sharp
and clean for best and safest performance. Follow instructions
for lubricating and changing accessories.

16. DISCONNECT TOOLS before servicing and when
changing accessories such as blades, bits, cutters, etc.

17. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by Delta may
cause hazards or risk of injury to persons.

18.

IMPORTANT: When the tool is not in use, the
switch should be locked in the “OFF” position to
prevent unauthorized use.

REDUCE THE RISK OF UNIN-

TENTIONAL STARTING.

19. NEVER STAND ON TOOL. Serious injury could occur if the
tool is tipped or if the cutting tool is accidentally contacted.

20. CHECK DAMAGED PARTS. Before further use of the tool,
a guard or other part that is damaged should be carefully
checked to ensure that it will operate properly and perform its
intended function – check for alignment of moving parts, bind­ing of moving parts, breakage of parts, mounting, and any other
conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced.

21. DIRECTION OF FEED. Feed work into a blade or cutter
against the direction of rotation of the blade or cutter only.

22. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
POWER OFF. Don’t leave tool until it comes to a complete
stop.

23. DRUGS, ALCOHOL, MEDICATION. Do not operate tool
while under the influence of drugs, alcohol or any medication.

24. MAKE SURE TOOL IS DISCONNECTED FROM POWER
SUPPLY while motor is being mounted, connected or re-con­nected.

25. THE DUST GENERATED by certain woods and wood
products can be injurious to your health. Always operate
machinery in well ventilated areas and provide for proper dust
removal. Use wood dust collection systems whenever possible.

26. WARNING: SOME DUST CREATED BY POWER
SANDING, SAWING, GRINDING, DRILLING, AND

OTHER CONSTRUCTION ACTIVITIES contains chemicals

known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

· lead from lead-based paints,

· crystalline silica from bricks and cement and other

masonry products, and

· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often

you do this type of work. To reduce your exposure to these
chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are
specially designed to filter out microscopic particles

.

SAVE THESE INSTRUCTIONS.

Refer to them often

and use them to instruct others.

3

ADDITIONAL SAFETY RULES FOR

OSCILLATING SPINDLE SANDERS

1.WARNING: DO NOT operate this tool until it is
completely assembled and installed according to the

instructions.

2. IF YOU ARE NOT thoroughly familiar with the operation
of the tool, obtain advice from your supervisor, instructor or
other qualified person.

3. WARNING: USE FACE OR DUST MASK. The dust
generated by certain woods and wood products can

be injurious to your health. ALWAYS operate machinery in
well-ventilated areas and provide for proper dust removal.
USE wood dust collection systems whenever possible.

4. KEEP fingers away from rotating sanding drum.

5. MAKE SURE sanding drum is not damaged and is
properly secured on the spindle before operating.

6. NEVER perform layout, assembly or set-up work on the
table while the sander is operating.

7. MAKE SURE workpiece is clear of sanding drum before
turning unit on.

8. KEEP WORK AREA CLEAN. Cluttered areas can create
slipping or tripping hazards.

9. DON’T FORCE TOOL. It will do the job better and be
safer at the rate for which it was designed.

10. NEVER use machine for wet sanding which can create
hazard of electrical shock.

11. KEEP TABLE INSERT IN PLACE. Use correctly sized
table insert for each sanding sleeve. Maintain minimum table
opening to keep fingers from being pinched or workpiece
being pulled down.

12. DO NOT sand near flammable liquids, vapors, or gases.

13. USE sander on a solid supporting surface where room

for handling and supporting workpiece is plentiful.

14. WHEN installing sanding drums, washers, etc., be sure

they are tight.

15. ALWAYS feed workpiece against the direction of the

sanding drum rotation.

16. CLEAR all debris from table before sanding the work-

piece.

17. MAKE CERTAIN that workpiece is properly supported.

Use extra caution when sanding small pieces.

18. DO NOT use this sander to sand pieces too small to

be held by hand.

19. PROTECT YOUR EARS. Wear proper hearing protec-

tion.

20. AFTER turning off power switch, disconnect tool from

power source and wait for spindle to stop before servicing,

adjusting or changing spindles.

21. ADDITIONAL INFORMATION regarding the safe and

proper operation of this product is available from the Nation-

al Safety Council, 1121 Spring Lake Drive, Itasca, IL 60143-

3201, in the Accident Prevention manual for Industrial

Operations and also in the Safety Data Sheets provided by

the NSC. Please also refer to the American National

Standards Institute ANSI 01.1 Safety Requirements for

Woodworking Machinery and the U.S. Department of Labor

OSHA 1910.213 Regulations.

UNPACKING AND CLEANING

Carefully unpack the tool and all loose items from the shipping container(s). Remove the protective coating from all
unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone, gaso­line or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household floor
paste wax.

4

Fig. 4

Fig. 2

Fig. 3

1. Bench Oscillating Spindle Sander

2. Spindle Adapter

3. 1" I.D. Table Insert

4. 1-3/4" O.D. Drum Washer

5. Arbor Screw

6. 3/4" Sanding Drum & 3/4” Abrasive Sleeve

7. 3/16" Allen Wrench

8. 1/2" Socket Wrench

9. Dust Bag

A. Four Legs - 27-1/2" long

B. Two Upper Front and Rear Braces -11-1/2" long

C. Two Upper Side Braces - 21-5/16" long

D. Two Lower Front and Rear Braces -17-1/8" long

E. Two Lower Side Braces - 26-5/8" long

F. M8 Hex Nuts - (36)

G. 3/8" Flat Washers - (40)

H. M8 x 20mm Carriage Bolts - (32)

I. M8 x 45mm Hex Head Screws (4)

J. Plastic Feet (4)

ASSEMBLY INSTRUCTIONS

WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE SANDER TO THE POWER SOURCE
UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU HAVE READ AND UNDERSTOOD

THE ENTIRE OWNERS MANUAL. NOTE: This manual contains instructions for assembling the accessory

Model 50-780 steel stand. If the stand was not purchased with the machine, place the machine on a firm sup­porting surface and proceed with instructions for “ASSEMBLING SPINDLE ADAPTER”.

ASSEMBLING OPTIONAL
ACCESSORY STAND

1. Assemble the 50-780 stand (Fig. 4) using the 32
carriage bolts, flat washers and nuts supplied. The
two 11-1/2" long upper braces (A); 21-5/16" long
upper braces (B); 17-1/8" long lower braces (C); and
26-5/8" long lower braces (D) should be fastened to
the four 27-1/2" long legs (E). IMPORTANT: The top

lips of the upper braces (A) should be over the top
lips of upper braces (B).

2. Attach a plastic foot (F) Fig. 4, to the bottom of
each leg (E).

1

2

3

4

56

7

8

9

B

D

E

FG

H

I

J

A

C

A

B

C

D

E

F

F

5

ATTACHING
SPINDLE ADAPTER

1. Carefully turn the machine upside down. Place it on
a clean, firm supporting surface.

2. Use a flat head screwdriver or similar device to
remove the plug (A) Fig. 5, from the bottom of the
machine to gain access to socket head screw (not
shown).

3. Carefully place the machine on its side (Fig. 6).
Attach the spindle adapter (B) Fig. 6, to the motor shaft
(C), by turning the spindle adapter counterclockwise on
the shaft. NOTE: Motor shaft has a left-hand thread.

4. Place a 7/16" open end wrench (D) Fig. 7 (not
supplied), on the flats of spindle adapter (B). Insert 3/16"
Allen wrench (E) Fig. 8 (supplied), into socket head screw
located where the plug (A) was removed in STEP 2.

5. While holding Allen wrench (E) Fig. 8, to keep motor
shaft from turning, turn wrench (D) counterclockwise and
fasten spindle adapter onto motor shaft.

6. Install plug (A) Fig. 5 that was removed in STEP 2.

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

ATTACHING SANDER TO
ACCESSORY 50-780 STAND

To attach the tool to the optional accessory 50-780
stand, carefully place the sander on the stand. Align the
four holes on the top of the stand with the four mounting
holes at the base of sander (A) (three of which are
shown). Fasten the sander to the stand with four M8 x
45mm hex head screws, eight flat washers and four hex
nuts, (all supplied).

To use the sander without the stand, please refer to the
section “FASTENING SANDER TO A SUPPORTING

SURFACE”.

A

A

A

B

C

D

B

B

E

Fig. 13

Fig. 14

ATTACHING THE DUST BAG

1. A 1-1/2" I.D. dust chute (A) Fig. 13, is supplied with the spindle sander to accept the dust bag.

2. To attach the dust bag (B) Fig. 14, to the dust chute (A), squeeze the spring clamp on the dust bag and slide it over
the dust chute. Release clamp.

6

Fig. 10

Fig. 11

Fig. 12

3. Place the table insert (G) Figs. 11 & 12 over abrasive
sleeve (C) and onto the table. NOTE: Arrows on the table
insert indicate the top surface.

4. Compartments (H) Fig. 12, on the sides of the sander
can be used for storing work pieces or accessories.

ASSEMBLING SANDING DRUM, ABRASIVE SLEEVE AND
TABLE INSERT

1. Place 1-3/4" drum washer (A) Fig. 10, on the spindle adapter (B).

2. Slide the abrasive sleeve (C) Fig. 10 over the sanding drum (D), and attach the sanding drum (D) Fig. 11, with the
sleeve to the spindle adapter. Fasten with a 5/16" screw (E) using the socket wrench (F) supplied. NOTE: The screw
(E) is a left-hand thread.

B

C

D

E

A

F

G

F

D

G

G

C

H

H

B

A

7

FASTENING SANDER TO A SUPPORTING SURFACE

If the spindle sander has a tendency to tip over, slide, or walk, secure the sander to the supporting surface using the
four holes in the base of the machine. The optional accessory stand has four plastic feet with holes that allow easy
mounting of the stand.

CONNECTING SANDER TO POWER SOURCE

POWER CONNECTIONS

A separate electrical circuit should be used for your tools. This circuit should not be less than #12 wire and should be
protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3­prong grounding type plugs and 3-hole receptacles which accept the tool’s plug. Before connecting the motor to the

power line, make sure the switch is in the “OFF” position and be sure that the electric current is of the same charac­teristics as indicated on the tool. All line connections should make good contact. Running on low voltage will damage
the motor.

WARNING: DO NOT EXPOSE THE TOOL TO RAIN OR OPERATE THE TOOL IN DAMP LOCATIONS.

MOTOR SPECIFICATIONS

Your sander is wired for 120 volt, 60 Hz alternating current. Before connecting the sander to the power source, make
sure the switch is in the “OFF” position. The 1725 RPM motor provides sixty 7/8" long oscillating strokes per minute.

GROUNDING INSTRUCTIONS

WARNING: THIS TOOL MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.

2. Grounded, cord-connected tools intended for use

on a supply circuit having a nominal rating less than

150 volts:

This tool is intended for use on a normal 120-volt circuit

and has a grounded plug that looks like the plug illustrat-

ed in Fig. 15.

If a properly grounded outlet is not available, a temporary

adapter, shown in Fig. 16, may be used for connecting

the 3-prong grounding type plug to a 2-hole receptacle.

The temporary adapter should be used only until a

properly grounded outlet can be installed by a qualified

electrician. The green colored rigid ear, lug, or the like

extending from the adapter must be connected to a

permanent ground such as a properly grounded outlet

box cover. Whenever the adapter is used, it must be held

in place with a metal screw.

NOTE: In Canada, the use of a temporary adapter is

not permitted by the Canadian Electric Code.

WARNING: IN ALL CASES, MAKE CERTAIN THE

RECEPTACLE IN QUESTION IS PROPERLY
GROUNDED. IF YOU ARE NOT SURE HAVE A
QUALIFIED ELECTRICIAN CHECK THE RECEPTACLE.

1. All grounded, cord-connected tools:
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reduce the risk of electric shock. This tool is equipped
with an electric cord having an equipment-grounding
conductor and a grounding plug. The plug must be
plugged into a matching outlet that is properly installed
and grounded in accordance with all local codes and
ordinances.

Do not modify the plug provided - if it will not fit the
outlet, have the proper outlet installed by a qualified
electrician.

Improper connection of the equipment-grounding
conductor can result in risk of electric shock. The
conductor with insulation having an outer surface that is
green with or without yellow stripes is the equipment­grounding conductor. If repair or replacement of the
electric cord or plug is necessary, do not connect the
equipment-grounding conductor to a live terminal.

Check with a qualified electrician or other service person­nel if the grounding instructions are not completely and
clearly understood, or if in doubt as to whether the tool
is properly grounded.

Use only 3-wire extension cords that have 3-prong
grounding type plugs and 3-hole receptacles that accept
the tool’s plug, as shown in Fig. 15. Repair or replace
damaged or worn cord immediately.

8

OPERATING CONTROLS

AND ADJUSTMENTS

Fig. 18

STARTING AND STOPPING
SANDER

The on/off switch (A) Fig. 18, is located on the sander
base. To turn the sander “ON”, move the switch to the
up position. For “OFF”, move the switch down.

Fig. 19

LOCKING SWITCH IN THE “OFF”
POSITION

IMPORTANT: When the tool is not in use, the switch
should be locked in the “OFF” position to prevent
unauthorized use. To lock the switch, grasp the switch

toggle (B) and pull it out of the switch (Fig. 19). If the
switch toggle is removed while the sander is running, the
tool can be turned “OFF”, but cannot be restarted with­out inserting the switch toggle (B).

Fig. 20

Fig. 15 Fig. 16

GROUNDED OUTLET BOX

CURRENT

CARRYING

PRONGS

GROUNDING BLADE
IS LONGEST OF THE 3 BLADES

GROUNDED OUTLET BOX

GROUNDING

MEANS

HOLES

HOLES

Fig. 17

MINIMUM GAUGE EXTENSION CORD

RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC TOOLS

Ampere Volts Total Length of Gauge of

Rating Cord in Feet Extension Cord

0-6 120 up to 25 18 AWG
0-6 120 25-50 16 AWG
0-6 120 50-100 16 AWG
0-6 120 100-150 14 AWG
6-10 120 up to 25 18 AWG
6-10 120 25-50 16 AWG
6-10 120 50-100 14 AWG
6-10 120 100-150 12 AWG
10-12 120 up to 25 16 AWG
10-12 120 25-50 16 AWG
10-12 120 50-100 14 AWG
10-12 120 100-150 12 AWG
12-16 120 up to 25 14 AWG
12-16 120 25-50 12 AWG
12-16 120

GREATER THAN 50 FEET NOT RECOMMENDED

USE PROPER EXTENSION CORDS.

Use proper extension cords. Make sure your extension
cord is in good condition and is a 3-wire extension cord
which has a 3-prong grounding type plug and a 3-hole
receptacle which will accept the tool’s plug. When
using an extension cord, be sure to use one heavy
enough to carry the current of the tool. An undersized
cord will cause a drop in line voltage, resulting in loss of
power and overheating. Fig. 17, shows the correct
gauge to use depending on the cord length. If in doubt,
use the next heavier gauge. The smaller the gauge
number, the heavier the cord.

CHANGING ABRASIVE SLEEVES
AND SANDING DRUMS

1. DISCONNECT THE TOOL FROM THE POWER
SOURCE.

2. Remove table insert (A) Fig. 20.

3. Use the supplied socket wrench (B) Fig. 20, to
remove the arbor screw counter-clockwise. Remove the
abrasive sleeve (C) with the sanding drum from the
spindle assembly.

B

B

B

C

A

ADAPTER

9

Fig. 21

4. Slide the used abrasive sleeve off the sanding drum.
Slide the new abrasive sleeve on(C) Fig. 21.

5. Attach the abrasive sleeve and sanding drum combina­tion (C) Fig. 20, firmly on the spindle adapter. Fasten with the
arbor screw (removed in STEP 2). Replace the table insert
with the arrows up.

ADJUSTING SPINDLE ASSEMBLY

If excessive play develops in the spindle assembly, or if the machine increases its noise level after extended use, make
the following adjustment to the spindle assembly.

1. DISCONNECT THE TOOL FROM THE POWER SOURCE.

2. Turn the machine over and place it on a firm supporting surface. Be careful not to damage the spindle assembly.

3. Remove the four mounting screws (A) Fig. 22 and remove the case (B) from the machine.

4. IMPORTANT: Shaft (C) Fig. 23, must be positioned inside the center of bracket (D). To adjust, loosen the two lock-
nuts (E) Fig. 23. Tighten or loosen the two adjusting screws (F) as necessary until the shaft (C) is centered inside the
bracket (D), with the adjustment screws (F) contacting the shaft. Tighten the two locknuts (E) Fig. 23.

5. Attach the case with the four screws removed in STEP 3.

Fig. 22

Fig. 23

OPERATION

Fig. 24, illustrates sanding inside curves.
IMPORTANT: Always sand against the rotation of the

sanding drum.

The oscillating action of the sanding drum minimizes
score marks and prevents clogging of the sanding drum,
providing faster, smoother sanding and increasing the
life of the sanding sleeve.

Fig. 24

C

D

E

F

C

A

A

10

Fig. 25

MAINTENANCE

After approximately 100 hours of use, the grease in the
gear housing should be checked and changed.

To gain access to the gear housing:

1. DISCONNECT THE TOOL FROM THE POWER
SOURCE.

2. Turn the machine over and loosen the two screws (A)
Fig. 25, and remove the cover (B).

3. Remove the old grease and repack the gears.

4. Replace the cover.

PARTS, SERVICE OR WARRANTY ASSISTANCE

All Delta Machines and accessories are manufactured to high quality standards and are serviced by a network
of Porter-Cable · Delta Factory Service Centers and Delta Authorized Service Stations. To obtain additional
information regarding your Delta quality product or to obtain parts, service, warranty assistance, or the
location of the nearest service outlet, please call 1-800-223-7278 (In Canada call 1-800-463-3582).

Delta will repair or replace, at its expense and at its option, any Delta machine, machine part, or machine accessory which
in normal use has proven to be defective in workmanship or material, provided that the customer returns the product pre­paid to a Delta factory service center or authorized service station with proof of purchase of the product within two years
and provides Delta with reasonable opportunity to verify the alleged defect by inspection. Delta may require that electric
motors be returned prepaid to a motor manufacturer’s authorized station for inspection and repair or replacement. Delta
will not be responsible for any asserted defect which has resulted from normal wear, misuse, abuse or repair or alteration
made or specifically authorized by anyone other than an authorized Delta Service facility or representative. Under no cir­cumstances will Delta be liable for incidental or consequential damages resulting from defective products. This warranty is
Delta’s sole warranty and sets forth the customer’s exclusive remedy, with respect to defective products; all other war­ranties, express or implied, whether of merchantability, fitness for purpose, or otherwise, are expressly disclaimed by Delta.

Delta Building Trades and Home Shop Machinery

Two Year Limited Warranty

Printed in U.S.A.

A

B

ACCESSORIES

A complete line of accessories is available from your Delta Supplier, Porter-Cable • Delta Factory Service Centers, and
Delta Authorized Service Stations. Please visit our Web Site

www.deltamachinery

.com

for a catalog or for the

name of your nearest supplier.

WARNING: Since accessories, other than those offered by Delta, have not been tested with this product, use of

such accessories could be hazardous. For

safest operation, use only Delta recommended accessories.

50-287 Mobile Base
50-780 Stand
31-781 Sanding Spindle Set

(1", 2" 3" rubber spindles

Drum plates, abrasive
sleeves and table inserts.)

31-782 3/4" Sanding Spindle Kit
31-783 1" Sanding Spindle Kit
31-784 1-1/2" Sanding Spindle Kit
31-785 2” Sanding Spindle Kit
31-786 3" Sanding Spindle Kit

Our abrasive sleeves come in 80, 120, and 150 grit, and can be ordered six to a package. Since these sleeves are too
numerous to list here, please refer to our catalog or your nearest supplier for more information.

The following are trademarks of PORTER-CABLE•DELTA (Las siguientes son marcas registradas de PORTER-CABLE S.A.): BAMMER®,
INNOVATION THAT WORKS

®

, JETSTREAM®, LASERLOC®, OMNIJIG®, POCKET CUTTER®, PORTA-BAND®, PORTA-PLANE®, PORTER-

CABLE

®

, QUICKSAND®, SANDTRAP®, SAW BOSS®, SPEED-BLOC®, SPEEDMATIC®, SPEEDTRONIC®, STAIR-EASE®, THE PROFESSION-

AL EDGE

®

, THE PROFESSIONAL SELECT®, TIGER CUB®, TIGER SAW®, TORQBUSTER®, WHISPER SERIES®, DURATRONIC™, FLEX™,

FRAME SAW™, MICRO-SET™, MORTEN™, NETWORK™, RIPTIDE™, TRU-MATCH™, WOODWORKER’S CHOICE™.
Trademarks noted with ® are registered in the United States Patent and Trademark Office and may also be registered in other countries.

Las Marcas Registradas con el signo de ® son registradas por la Oficina de Registros y Patentes de los Estados Unidos y también
pueden estar registradas en otros países.

PORTER-CABLE • DELTA SERVICE CENTERS

(CENTROS DE SERVICIO DE PORTER-CABLE

• DELTA)

Parts and Repair Service for Porter-Cable/Delta Power Tools are Available at These Locations

(Obtenga Refaccion de Partes o Servicio para su Herramienta en los Siguientes Centros de Porter-Cable

•

Delta)

Authorized Service Stations are located in many large cities. Telephone [phone] or 731-541-6042 for assistance locating one.
Parts and accessories for Porter-Cable

•

Delta products should be obtained by contacting any Porter-Cable•Delta Distributor,

Authorized Service Center, or Porter-Cable

•

Delta Factory Service Center. If you do not have access to any of these, call 888-848-

5175 and you will be directed to the nearest Porter-Cable

•

Delta Factory Service Center. Las Estaciones de Servicio Autorizadas están

ubicadas en muchas grandes ciudades. Llame al 800-487-8665 ó al 731-541-6042 para obtener asistencia a fin de localizar una. Las
piezas y los accesorios para los productos Porter-Cable

•

Delta deben obtenerse poniéndose en contacto con cualquier distribuidor

Porter-Cable

•

Delta, Centro de Servicio Autorizado o Centro de Servicio de Fábrica Porter-Cable•Delta. Si no tiene acceso a ninguna

de estas opciones, llame al 888-848-5175 y le dirigirán al Centro de Servicio de Fábrica Porter-Cable

•

Delta más cercano.

ARIZONA

Tempe 85282 (Phoenix)
2400 West Southern Avenue
Suite 105
Phone: [phone]
Fax: [phone]

CALIFORNIA

Ontario 91761 (Los Angeles)
3949A East Guasti Road
Phone: [phone]
Fax: [phone]

San Leandro 94577 (Oakland)
3039 Teagarden Street
Phone: [phone]
Fax: [phone]

FLORIDA

Davie 33314 (Miami)
4343 South State Rd. 7 (441)
Unit #107
Phone: [phone]
Fax: [phone]

Tampa 33609
4538 W. Kennedy Boulevard
Phone: [phone]
Fax: [phone]

GEORGIA

Forest Park 30297 (Atlanta)
5442 Frontage Road,
Suite 112
Phone: [phone]
Fax: [phone]

ILLINOIS

Addison 60101 (Chicago)
311 Laura Drive
Phone: [phone]
Fax: [phone]

Woodridge 60517 (Chicago)
2033 West 75th Street
Phone: [phone]
Fax: [phone]

MARYLAND

Elkridge 21075 (Baltimore)
7397-102 Washington Blvd.
Phone: [phone]
Fax: [phone]

MASSACHUSETTS

Braintree 02185 (Boston)
719 Granite Street
Phone: [phone]
Fax: [phone]

Franklin 02038 (Boston)
Franklin Industrial Park
101E Constitution Blvd.
Phone: [phone]
Fax: [phone]

MICHIGAN

Madison Heights 48071 (Detroit)
30475 Stephenson Highway
Phone: [phone]
Fax: [phone]

MINNESOTA

Minneapolis 55429
4315 68th Avenue North
Phone: [phone]
Fax: [phone]

MISSOURI

North Kansas City 64116
1141 Swift Avenue
P.O. Box 12393
Phone: [phone]
Fax: [phone]

St. Louis 63119
7574 Watson Road
Phone: [phone]
Fax: [phone]

NEW YORK

Flushing 11365-1595 (N.Y.C.)
175-25 Horace Harding Expwy.
Phone: [phone]
Fax: [phone]

NORTH CAROLINA

Charlotte 28270
9129 Monroe Road, Suite 115
Phone: [phone]
Fax: [phone]

OHIO

Columbus 43214
4560 Indianola Avenue
Phone: [phone]
Fax: [phone]

Cleveland 44125
8001 Sweet Valley Drive
Unit #19
Phone: [phone]
Fax: [phone]

OREGON

Portland 97230
4916 NE 122 nd Ave.

Phone: [phone]
Fax: [phone]

PENNSYLVANIA

Willow Grove 19090
520 North York Road
Phone: [phone]
Fax: [phone]

TEXAS

Carrollton 75006 (Dallas)
1300 Interstate 35 N, Suite 112
Phone: [phone]
Fax: [phone]

Houston 77055
West 10 Business Center
1008 Wirt Road, Suite 120
Phone: [phone]
Fax: [phone]

WASHINGTON

Renton 98055 (Seattle)
268 Southwest 43rd Street
Phone: [phone]
Fax: [phone]

Printed in U.S.A.

CANADIAN PORTER-CABLE • DELTA SERVICE CENTERS

ALBERTA

Bay 6, 2520-23rd St. N.E.
Calgary, Alberta
T2E 8L2
Phone: [phone]
Fax: [phone]

BRITISH COLUMBIA

8520 Baxter Place
Burnaby, B.C.
V5A 4T8
Phone: [phone]
Fax: [phone]

MANITOBA

1699 Dublin Avenue
Winnipeg, Manitoba
R3H 0H2
Phone: [phone]
Fax: [phone]

ONTARIO

505 Southgate Drive
Guelph, Ontario
N1H 6M7
Phone: [phone]
Fax: [phone]

QUÉBEC

1515 ave.
St-Jean Baptiste,
Québec, Québec
G2E 5E2
Phone: [phone]
Fax: [phone]

1447, Begin
St-Laurent, (Montréal),
Québec
H4R 1V8
Phone: [phone]
Fax: [phone]
