DV 5000 Series User Manual
Delstar DV 5400 Manual
Congratulations on your purchase of a Delstar DS 5400 Series TV/ MEDIA
PLAYER!
The Delstar DV 5400 is a high performance Portable Digital Television with a
fully functional Media Player. The DV 5400 has a dazzling 3.5” color screen
that performs the following capabilities: T.V player, e-book reader, calendar
viewer, picture viewer, Mp3 player, Video Player, Game Player and Built in
Microphone for Voice Recording. Its ATSC digital tuner will allow you to
receive and watch Digital Channels. Additionally, you can use the Micro SD
card slot to expand your storage memory.
Features:
Portable Digital T.V
Video Player
MP3 Music Player
Video Game Player
E-book Reader
Picture Viewer
3.5” LCD Screen
Supports 17 different languages
Voice Recorder via Built in Microphone
Micro SD memory slot (2GB capacity)
USB connection function
Built-in 4GB of internal memory
Built-in Lithium-ion Battery allows up to 4-5 hours of viewing time
Built in extendable digital Antenna
Package Contents:
Delstar DV 5400 TV/Media Player, USB 2.0 Transfer Cable, AC Adaptor,
Earphones, External Magnetic Antenna, and Manual

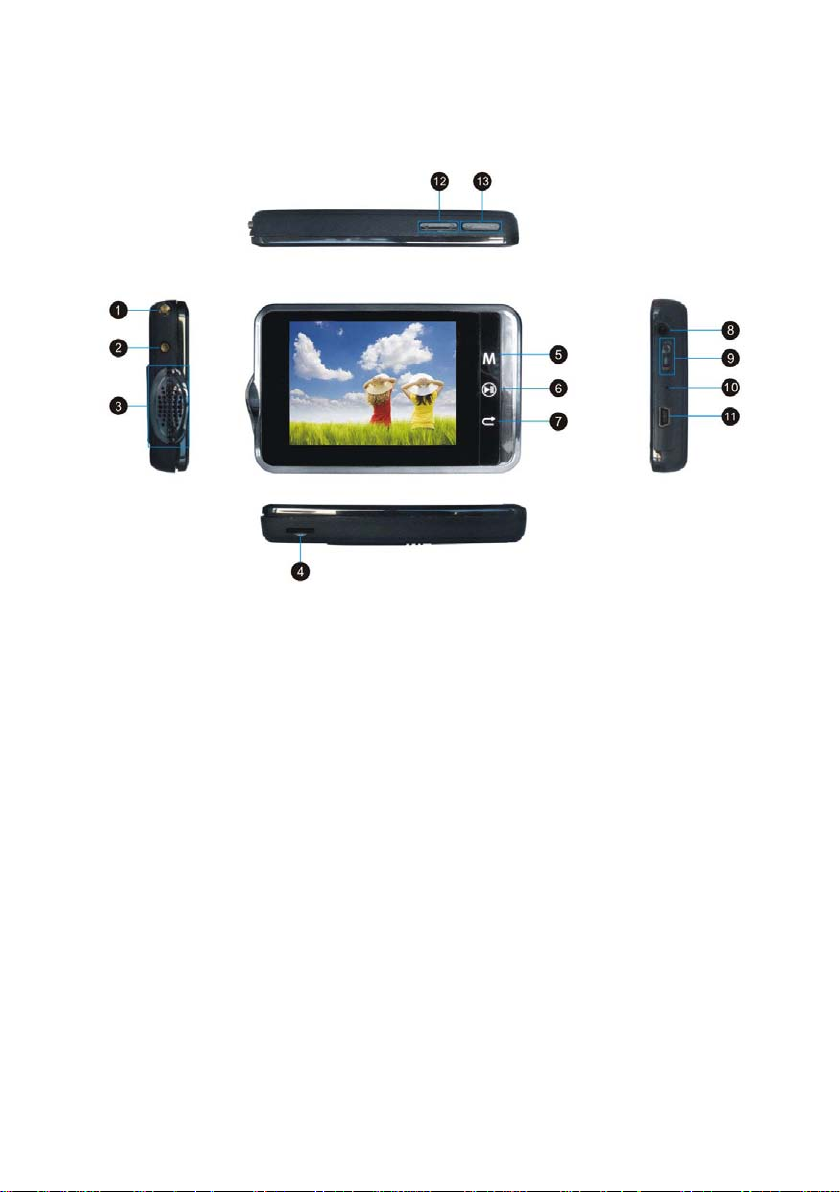

Delstar DV 5400 General View
1. Internal antenna- Extendable Telescoping Antenna
2. External Antenna slot- External Magnetic Antenna for optimum
reception(included)
3. Built in Speaker- Speaker for music and video playback
4. Micro SD Memory Card Slot- Insert microSD/microSDHC (up to 4GB)
5. Menu button- use to make selections
6. Play/Pause-Toggles between Play/Pause
7. Return- Navigates back to previous screen
8. Earphone Port- Insert headphones here
9. Power Switch- Slide up to turn on the player
10. MIC/Master Reset- Built-in microphone (internal), also use as Reset
Button
11. MINI USB port- Connect USB cable here
12. < and > buttons are the CH+/- buttons(These also allow you to
scroll through menu’s)
13. VOL+/- (Also allows you to scroll through menu’s)
Easy Usage
The DV 5400 is easy to use with three main buttons. You can always
use the Volume +/- button to browse up and down through menus,
and to highlight selections. Use the M button to choose or to make
your selections. Use the Return button to get back to the previous
screen.
Battery
The Delstar DV 5400 TV/Media Player comes with an internal
rechargeable battery. The battery is not user replaceable. Fully charge
the battery before you use the player for the very first time. We
recommend that your initial charge is 10 hours. After your initial chare,
it will only take up to 5 hours to fully charge the DV 5400. You can
charge your player using the USB port on your computer, but we
recommend that you use the ac wall charger (included).
NOTE: ATTEMPTING TO CHANGE THE BATTERY WILL VOID THE WARRANTY
NOTE: Some low-power USB ports may not provide enough power to charge
the DV 5400. If the device does not charge, use a USB port located at the
back of your computer.

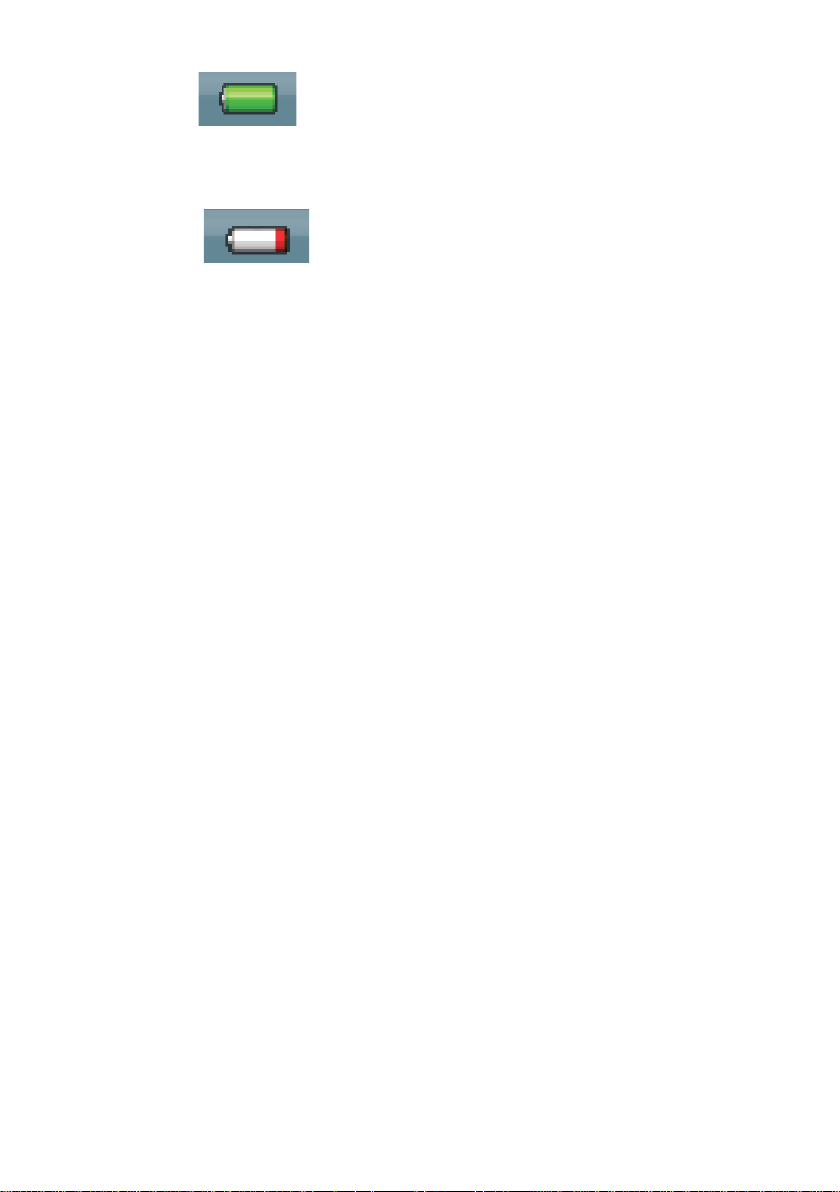

Battery Level Indicator
The battery level indicator is located at the top-right corner of the
screen.
Battery Full:
Battery Low:
Charging by AC adaptor
1. Take the supplied USB cable and connect the larger end to the
supplied AC wall adaptor.
2. Take the smaller end of the wire and connect it to your DV 5400 via
the USB port.
3. It will normally take 4-5 hours to achieve a full charge; this will
allow 3-5 hours of constant viewing time.
Charging by Computer
1. Connect the smaller end of the USB cable into the DV 5400.
2. Connect the larger end of the USB cable into an available USB port
on your computer.
3. The computer must be on for the USB port to charge the battery.
Your DV 5400 will show its connection screen The DV 5400 will be
charging while in this mode.
4. To stop recharging, simply disconnect the USB cable.
Main Menu Options
TV- allows you to scan for Digital Signals first, and subsequently watch the
digital stations you have located second.
Music – allows you to browse and listen to music, audio books, and
recordings The Music Menu includes: All Music, Artist, Album, Genre, My
Favorite, Record, Directory, and Update Media Library.
Video – allows you to browse and watch videos.
Photo – allows you to browse and view photos.
Record – allows you to do voice recording using the built-in microphone.
E-Book- allows you to read your electronic books (must be in TXT format)
Tools- allow you to utilize the stopwatch, and the calendar tools.
Game- allows you to play two of the built in games: Slide and Tetris
Explorer- allows you to manage all files stored on either the internal memory
(4GB), or the micro SD card (up to 4GB)
Settings- allows you to manipulate the system settings to your personal
preferences. The Settings menu includes: Display Setting, System Settings,
Desktop wallpaper, Date and Time, Language, System Information, and
Automatic Shut Off Time.
Basic Usage
Power Switch
The power switch, located on the right side of the unit, is used to turn
the player on or off (see general view).
Power On
Slide the Power switch up to turn on the player. The Delstar logo will
be the first thing to appear on the screen. The Main Menu will appear
after it has been booted up, and you will see the TV icon blinking.
Power Off
Slide the Power switch up and hold it for about 2 seconds to turn off
the player.
Reset
To reset your player, use a bent paper clip to push the reset button in;
you should feel it click over. You will see the screen shutoff and reboot.
Connecting the DV 5400 to your Computer to Manage files
1. Connect the larger end of the USB cable into an available USB port on your
computer.
2. Connect the smaller end of the USB cable into the USB port of your player.
3. Your player will show a picture of a computer on the display screen; this
indicates that it is connected to your computer.

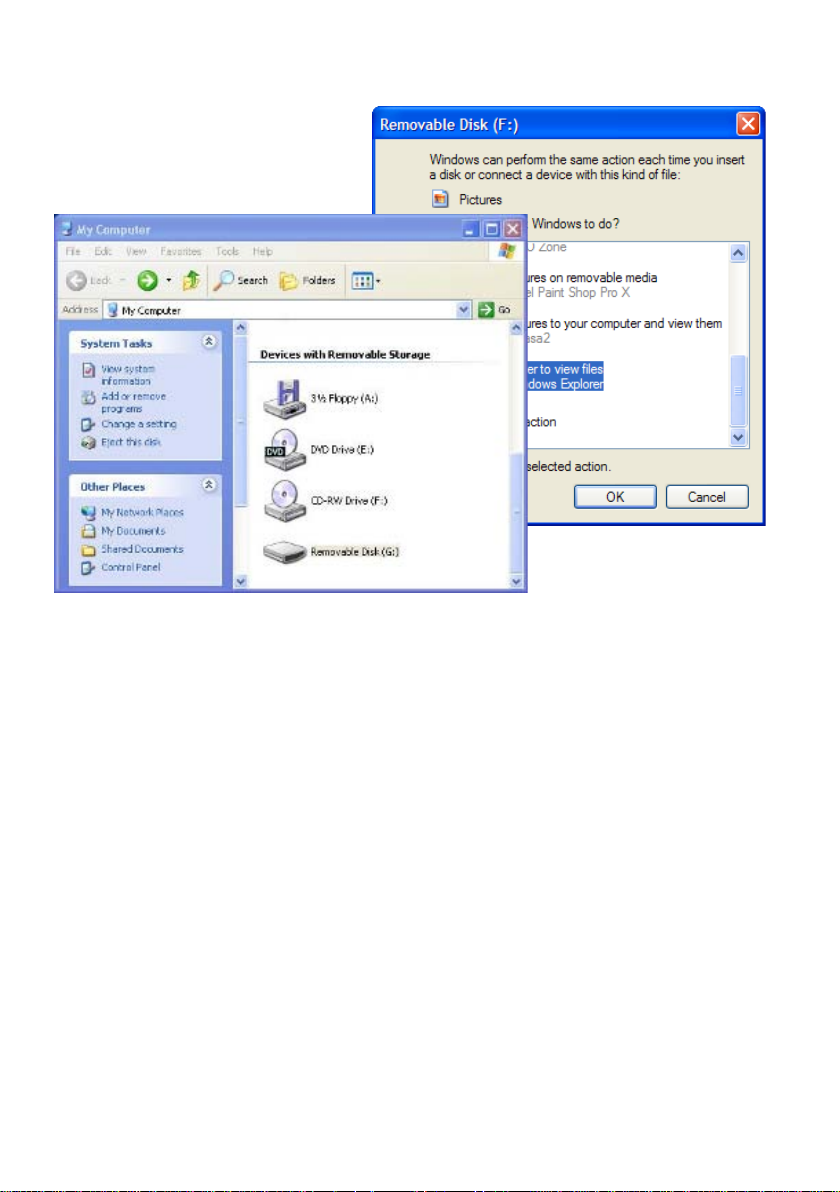

4. Your computer will recognize the DV 5400 and display the “removable
disk“popup menu (shown below) asking you what you would like to do with
the drive.
4. You will be able to access the DV 5400 in My Computer as a “Removable
Disk” (shown below). If you have a SD card installed in the DV 5400 then you
will see two “Removable Disk” icons in “My Computer”, one will manage all
the files on the internal memory of the player (4GB), and the other will allow
you to manage all files stored on the external memory of the SD card.
Removing the player from your computer:
WARNING: Do not disconnect the player while it is transferring data!
Disconnecting the player from the computer while data is being
transferred may damage the player.
Windows – Simply disconnect the USB cable from the player after you
have finished charging, transferring, firmware upgrading, or
synchronizing files.
Mac – Eject the removable disk by dragging the icon to the Trash and
then disconnect the USB cable.
Updating the Firmware:
Delstar occasionally releases firmware updates, which may include
new features and performance enhancements. To ensure your Delstar
DV5400 has the latest firmware, please contact Delstar or visit our
website www.delstar.net
System Setting>Upgrade.
Restorable
To restore the DV 5400 to its original settings, simply go to the Main
Menu, select System Settings, and select Restorable. Choose yes.
TV
On the main menu, use the Volume+/- buttons to highlight “TV”, press
the M button to enter the TV menu; you will see the following options:
Channel, Program Guide, Search Channel, and TV Settings. Use the
Volume +/- buttons to browse through the menu, and then use the M
button to choose your selection.
. To upgrade the Firmware Go to Setting>

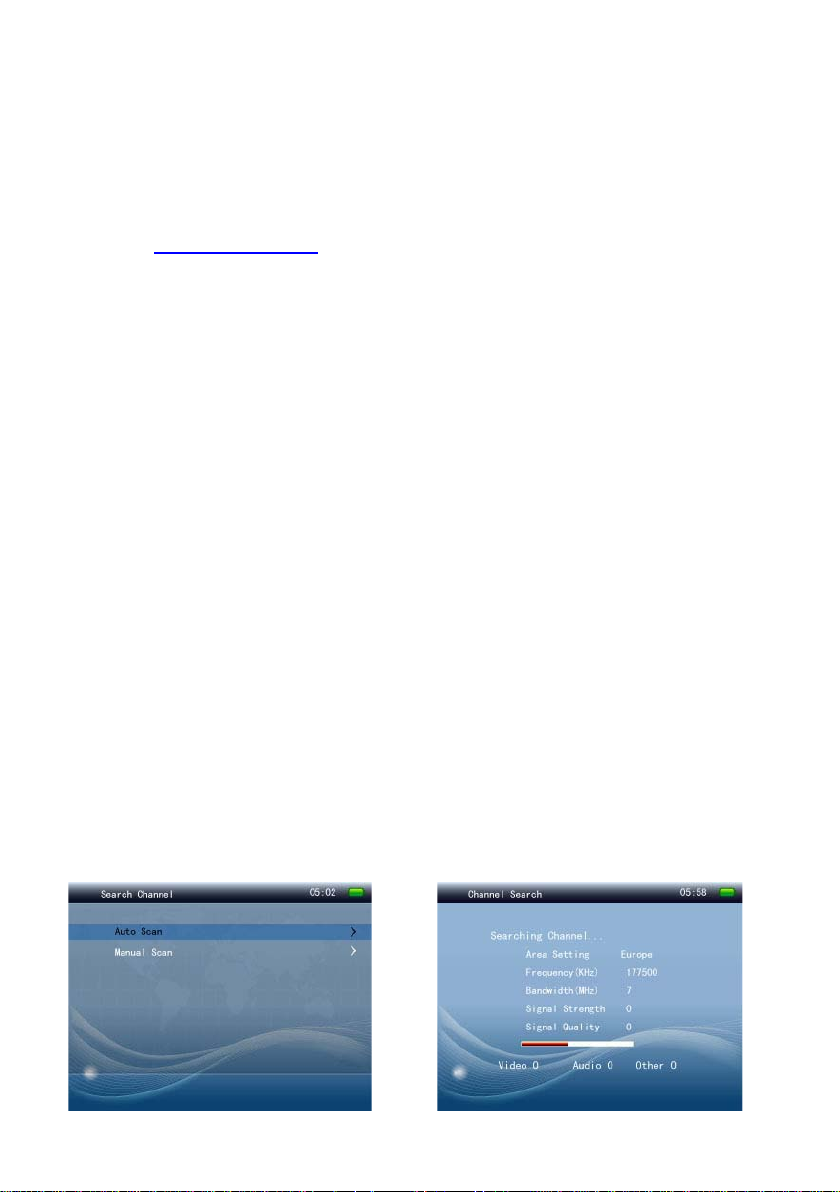

Searching For a Channel
AUTO SCAN
In the TV Settings menu select Search Channel, there will be two
options there Auto Scan, and Manual Scan.
