CAR AUDIO
DC24
Model Name: DC24
Order Number: AU10140-12B1
EAN Number: 5012759408759
Features
24 V DC to 12 V DC Voltage Converter
7 A Continuous Output Current (12 A Max)
Low Standby Current Consumption: < 2.0 mA
Dual Output: Constant and Switched Output
(Controlled by additional Ignition Input)
Extreme Robust + Safe
For Commercial Vehicles Infotainment Applications
1
2
3
Delphi Deutschland GmbH · Delphiplatz 1 · D-42119 Wuppertal · www.delphigrundig.com
Copyright by Delphi Grundig · Technical information, delivery options and modifications are subject to change without notice

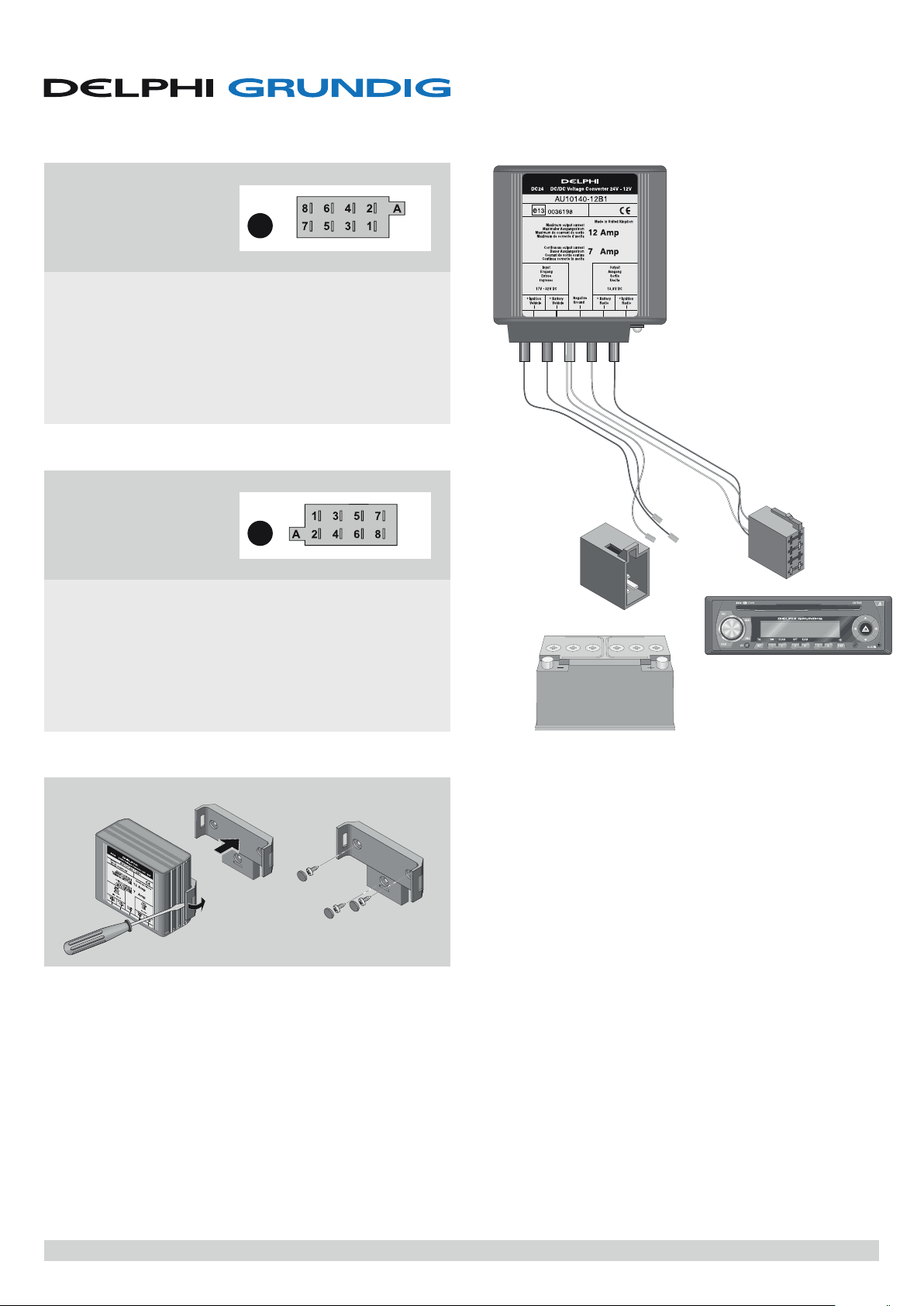

Input (24 Volt)
ISO plug not connected
to wire
Connections ...........................................................Electrical Application
PIN A1 .................................................................................................... –
PIN A2 ................................................................................................... –
PIN A3 ................................................................................................... –
PIN A4 .............................................................+17-32 V Permanent Power
PIN A5 .................................................................................................... –
PIN A6 ...................................................................................................–
PIN A7 ........................................+17-32 V Ignition Voltage (Switched Plus)
PIN A8 ..........................................................................................Ground
A
Output (12 Volt)
ISO plug connected to wire
Connections ...........................................................Electrical Application
PIN A1 ....................................................................................................–
PIN A2 ................................................................................................... –
PIN A3 ................................................................................................... –
PIN A4 ................................................................. +12 V Permanent Power
PIN A5 .................................................................................................... –
PIN A6 ...................................................................................................–
PIN A7 ............................................ +12 V Ignition Voltage (Switched Plus)
PIN A8 ..........................................................................................Ground
A
24 Volt
Fixation
