Delphi DS100E User Manual

Delphi Diagnostics
DS100E user manual version 7.0
Software Version 1.17.0

2

1. S

ummary

1 Summary

2 Copyright/Trademark
3 About the DS100E
4 Main functions of the DS100E tool
5 OBD
6 EOBD
7 Configuration “characteristics”
8 DS100E print Function Instructions
9 Warranty
10 Support
11 Abbreviations
12 Help Programme
13 Technical problems

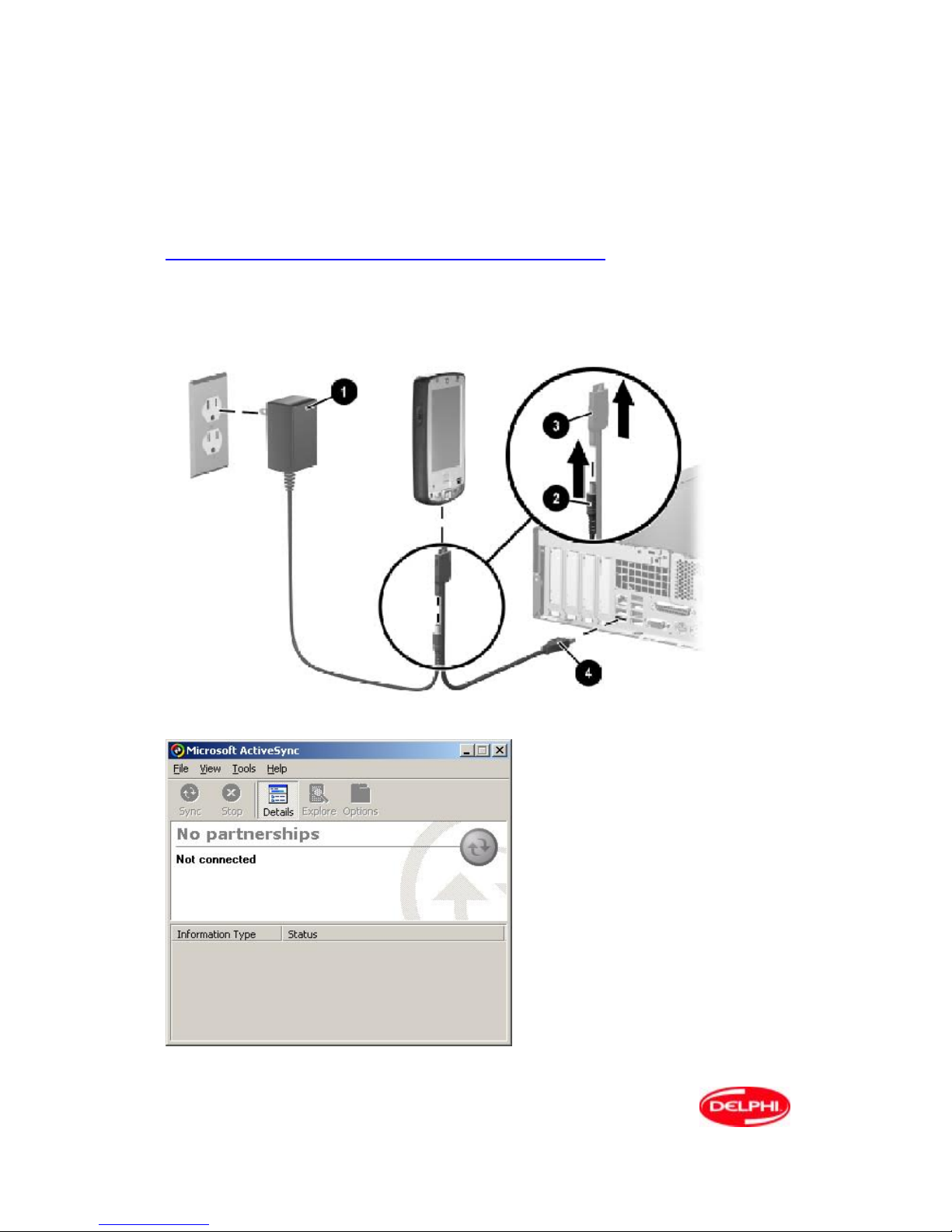

14 Active Sync.

15 Install Software Update

2

3
3
5
7
21
27

32

38
38
38

38
39
42
44

3

2. Copyright/trademarks

Not to be reproduced in any manner without the written consent of Delphi Corporation, Troy Michigan.
Copyright protected since 2005.

3. About the DS100E

- DS100E is a microcomputer-based interface for vehicle electronics.

- DS100E allows troubleshooting and repair of electronic systems in vehicles.

- DS100E is a user-friendly, fast and precise diagnostic tool. The system has a very comprehensive
vehicle database which is regularly updated and expanded.

- DS100E is Pocket PC-based software which, together with the hardware, is designed for the rugged
conditions in workshops.

Serial communication with system such as engine, ABS, SRS, ACC etc.

- Read and delete fault codes.

- Extinguish service lamps

- Activate components.

- Full eOBD functionality (CAN, J1850, KWP2000, and ISO9141).

Basic equipment.

- OBD interface with Bluetooth® connection (including 16-pin OBD connection).

- Diagnostic program on SD card.

- User manual.

- Ruggedised Case.

4

Description of the key parts.

Interface Module (VCI) with 16 pin eOBD
socket.

The number of the VCI, is the serial
number on the bottom of the unit.

Pocket PC with ruggedised case

5

DS100E Start up.

To start the DS100, with a 2190B unit, press the power button located on the top right of the
PDA. On the 114 the power button is located on the top right hand edge, as shown.

4. Main functions of the DS100E tool

To start the diagnostic program, click on icon DS100E beside the red point.

It is possible to choose between the buttons OBD, eOBD, characteristics and In connection
with...

HP2190B

HP114

6

Definition of the buttons

OBD (On-Board Diagnostics). For reading fault codes and parameters from the relevant

system (engine, ABS, SRS, ACC, etc.) via the vehicle’s diagnostic system.

eOBD (European On-Board Diagnostics). For reading fault codes and parameters
according to the eOBD standard via the vehicle’s diagnostic system, eOBD. Applies to
emission related systems such as the engine and gearbox.

Settings. Entry of workshop information, language settings, hardware settings and
version information.

Exit

Help

State of battery charge

7

5. OBD

Since 1994-1996, most new cars have been fitted with a 16-pin diagnostic socket. According to the
standard, the socket must be located within a radius of one metre from the driver’s seat, usually under
or close to the dashboard.

OBD (On-Board Diagnostics) is a diagnostic function built into the vehicle for reading fault codes and
parameters from relevant systems (engine, ABS, SRS, ACC, etc.). To start OBD communication, click
OBD in the main menu.

After each menu choice there are the options “Next” (arrow to the right) and “Back” (arrow to the left).

Step 1: Choose the vehicle Manufacturer, then
click

or

Press history button to see most recent
entries.

NOTE: Some vehicles support a scan function which enables all ECU’s on the vehicle to be scanned

and fault codes read.

Step 2: Choose model and click Red arrow .

8

Step 3 Choose model year and click forward
arrow.

Note any instructions indicated in the message
box ( 10th digit in vin number=S)

Step 4: Choose type of system. There are thirteen
types of system to choose from in DS100E; see
opposite.

Click right arrow to advance, left arrow to go back
to previous screen.

9

Ignition systems.

Fuel systems.

Engine.

Diesel.

A.B.S. Anti-lock braking system

Instruments.

Transmission.

Immobiliser.

SRS Airbag.

AC (Air Conditioning).

Multi-function (radio, 4WD, Chassis
etc.).

TCS (traction control system).

Service light reset (S.L.R.)

10

Information. Click the information button to find

out where your engine code is located.

Step 6: Choose a system and click forward arrow.

Step 5: Choose engine code and click. Forward

arrow. For information about the location of the
engine code, click “Information”.

11

Step 7: Choose manual or automatic transmission

and click forward arrow.

Step 8: Start the diagnosis. Follow the instructions and then click “OBD”. For information about engine
code location (red cursor), diagnosis socket (yellow cursor) or control unit (green cursor) click
“Information”.

12

Connection to the vehicle.

Select the button shown to obtain the cable
type and Delphi cable part number for the
vehicle.

Example of BMW cable for older models. Click on
return arrow, to move back to previous screen.

13

Step 9 Option 2: Reading and erasing fault
codes, Real Time Data and component
activation will vary with the version
purchased. (Plus or Max)

List of cable references

including external power cable

for items marked 1 opposite.

Example of cables available.

14

Read the error code, click on the arrow to return
to the previous screen.

If you wish to print a copy of the fault code,
press the print icon and follow the on-screen
instructions.
If the printer is not set up , go to page 32

Erase the fault codes by clicking on the
dustbin Icon.

15

Click on the item to be checked and it will appear in the lower box. Scroll up and down the list
with the red arrows shown.

To activate a component, select it from the list
and then click the red arrow. To stop the
activation click on the red square.

Note: Carry out these tests with the engine off.
